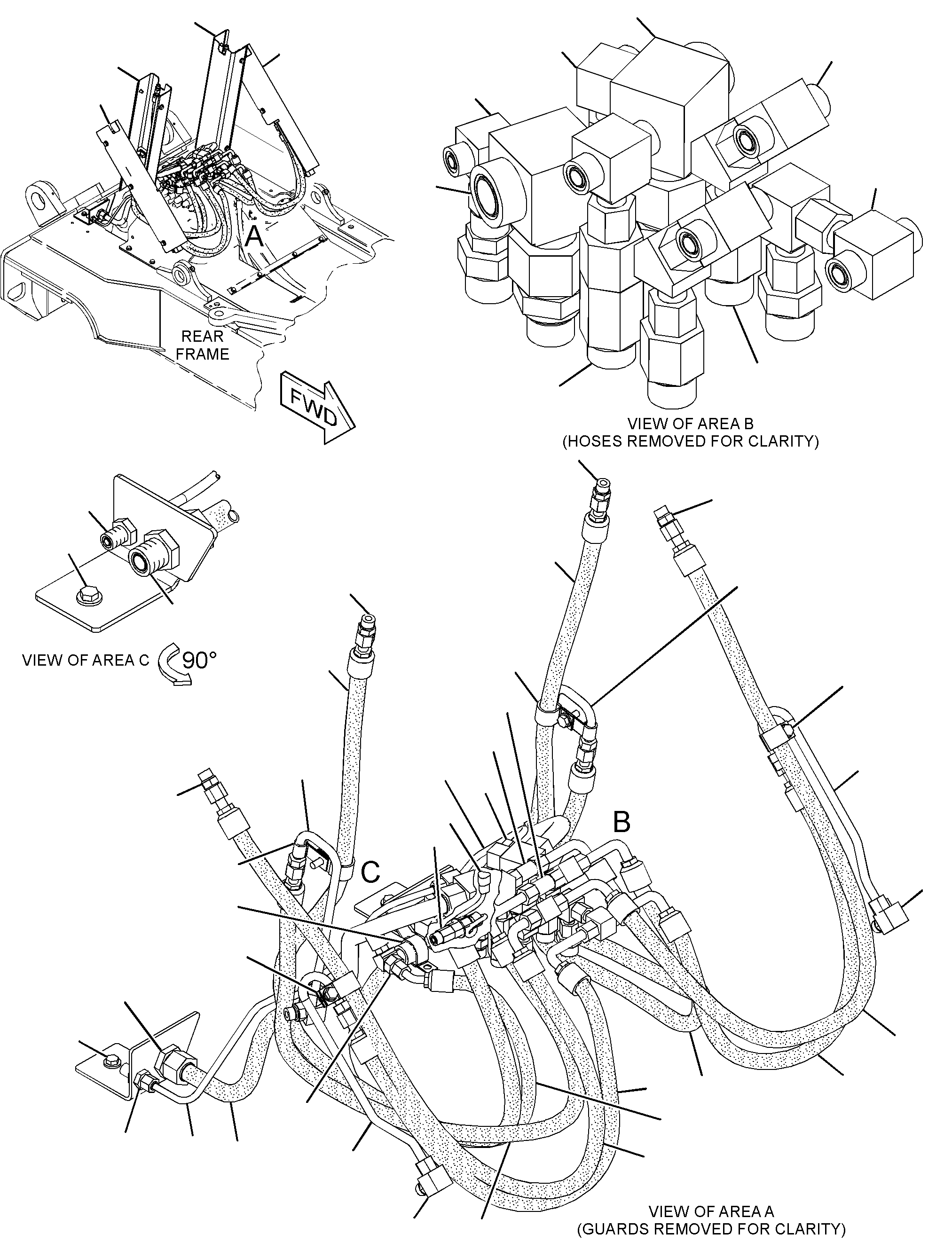

299-7624 LINES GP-GRAPPLES/N 535579-646
Group No: 299-7624 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2992272 | 1 HOSE AS | 1 | |
| 1646871 | 4 ADAPTER AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 2052357 | 5 CONNECTOR AS | 3 | |
| 8T7968 | CONNECTOR | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 2370957 | 6 SENSOR GP-PRESSURE (GRAPPLE OIL) | 1 | |
| 3821307 | 7 TUBE AS | 1 | |
| 3821305 | 8 TUBE AS | 1 | |
| 3821306 | 9 TUBE AS | 1 | |
| 3821308 | 10 TUBE AS | 1 | |
| 2681514 | 11 UNION AS | 2 | |
| 8C8493 | UNION | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 2790201 | 12 HOSE AS | 1 | |
| 2929798 | 13 HOSE AS | 2 | |
| 2963981 | 14 TUBE AS | 1 | |
| 2963982 | 15 TUBE AS | 1 | |
| 2963983 | 16 TUBE AS | 2 | |
| 2963984 | 17 HOSE AS | 2 | |
| 3831470 | 18 HOSE AS | 1 | |
| 2963988 | 19 HOSE AS | 1 | |
| 2963989 | 20 GUARD | 1 | |
| 2963990 | 21 GUARD | 1 | |
| 2963991 | 22 GUARD | 2 | |
| 1488312 | 23 ADAPTER AS | 1 | |
| 3T4965 | ADAPTER | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 1488317 | 24 CONNECTOR AS | 2 | |
| 6V8714 | CONNECTOR | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1488328 | 25 CONNECTOR AS | 3 | |
| 6V8633 | CONNECTOR | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488340 | 26 CONNECTOR AS | 4 | |
| 6V8639 | CONNECTOR | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488352 | 27 ELBOW AS | 2 | |
| 6V9854 | ELBOW (SWIVEL) | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1488353 | 28 ELBOW AS | 1 | |
| 6V9001 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488364 | 29 ELBOW AS | 4 | |
| 6V8625 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488367 | 30 ELBOW AS | 2 | |
| 6V9850 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488370 | 31 ELBOW AS | 1 | |
| 6V9851 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488415 | 32 REDUCER AS | 2 | |
| 6V8936 | REDUCER | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1495452 | 33 UNION AS (STRAIGHT) | 2 | |
| 6V8994 | UNION (STRAIGHT) | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 1504037 | 34 TEE AS | 4 | |
| 6V9844 | TEE-SWIVEL | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1536241 | 35 ELBOW AS | 2 | |
| 8C8989 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1536248 | 36 ADAPTER AS | 1 | |
| 8T6663 | ADAPTER-PORT | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 2977958 | 37 ADAPTER AS | 1 | |
| 2053079 | ADAPTER | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 4S4455 | 38 CLIP | 1 | |
| 2P1293 | 39 LOCKNUT (1-3/16-12-THD) | 2 | |
| 4D9517 | 40 CLIP | 2 | |
| 4S1962 | 41 CLIP (LOOP) | 4 | |
| 5P9299 | 42 CLIP (LOOP) | 2 | |
| 6M5062 | 43 SEAL-O-RING | 1 | |
| 6V8398 | 45 SEAL-O-RING | 4 | |
| 6V9168 | 46 NUT (11/16-16-THD) | 2 | |
| 7X7729 | 47 WASHER (11X25X3-MM THK) | 2 | |
| 8T4121 | 48 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4136 | 50 BOLT (M10X1.5X25-MM) | 6 | |
| 8T4179 | 51 BOLT (M12X1.75X20-MM) | 18 | |
| 8T4223 | 52 WASHER-HARD (13.5X25.5X3-MM THK) | 18 | |
| 2114041 | 54 ADAPTER AS | 2 | |
| 2114040 | ADAPTER | 1 | |
| 6V8398 | SEAL-O-RING | 1 |
