System And Components

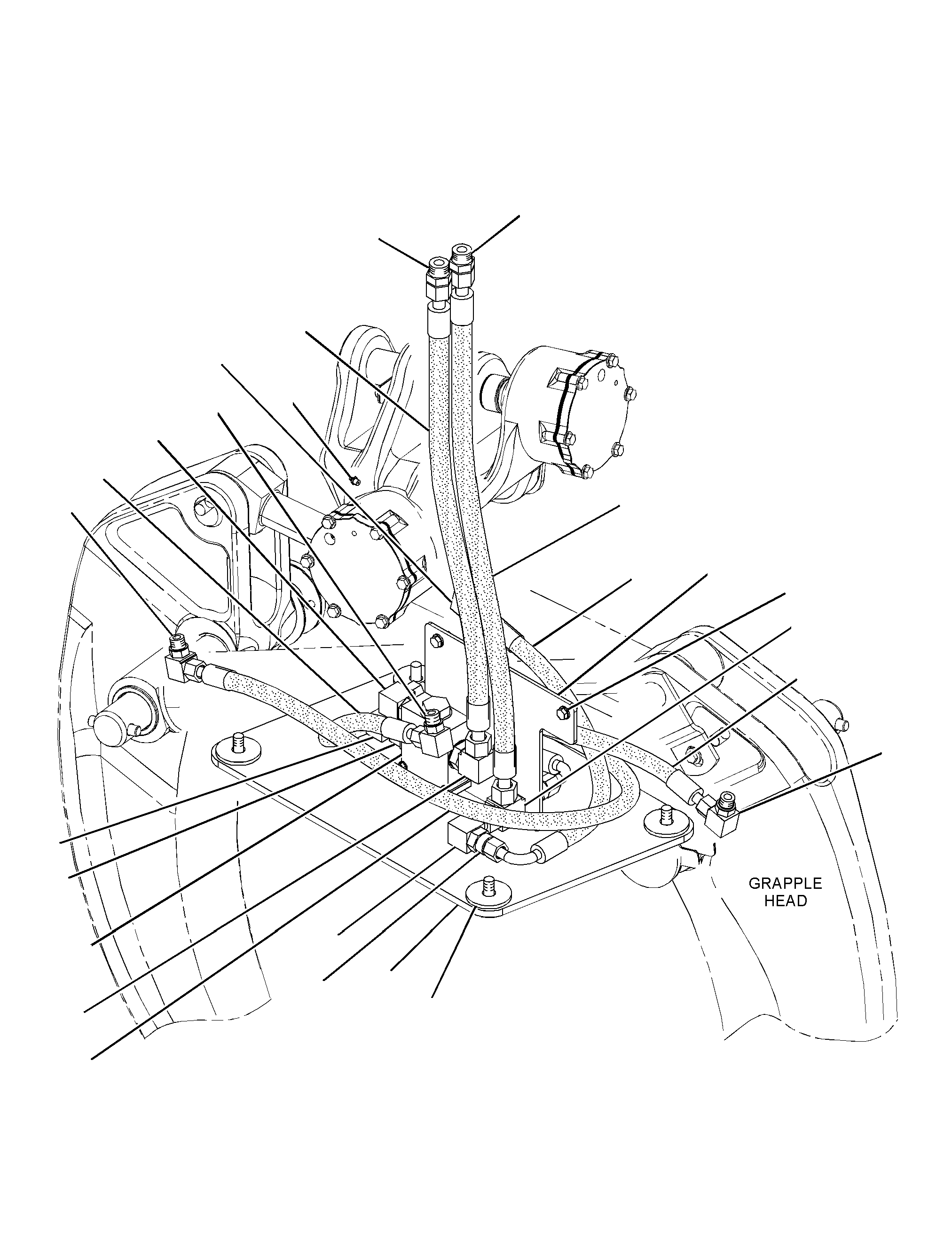

276-1936 LINES GP-GRAPPLE HEADS/N 5351-UP
Group No: 276-1936 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3B8489 | 1 FITTING-GREASE (1/8-27 PTF) | 1 | |
| 1488341 | 2 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8713 | CONNECTOR | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1646862 | 3 TEE AS | 1 | |
| 6V9160 | TEE-FACE SEAL | 1 | |
| 6V9746 | SEAL-O-RING | 3 | |
| 2884797 | 4 HOSE AS | 1 | |
| 2761957 | 5 HOSE AS | 1 | |
| 2761960 | 6 HOSE AS | 1 | |
| 2761961 | 7 HOSE AS | 1 | |
| 2884795 | 8 HOSE AS | 1 | |
| 2884796 | 9 HOSE AS | 1 | |
| 2762031 | 10 PLATE AS | 1 | |
| 2875787 | 11 PLATE AS | 1 | |
| 2765034 | 12 VALVE GP-DIVERTER (GRAPPLE HEAD) | 1 | |
| 1488360 | 13 ELBOW AS | 1 | |
| 6V9182 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488390 | 14 ELBOW AS | 4 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8626 | ELBOW | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488392 | 15 ELBOW AS | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 6V9853 | ELBOW | 1 | |
| 1488393 | 16 ELBOW AS | 1 | |
| 6V9852 | ELBOW (SWIVEL) | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488414 | 17 REDUCER AS | 2 | |
| 6V8943 | REDUCER | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1654927 | 18 CONNECTOR AS | 2 | |
| 2T2991 | CONNECTOR | 1 | |
| 4K1388 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 2P1293 | 19 LOCKNUT (1-3/16-12-THD) | 1 | |
| 8T4121 | 20 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4136 | 21 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4224 | 22 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T4779 | 23 BOLT (M16X2X35-MM) | 4 | |
| 8T6870 | 24 BOLT (M8X1.25X70-MM) | 2 | |
| 9X8257 | 25 WASHER (17.5X30X3.5-MM THK) | 4 | |
| 1488382 | 26 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 8T0404 | ELBOW | 1 |
