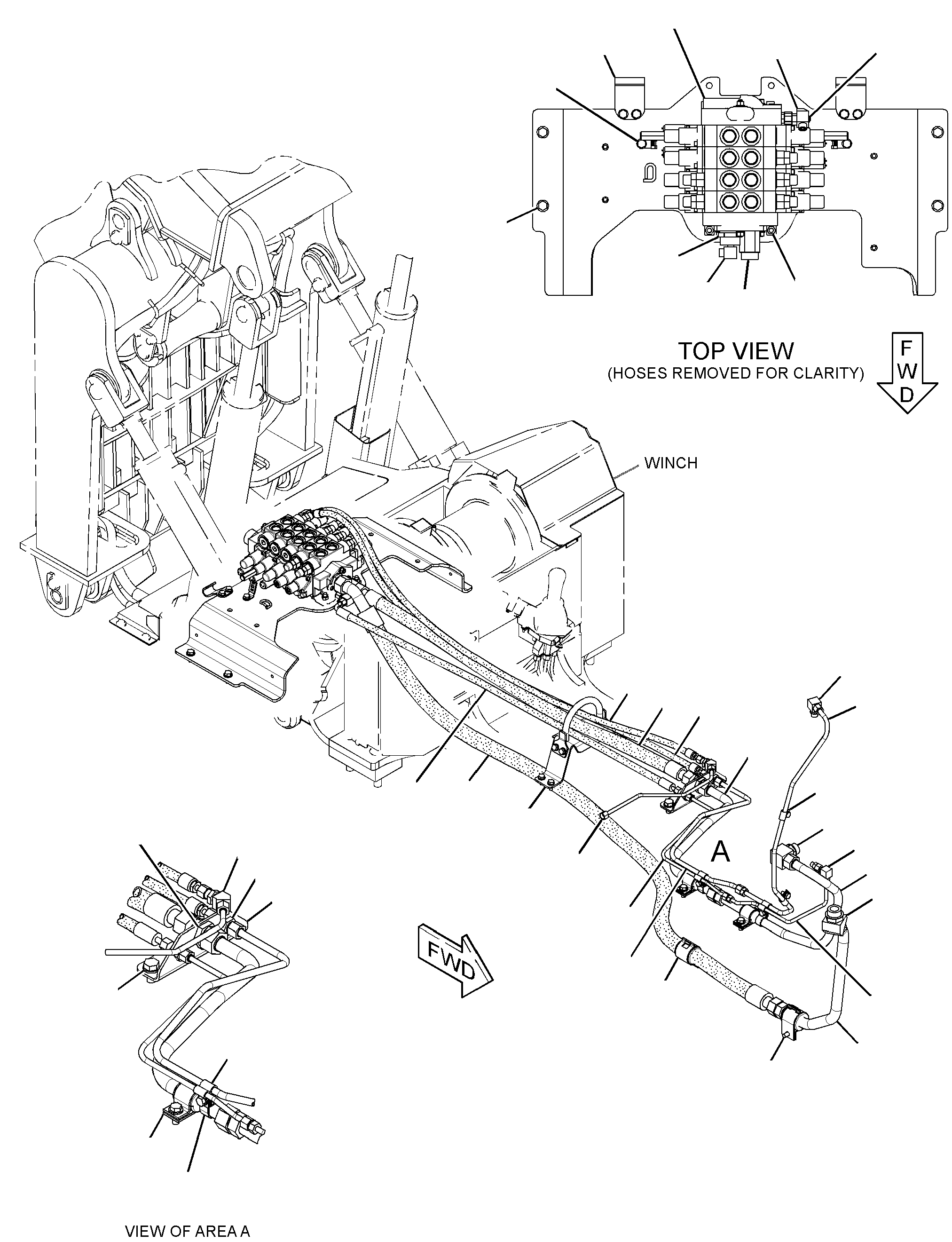

280-2670 VALVE & LINES GP-GRAPPLE -DUAL FUNCTIONS/N 5351-499
Group No: 280-2670 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1279323 | 1 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 2076069 | 2 PLATE | 2 | |
| 2999531 | 3 VALVE GP-BANK 5 (GRAPPLE, WINCH CONTROL) | 1 | |
| 2588870 | 4 MOUNTING GP-BANK VALVE (GRAPPLE) | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 10 | |
| 7T1099 | LINK | 1 | |
| 2691892 | 5 HOSE AS | 1 | |
| 2765657 | 6 TUBE AS | 1 | |
| 2967518 | 7 TUBE AS | 1 | |
| 2765659 | 8 TUBE AS | 1 | |
| 2967517 | 9 TUBE AS | 1 | |
| 2765661 | 10 TUBE AS | 1 | |
| 2951906 | 11 TUBE AS | 1 | |
| 2765663 | 12 TUBE AS | 1 | |
| 2765667 | 13 HOSE AS | 1 | |
| 2765669 | 14 HOSE AS | 1 | |
| 2765670 | 15 PLATE AS | 1 | |
| 2765673 | 16 BRACKET AS | 1 | |
| 2765675 | 17 BAR AS | 1 | |
| 2794149 | 18 TUBE AS | 1 | |
| 2794340 | 19 HOSE AS | 1 | |
| 2794342 | 20 HOSE AS | 1 | |
| 1488326 | 21 CONNECTOR AS | 2 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9872 | CONNECTOR | 1 | |
| 1488330 | 22 CONNECTOR AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8T0198 | CONNECTOR | 1 | |
| 1488333 | 23 CONNECTOR AS | 1 | |
| 6V8400 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8T7927 | CONNECTOR | 1 | |
| 1488336 | 24 CONNECTOR AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488364 | 25 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8625 | ELBOW | 1 | |
| 1488366 | 26 ELBOW AS | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8987 | ELBOW | 1 | |
| 1488367 | 27 ELBOW AS | 3 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9850 | ELBOW | 1 | |
| 1488371 | 28 ELBOW AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8C8988 | ELBOW | 1 | |
| 1488457 | 29 UNION AS (STRAIGHT) | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V8995 | UNION (STRAIGHT) | 1 | |
| 1495452 | 30 UNION AS (STRAIGHT) | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8994 | UNION (STRAIGHT) | 1 | |
| 1536238 | 31 ELBOW AS | 1 | |
| 2S4078 | SEAL-O-RING | 1 | |
| 6V8400 | SEAL-O-RING | 1 | |
| 6V9006 | ELBOW | 1 | |
| 1552026 | 32 UNION AS | 1 | |
| 5K9090 | SEAL-O-RING | 2 | |
| 6V8998 | UNION | 1 | |
| 1557328 | 33 ELBOW AS | 1 | |
| 5P7701 | SEAL-O-RING | 1 | |
| 6V9008 | ELBOW | 1 | |
| 8C3093 | SEAL-O-RING | 1 | |
| 4P8134 | 34 CLIP (LADDER) | 2 | |
| 5K9090 | 35 SEAL-O-RING | 1 | |
| 5P7464 | 36 CLIP (SLOT) | 2 | |
| 5P7465 | 37 CLIP (TAB) | 2 | |
| 5P7468 | 38 CLIP (SLOT) | 2 | |
| 5P7469 | 39 CLIP (TAB) | 2 | |
| 5P9297 | 40 CLIP (LOOP) | 2 | |
| 5P9299 | 41 CLIP (LOOP) | 4 | |
| 6V0545 | 42 GROMMET | 1 | |
| 6V1874 | 43 GROMMET (31-MM ID) | 1 | |
| 6V7359 | 44 GROMMET (25-MM ID, 37-MM OD) | 2 | |
| 6V8397 | 45 SEAL-O-RING | 1 | |
| 6V8398 | 46 SEAL-O-RING | 1 | |
| 6V8400 | 47 SEAL-O-RING | 1 | |
| 6V9168 | 48 NUT (11/16-16-THD) | 2 | |
| 6V9172 | 49 NUT (1-7/16-12-THD) | 1 | |
| 7C4354 | 50 CLIP | 2 | |
| 7X2552 | 51 BOLT (M16X2X30-MM) | 2 | |
| 8T4121 | 52 WASHER-HARD (11X21X2.5-MM THK) | 22 | |
| 8T4133 | 53 NUT (M10X1.5-THD) | 6 | |
| 8T4136 | 54 BOLT (M10X1.5X25-MM) | 12 | |
| 8T4137 | 55 BOLT (M10X1.5X20-MM) | 4 | |
| 8T4139 | 56 BOLT (M12X1.75X30-MM) | 7 | |
| 8T4182 | 57 BOLT (M10X1.5X45-MM) | 3 | |
| 8T4185 | 58 BOLT (M10X1.5X50-MM) | 1 | |
| 8T4195 | 59 BOLT (M10X1.5X30-MM) | 3 | |
| 8T4223 | 60 WASHER-HARD (13.5X25.5X3-MM THK) | 7 | |
| 9X8257 | 61 WASHER (17.5X30X3.5-MM THK) | 2 | |
| 6V9169 | 62 NUT (13/16-16-THD) | 1 |
