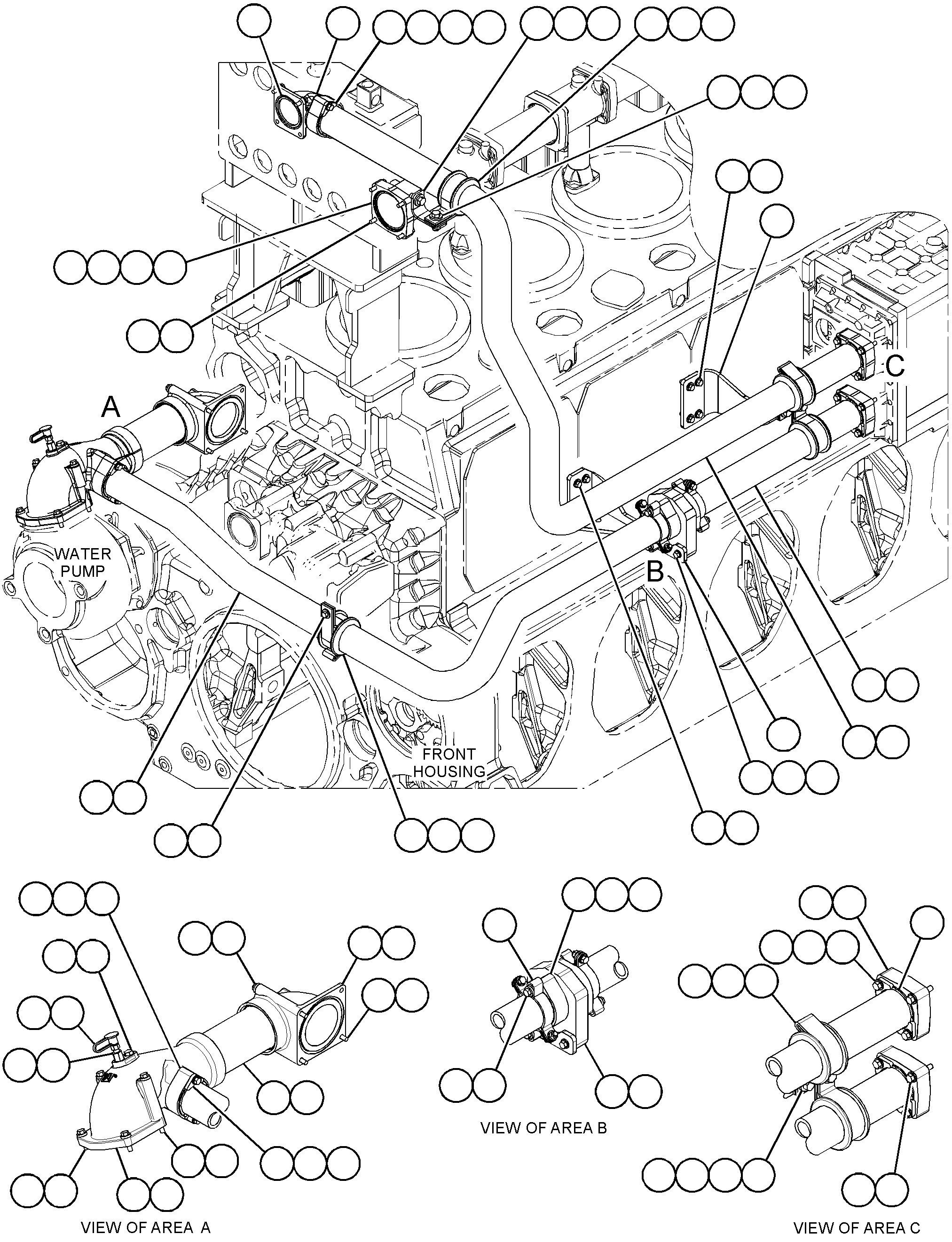

Assembly
100%

423-3322 LINES GP-WATER (CHG -00 THRU -07)JACKET WATER

Group No: 423-3322
Part NumberPart NameQty
1W35911 ELBOW1
1W40722 RETAINER8
1W40993 RING-RETAINING4
7E72094 RING-RETAINING2
9Y20995 FLANGE3
1W35926 TUBE1
24847927 CLAMP AS4
35454298 FLANGE1
36784809 GROMMET4
384123710 FLANGE2
389835811 BRACKET1
423336112 ELBOW1
423902213 TUBE AS1
485135514 TUBE AS1
423902515 TUBE1
423903116 BRACKET1
423903217 SPACER (13.8X30.0X17.4-MM THK)2
425604518 PLATE1
425604619 BRACKET AS1
442946320 ELBOW1
444036921 TUBE1
0L114322 BOLT (3/8-16X2.5-IN)4
0L135223 BOLT (3/8-16X3.25-IN)4
165393124 BOLT (3/8-16X1.75-IN)4
0S158725 BOLT (1/2-13X1.75-IN)1
0S159026 BOLT (3/8-16X2-IN)4
165392927 BOLT (3/8-16X1.5-IN)2
0S159428 BOLT (3/8-16X1-IN)2
0S159529 BOLT (1/2-13X1.25-IN)1
154902530 VALVE-SAMPLING (COOLANT)1
157067031 CAP-DUST1
1A202932 BOLT (3/8-16X1.125-IN)12
1D470633 BOLT (3/8-16X6-IN)2
1F795834 NUT-FULL (1/2-13-THD)3
200641035 SEAL-O-RING1
288547636 SEAL-O-RING6
2W502337 GASKET1
3B191538 BOLT (3/8-16X1.375-IN)8
3V330839 WASHER-HARD (10.2X20.5X2.5-MM THK)31
5B263840 BOLT (3/8-16X5.25-IN)2
5P350141 ADAPTER1
6V325042 SEAL-O-RING2
6V506843 SEAL-O-RING1
6V513944 SEAL-O-RING4
6V680945 SEAL-O-RING1
7D164946 WASHER-HARD (13.5X32X5-MM THK)7
7X790647 CLIP (TAB)4
7X790748 CLIP (SLOT)4
8C307249 SEAL-O-RING2
8C307350 SEAL-O-RING3
8M902451 WASHER-HARD (10.2X22.5X5-MM THK)10
9L913253 WASHER-HARD (10.2X25.5X2.5-MM THK)1
9S419154 PLUG (9/16-18-THD)1
9S875255 NUT-FULL (3/8-16-THD)6
9X645856 WASHER-HARD (10.2X22.5X3-MM THK)8
0L132957 BOLT (1/2-13X3-IN)2
