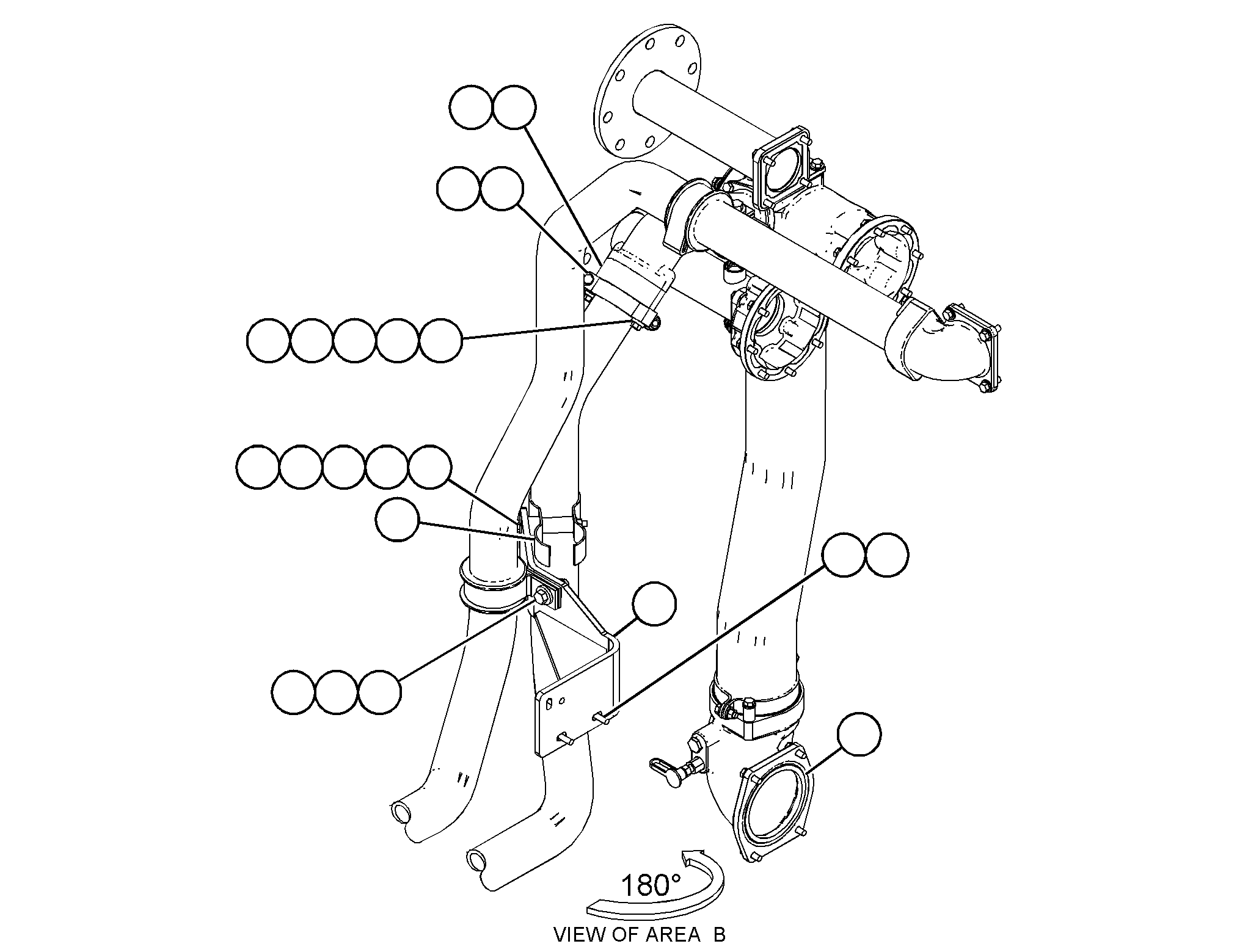

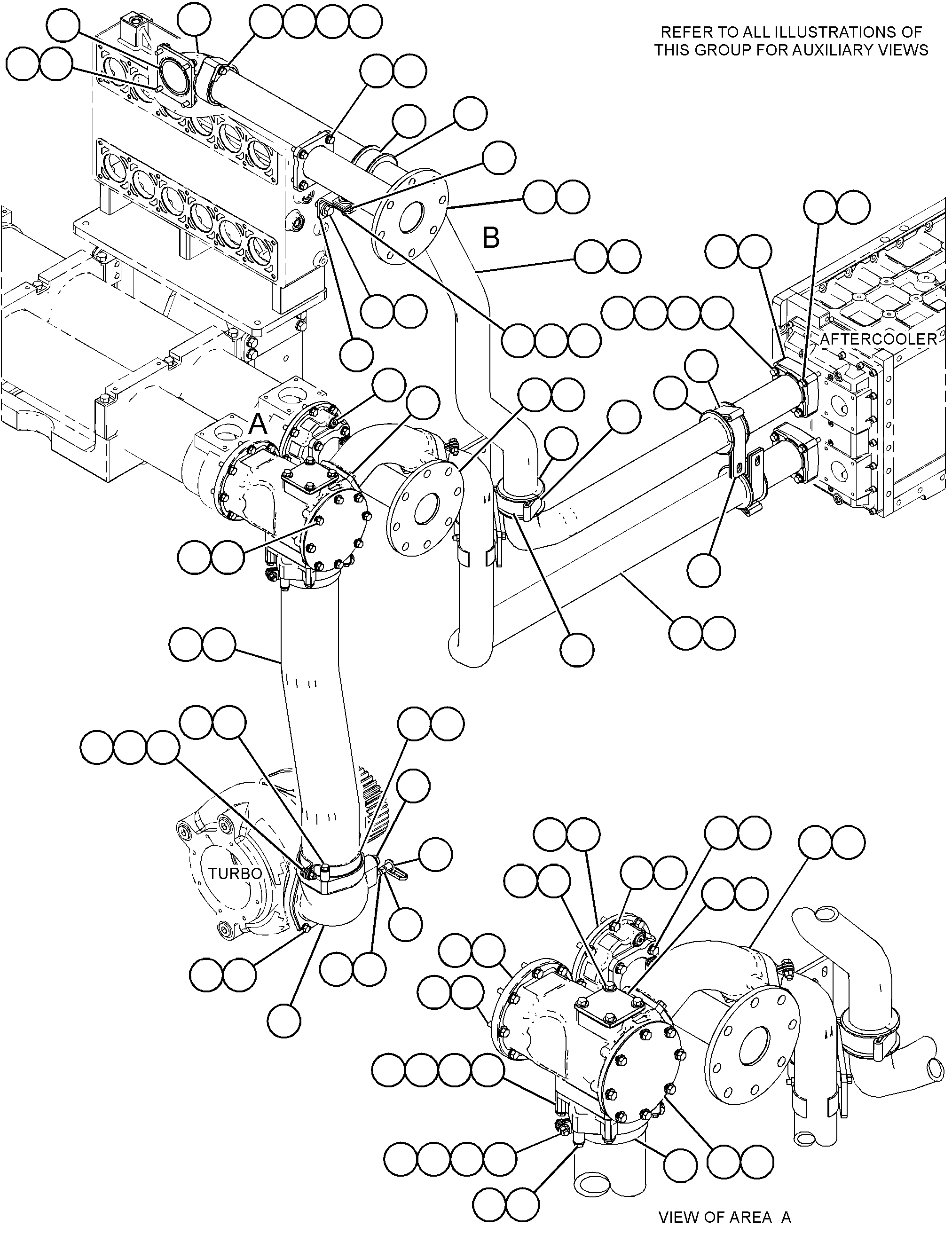

423-9020 LINES GP-WATER -SEPARATE CIRCUIT AFTERCOOLER (CHG -00 THRU -02)
Group No: 423-9020
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1W3785 | 1 BONNET AS-OIL COOLER | 1 | |
| 6V3250 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1W4072 | 2 RETAINER | 6 | |
| 1W4099 | 3 RING-RETAINING | 3 | |
| 7E5482 | 4 ELBOW | 1 | |
| 7E7209 | 5 RING-RETAINING | 1 | |
| 7K5208 | 6 CLAMP | 2 | |
| 7S8420 | 7 COVER | 1 | |
| 7W2018 | 8 GASKET | 1 | |
| 7W2026 | 9 FLANGE | 1 | |
| 7W5487 | 10 BONNET | 1 | |
| 7W6945 | 11 TUBE | 1 | |
| 9Y2099 | 12 FLANGE | 1 | |
| 1086169 | 13 CLAMP AS | 4 | |
| 1100097 | 14 RING | 2 | |
| 2473796 | 15 GASKET | 2 | |
| 2484792 | 16 CLAMP AS | 2 | |
| 3678480 | 17 GROMMET | 4 | |
| 3841237 | 18 FLANGE | 2 | |
| 3898358 | 19 BRACKET | 1 | |
| 3960403 | 20 PLUG AS | 1 | |
| 6V3250 | SEAL-O-RING | 1 | |
| 3603679 | PLUG-CONNECTOR (9/16-18-THD) | 1 | |
| 4233361 | 21 ELBOW | 1 | |
| 4237091 | 22 TUBE AS | 1 | |
| 4239021 | 23 ELBOW | 1 | |
| 4256044 | 24 TUBE AS | 1 | |
| 4256047 | 25 BRACKET AS | 1 | |
| 4394483 | 26 TUBE AS | 1 | |
| 4438076 | 27 TUBE | 1 | |
| 0L1143 | 28 BOLT (3/8-16X2.5-IN) | 4 | |
| 0L1352 | 29 BOLT (3/8-16X3.25-IN) | 2 | |
| 1653931 | 30 BOLT (3/8-16X1.75-IN) | 4 | |
| 0S1587 | 31 BOLT (1/2-13X1.75-IN) | 1 | |
| 0S1588 | 32 BOLT (3/8-16X1.25-IN) | 8 | |
| 0S1590 | 33 BOLT (3/8-16X2-IN) | 4 | |
| 0S1594 | 34 BOLT (3/8-16X1-IN) | 8 | |
| 0S1595 | 35 BOLT (1/2-13X1.25-IN) | 1 | |
| 0T0055 | 36 BOLT (3/8-16X4.25-IN) | 1 | |
| 1387500 | 37 SPACER (11X25X50-MM THK) | 1 | |
| 1549025 | 38 VALVE-SAMPLING (COOLANT) | 1 | |
| 1570670 | 39 CAP-DUST | 1 | |
| 1A1460 | 40 BOLT (1/2-13X2-IN) | 1 | |
| 1A2029 | 41 BOLT (3/8-16X1.125-IN) | 34 | |
| 1F7958 | 42 NUT-FULL (1/2-13-THD) | 2 | |
| 1S5772 | 43 GASKET | 1 | |
| 1W4067 | 44 GASKET | 2 | |
| 2006410 | 45 SEAL-O-RING | 1 | |
| 2284710 | 46 SPACER (13.8X30X20-MM THK) | 1 | |
| 2885476 | 47 SEAL-O-RING | 4 | |
| 2S4446 | 48 COVER | 1 | |
| 3B1915 | 49 BOLT (3/8-16X1.375-IN) | 10 | |
| 3V3308 | 50 WASHER-HARD (10.2X20.5X2.5-MM THK) | 70 | |
| 4F4873 | 51 GASKET | 1 | |
| 5P3501 | 52 ADAPTER | 1 | |
| 6V3250 | 53 SEAL-O-RING | 1 | |
| 6V5066 | 54 SEAL-O-RING | 1 | |
| 6V6809 | 55 SEAL-O-RING | 1 | |
| 7D1649 | 56 WASHER-HARD (13.5X32X5-MM THK) | 5 | |
| 7X7906 | 57 CLIP (TAB) | 4 | |
| 7X7907 | 58 CLIP (SLOT) | 4 | |
| 8C3072 | 59 SEAL-O-RING | 2 | |
| 8C3073 | 60 SEAL-O-RING | 1 | |
| 8M9024 | 61 WASHER-HARD (10.2X22.5X5-MM THK) | 2 | |
| 8T2903 | 62 SEAL-O-RING | 2 | |
| 8T6766 | 63 PLUG-PIPE | 1 | |
| 9S8752 | 64 NUT-FULL (3/8-16-THD) | 7 | |
| 9X6458 | 65 WASHER-HARD (10.2X22.5X3-MM THK) | 8 |
