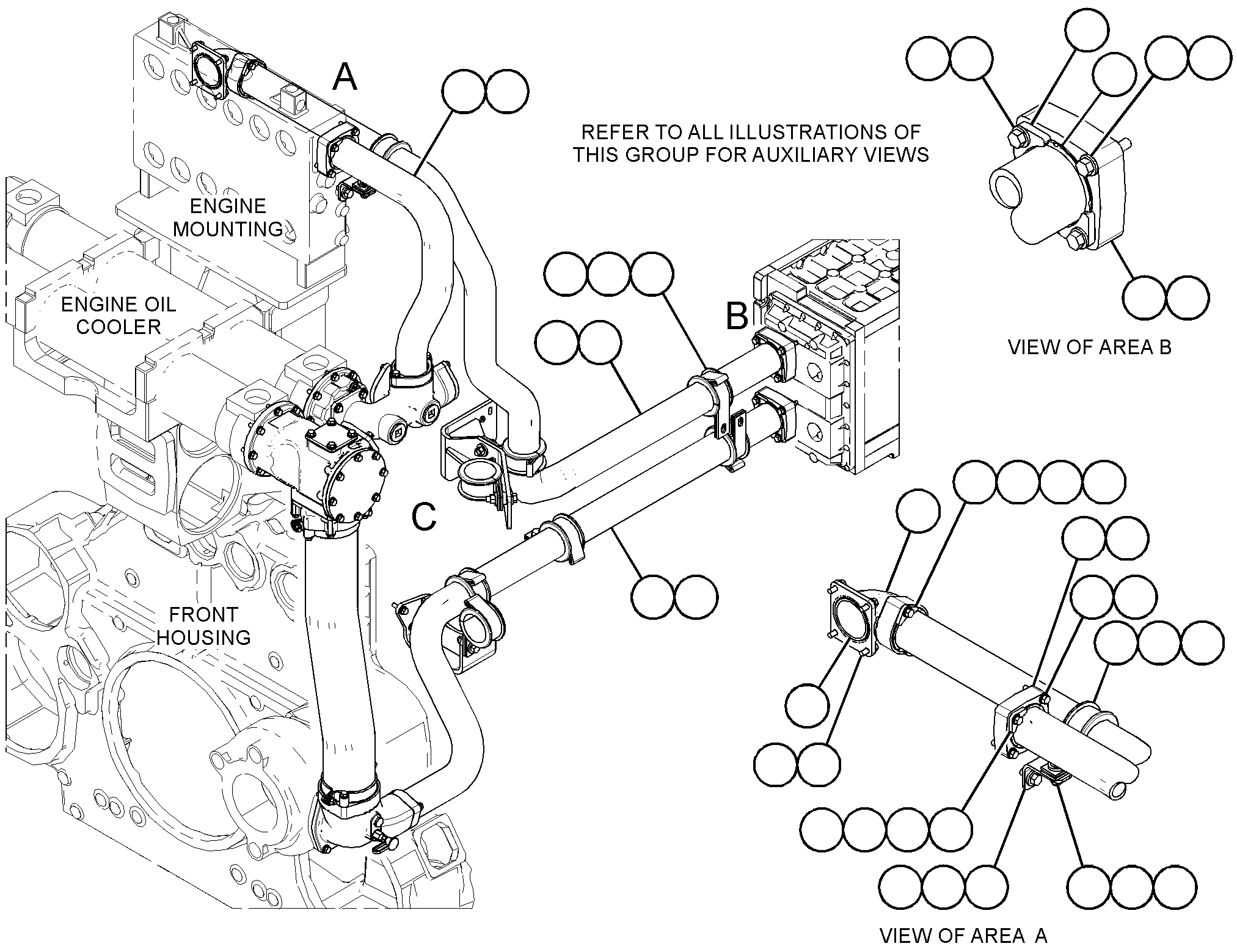

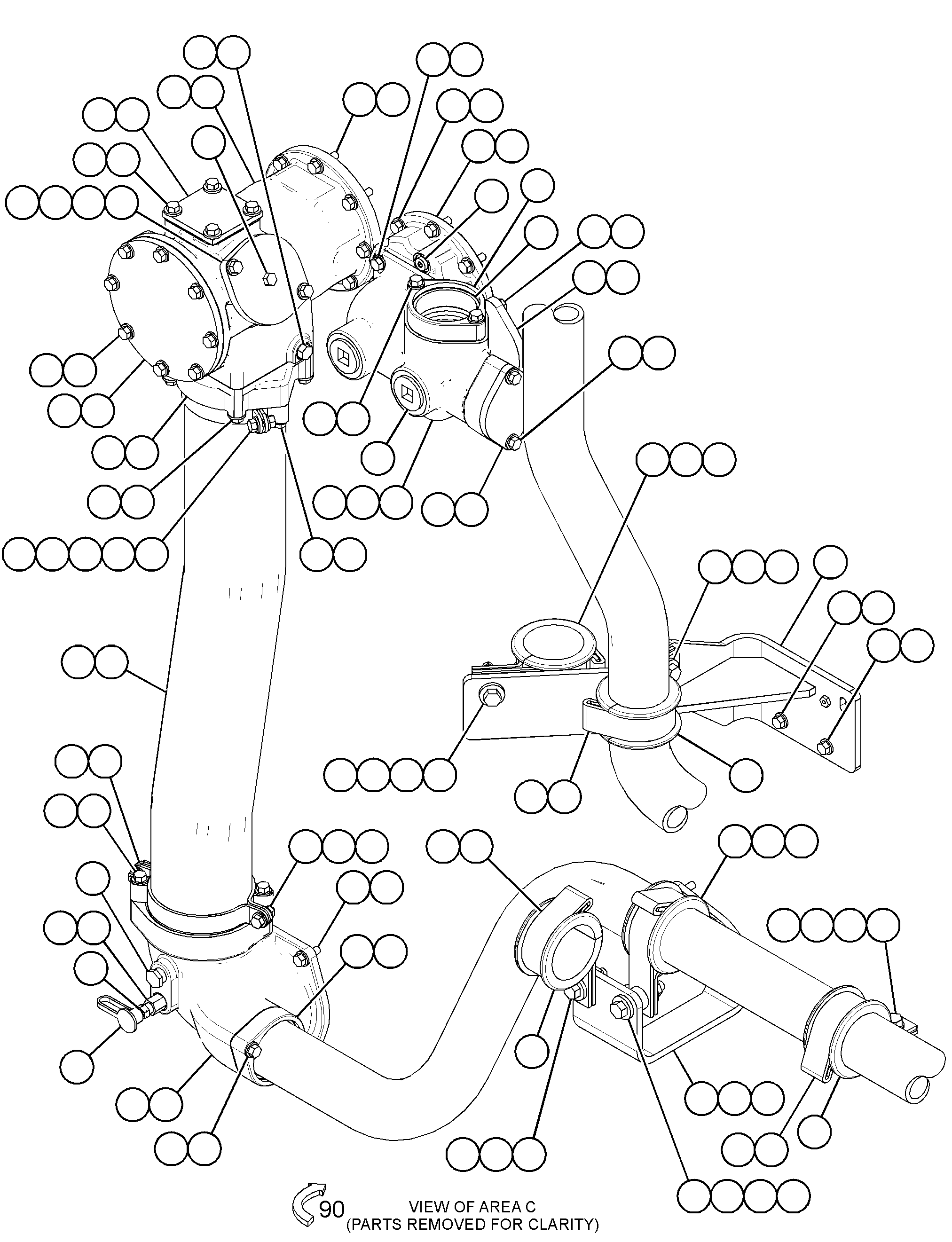

423-9020 LINES GP-WATER -SEPARATE CIRCUIT AFTERCOOLER (CHG -03 THRU -10)
Group No: 423-9020
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1W3785 | 1 BONNET AS-OIL COOLER | 1 | |
| 6V3250 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1W4072 | 2 RETAINER | 8 | |
| 1W4099 | 3 RING-RETAINING | 4 | |
| 4P3749 | 4 PLUG | 1 | |
| 4239032 | 5 SPACER (13.8X30.0X17.4-MM THK) | 1 | |
| 7S8420 | 6 COVER | 1 | |
| 7W2018 | 7 GASKET (WATER) | 1 | |
| 7W2026 | 8 FLANGE | 1 | |
| 7W5487 | 9 BONNET | 1 | |
| 7W6945 | 10 TUBE | 1 | |
| 1524067 | 11 COVER | 1 | |
| 1086169 | 12 CLAMP AS | 4 | |
| 1100097 | 13 RING | 2 | |
| 2473796 | 14 GASKET (WATER) | 2 | |
| 4851357 | 15 BRACKET AS | 1 | |
| 3449285 | 16 RING | 2 | |
| 3678480 | 17 GROMMET | 8 | |
| 3716762 | 18 FLANGE | 2 | |
| 4734937 | 19 ELBOW | 1 | |
| 3841237 | 20 FLANGE | 3 | |
| 3898358 | 21 BRACKET | 1 | |
| 3960403 | 22 PLUG AS | 1 | |
| 6V3250 | SEAL-O-RING | 1 | |
| 3603679 | PLUG-CONNECTOR (9/16-18-THD) | 1 | |
| 4233361 | 23 ELBOW | 1 | |
| 4256047 | 24 BRACKET AS | 1 | |
| 9D6621 | NUT-WELD (10-24-THD) | 1 | |
| 4438076 | 25 TUBE | 1 | |
| 4892254 | 26 TUBE | 1 | |
| 4745040 | 27 PLUG | 1 | |
| 9S4191 | 28 PLUG (9/16-18-THD) | 1 | |
| 4609803 | 29 ELBOW | 1 | |
| 4851356 | 30 TUBE AS | 1 | |
| 0L1143 | 31 BOLT (3/8-16X2.5-IN) | 4 | |
| 1653931 | 32 BOLT (3/8-16X1.75-IN) | 8 | |
| 0S1587 | 33 BOLT (1/2-13X1.75-IN) | 1 | |
| 5P4889 | 34 SEAL-O-RING | 1 | |
| 0S1590 | 35 BOLT (3/8-16X2-IN) | 6 | |
| 0S1594 | 36 BOLT (3/8-16X1-IN) | 16 | |
| 0S1595 | 37 BOLT (1/2-13X1.25-IN) | 1 | |
| 0V0375 | 38 BOLT (1/2-13X3.25-IN) | 1 | |
| 6V1454 | 39 SEAL-O-RING | 1 | |
| 1549025 | 40 VALVE-SAMPLING (COOLANT) | 1 | |
| 1570670 | 41 CAP-DUST | 1 | |
| 3W2647 | 42 SPACER (13.5X30X10-MM THK) | 1 | |
| 1A1460 | 43 BOLT (1/2-13X2-IN) | 2 | |
| 1A2029 | 44 BOLT (3/8-16X1.125-IN) | 34 | |
| 1F7958 | 45 NUT-FULL (1/2-13-THD) | 6 | |
| 0T0102 | 46 BOLT (3/8-16X0.625-IN) | 1 | |
| 1S5772 | 47 GASKET | 1 | |
| 9S8752 | 48 NUT-FULL (3/8-16-THD) | 4 | |
| 2006410 | 49 SEAL-O-RING | 1 | |
| 2885476 | 50 SEAL-O-RING | 6 | |
| 2S4446 | 51 COVER | 1 | |
| 3B1915 | 52 BOLT (3/8-16X1.375-IN) | 13 | |
| 3V3308 | 53 WASHER-HARD (10.2X20.5X2.5-MM THK) | 69 | |
| 4F4873 | 54 GASKET | 1 | |
| 5P3501 | 55 ADAPTER | 1 | |
| 6V3250 | 58 SEAL-O-RING | 2 | |
| 6V5066 | 59 SEAL-O-RING | 1 | |
| 6V6809 | 60 SEAL-O-RING | 1 | |
| 8T6760 | 61 PLUG-PIPE (1-1/2-11-1/2 NPT) | 2 | |
| 7D1649 | 62 WASHER-HARD (13.5X32X5-MM THK) | 13 | |
| 9S1366 | 64 BOLT (1/2-13X2.5-IN) | 1 | |
| 7X7906 | 65 CLIP (TAB) | 8 | |
| 7X7907 | 66 CLIP (SLOT) | 8 | |
| 8C3072 | 67 SEAL-O-RING | 4 | |
| 8T2903 | 68 SEAL-O-RING | 2 | |
| 8T6766 | 69 PLUG-PIPE | 1 | |
| 8V9708 | 70 SPACER (14.3X25.4X35-MM THK) | 1 | |
| 5M2894 | 71 WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 1A5822 | 72 BOLT (1/2-13X2.75-IN) | 1 | |
| 9X6458 | 73 WASHER-HARD (10.2X22.5X3-MM THK) | 12 |
