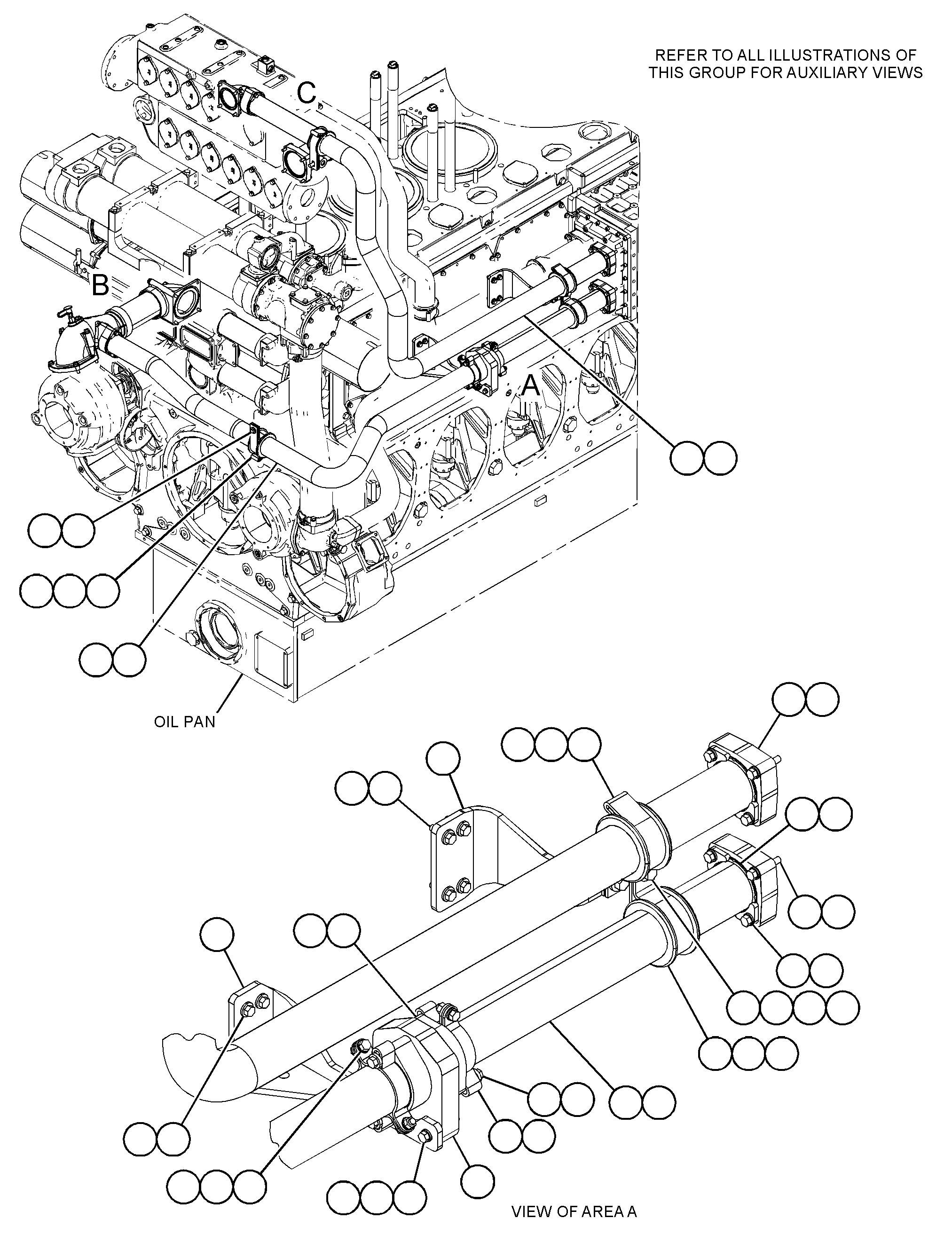

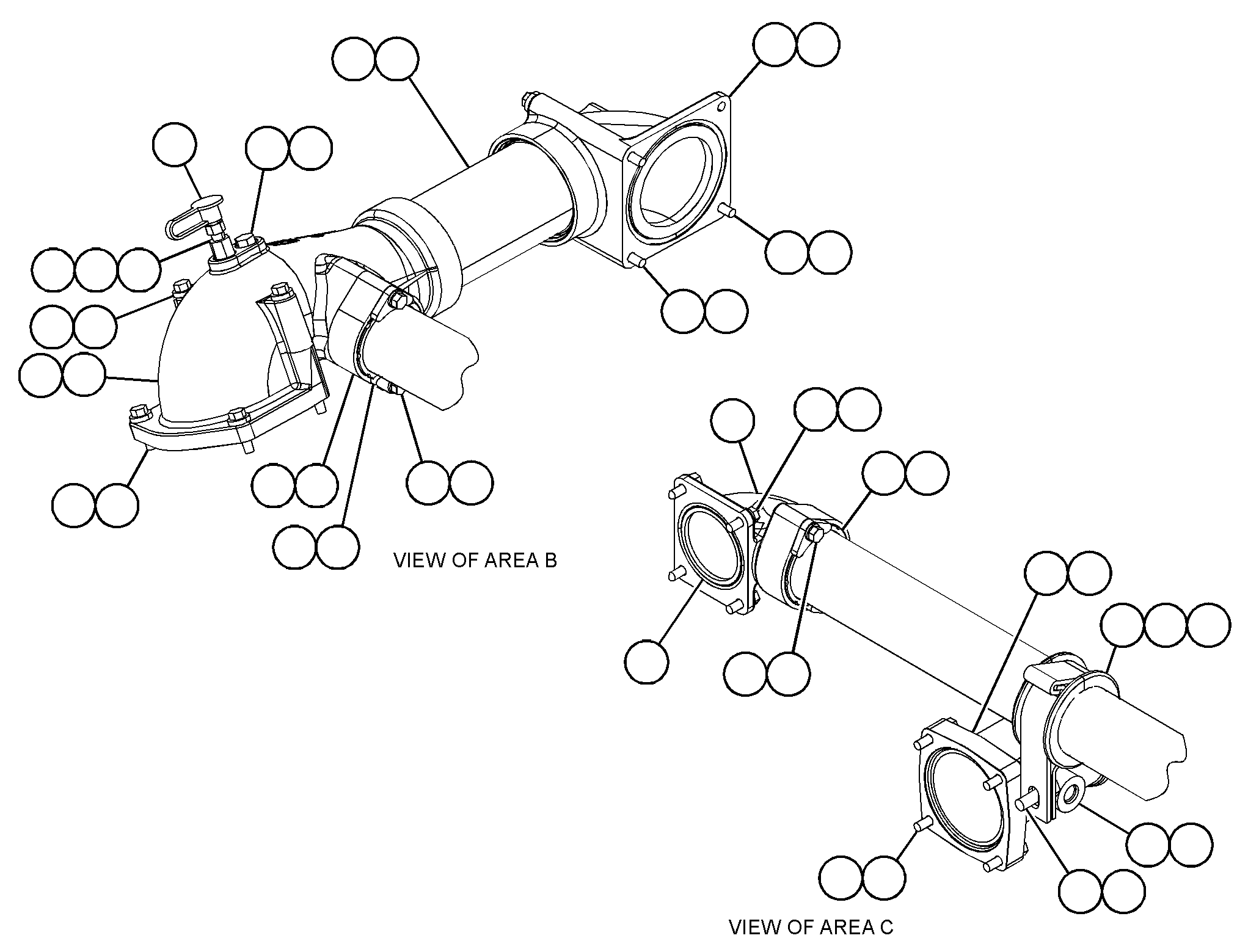

579-8604 LINES GP-WATER -JACKET WATER (CHG -00, -01)

Group No: 579-8604
Part NumberPart NameQty
1W35911 ELBOW1
1W35922 TUBE1
1W40723 RETAINER8
7E72094 RING-RETAINING2
9Y20995 FLANGE3
24847926 CLAMP AS4
36784807 GROMMET4
38412378 FLANGE2
42333619 ELBOW1
423902210 TUBE AS1
423902511 TUBE1
423903112 BRACKET1
423903213 SPACER (13.8X30.0X17.4-MM THK)2
425604514 PLATE1
425604615 BRACKET AS1
444036916 TUBE1
485135517 TUBE AS1
0L132918 BOLT (1/2-13X3-IN)2
0L135219 BOLT (3/8-16X3.25-IN)4
0S158520 BOLT (1/2-13X1.5-IN)1
0S159421 BOLT (3/8-16X1-IN)2
154902522 VALVE-SAMPLING (SCREEN)1
157067023 CAP-DUST1
165392924 BOLT (3/8-16X1.5-IN)2
165393125 BOLT (3/8-16X1.75-IN)4
165393226 BOLT (3/8-16X2-IN)4
1A202927 BOLT (3/8-16X1.125-IN)12
1D470628 BOLT (3/8-16X6-IN)2
1F795829 NUT-FULL (1/2-13-THD)2
1W409930 RING-RETAINING4
200641031 SEAL-O-RING1
261561532 BOLT (3/8-16X2.50-IN)4
288547633 SEAL-O-RING6
2W502334 GASKET1
354542935 FLANGE1
3B191536 BOLT (3/8-16X1.375-IN)8
442946337 ELBOW1
5B263838 BOLT (3/8-16X5.25-IN)2
5M289439 WASHER-HARD (10.2X18.5X2.5-MM THK)31
5P350140 ADAPTER1
6V325041 SEAL-O-RING2
6V506842 SEAL-O-RING1
6V513943 SEAL-O-RING4
6V680944 SEAL-O-RING1
7D164945 WASHER-HARD (13.5X32X5-MM THK)5
7X790646 CLIP (TAB)4
7X790747 CLIP (SLOT)4
8C307248 SEAL-O-RING2
8C307349 SEAL-O-RING3
8M902450 WASHER-HARD (10.2X22.5X5-MM THK)10
9L913251 WASHER-HARD (10.2X25.5X2.5-MM THK)1
9S419152 PLUG (9/16-18-THD)1
9S875253 NUT-FULL (3/8-16-THD)6
9X645854 WASHER-HARD (10.2X22.5X3-MM THK)8
