System And Components

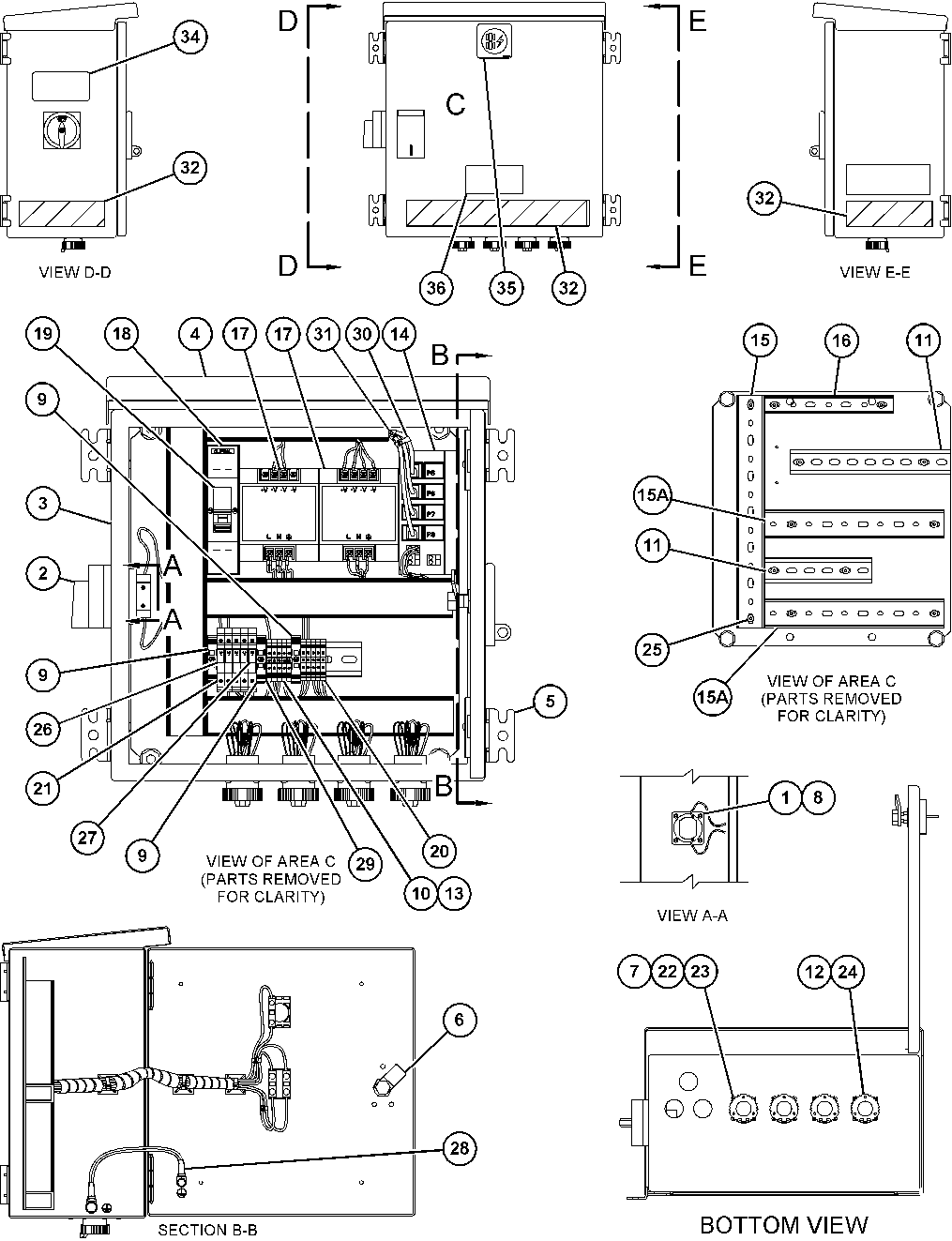

318-7718 PANEL GP-ELECTRICAL -POWER SUPPLYFOR USE WITH AREA ISOLATION SYSTEM
Group No: 318-7718
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2459167 | 1 NUT (M4X0.7X5.5-MM) | 4 | |
| 3033844 | 2 ISOLATOR | 1 | |
| 3033857 | 3 MODULE | 1 | |
| 3033859 | 4 COVER-BOX | 1 | |
| 3033860 | 5 BRACKET | 4 | |
| 3033861 | 6 LATCH | 1 | |
| 3053884 | 7 SCREW (M3X10X10-MM) | 16 | |
| 3053890 | 8 SCREW (M4X12X10-MM) | 4 | |
| 3055121 | 9 CLAMP | 3 | |
| 3055122 | 10 TERMINAL | 5 | |
| 3187723 | 11 RAIL (1-M) | ||
| 3055127 | 12 GASKET | 4 | |
| 3055128 | 13 TERMINAL | 1 | |
| 3132858 | 14 SWITCH | 1 | |
| 3187725 | 15 DUCT (0.33-M) | ||
| 3187725 | 15A DUCT (0.25-M EACH) | ||
| 3187724 | 16 DUCT (1-M) | ||
| 3132861 | 17 CONVERTER | 2 | |
| 3132862 | 18 COVER | 1 | |
| 3132863 | 19 CIRCUIT BREAKER | 1 | |
| 3132865 | 20 TERMINAL | 5 | |
| 3132867 | 21 TERMINAL | 5 | |
| 3162769 | 22 NUT (M3X0.5-THD) | 16 | |
| 3162770 | 23 WASHER (3X6X0.8-MM THK) | 16 | |
| 8C6354 | 24 CAP-RECEPTACLE (ET CONNECTOR) | 4 | |
| 2503557 | 25 SCREW (M5X0.8X12-MM) | 12 | |
| 3214470 | 26 CIRCUIT BREAKER (2-AMPERE) | 1 | |
| 3214471 | 27 CIRCUIT BREAKER (6-AMPERE) | 4 | |
| 3241944 | 28 CABLE AS | 1 | |
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) | ||
| 3214477 | 29 COVER | 1 | |
| 1S9593 | 30 STRAP-CABLE | 10 | |
| 3241946 | 31 HARNESS AS-PANEL | 1 | |
| 2264038 | 32 TAPE-REFLECTIVE | ||
| 3343108 | 34 FILM-INSTRUCTION (AREA ISOLATION SYSTEM) | 1 | |
| 3360201 | 35 FILM-IDENTIFICATION (ISOLATION SYSTEM POWER) | 1 | |
| 3234689 | 36 FILM-WARNING (SHOCK, ELECTROCUTION HAZARD) | 1 |
