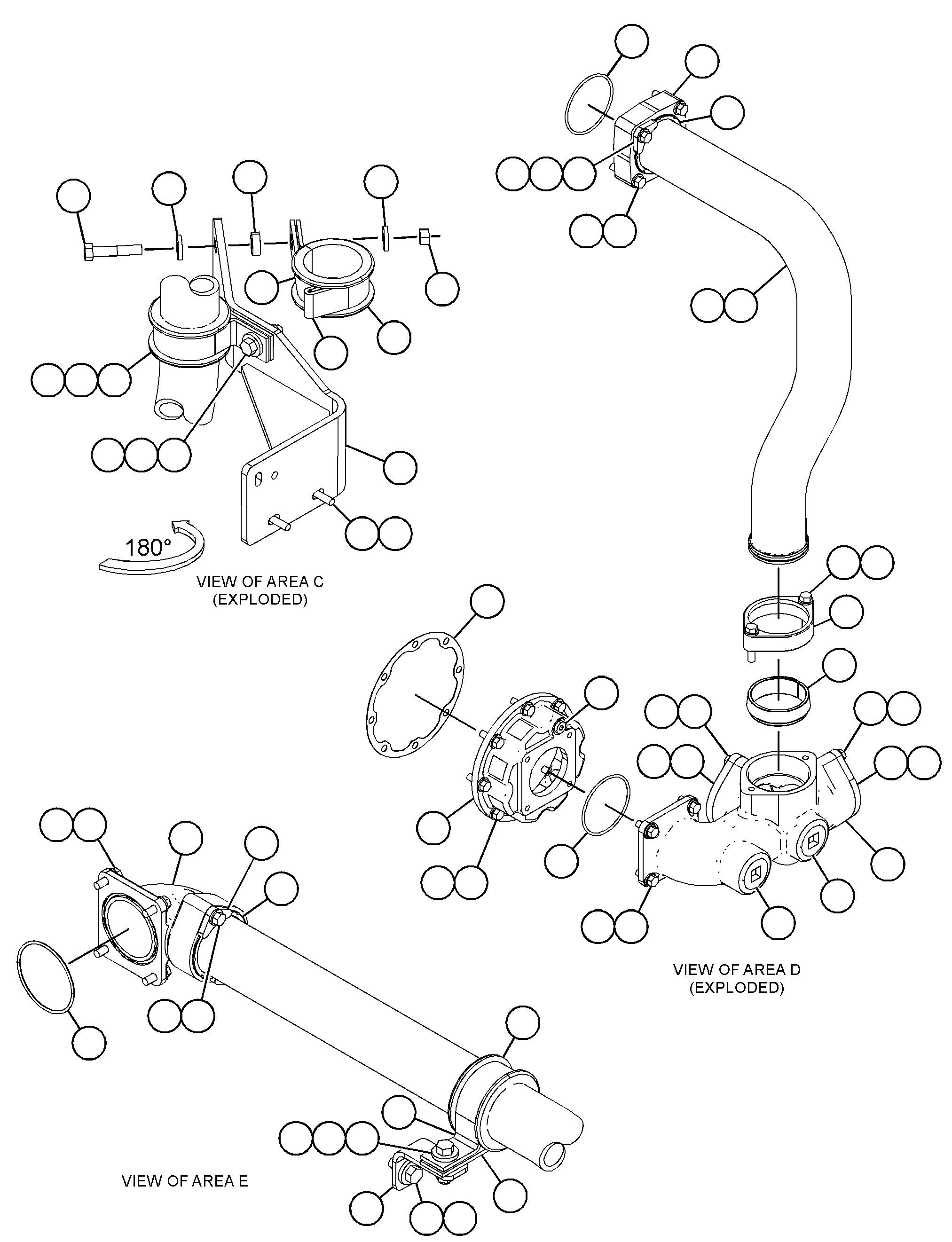

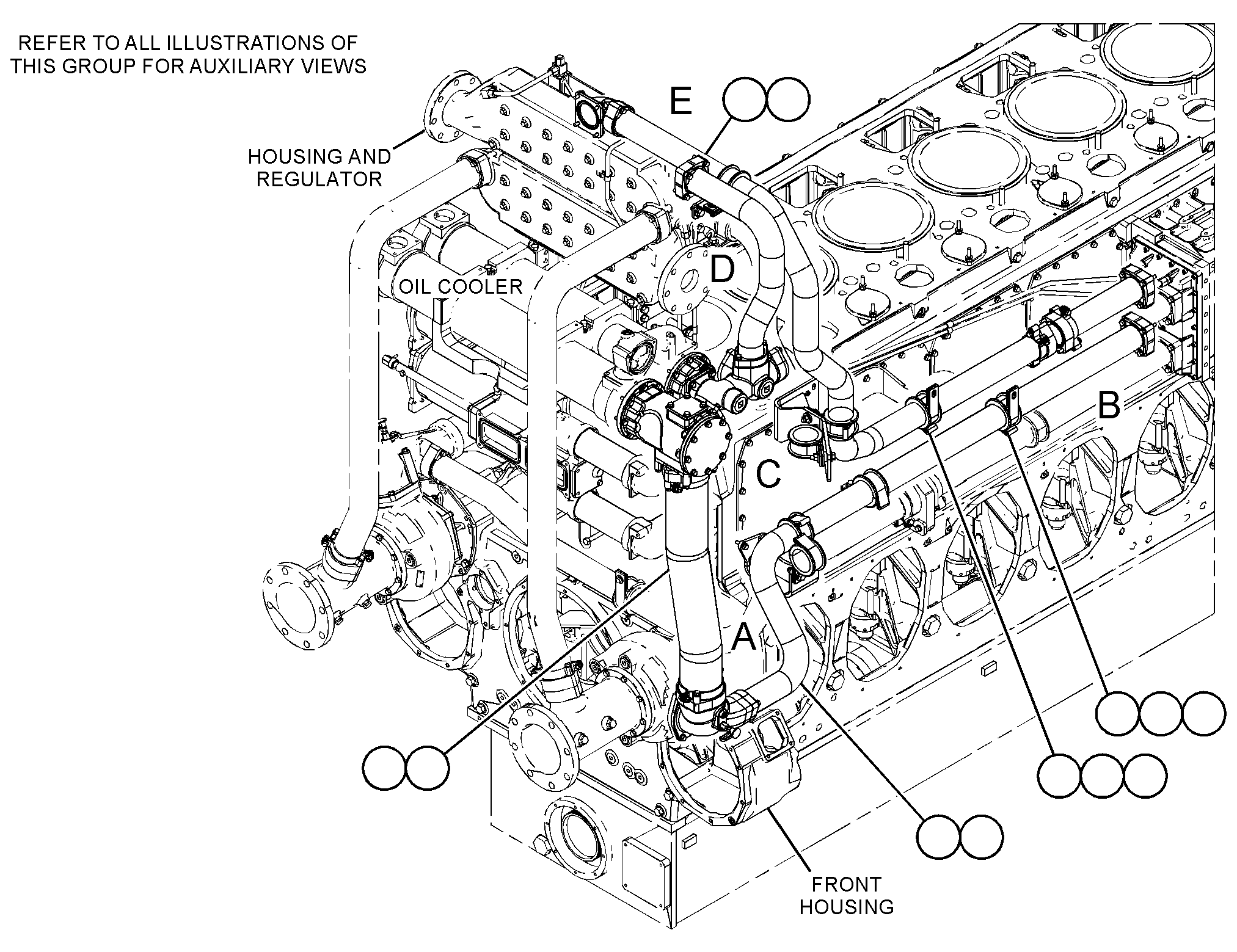

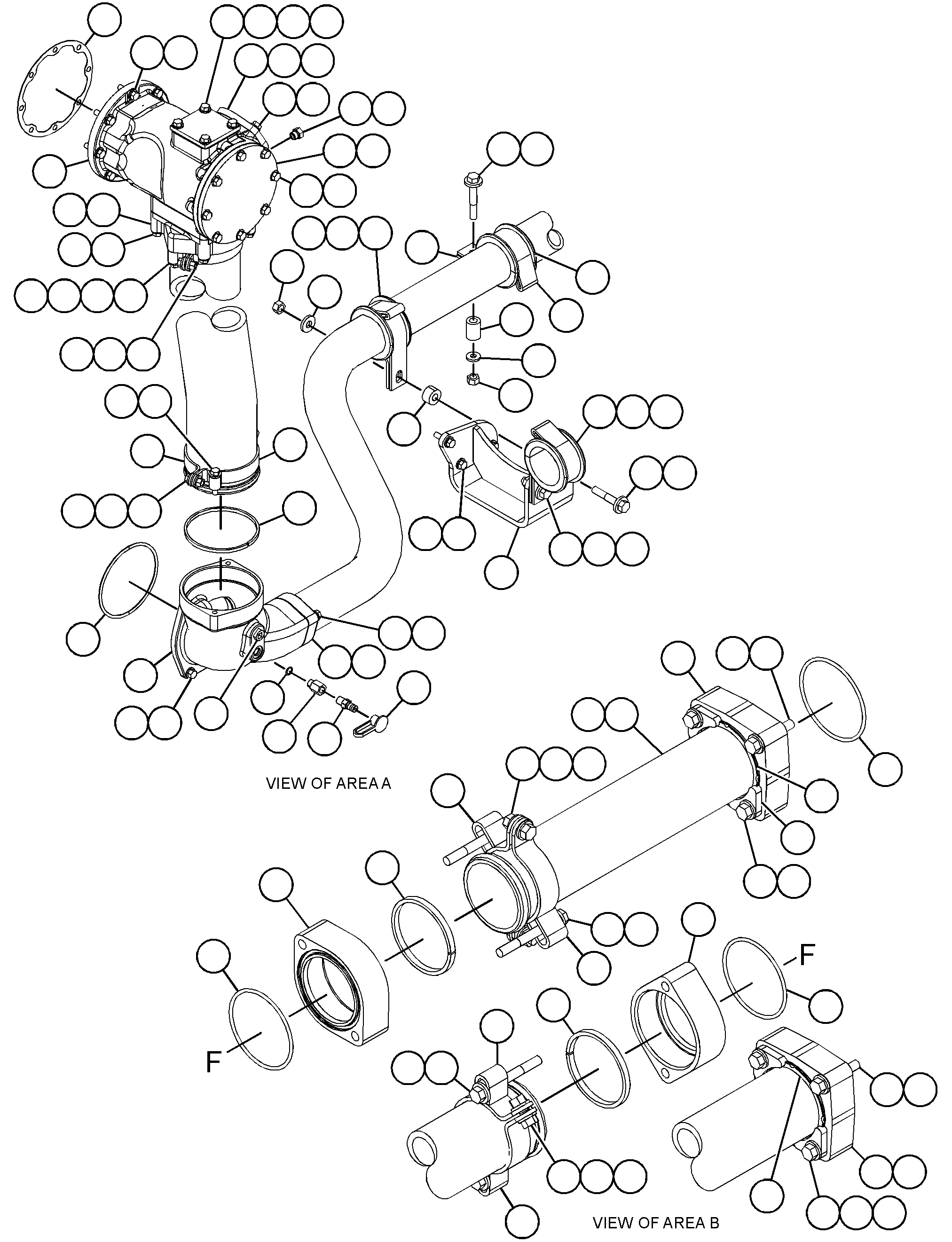

439-3917 LINES GP-AFTERCOOLER WATER (CHG -04 THRU -09)Type 2
Group No: 439-3917
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1W3785 | 1 BONNET AS-OIL COOLER | 1 | |
| 6V3250 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1W4072 | 2 RETAINER | 8 | |
| 1W4099 | 3 RING-RETAINING | 4 | |
| 4P3749 | 4 PLUG | 1 | |
| 7E7209 | 5 RING-RETAINING | 2 | |
| 7S8420 | 6 COVER | 1 | |
| 7W2018 | 7 GASKET | 1 | |
| 7W2026 | 8 FLANGE | 1 | |
| 7W5487 | 9 BONNET | 1 | |
| 7W6945 | 10 TUBE | 1 | |
| 9Y2099 | 11 FLANGE | 2 | |
| 1086169 | 12 CLAMP AS | 4 | |
| 1100097 | 13 RING | 2 | |
| 2473796 | 14 GASKET | 2 | |
| 2484792 | 15 CLAMP AS | 4 | |
| 3449285 | 16 RING | 2 | |
| 3678480 | 17 GROMMET | 8 | |
| 3716762 | 18 FLANGE | 2 | |
| 4734937 | 19 ELBOW | 1 | |
| 3841237 | 20 FLANGE | 3 | |
| 3898358 | 21 BRACKET | 1 | |
| 3960403 | 22 PLUG AS | 1 | |
| 6V3250 | SEAL-O-RING | 1 | |
| 3603679 | PLUG-CONNECTOR (9/16-18-THD) | 1 | |
| 4233361 | 23 ELBOW | 1 | |
| 4239032 | 24 SPACER (13.8X30.0X17.4-MM THK) | 1 | |
| 4256047 | 25 BRACKET AS | 1 | |
| 9D6621 | NUT-WELD (10-24-THD) | 1 | |
| 4393920 | 26 TUBE | 1 | |
| 4892254 | 27 TUBE | 1 | |
| 4745040 | 28 PLUG | 1 | |
| 9S4191 | 29 PLUG (9/16-18-THD) | 1 | |
| 4438076 | 30 TUBE | 1 | |
| 4609803 | 31 ELBOW | 1 | |
| 4851354 | 32 TUBE AS | 1 | |
| 4851357 | 33 BRACKET AS | 1 | |
| 0343557 | 34 BOLT-LOCKING (3/8-16X1.125-IN) | 2 | |
| 0L1143 | 35 BOLT (3/8-16X2.5-IN) | 4 | |
| 0L1352 | 36 BOLT (3/8-16X3.25-IN) | 4 | |
| 5P4889 | 37 SEAL-O-RING | 1 | |
| 1653931 | 38 BOLT (3/8-16X1.75-IN) | 8 | |
| 0S1587 | 39 BOLT (1/2-13X1.75-IN) | 1 | |
| 0S1590 | 40 BOLT (3/8-16X2-IN) | 6 | |
| 1653929 | 41 BOLT (3/8-16X1.5-IN) | 2 | |
| 0S1594 | 42 BOLT (3/8-16X1-IN) | 14 | |
| 6V1454 | 43 SEAL-O-RING | 1 | |
| 0S1595 | 44 BOLT (1/2-13X1.25-IN) | 1 | |
| 0T0102 | 45 BOLT (3/8-16X0.625-IN) | 1 | |
| 1549025 | 46 VALVE-SAMPLING (SCREEN) | 1 | |
| 0V0375 | 47 BOLT (1/2-13X3.25-IN) | 1 | |
| 1570670 | 48 CAP-DUST | 1 | |
| 1A1460 | 49 BOLT (1/2-13X2-IN) | 2 | |
| 1A2029 | 50 BOLT (3/8-16X1.125-IN) | 38 | |
| 1F7958 | 51 NUT-FULL (1/2-13-THD) | 6 | |
| 1524067 | 52 COVER | 1 | |
| 3W2647 | 53 SPACER (13.5X30X10-MM THK) | 1 | |
| 1S5772 | 54 GASKET | 1 | |
| 2006410 | 55 SEAL-O-RING | 1 | |
| 2885476 | 56 SEAL-O-RING | 8 | |
| 2S4446 | 57 COVER | 1 | |
| 3B1915 | 58 BOLT (3/8-16X1.375-IN) | 11 | |
| 3V3308 | 59 WASHER-HARD (10.2X20.5X2.5-MM THK) | 69 | |
| 4F4873 | 60 GASKET | 1 | |
| 5M2894 | 61 WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 5P3501 | 62 ADAPTER | 1 | |
| 8T6760 | 63 PLUG-PIPE (1-1/2-11-1/2 NPT) | 2 | |
| 6V3250 | 65 SEAL-O-RING | 2 | |
| 6V5066 | 66 SEAL-O-RING | 1 | |
| 9X6458 | 67 WASHER-HARD (10.2X22.5X3-MM THK) | 24 | |
| 6V6809 | 68 SEAL-O-RING | 1 | |
| 7D1649 | 69 WASHER-HARD (13.5X32X5-MM THK) | 13 | |
| 7X7906 | 70 CLIP (TAB) | 8 | |
| 9S8752 | 71 NUT-FULL (3/8-16-THD) | 8 | |
| 7X7907 | 72 CLIP (SLOT) | 8 | |
| 8C3072 | 73 SEAL-O-RING | 4 | |
| 8C3073 | 74 SEAL-O-RING | 2 | |
| 8T2903 | 75 SEAL-O-RING | 2 | |
| 8T6762 | 76 PLUG-PIPE (1/2-14-THD) | 1 | |
| 8V9708 | 77 SPACER (14.3X25.4X35-MM THK) | 1 | |
| 9S1366 | 78 BOLT (1/2-13X2.5-IN) | 1 | |
| 1A5822 | 79 BOLT (1/2-13X2.75-IN) | 1 |
