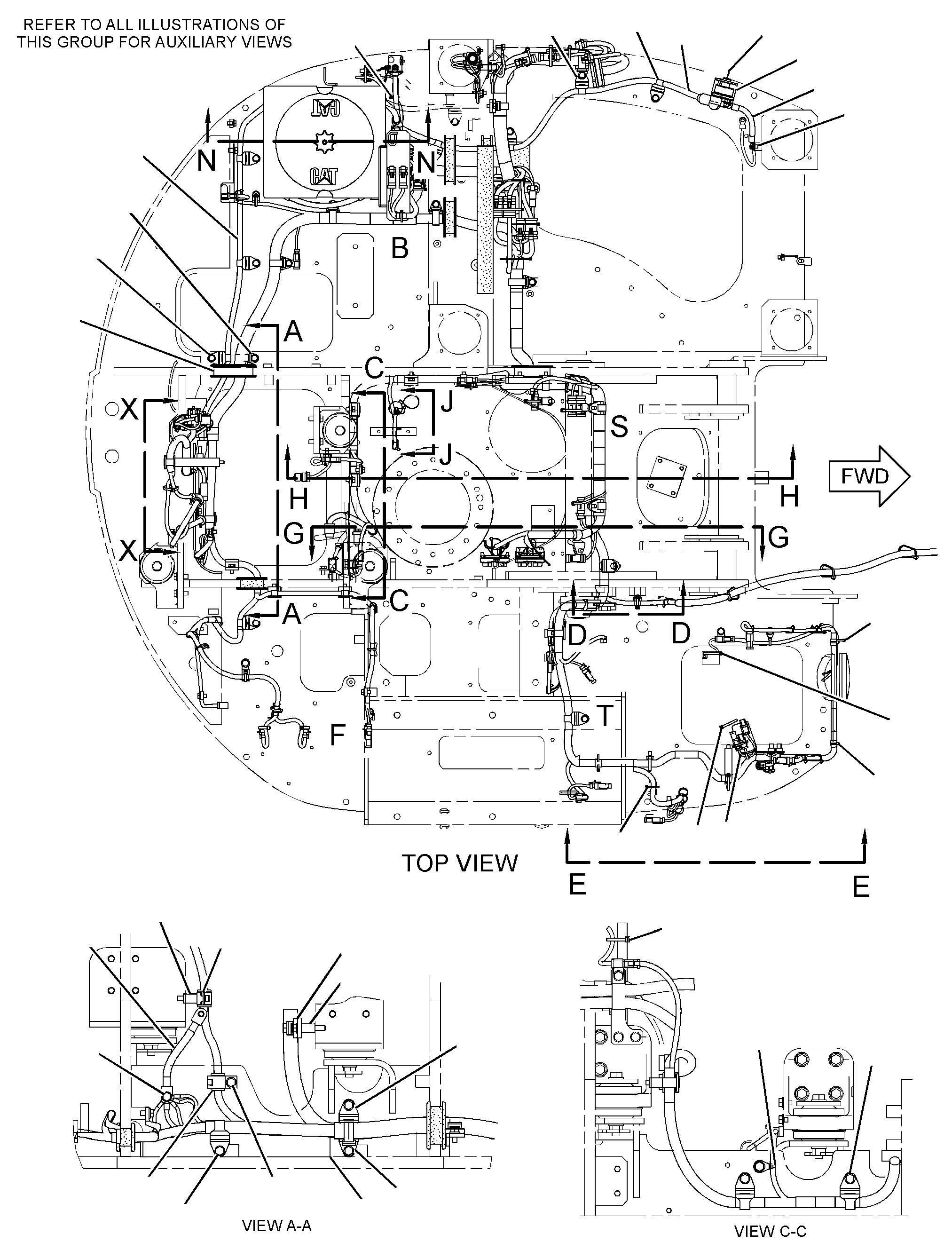

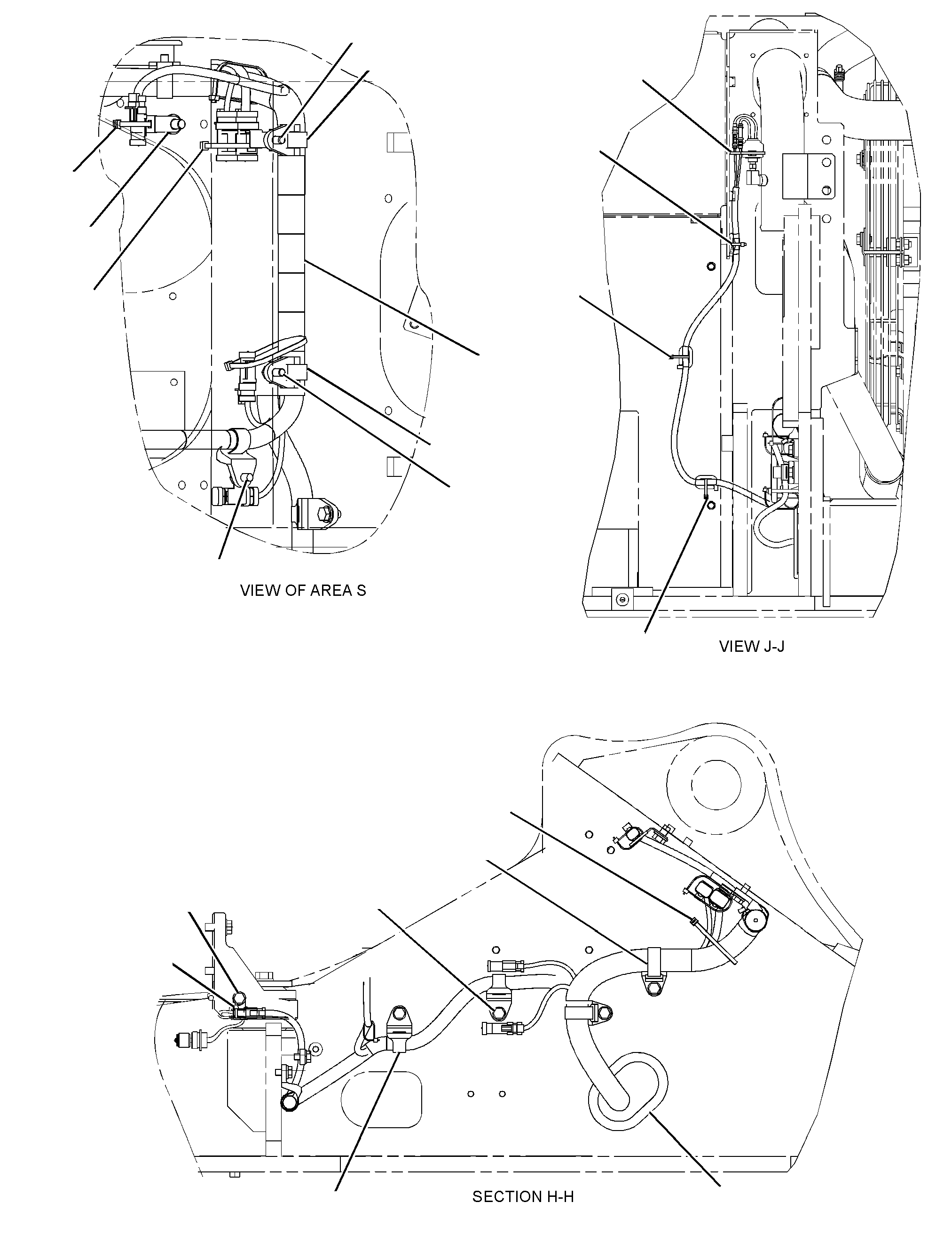

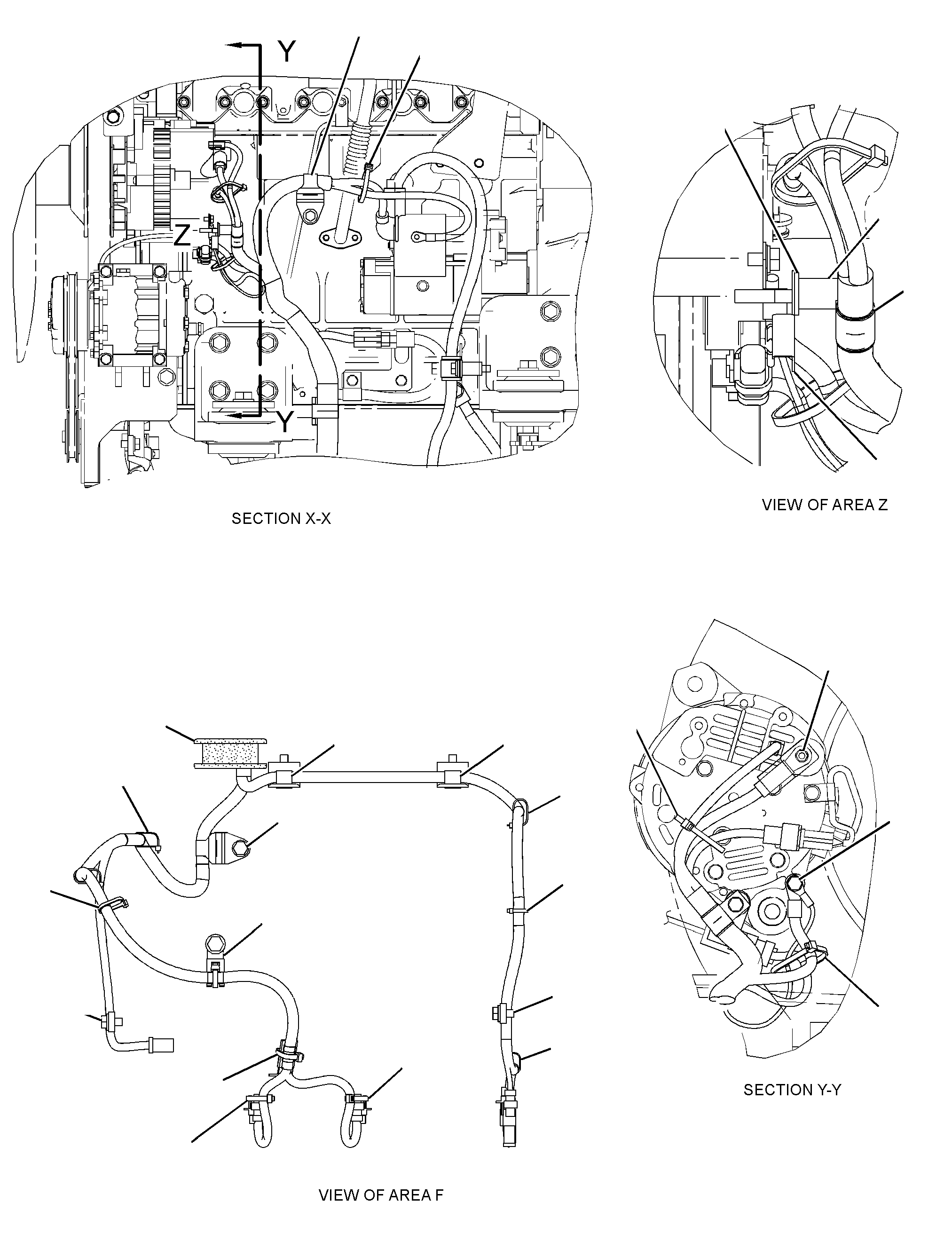

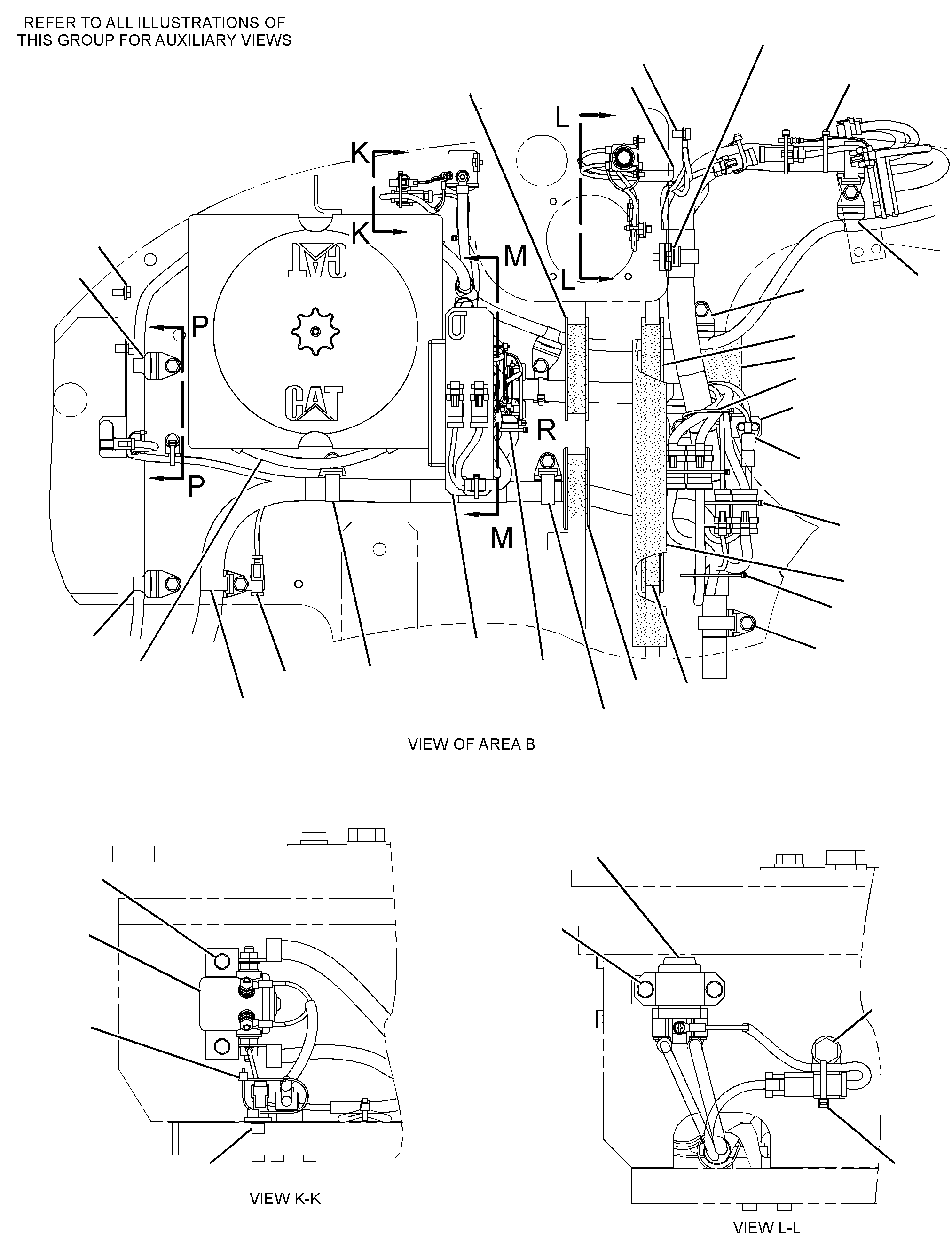

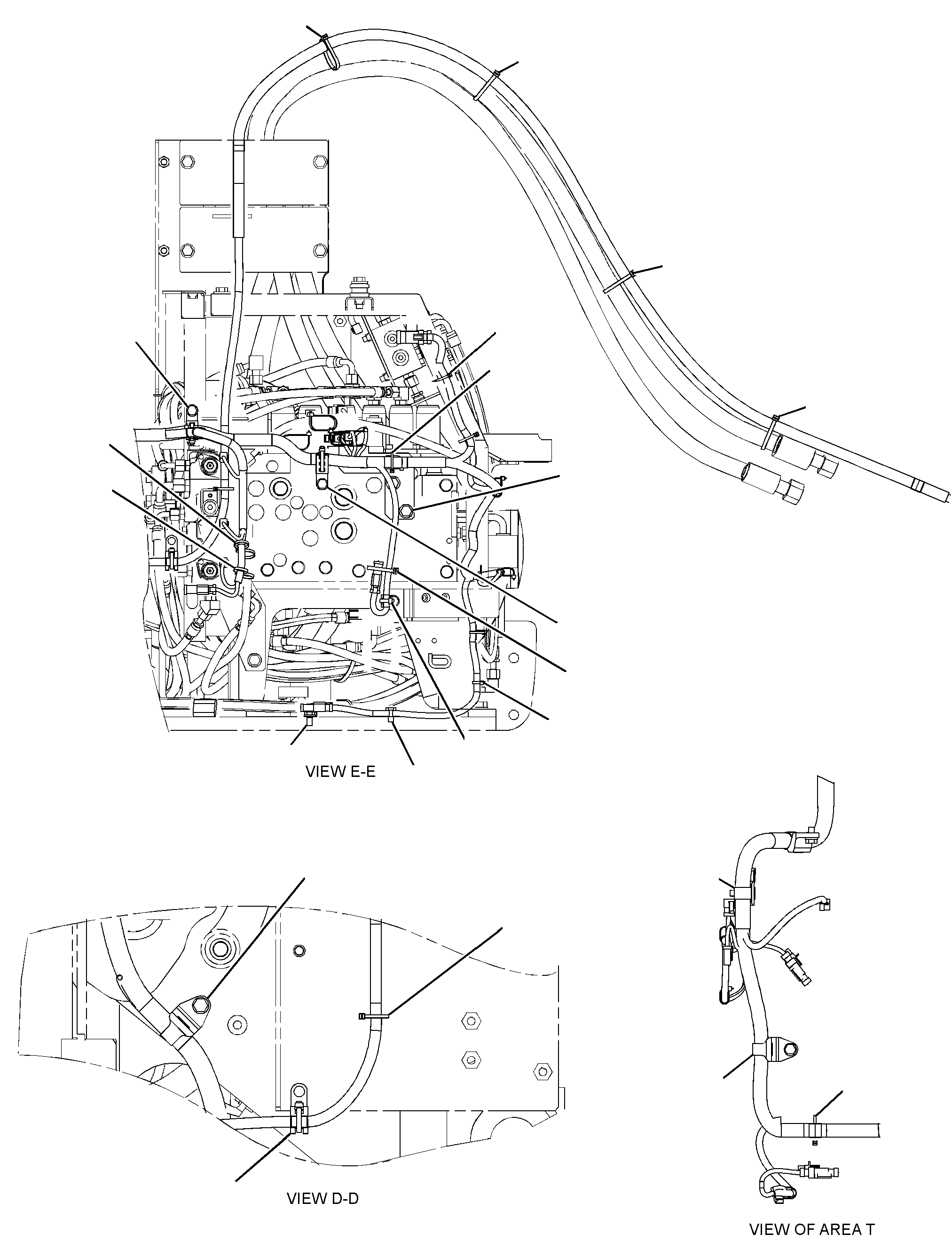

336-6163 BATTERY & WIRING GPS/N WLN1-UP; XHR1-UP

Group No: 336-6163 · Commonality
Part NumberPart NameQty
3E83201 PLATE-INSTRUCTION (BATTERY)1
3S20932 STRAP-CABLE39
3T57603 BATTERY GP (12-VOLT, 750-CCA)2
1231373CAP AS-FILLER (7/8-9-THD)6
5I82704 COVER-BATTERY1
5I93685 SPACER (9.24X13.72X20.5-MM THK)1
6G22636 SPACER (10.5X19X28.5-MM THK)3
6W60057 HOLD-DOWN-BATTERY1
7K11818 STRAP-CABLE33
7N07189 SWITCH GP-DISCONNECT (BATTERY)1
4I350310 GROMMET1
7Y816711 GROMMET (50-MM ID)1
9G845112 BLOCK AS1
1H3244LOCKWASHER1
4B4276WASHER (7X16X1.6-MM THK)2
4L7124BOLT (1/4-20X1.25-IN)1
6V8185NUT (1/4-20-THD)2
111483613 CLIP4
111483714 CLIP27
111483815 CLIP13
111483916 STRAP13
116011817 CLIP10
134334418 STRAP AS2
146033419 COLLAR2
087458720 GROMMET1
170692921 CABLE AS1
5P0761CABLE (00-GA, RED)(31-CM)
9G0002COVER AS-TERMINAL (RED)(BATTERY POSITIVE)1
8L8413STRAP-CABLE (WHITE)1
9G0005COVER AS-TERMINAL (BLACK)(BATTERY NEGATIVE)1
8L8413STRAP-CABLE (WHITE)1
8C5918TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
8T9756TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
350833622 GUARD1
202400423 GROMMET2
204161124 STRAP-CABLE (DUAL)3
204193625 LINER2
209558226 SWITCH GP-MAGNETIC (24-VOLT)(HEATER RELAY)1
233089127 BRACKET AS1
2321693BOLT-FLANGE HEAD (M6X1X35-MM)1
238250128 KNOB1
252459829 SPACER (11X25X137-MM THK)1
259527430 SWITCH GP-MAGNETIC (24-VOLT)(START RELAY)1
259530331 BRACKET AS1
267805532 ROD1
275714133 CABLE AS1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
5P0761CABLE (00-GA, RED)(223-CM)
8N0869COVER-TERMINAL (RED)(STARTING MOTOR)1
9G0004COVER AS-TERMINAL (RED)(BATTERY POSITIVE)1
8L8413STRAP-CABLE (WHITE)1
8C5917TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
283288134 BRACKET1
306852635 GROMMET2
328034336 BRACKET AS1
342328537 HARNESS AS-CHASSIS1
1028802KIT-RECEPTACLE (2-PIN)9
1028804KIT-RECEPTACLE (4-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)9
8T8730SOCKET-CONNECTOR (16-GA TO 18-GA)31
3S2093STRAP-CABLE38
2L8050TERMINAL-RING (6-GA, 1/4-IN SCREW)1
2L8058TERMINAL-RING (8-GA, 1/4-IN SCREW)1
9X0196TERMINAL AS (16-GA)1
7Y3820HOUSING-RECEPTACLE1
7Y3821SOCKET-CONNECTOR2
7Y3951TERMINAL-BLADE (14-GA)2
7Y3952PLUG-CONNECTOR (2-PIN)1
7Y3962TERMINAL-BULLET (MALE)1
7Y3964TUBE1
7Y3963TERMINAL-BULLET (FEMALE)2
7Y3965TUBE2
7Y3995CONNECTOR-PLUG1
7Y3996TERMINAL-BLADE (14-GA TO 20-GA)1
8N1549SOCKET-CONNECTOR (4-GA)1
8T8737PLUG-SEAL30
8T8799BOOT (RED)2
9W0852PIN-CONNECTOR (14-GA TO 16-GA)14
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)43
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(20-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(70-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(95-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)153
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)1
1275483PLUG AS-CONNECTOR (1-PIN)1
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)1
5P3454TERMINAL-RING (4-GA, 5/16-IN SCREW)1
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)1
2L8050TERMINAL-RING (6-GA, 1/4-IN SCREW)6
2L8058TERMINAL-RING (8-GA, 1/4-IN SCREW)6
3T4692TERMINAL-RING (6-GA, 7/16-IN SCREW)1
3T4693TERMINAL-RING (8-GA, 7/16-IN SCREW)1
2L8065TERMINAL-RING (10-GA TO 12-GA, NO. 8 SCREW)1
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)3
3T4696TERMINAL-RING (10-GA TO 12-GA, 7/16-IN SCREW)4
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)3
2L8077TERMINAL-RING (14-GA TO 16-GA, 1/4-IN SCREW)1
2L8078TERMINAL-RING (14-GA TO 16-GA, 5/16-IN SCREW)2
1337442HOSE (196-CM)
1395345FUSE (5-AMPERE)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)5
1532620PLUG AS-CONNECTOR (54-PIN, BLACK)1
1636759SEAL1
1552270KIT-CONNECTING PLUG (2-PIN)18
1552271KIT-CONNECTING PLUG (4-PIN)1
1552260KIT-CONNECTING PLUG (3-PIN)1
2304009PLUG AS-CONNECTOR (12-PIN)2
2647034SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)7
2647029SEAL-CONNECTOR1
2304013PLUG AS-CONNECTOR (3-PIN)5
2647030SEAL-CONNECTOR1
2305008PLUG AS-CONNECTOR (4-PIN)4
2647031SEAL-CONNECTOR1
2305010PLUG AS-CONNECTOR (6-PIN)1
2647032SEAL-CONNECTOR1
2312295PLUG AS-CONNECTOR (8-PIN)2
2647033SEAL-CONNECTOR1
2397356PLUG AS-CONNECTOR (12-PIN)1
2647034SEAL-CONNECTOR1
2434510RECEPTACLE AS-CONNECTOR (12-PIN)1
2451042PLUG AS-CONNECTOR (64-PIN)1
2677207BOLT-SPECIAL (M6X1-THD)1
2677208RING-RETAINING1
2744990SEAL1
2451043PLUG GP-CONNECTOR (64-PIN)1
2677207BOLT-SPECIAL (M6X1-THD)1
2677208RING-RETAINING1
2744990SEAL1
2451044LOCK-CONNECTOR4
2451045COVER1
2679572SOCKET-CONNECTION (18-GA)50
2451048PLUG-CONNECTOR (1-PIN)78
2458023PLUG AS-CONNECTOR (40-PIN)1
2725000RECEPTACLE AS-CONNECTOR (12-PIN)1
3422972CAP-CONNECTOR (2-PIN)5
3422973CAP-CONNECTOR (3-PIN)2
3422975CAP-CONNECTOR (8-PIN)1
3422978CAP-CONNECTOR (4-PIN)4
342328638 CABLE AS1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
9G0003COVER AS-TERMINAL (BLACK)(BATTERY NEGATIVE)1
8L8413STRAP-CABLE (WHITE)1
9G8909COVER-TERMINAL (BLACK)(DISCONNECT SWITCH)1
8T9757TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1598050CABLE (00-GA, BLACK)(134-CM)
350807639 PANEL GP-CIRCUIT BREAKER1
350812540 GUARD1
350812641 STRIP AS1
132578942 CLIP (LADDER)3
4P742843 CLIP (LADDER)2
4P742944 CLIP1
4P758145 CLIP (LADDER)3
4P813446 CLIP (LADDER)1
5C287447 NUT (M5X0.8-THD)1
5C955348 BOLT (M6X1X16-MM)2
5P411549 WASHER-HARD (7.2X19X2-MM THK)1
5P411650 WASHER-HARD (8.8X20.5X2-MM THK)1
7X253451 BOLT (M6X1X50-MM)1
7X261952 BOLT (M6X1X10-MM)3
7X262153 BOLT (M10X1.5X12-MM)4
7Y328354 SPACER (13.88X21.34X95-MM THK)1
8J125655 CLIP (LOOP)1
8T032856 WASHER-HARD (5.5X10X1-MM THK)1
8T188957 CLIP (SLOT)2
8T189058 CLIP (TAB)2
8T412159 WASHER-HARD (11X21X2.5-MM THK)63
8T413360 NUT (M10X1.5-THD)2
8T413661 BOLT (M10X1.5X25-MM)6
8T413762 BOLT (M10X1.5X20-MM)43
8T413963 BOLT (M12X1.75X30-MM)2
8T417164 BOLT (M6X1X12-MM)2
8T417965 BOLT (M12X1.75X20-MM)4
8T418266 BOLT (M10X1.5X45-MM)1
8T418567 BOLT (M10X1.5X50-MM)1
8T419168 BOLT (M10X1.5X16-MM)6
8T422369 WASHER-HARD (13.5X25.5X3-MM THK)6
8T422670 WASHER-PLATED (10.5X45X3-MM THK)1
8T646671 BOLT (M10X1.5X60-MM)1
8T668572 BOLT (M10X1.5X110-MM)1
8T735273 BOLT (M8X1.25X160-MM)1
9X825674 WASHER (6.6X12X2-MM THK)8
319120075 LINER1
