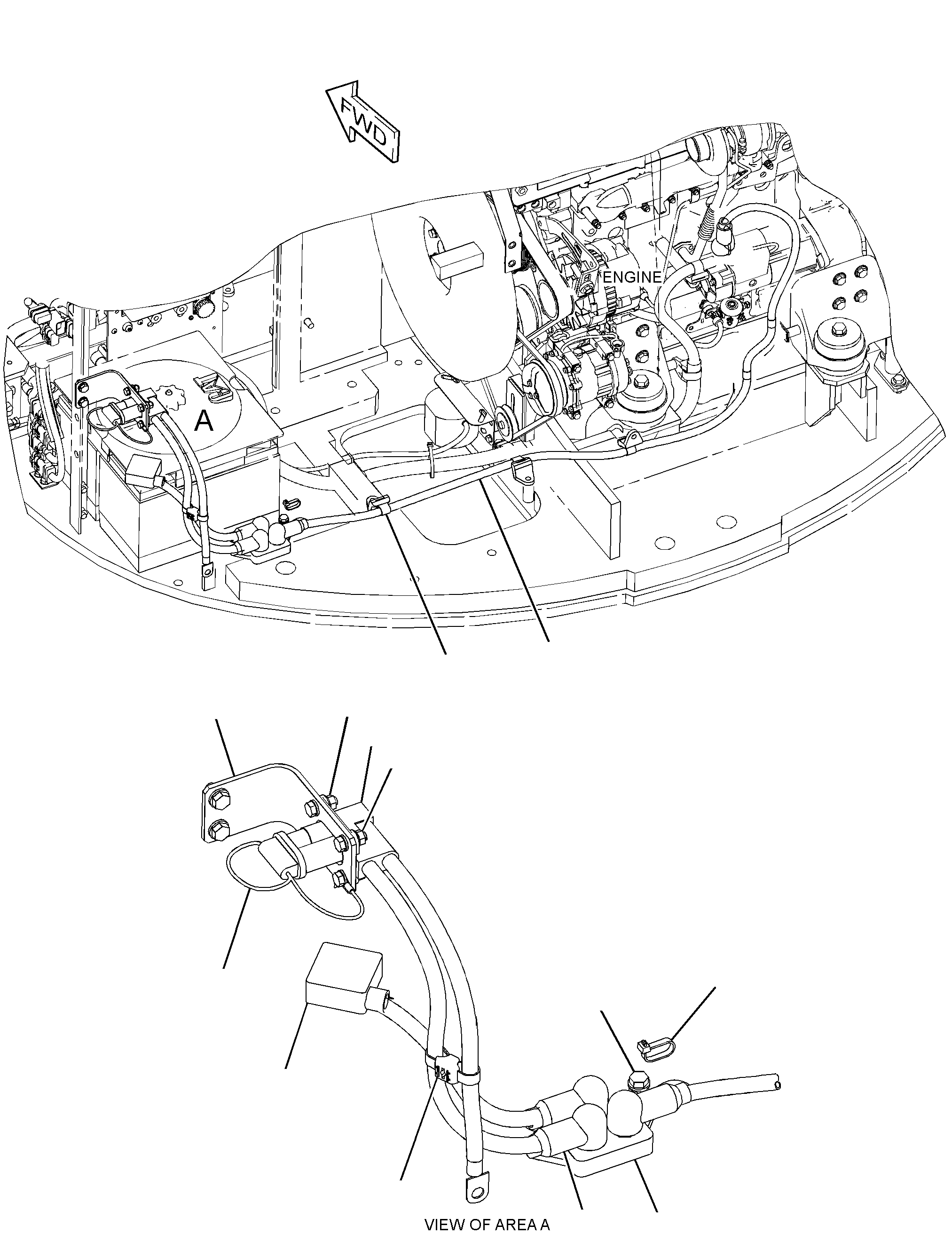

275-7121 WIRING GP-AUX START RECEPTACLE -JUMP STARTS/N WLN1-UP; XHR1-UP

Group No: 275-7121 · Commonality
Part NumberPart NameQty
2G18301 RECEPTACLE AS (AUXILIARY START)1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
5P0747CABLE (00-GA, BLACK)(49-CM)
5P0761CABLE (00-GA, RED)(56-CM)
6V2722TUBE-HEAT SHRINK (25.4-MM DIA)
8S26342 COVER AS1
9W07423 BLOCK GP-JUNCTION (BATTERY)1
11148374 CLIP3
20416735 STRAP-CABLE1
27571276 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
5P0761CABLE (00-GA, RED)(183-CM)
8N0869COVER-TERMINAL (RED)(ALTERNATOR)1
3010091COVER-TERMINAL (RED)(JUNCTION BLOCK)1
27571287 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
5P0761CABLE (00-GA, RED)(41-CM)
9G0004COVER AS-TERMINAL (RED)(BATTERY)1
8C5917TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
3010091COVER-TERMINAL (RED)(JUNCTION BLOCK)1
27571298 BRACKET1
30100919 COVER-TERMINAL (RED)1
5C726110 NUT (M8X1.25-THD)4
8T412111 WASHER-HARD (11X21X2.5-MM THK)3
8T413612 BOLT (M10X1.5X25-MM)2
8T422413 WASHER-HARD (8.8X16X2-MM THK)8
8T490814 BOLT (M8X1.25X25-MM)4
8T418515 BOLT (M10X1.5X50-MM)1
7K118116 STRAP-CABLE1
6G226317 SPACER (10.5X19X28.5-MM THK)1
