System And Components

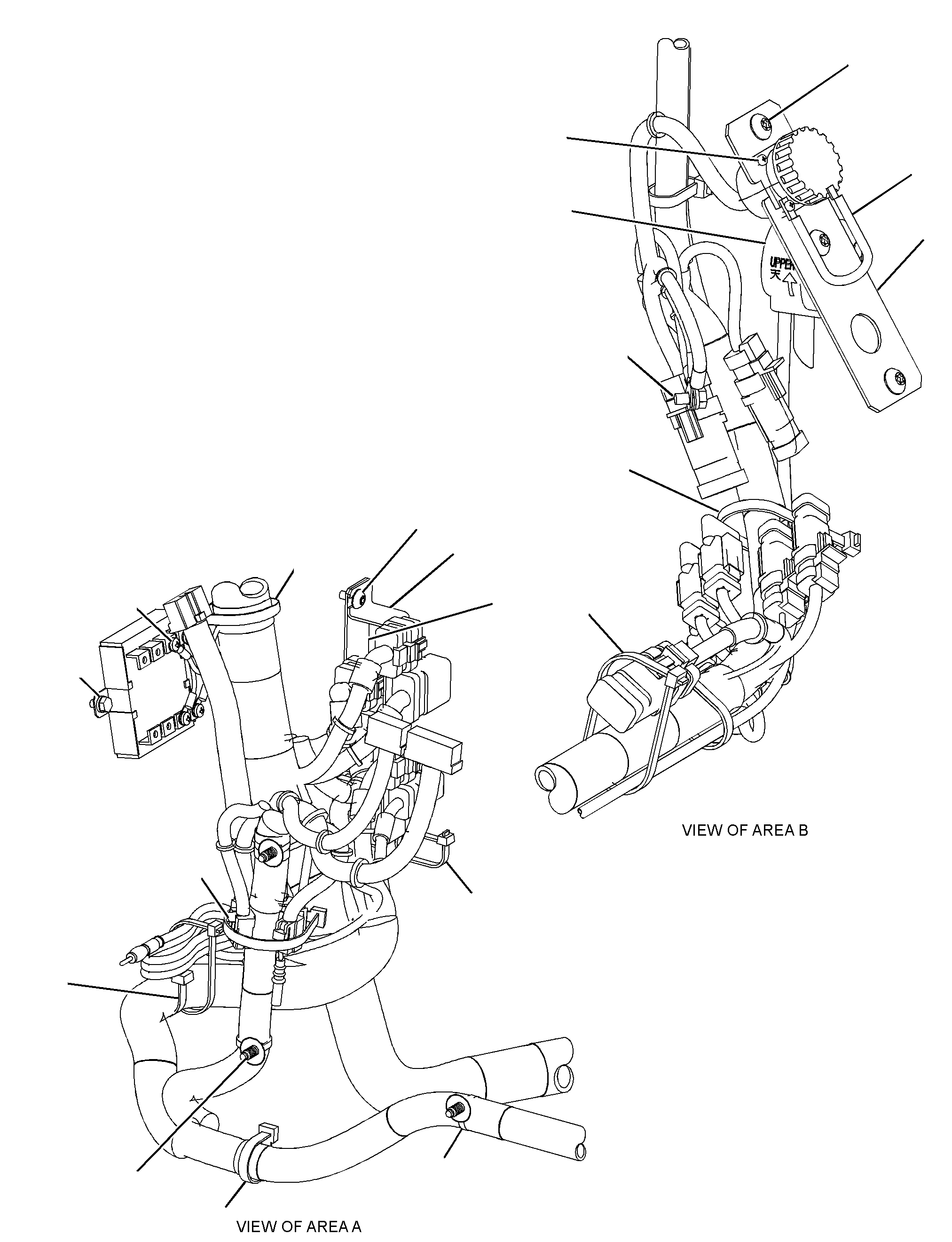

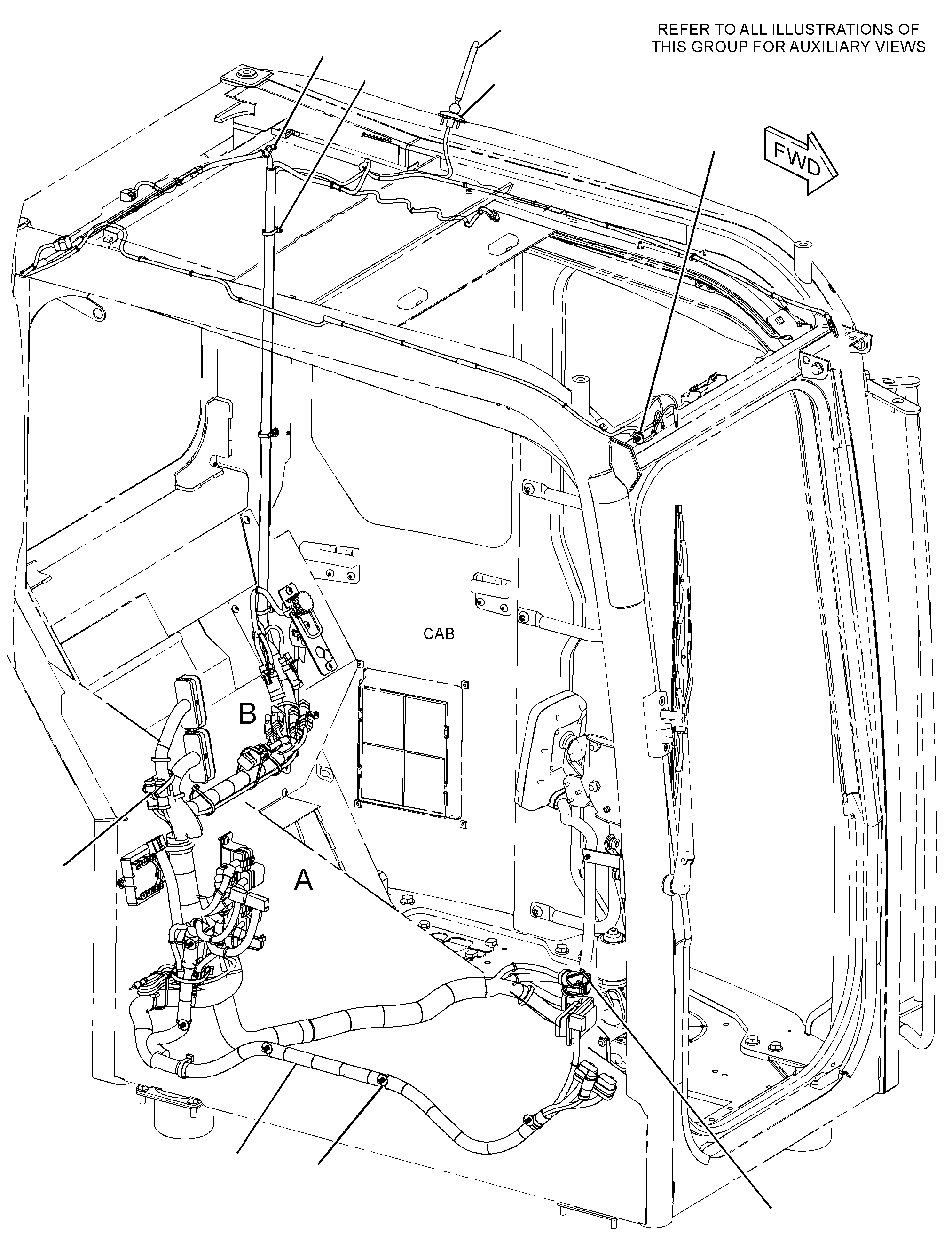

336-6172 WIRING GP-CABS/N WLN1-UP; XHR1-UP
Group No: 336-6172 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 4 | |
| 7K1181 | 2 STRAP-CABLE | 14 | |
| 1321829 | 3 ALARM GP (24-VOLT) | 1 | |
| 1636795 | 4 STRAP-CABLE | 6 | |
| 1673593 | 5 STRAP | 1 | |
| 2909428 | 6 RESISTOR AS | 1 | |
| 3245828 | 7 ANTENNA AS | 1 | |
| 3422960 | 8 HARNESS AS-CAB | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 4 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 15 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 11 | |
| 3S2093 | STRAP-CABLE | 35 | |
| 7Y3950 | TERMINAL-BLADE (14-GA TO 20-GA)(MALE) | 4 | |
| 7Y3951 | TERMINAL-BLADE (14-GA)(FEMALE) | 10 | |
| 7Y3952 | PLUG-CONNECTOR (2-PIN) | 2 | |
| 7Y3954 | CONNECTOR-PLUG (3-PIN) | 1 | |
| 7Y3955 | CONNECTOR-RECEPTACLE | 2 | |
| 7Y3958 | CONNECTOR-PLUG (6-PIN) | 1 | |
| 7Y3962 | TERMINAL-BULLET (MALE) | 1 | |
| 7Y3964 | TUBE | 1 | |
| 7Y3963 | TERMINAL-BULLET (FEMALE) | 5 | |
| 7Y3965 | TUBE | 5 | |
| 7Y3993 | TERMINAL-BLADE (12-GA)(FEMALE) | 2 | |
| 8C6354 | CAP-RECEPTACLE (ET CONNECTOR) | 1 | |
| 8T8737 | PLUG-SEAL | 71 | |
| 9W1951 | RECEPTACLE-CONNECTOR (9-PIN) | 1 | |
| 1027965 | TERMINAL (14-GA TO 20-GA) | 12 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 20 | |
| 9W0844 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 12 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(33-CM) | ||
| 1254785 | TERMINAL (FEMALE) | 13 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(125-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(45-CM) | ||
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 141 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 1 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 4 | |
| 5P2321 | TERMINAL-FORK (14-GA TO 16-GA, NO. 6 SCREW) | 1 | |
| 2L8066 | TERMINAL-RING (10-GA TO 12-GA, NO. 10 SCREW) | 1 | |
| 2L8067 | TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW) | 3 | |
| 2L8075 | TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW) | 1 | |
| 2L8076 | TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW) | 3 | |
| 1769299 | KIT-RECEPTACLE (3-PIN) | 4 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 86 | |
| 1532620 | PLUG AS-CONNECTOR (54-PIN, BLACK) | 1 | |
| 1636759 | SEAL | 1 | |
| 1532630 | PLUG AS-CONNECTOR (54-PIN, BROWN) | 1 | |
| 1636759 | SEAL | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 5 | |
| 1636637 | RECEPTACLE AS-CONNECTOR (54-PIN, BLACK) | 1 | |
| 1636659 | CONNECTOR-PLUG (12-PIN) | 1 | |
| 1636699 | CONNECTOR-PLUG (18-PIN) | 1 | |
| 1636790 | TERMINAL (FEMALE) | 22 | |
| 1636803 | PLUG-CONNECTOR (5-PIN) | 3 | |
| 1673487 | WEDGE-PLUG LOCK (5-PIN) | 3 | |
| 1673614 | CONNECTOR-PLUG | 1 | |
| 1743016 | PLUG AS-RESISTOR (3-PIN, 120 OHM) | 4 | |
| 1974385 | DIODE | 4 | |
| 2304009 | PLUG AS-CONNECTOR (12-PIN) | 3 | |
| 2647034 | SEAL-CONNECTOR | 1 | |
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 3 | |
| 2647029 | SEAL-CONNECTOR | 1 | |
| 2305008 | PLUG AS-CONNECTOR (4-PIN) | 1 | |
| 2647031 | SEAL-CONNECTOR | 1 | |
| 2312295 | PLUG AS-CONNECTOR (8-PIN) | 1 | |
| 2647033 | SEAL-CONNECTOR | 1 | |
| 2397356 | PLUG AS-CONNECTOR (12-PIN) | 3 | |
| 2647034 | SEAL-CONNECTOR | 1 | |
| 2434505 | RECEPTACLE AS-CONNECTOR (2-PIN) | 3 | |
| 2434507 | RECEPTACLE AS-CONNECTOR (4-PIN) | 2 | |
| 2434509 | RECEPTACLE AS-CONNECTOR (8-PIN) | 2 | |
| 2434510 | RECEPTACLE AS-CONNECTOR (12-PIN) | 2 | |
| 2725000 | RECEPTACLE AS-CONNECTOR (12-PIN) | 2 | |
| 3508268 | 9 PLATE AS | 1 | |
| 3508270 | 10 BRACKET AS | 1 | |
| 3508273 | 11 STRIP AS | 1 | |
| 0950735 | 12 SCREW-MACHINE (M5X0.8X8-MM) | 4 | |
| 0966166 | 13 WASHER-HARD (4.5X9X1-MM THK) | 2 | |
| 0969278 | 14 SCREW-PAN HEAD | 3 | |
| 6V9491 | 15 SCREW-MACHINE (M4X0.7X20-MM) | 2 | |
| 7X2619 | 16 BOLT (M6X1X10-MM) | 2 | |
| 8T0328 | 17 WASHER-HARD (5.5X10X1-MM THK) | 4 | |
| 8T4121 | 18 WASHER-HARD (11X21X2.5-MM THK) | 1 | |
| 8T4133 | 19 NUT (M10X1.5-THD) | 1 | |
| 8T4171 | 20 BOLT (M6X1X12-MM) | 1 | |
| 9X2042 | 21 SCREW-TRUSS HEAD (M6X1X12-MM) | 3 | |
| 9X2043 | 22 SCREW-TRUSS HEAD (M6X1X14-MM) | 2 | |
| 9X8256 | 23 WASHER (6.6X12X2-MM THK) | 3 |
