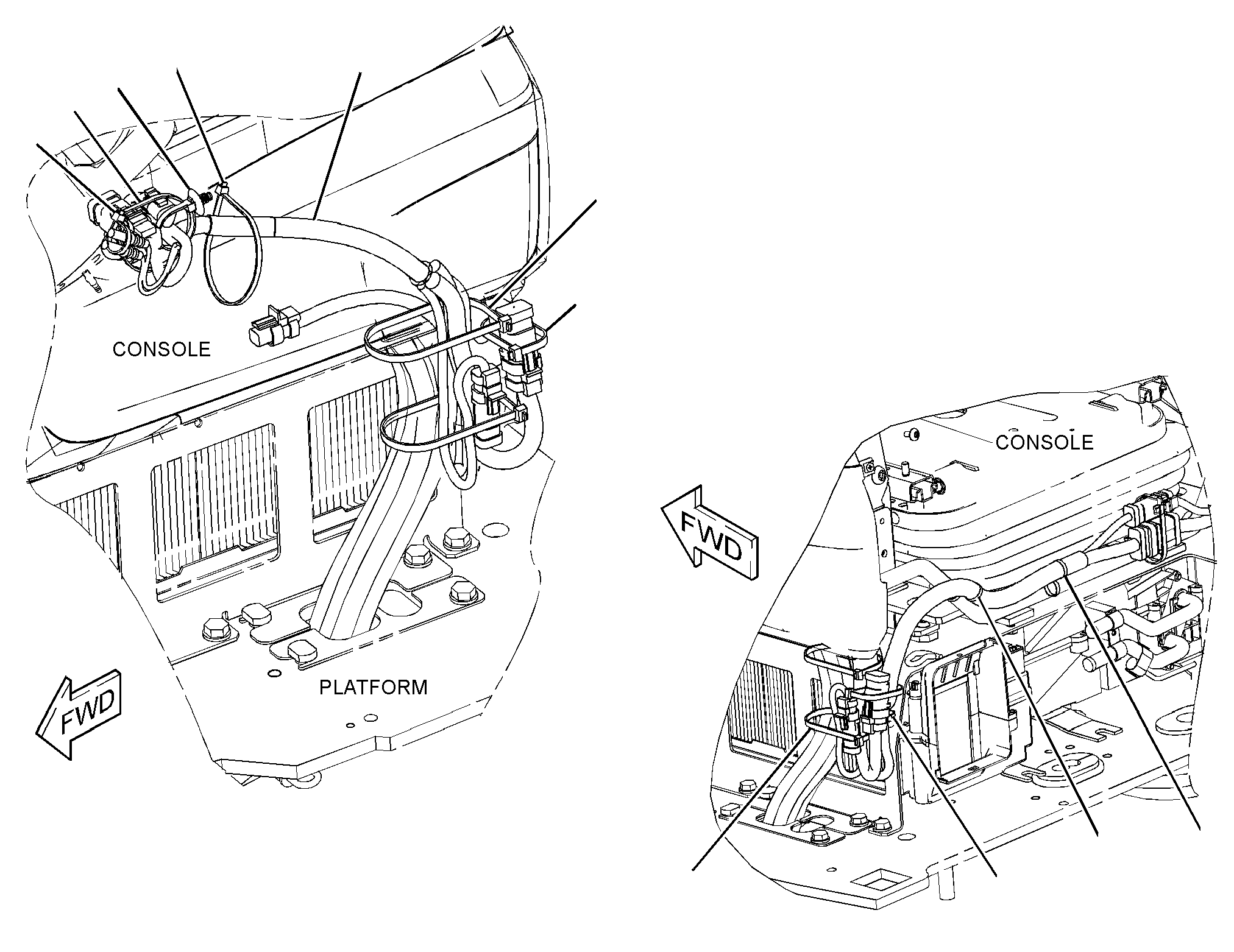

342-3046 WIRING GP-CONSOLE -LHS/N WLN1-UP; XHR1-UP

Group No: 342-3046 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE3
7I26732 STRAP-CABLE2
7K11813 STRAP-CABLE4
16367954 STRAP-CABLE2
34230485 HARNESS AS-CONSOLE1
8T8730SOCKET-CONNECTOR (16-GA TO 18-GA)7
3S2093STRAP-CABLE7
7Y3963TERMINAL-BULLET (FEMALE)2
8T8737PLUG-SEAL15
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)4
1257875TUBE-HEAT SHRINK (7.44-MM DIA)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)19
9X3401PIN-CONNECTOR (16-GA TO 18-GA)4
1552260KIT-CONNECTING PLUG (3-PIN)1
2304009PLUG AS-CONNECTOR (12-PIN)1
2647034SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)2
2647029SEAL-CONNECTOR
2305010PLUG AS-CONNECTOR (6-PIN)1
2647032SEAL-CONNECTOR1
2397352PLUG AS-CONNECTOR (6-PIN)1
2647032SEAL-CONNECTOR1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)1
2434507RECEPTACLE AS-CONNECTOR (4-PIN)1
2434508RECEPTACLE AS-CONNECTOR (6-PIN)1
2472693RECEPTACLE AS-CONNECTOR (6-PIN)1
