System And Components

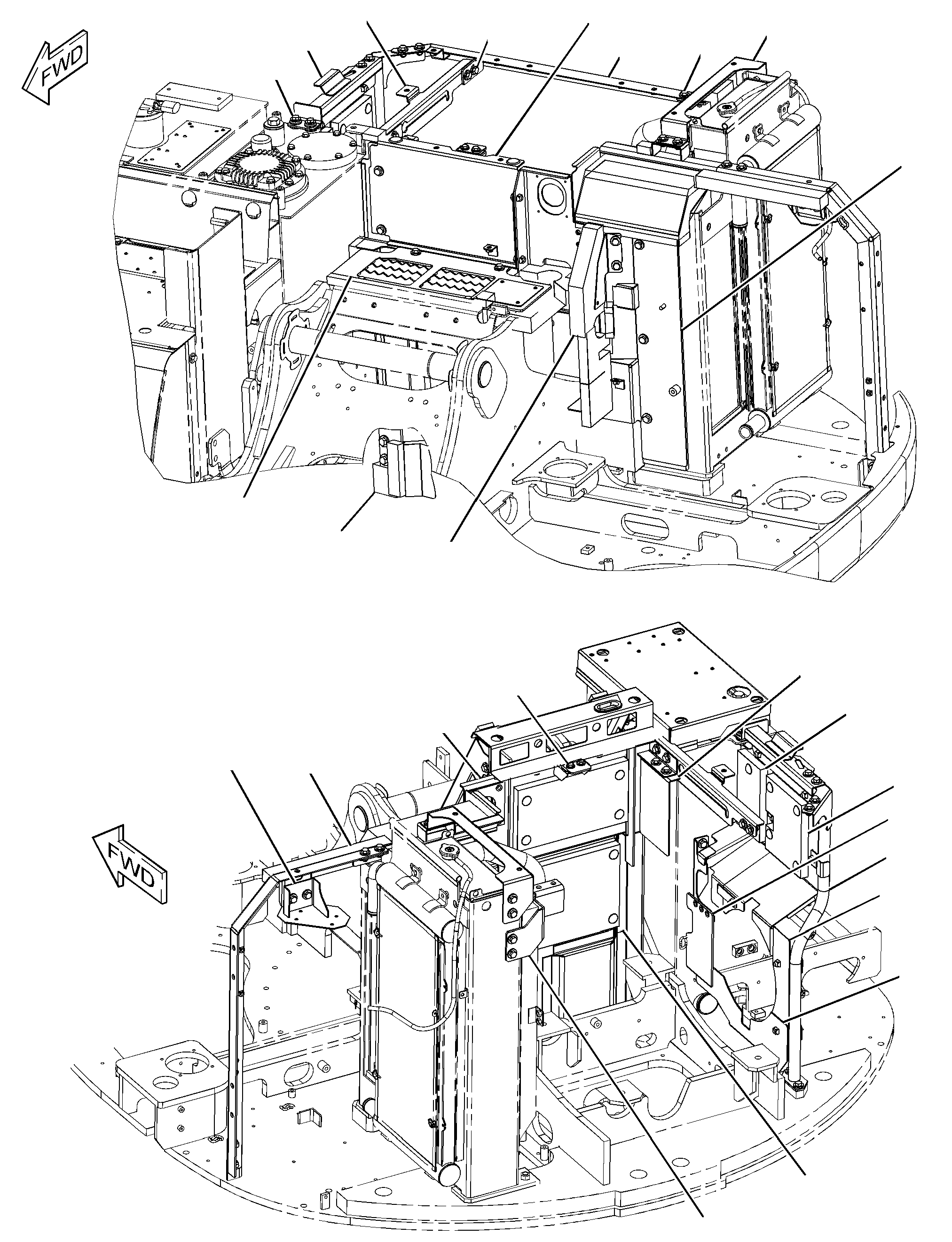

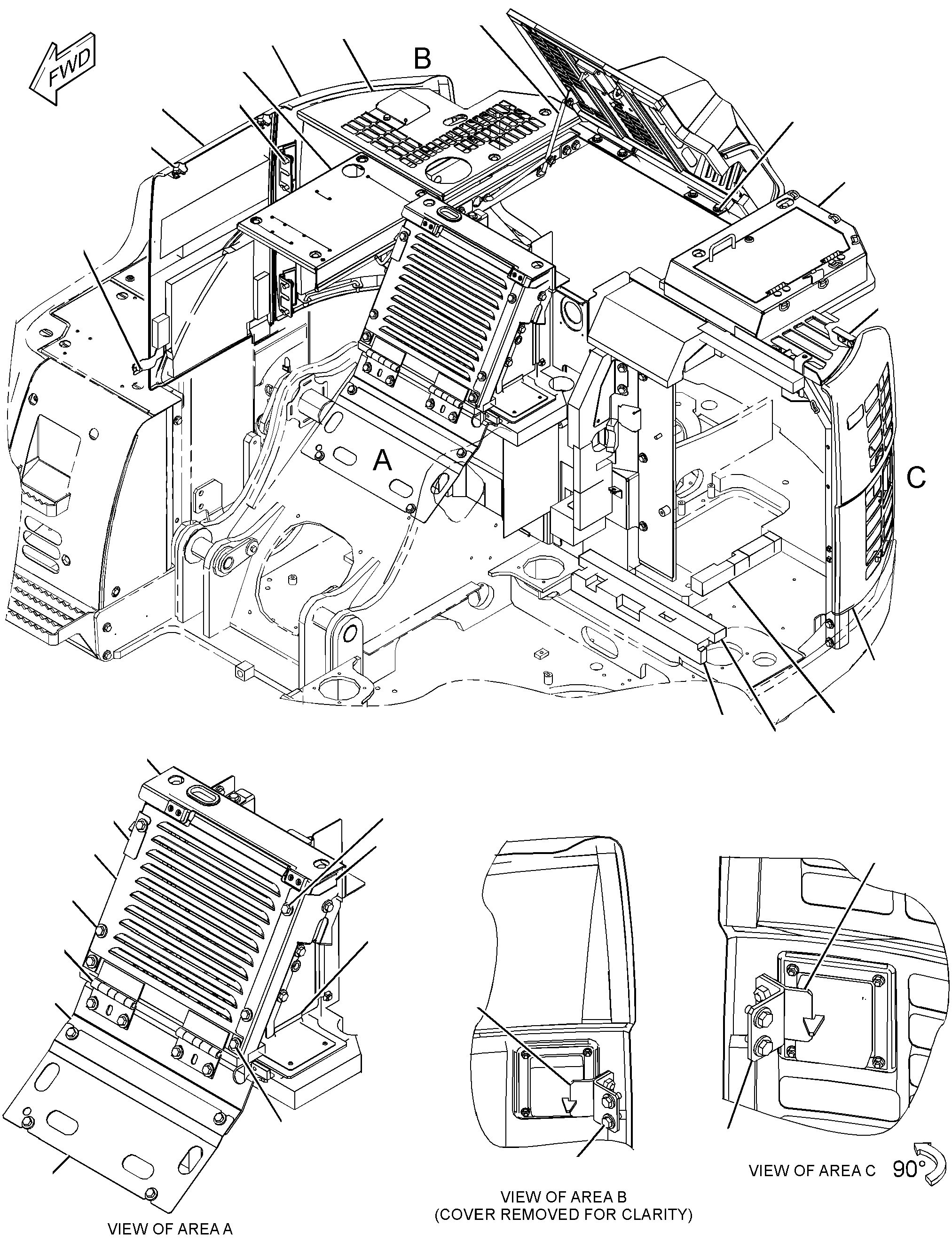

346-2724 HOOD & GUARD GPS/N WLN206-UP; XHR169-UP
Group No: 346-2724 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0960684 | 1 SHIM (0.8-MM THK) | 2 | |
| 1025689 | 2 SHIM (2-MM THK) | 2 | |
| 1358572 | 3 BOLT AS | 1 | |
| 1358573 | 4 BOLT AS | 72 | |
| 1358575 | 5 BOLT AS | 21 | |
| 1906821 | 6 SHIM (1-MM THK) | 3 | |
| 1982295 | 7 PLATE AS | 2 | |
| 2021766 | 8 PLATE | 1 | |
| 2116246 | 9 SPACER (13.3X21.3X25-MM THK) | 2 | |
| 2585906 | 10 ROD AS | 1 | |
| 8T4223 | WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 2866038 | 11 SUPPORT AS | 1 | |
| 2866039 | 12 SUPPORT AS | 1 | |
| 2866041 | 13 SUPPORT AS | 1 | |
| 3848927 | 14 SUPPORT AS | 1 | |
| 2866060 | 15 SHEET AS | 1 | |
| 2866070 | 16 HOOD GP-ENGINE | 1 | |
| 2866078 | 17 COVER GP-ACCESS (HYDRAULIC PUMPS) | 1 | |
| 2866082 | 18 COVER AS-SOUND SUPPRESSION | 1 | |
| 2866083 | 19 SHEET AS-SOUND SUPPRESSION | 1 | |
| 2866162 | 20 LINER | 1 | |
| 2866164 | 21 STRIKER | 1 | |
| 2866165 | 22 STRIKER | 1 | |
| 2866166 | 23 STRIKER | 1 | |
| 2866179 | 24 COVER AS-ACCESS (FUEL TANK) | 1 | |
| 2896786 | 25 SHEET AS | 1 | |
| 2982896 | SHEET-RUBBER | 1 | |
| 2896864 | 26 SHEET AS | 1 | |
| 2982919 | 27 LINER | 1 | |
| 2982924 | 28 SHEET AS | 1 | |
| 9M2307 | WASHER (5.2X19X2-MM THK) | 3 | |
| 9M5732 | RIVET-POP | 3 | |
| 2982925 | SHEET-RUBBER | 1 | |
| 3758738 | 29 DOOR GP-ACCESS (PUMP COMPARTMENT) | 1 | |
| 3077665 | 30 SHEET AS | 1 | |
| 3138133 | 31 SUPPORT AS | 1 | |
| 3138134 | LINER | 1 | |
| 3758741 | 32 DOOR GP-ACCESS (AIR CLEANER) | 1 | |
| 3138164 | 33 SHEET AS | 1 | |
| 3205453 | SEAL | 1 | |
| 3301608 | 34 COVER GP-ACCESS (RADIATOR) | 1 | |
| 3335137 | 35 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3335254 | 36 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3335267 | 37 SUPPORT AS | 1 | |
| 2866042 | SUPPORT AS | 1 | |
| 3335268 | LINER | 1 | |
| 3335269 | 38 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3335273 | 39 SHEET AS | 1 | |
| 3335275 | LINER | 1 | |
| 3335276 | 40 SUPPORT AS | 1 | |
| 3335281 | 41 SHEET | 1 | |
| 3374779 | 42 SHEET AS | 1 | |
| 3374778 | LINER | 1 | |
| 3374780 | 43 COVER AS-ACCESS | 1 | |
| 3397171 | 44 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3397172 | 45 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3397282 | 46 SUPPORT AS-ENCLOSURE | 1 | |
| 3397283 | 47 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3397286 | 48 COVER AS-ACCESS | 1 | |
| 3848934 | 49 SUPPORT AS | 1 | |
| 3205444 | LINER | 1 | |
| 3462808 | 50 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3462810 | 51 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3462811 | LINER | 1 | |
| 3462812 | 52 LINER | 1 | |
| 3462813 | 53 LINER | 1 | |
| 0878894 | 54 SHIM (2-MM THK) | 2 | |
| 0878895 | 55 SHIM (1-MM THK) | 2 | |
| 3B4618 | 56 PIN-COTTER | 1 | |
| 0993600 | 57 WASHER (12.7X30X4-MM THK) | 2 | |
| 1785801 | 58 GROMMET | 2 | |
| 5P1076 | 59 WASHER-HARD (13.5X30X4-MM THK) | 4 | |
| 7X7729 | 60 WASHER (11X25X3-MM THK) | 10 | |
| 8T4136 | 61 BOLT (M10X1.5X25-MM) | 10 | |
| 8T4192 | 62 BOLT (M12X1.75X25-MM) | 2 | |
| 8T4194 | 63 BOLT (M12X1.75X50-MM) | 2 | |
| 8T4223 | 64 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 8T4244 | 65 NUT (M12X1.75-THD) | 4 |
