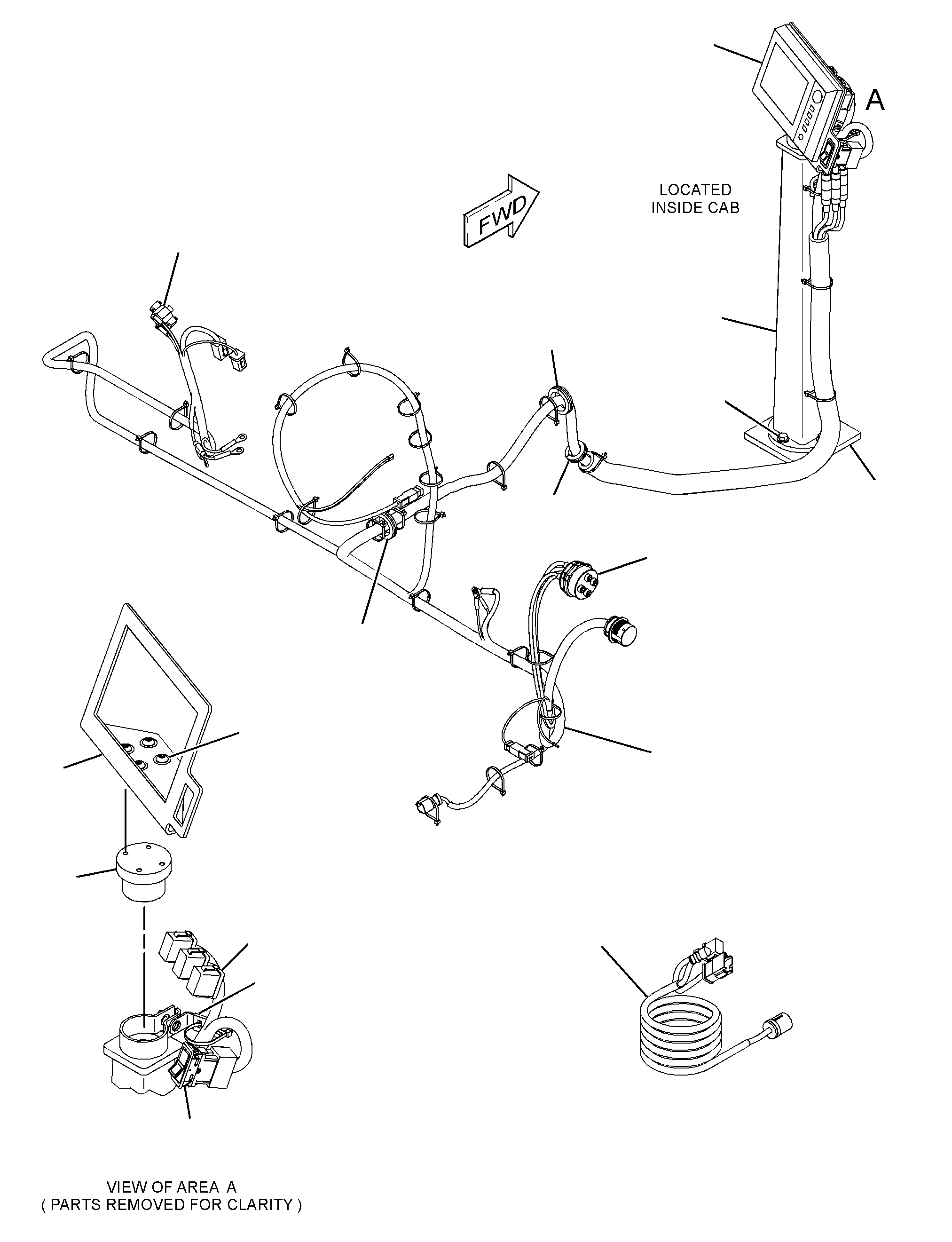

353-1658 WIRING GP-MONITOR -OBJECT DETECTIONFOR USE WITH 785C,789C,793C, PEDESTRIAN MOUNTING

Group No: 353-1658
Part NumberPart NameQty
3S20931 STRAP-CABLE27
16787482 PLATE1
31553914 NUT (M50X1.5-THD)1
31968305 HARNESS AS-MONITOR (CAMERA)1
34571136 SWITCH AS-ROCKER (WORK AREA VISUAL SYSTEM)1
34574897 HARNESS AS-MONITOR1
1028801KIT-RECEPTACLE (12-PIN)1
3S2093STRAP-CABLE1
8T8736RECEPTACLE-CONNECTOR (9-PIN)1
8T8737PLUG-SEAL22
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)5
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)5
1261767PIN-CONNECTOR (14-GA TO 16-GA)4
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)2
1342540RECEPTACLE AS-CONNECTOR (3-PIN)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)3
1261767PIN-CONNECTOR (14-GA TO 16-GA)3
1552255KIT-CONNECTING PLUG (12-PIN)1
1740503KIT-CONNECTING PLUG (3-PIN)1
2187136SLEEVE (52-CM)
35246938 BRACKET1
35246949 BRACKET1
261322310 CABLE AS-COMMUNICATION4
2D038811 GROMMET (25.4-MM ID)1
348216312 PEDESTAL AS1
1F0750NUT-WELD (3/8-16-THD)1
7T1099LINK3
348922613 GROMMET AS1
353165914 HARNESS AS-MONITOR1
1028802KIT-RECEPTACLE (2-PIN)2
1028803KIT-RECEPTACLE (3-PIN)1
1769299KIT-RECEPTACLE (3-PIN)1
3E7996PLUG-CONNECTOR (6-PIN)1
7T0093PIN-CONNECTOR (12-GA TO 14-GA)4
7T0094SOCKET-CONNECTOR (12-GA TO 14-GA)3
8T8737PLUG-SEAL36
0655071TERMINAL-BLADE (14-GA TO 16-GA)4
1138491FUSE (15-AMPERE)1
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(20-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(20-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)11
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)11
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)2
1284164TERMINAL AS2
2L8065TERMINAL-RING (10-GA TO 12-GA, NO. 8 SCREW)1
5P6006TUBE-HEAT SHRINK (9.52-MM DIA)(0.1-M)
1284170TERMINAL AS1
2L8052TERMINAL-RING (6-GA, 3/8-IN SCREW)1
2L8060TERMINAL-RING (8-GA, 3/8-IN SCREW)1
6V9023TUBE-HEAT SHRINK (12.7-MM DIA)(4-CM)
1284178TERMINAL AS2
2L8068TERMINAL-RING (10-GA TO 12-GA, 5/16-IN SCREW)1
5P6006TUBE-HEAT SHRINK (9.52-MM DIA)(0.1-M)
1284187TERMINAL AS2
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)1
6V2689TUBE-HEAT SHRINK (6.35-MM DIA)(0.1-M)
9X3401PIN-CONNECTOR (16-GA TO 18-GA)11
1261767PIN-CONNECTOR (14-GA TO 16-GA)11
1552255KIT-CONNECTING PLUG (12-PIN)1
1552256KIT-CONNECTING PLUG (12-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)2
1552274KIT-CONNECTING PLUG (6-PIN)1
1779656KIT-CONNECTING PLUG (4-PIN)1
2110052NUT (1-11/16-18-THD)1
2130143CONNECTOR (19-PIN)1
3045284HOLDER-FUSE1
3100674LOCKWASHER1
3522018RESISTOR AS1
8T8730SOCKET-CONNECTOR (16-GA TO 18-GA)2
8T8737PLUG-SEAL1
1740503KIT-CONNECTING PLUG (3-PIN)1
355904815 DISPLAY GP-MONITOR (OBJECT DETECTION)1
3Y810016 BOLT (3/8-16X0.87-IN)4
4B486317 WASHER (4.7X11X1.2-MM THK)2
4D310018 GROMMET2
4P742919 CLIP1
5P411620 WASHER-HARD (8.8X20.5X2-MM THK)4
6T364421 CIRCUIT BREAKER AS (20-AMPERE)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
7U489222 SCREW (8-32X0.75-IN)2
8T412123 WASHER-HARD (11X21X2.5-MM THK)4
9X204424 SCREW-TRUSS HEAD (M6X1X16-MM)4
1P081025 TAPE-ELECTRICAL
