System And Components

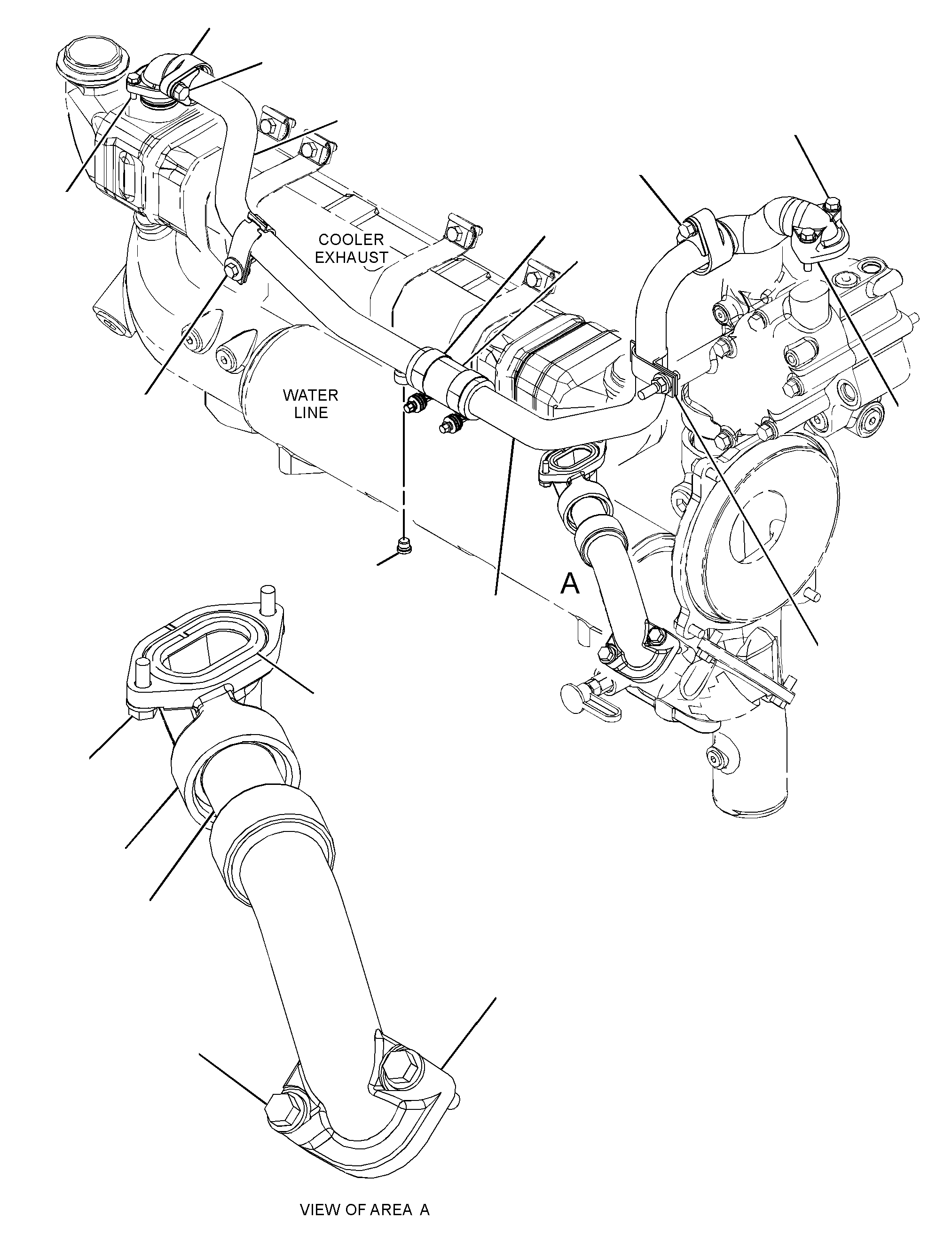

350-3121 LINES GP-WATERS/N TXL1-5852; L4X1-UP
Group No: 350-3121 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8T9588 | 1 SEAL-O-RING | 1 | |
| 5234273 | 2 CLAMP-BAND | 2 | |
| 4374425 | 3 SEAL-O-RING | 1 | |
| 3048008 | 4 PLUG AS | 1 | |
| 6V9027 | SEAL-O-RING | 1 | |
| 9S8002 | PLUG (7/16-20-THD) | 1 | |
| 4456881 | 5 HOSE | 1 | |
| 3381556 | 6 RETAINER | 2 | |
| 3441816 | 7 ELBOW | 1 | |
| 3498402 | 8 TUBE (INTEGRAL SEAL) | 1 | |
| 3888922 | 9 ELBOW | 1 | |
| 3611287 | 10 TUBE-RETURN | 1 | |
| 3559558 | 11 ELBOW | 1 | |
| 3611285 | 12 ELBOW | 1 | |
| 3611286 | 13 TUBE AS | 1 | |
| 0S0509 | 14 BOLT (3/8-16X0.75-IN) | 2 | |
| 1187214 | 15 SEAL-O-RING | 2 | |
| 1744883 | 16 STUD (3/8-16X2-IN) | 1 | |
| 1B9575 | 17 BOLT (5/16-18X1.56-IN) | 2 | |
| 4B3388 | 18 BOLT (5/16-18X1.125-IN) | 1 | |
| 1H5514 | 19 BOLT (5/16-18X1.625-IN) | 2 | |
| 4F7957 | 20 BOLT (1/4-20X0.875-IN) | 4 | |
| 5M2894 | 21 WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 5P0537 | 22 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 7L6580 | 23 SEAL-O-RING | 2 | |
| 8S0023 | 24 CLIP (SLOT) | 2 | |
| 8S0024 | 25 CLIP (TAB) | 2 | |
| 9M1974 | 26 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 9N0869 | 27 WASHER-HARD (8.8X25.5X2-MM THK) | 2 | |
| 9X6458 | 28 WASHER-HARD (10.2X22.5X3-MM THK) | 1 |
