System And Components

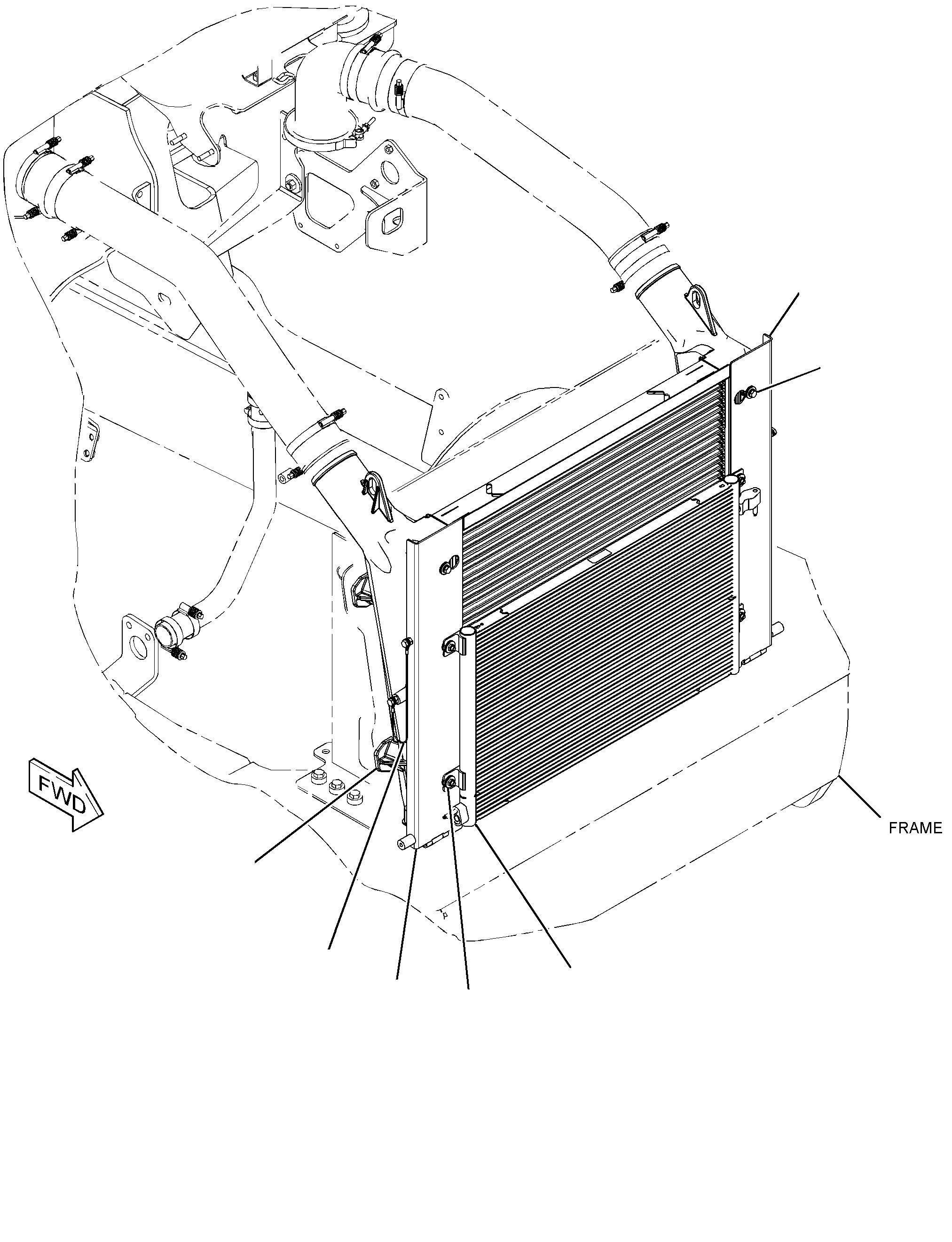

341-9505 AFTERCOOLER GP-AIRS/N T4P1-UP
Group No: 341-9505 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3178141 | 1 MOUNT | 2 | |
| 3442569 | 2 CORE AS-CONDENSER | 1 | |
| 3178141 | MOUNT | 4 | |
| 3442576 | 3 CABLE AS | 2 | |
| 3501820 | 4 CORE AS-AFTERCOOLER | 1 | |
| 3700020 | 5 HINGE AS (RH) | 1 | |
| 3700021 | 6 HINGE AS (LH) | 1 | |
| 5C7261 | 7 NUT (M8X1.25-THD) | 4 | |
| 7X0579 | 8 WASHER-HARD (8.8X25.5X2-MM THK) | 6 | |
| 8T4121 | 9 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 8T4136 | 10 BOLT (M10X1.5X25-MM) | 4 | |
| 8T4200 | 11 BOLT (M8X1.25X16-MM) | 4 | |
| 8T4224 | 12 WASHER-HARD (8.8X16X2-MM THK) | 10 | |
| 8T4908 | 13 BOLT (M8X1.25X25-MM) | 2 | |
| 8T7963 | 14 LOCKNUT (M8X1.25-THD) | 4 |
