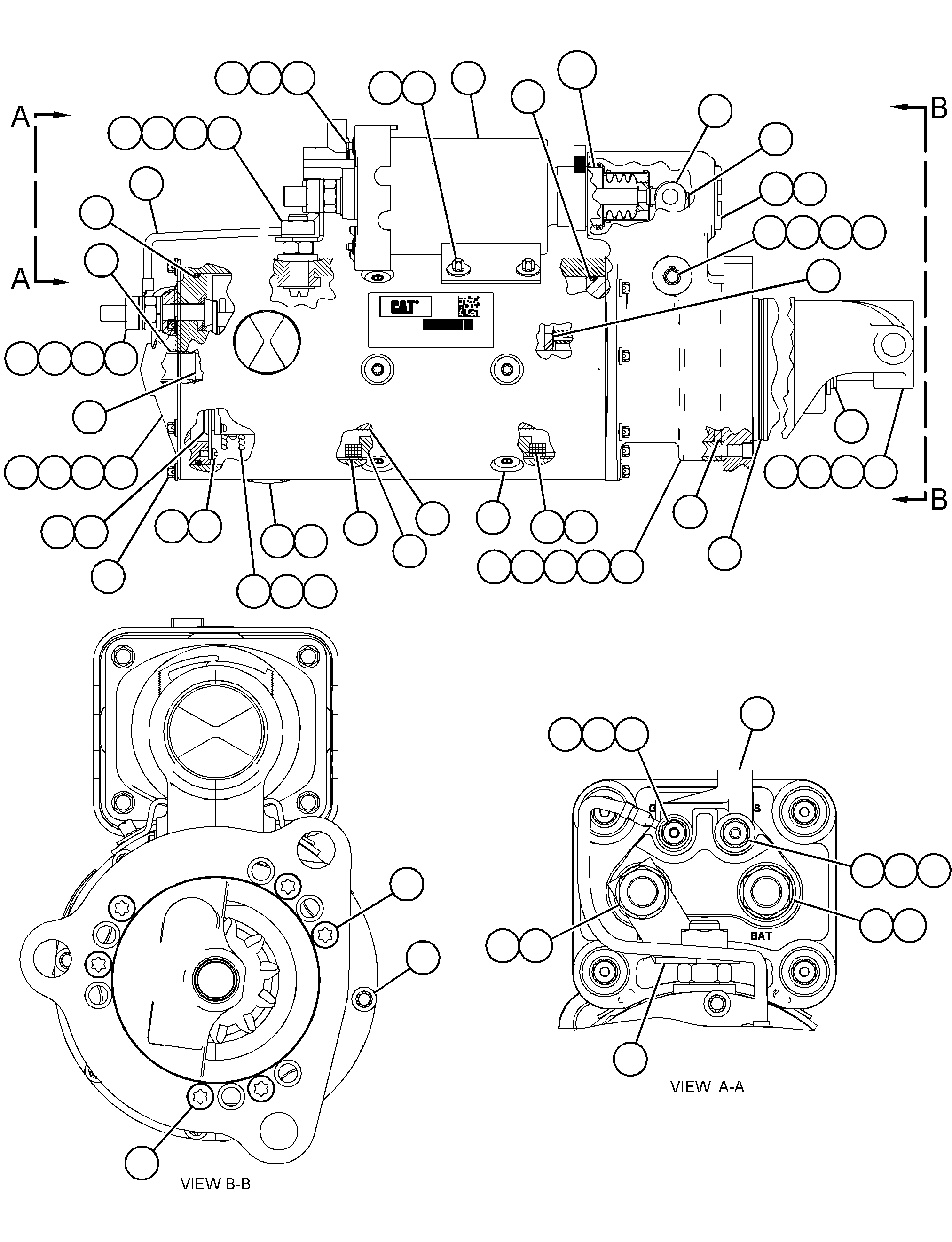

338-3454 STARTING MOTOR GP-ELECTRICS/N TXL1-UP; L4X1-UP
Group No: 338-3454 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7M0326 | 1 CONNECTOR | 1 | |
| 9H3757 | 2 WASHER (0.516X1X0.094-IN THK) | 2 | |
| 1S7446 | 3 SCREW-MACHINE (8-32X0.437-IN) | 3 | |
| 8C9660 | 4 WASHER (4.6X7.9X0.8-MM THK) | 3 | |
| 9S2544 | 5 SCREW-HEX HEAD (8-32X11.13-MM) | 9 | |
| 7M0327 | 6 WASHER-THRUST (17.4X25.4X1.6-MM THK) | 1 | |
| 3T3418 | 7 FRAME AS-END | 1 | |
| 9G4101 | 7A BUSHING-END | 1 | |
| 3T3423 | CUP | 1 | |
| 3T3424 | PLUG-FELT | 1 | |
| 3T9525 | 8 PLATE AS-BRUSH (STARTING MOTOR) | 1 | |
| 1T0808 | 9 WASHER (0.516X0.812X0.09-IN THK) | 2 | |
| 3T3422 | 10 WIRE AS | 1 | |
| 2J8163 | 11 SEAL-O-RING | 2 | |
| 7X3373 | 12 BOLT (5/16-18X0.88-IN) | 1 | |
| 1256535 | 13 COVER-STARTING MOTOR | 1 | |
| 5J5314 | 14 BOLT (5/16-18X1.5-IN) | 5 | |
| 3L3380 | 15 BUSHING-TERMINAL | 1 | |
| 8C3089 | 16 SEAL-O-RING | 1 | |
| 4M1853 | 17 LEVER AS-SHIFT | 1 | |
| 5M3034 | 18 LOCKNUT (5/16-24-THD) | 1 | |
| 7L2894 | 19 GASKET | 4 | |
| 4M1831 | 20 PLUG-LEVER HOUSING | 4 | |
| 4M1854 | 21 SHAFT-LEVER | 1 | |
| 1H1023 | 22 SEAL-O-RING | 1 | |
| 2D6392 | 23 SEAL-O-RING | 1 | |
| 5286787 | 24 HOUSING AS-DRIVE | 1 | |
| 6N3826 | 25 DRIVE AS-MOTOR | 1 | |
| 2H3429 | 26 RING-RETAINING | 1 | |
| 6V1322 | 27 BOLT (1/4-20X0.375-IN) | 4 | |
| 8T4205 | 28 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 6N3279 | 29 INSULATOR | 1 | |
| 0S1597 | 30 BOLT (1/4-28X1-IN) | 13 | |
| 1M9971 | 31 SPACER (0.835X1.72X0.188-IN THK) | 1 | |
| 1H2629 | 32 STRIP-INSULATION | 3 | |
| 7M0324 | 33 COIL AS-FIELD | 1 | |
| 3R8797 | 34 SCREW & WASHER AS (3/8-24X0.72-IN) | 12 | |
| 7F3488 | 35 SHOE-POLE | 6 | |
| 7M8651 | 36 ARMATURE AS | 1 | |
| 7M0325 | 37 INSULATOR | 1 | |
| 3T9524 | 38 BRUSH AS | 6 | |
| 3N3763 | 39 KIT-TERMINAL (STARTING MOTOR) | 1 | |
| 3383453 | 40 SOLENOID AS-STARTING MOTOR (24-VOLT) | 1 | |
| 3R8801 | 40A CLAMP | 1 | |
| 8F1434 | 42 LOCKWASHER | 2 | |
| 6V8188 | 43 NUT (1/2-13-THD) | 6 | |
| 7X0562 | 44 WASHER-HARD (13.5X19X0.8-MM THK) | 6 | |
| 4B2049 | 45 NUT (10-32-THD) | 6 | |
| 8T0328 | 46 WASHER-HARD (5.5X10X1-MM THK) | 10 | |
| 3T9494 | 47 SPRING | 6 | |
| 3E7771 | 48 HOUSING AS (STARTING MOTOR) | 1 | |
| 9G4101 | 49 BUSHING-END | 1 | |
| 3T3424 | 50 PLUG-FELT | 3 | |
| 3T3423 | 51 CUP | 3 | |
| 1M9968 | 52 BUSHING | 1 | |
| 4L2729 | 54 WASHER (0.844X1.9X0.188-IN THK) | 1 | |
| 4M1896 | 55 BUSHING-TERMINAL | 1 | |
| 0454065 | 56 SCREW-MACHINE (10-32X0.75-IN) | 4 | |
| 3518955 | 57 SEAL-O-RING | 1 |
