System And Components

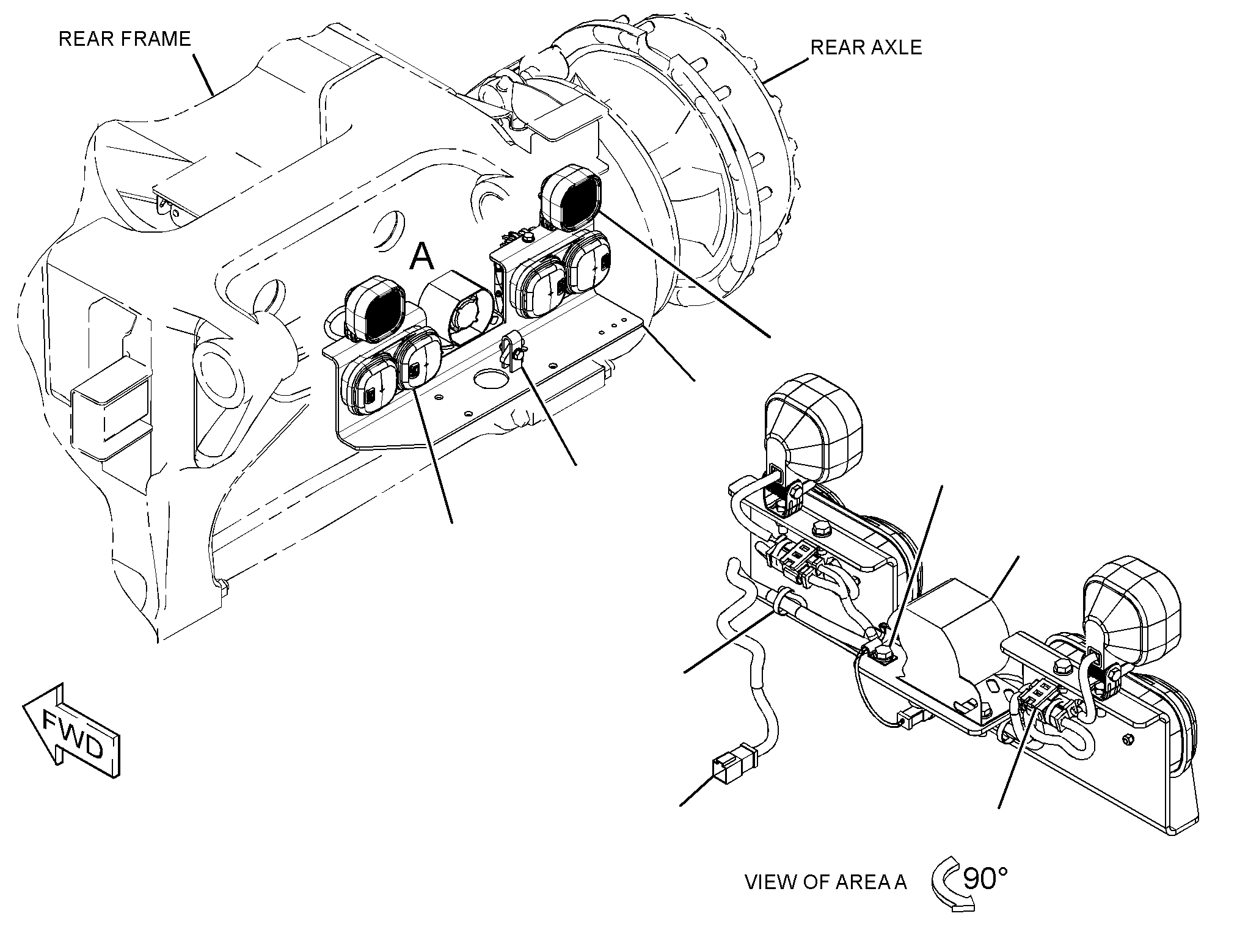

291-9440 WARNING GP-BACKUPS/N T4P1-UP
Group No: 291-9440 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 9 | |
| 1517851 | 2 LATCH | 1 | |
| 2139100 | 3 ALARM AS (BACKUP) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 5P5623 | WIRE-ELECTRICAL (16-GA, BLACK)(0.4-M EACH) | ||
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 9X1813 | SLEEVE (29-CM) | ||
| 2395042 | 4 HARNESS AS-REAR LIGHTING | 1 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 6 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 3 | |
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 3 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 9W0844 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 14 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) | ||
| 2600161 | 5 LAMP GP-FLOOD (24-VOLT, 70-WATT) | 2 | |
| 4446526 | 6 LAMP GP-SIGNAL (24-VOLT)(STOP, TAIL, TURN) | 2 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 4 | |
| 2919438 | 7 PLATE AS | 1 | |
| 7T1099 | LINK | 5 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 4P7581 | 8 CLIP (LADDER) | 2 | |
| 5P9085 | 9 CLIP (LOOP) | 1 | |
| 6V7744 | 10 LOCKNUT (M10X1.5-THD) | 1 | |
| 8T4121 | 11 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4133 | 12 NUT (M10X1.5-THD) | 2 | |
| 8T4186 | 13 BOLT (M10X1.5X40-MM) | 1 | |
| 8T4195 | 14 BOLT (M10X1.5X30-MM) | 4 |
