System And Components
Assembly
100%

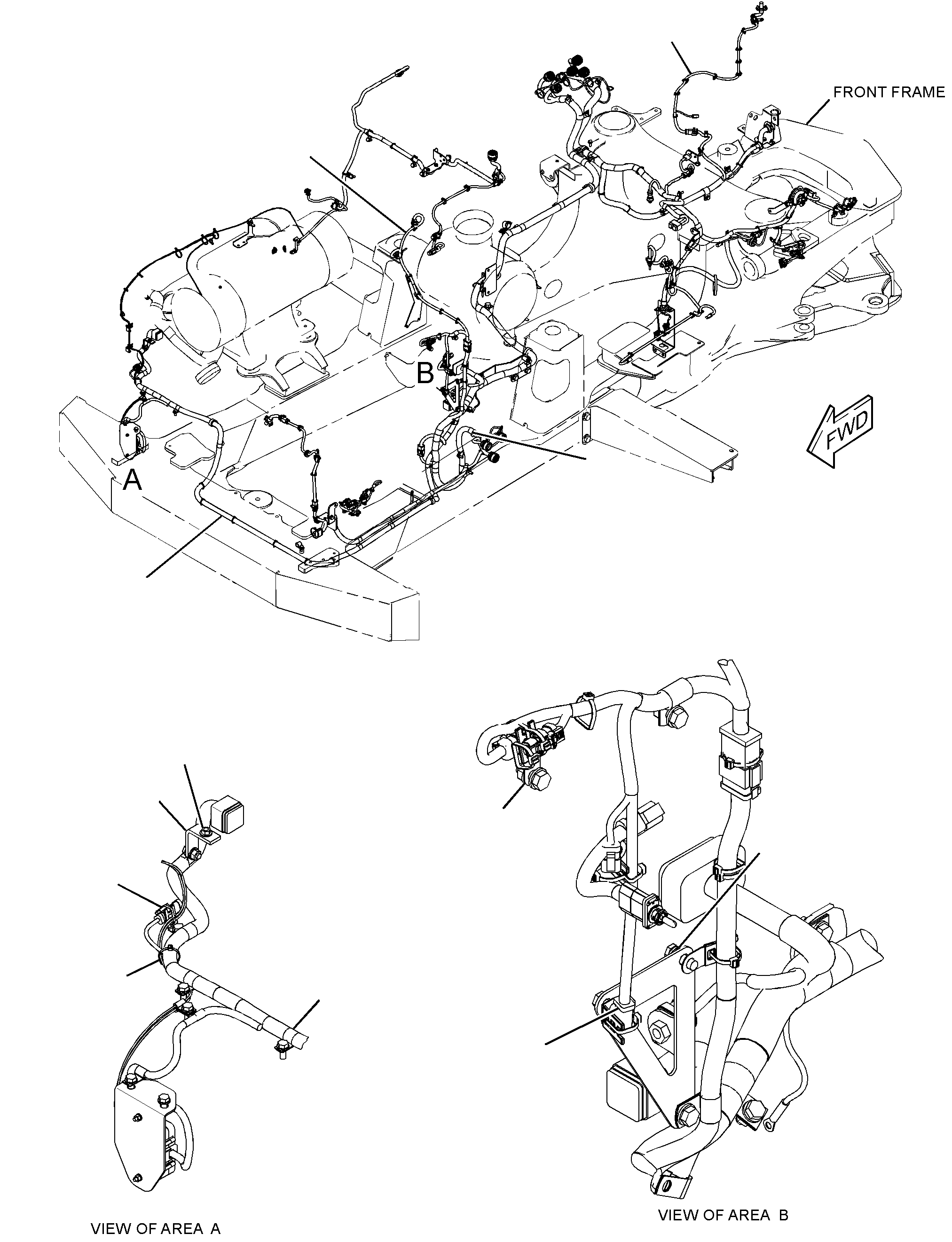

291-8783 WIRING GP-FRONTS/N T4P1-UP

Group No: 291-8783 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE16
6U27032 BRACKET-ANGLE1
33628183 HARNESS AS-WIRING (CLEAN EMISSIONS MODULE)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)5
9W0852PIN-CONNECTOR (14-GA TO 16-GA)2
1106845PLUG AS-CONNECTOR (40-PIN)2
1106844SEAL1
1740503KIT-CONNECTING PLUG (3-PIN)1
2305010PLUG AS-CONNECTOR (6-PIN)1
2647032SEAL-CONNECTOR1
8T8737PLUG-SEAL29
1028806KIT-RECEPTACLE (8-PIN)1
1342540RECEPTACLE AS-CONNECTOR (3-PIN)1
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)4
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)52
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)3
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(15-CM)
33628194 HARNESS AS-WIRING (AIR, FUEL, START AID)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)9
9W0852PIN-CONNECTOR (14-GA TO 16-GA)3
1552270KIT-CONNECTING PLUG (2-PIN)1
1552260KIT-CONNECTING PLUG (3-PIN)1
2818801PLUG AS-CONNECTOR (2-PIN)1
2647029SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)1
2647029SEAL-CONNECTOR1
2388245PLUG AS-CONNECTOR (2-PIN)1
2647029SEAL-CONNECTOR1
2818803PLUG AS-CONNECTOR (3-PIN)1
2647030SEAL-CONNECTOR1
8T8737PLUG-SEAL1
1028801KIT-RECEPTACLE (12-PIN)1
2743780CAP-SEAL1
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)9
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)4
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
34136835 WIRING GP-FRONT1
36118166 RECEPTACLE AS-CONNECTOR (6-PIN)1
3S86657 CLIP (LOOP)1
4P75818 CLIP (LADDER)1
4P81349 CLIP (LADDER)1
5C726110 NUT (M8X1.25-THD)1
5P411611 WASHER-HARD (8.8X20.5X2-MM THK)2
6D424612 CLIP (LOOP)10
8T412113 WASHER-HARD (11X21X2.5-MM THK)7
8T413314 NUT (M10X1.5-THD)2
8T413615 BOLT (M10X1.5X25-MM)5
274377416 CAP-CONNECTOR1
8T422417 WASHER-HARD (8.8X16X2-MM THK)2
8T490818 BOLT (M8X1.25X25-MM)2
