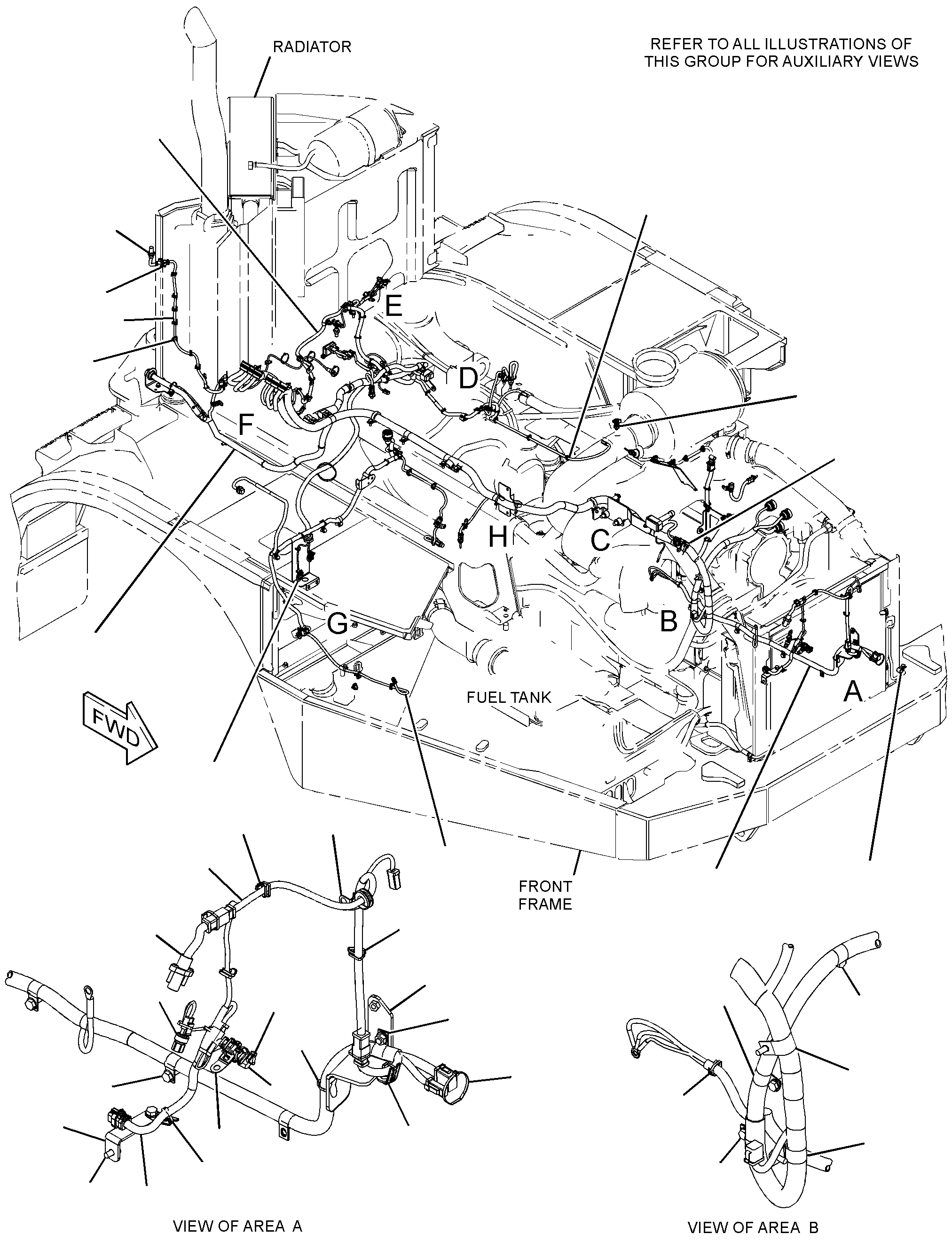

341-3683 WIRING GP-FRONTS/N T4P1-UP

Group No: 341-3683 · Commonality
Part NumberPart NameQty
3E64511 SWITCH GP-TEMPERATURE (FRONT BRAKE)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
1028802KIT-RECEPTACLE (2-PIN)1
3S20932 STRAP-CABLE120
6U04553 STRAP1
10222405 SENSOR GP-TEMPERATURE (3-PIN)(OUTPUT TRANSFER GEAR OIL)1
11453336 SWITCH AS-PRESSURE (AIR CONDITIONER)1
1028802KIT-RECEPTACLE (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
14551817 SPACER (13.5X25X12-MM THK)1
16559709 SWITCH GP-TOGGLE (FUEL PRIMING PUMP)1
189315810 SUPPRESSOR-ARC1
234501311 SENSOR GP-TEMPERATURE (FUEL)1
256645312 SENSOR-TEMPERATURE (2-PIN)(TRANSMISSION OIL)1
264014813 SENSOR GP-SPEED (PROPEL MOTOR)(FAN)2
313510414 SWITCH AS-PRESSURE (PRIMARY STEERING OIL)1
1028803KIT-RECEPTACLE (3-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)3
9X1813SLEEVE (28-CM)
320306315 SENSOR GP-PRESSURE (ATMOSPHERIC PRESSURE)1
333853816 SENSOR AS-INERTIAL (ACCELEROMETER)1
3860444HARNESS AS-SENSOR1
1124550SLEEVE (20-CM)
1519275KIT-RECEPTACLE (6-PIN)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)6
336280817 HARNESS AS-FRONT CHASSIS1
336281118 HARNESS AS-CHASSIS (TRANSMISSION)1
336281219 HARNESS AS-WIRING (COOLING FAN)1
336282020 HARNESS AS-ENGINE (ALTERNATOR)1
336282121 HARNESS AS-SENSOR (ATAAC)1
337631822 HARNESS AS-SENSOR (WHEEL SPEED)1
342271323 PLATE AS1
8T3490NUT-WELD (M10X1.5-THD)2
8T3612NUT-WELD (M8X1.25-THD)2
342272124 PLATE AS1
7T1099LINK2
342921225 HARNESS AS-SWITCH (STEERING)1
344739126 SENSOR-PRESSURE (BRAKE OIL)1
344739126A SENSOR-PRESSURE (DIFFERENTIAL LOCK)1
344936927 PLATE AS1
351222028 BRACKET AS1
7T1099LINK2
352335729 PLATE AS1
6V8224NUT-WELD (M10X1.5-THD)2
8Y4489BOSS (M10X1.5X35-MM)1
357958130 PLATE AS2
8T3490NUT-WELD (M10X1.5-THD)1
358496631 BRACKET1
358989032 PLATE AS1
1599540NUT-WELD (M8X1.25-THD)1
359180833 BRACKET AS1
7T1099LINK1
8T3612NUT-WELD (M8X1.25-THD)1
359762534 BRACKET AS1
6V9632NUT-WELD (M6X1-THD)1
8T3612NUT-WELD (M8X1.25-THD)2
368777735 HARNESS AS-TRANSMISSION1
368777836 HARNESS AS-WIRING (OUTPUT TRANSFER GEAR)1
132578937 CLIP (LADDER)2
149773838 CLIP (LOOP)15
228710039 SEAL-O-RING1
236983940 BOLT-SOCKET HEAD (M6X1X15-MM)2
3J190741 SEAL-O-RING2
3K036042 SEAL-O-RING4
3S866543 CLIP (LOOP)2
3T084944 BOLT-SOCKET HEAD (M6X1X25-MM)2
4D738845 CLIP4
4H255847 GROMMET1
9M840648 CLIP (LOOP)1
4P742849 CLIP (LADDER)1
4P742950 CLIP (LADDER)6
4P758151 CLIP (LADDER)11
4P813452 CLIP (LADDER)10
5M306254 BOLT (3/8-16X0.75-IN)1
5P929755 CLIP (LOOP)1
6D347956 CLIP (LOOP)3
6D424457 CLIP (LOOP)5
6D424658 CLIP (LOOP)2
7K118160 STRAP-CABLE6
7X034661 BOLT (5/8-11X2-IN)2
8M277062 CLIP (LOOP)2
8M277363 CLIP (LOOP)6
8S002364 CLIP (SLOT)1
8S002465 CLIP (TAB)1
8T412166 WASHER-HARD (11X21X2.5-MM THK)56
8T412267 WASHER-HARD (17X32X3.5-MM THK)2
8T413368 NUT (M10X1.5-THD)9
8T413669 BOLT (M10X1.5X25-MM)44
8T413770 BOLT (M10X1.5X20-MM)1
8T413871 BOLT (M6X1X20-MM)2
8T419672 BOLT (M10X1.5X35-MM)1
8T419273 BOLT (M12X1.75X25-MM)1
8T420074 BOLT (M8X1.25X16-MM)1
8T422375 WASHER-HARD (13.5X25.5X3-MM THK)2
5P411676 WASHER-HARD (8.8X20.5X2-MM THK)1
9X737877 SEAL-O-RING1
9X825678 WASHER (6.6X12X2-MM THK)2
5P929979 CLIP (LOOP)1
290556280 MOUNT (DUAL SWIVEL)1
2U274881 CLIP2
