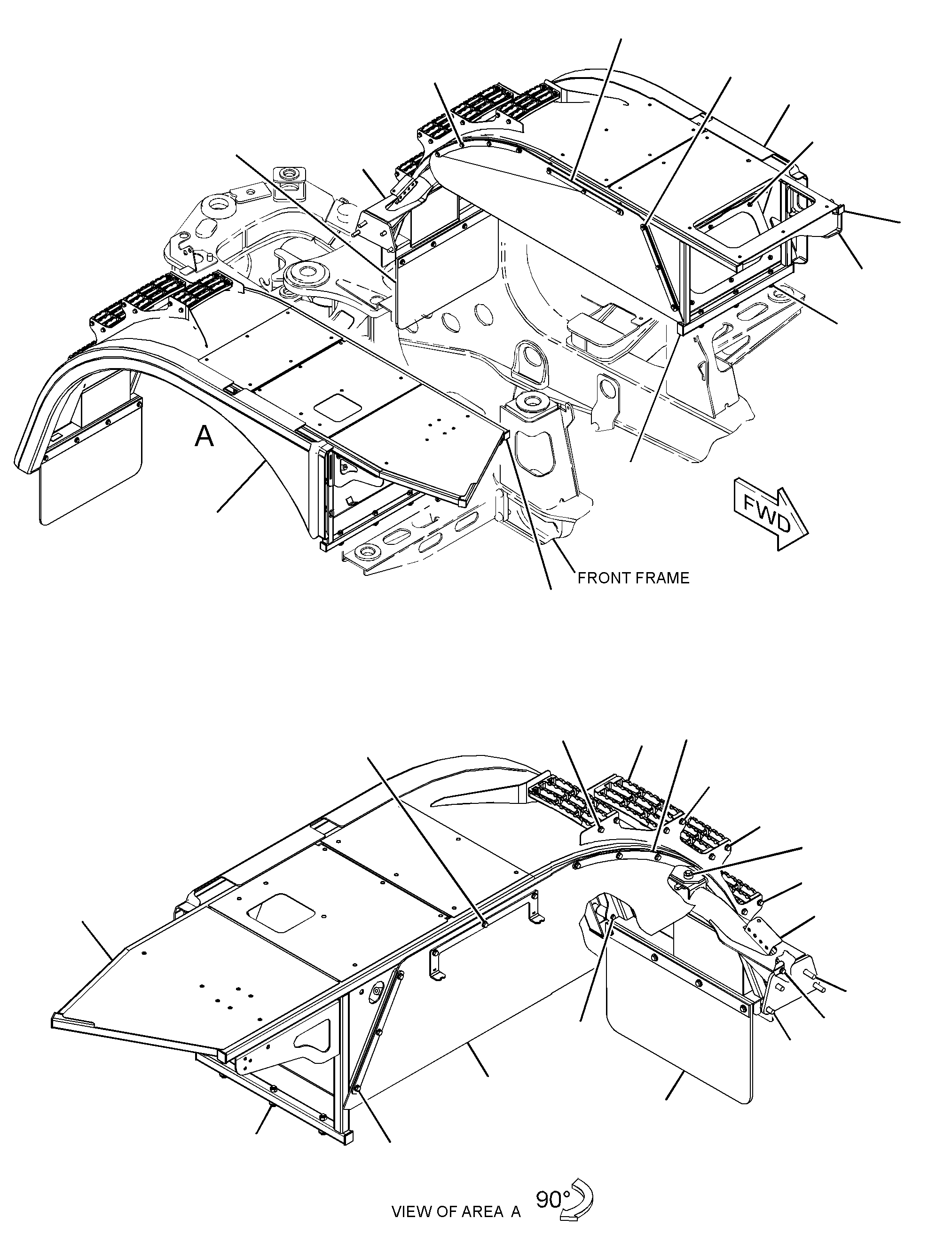

291-8954 FENDER & SUPPORT GPS/N T4P1-UP

Group No: 291-8954 · Commonality
Part NumberPart NameQty
09100811 SPACER (10.5X20X10-MM THK)8
18819562 SUPPORT (RH)1
18920473 PLATE (RH)2
18922904 PLATE2
18922915 PLATE1
20021596 STRIP2
20650177 SPACER (11X20X5-MM THK)20
20668198 PLATE-LOCK4
42417859 STEP10
331391910 FENDER AS (LH)1
3398085PLATE AS1
7T1099LINK1
8T3490NUT-WELD (M10X1.5-THD)6
8T3597NUT-WELD (M12X1.75-THD)3
8T3490NUT-WELD (M10X1.5-THD)25
7T1099LINK1
8T3597NUT-WELD (M12X1.75-THD)1
2894752BOSS2
331392011 FENDER AS (RH)1
3398084PLATE AS1
6I2850BOSS (M10X1.5X40-MM)4
7T1099LINK3
8T3597NUT-WELD (M12X1.75-THD)3
8T3612NUT-WELD (M8X1.25-THD)3
8T3490NUT-WELD (M10X1.5-THD)30
8T3597NUT-WELD (M12X1.75-THD)1
9R2160BOSS (M8X1.25X25-MM)2
3350657BRACKET1
331392412 COVER-FENDER (LH)1
5465699GUARD GP-MUD (KIT)1
331392313 COVER-FENDER (RH)1
5465699GUARD GP-MUD (KIT)1
350575115 PLATE1
351820216 SUPPORT1
354738517 COLLAR12
361787918 SHIELD-INNER2
198477819 WASHER-HARD (13.5X30X12-MM THK)4
5P107620 WASHER-HARD (13.5X30X4-MM THK)6
7X255322 BOLT (M16X2X40-MM)4
7X772923 WASHER (11X25X3-MM THK)8
8T364724 BOLT (M8X1.25X80-MM)12
8T412125 WASHER-HARD (11X21X2.5-MM THK)66
8T413626 BOLT (M10X1.5X25-MM)12
8T495627 BOLT (M12X1.75X35-MM)4
8T414028 BOLT (M16X2X60-MM)4
8T417629 BOLT (M12X1.75X90-MM)3
8T418630 BOLT (M10X1.5X40-MM)48
8T419632 BOLT (M10X1.5X35-MM)6
8T422433 WASHER-HARD (8.8X16X2-MM THK)12
8T500534 BOLT (M10X1.5X70-MM)8
8T464835 BOLT (M12X1.75X70-MM)3
9X825736 WASHER (17.5X30X3.5-MM THK)8
331392137 DEFLECTOR2
439993138 BRACKET1
8T038939 LOCKNUT (M10X1.5-THD)40
388096940 PLUG6
445993841 PLUG2
