System And Components

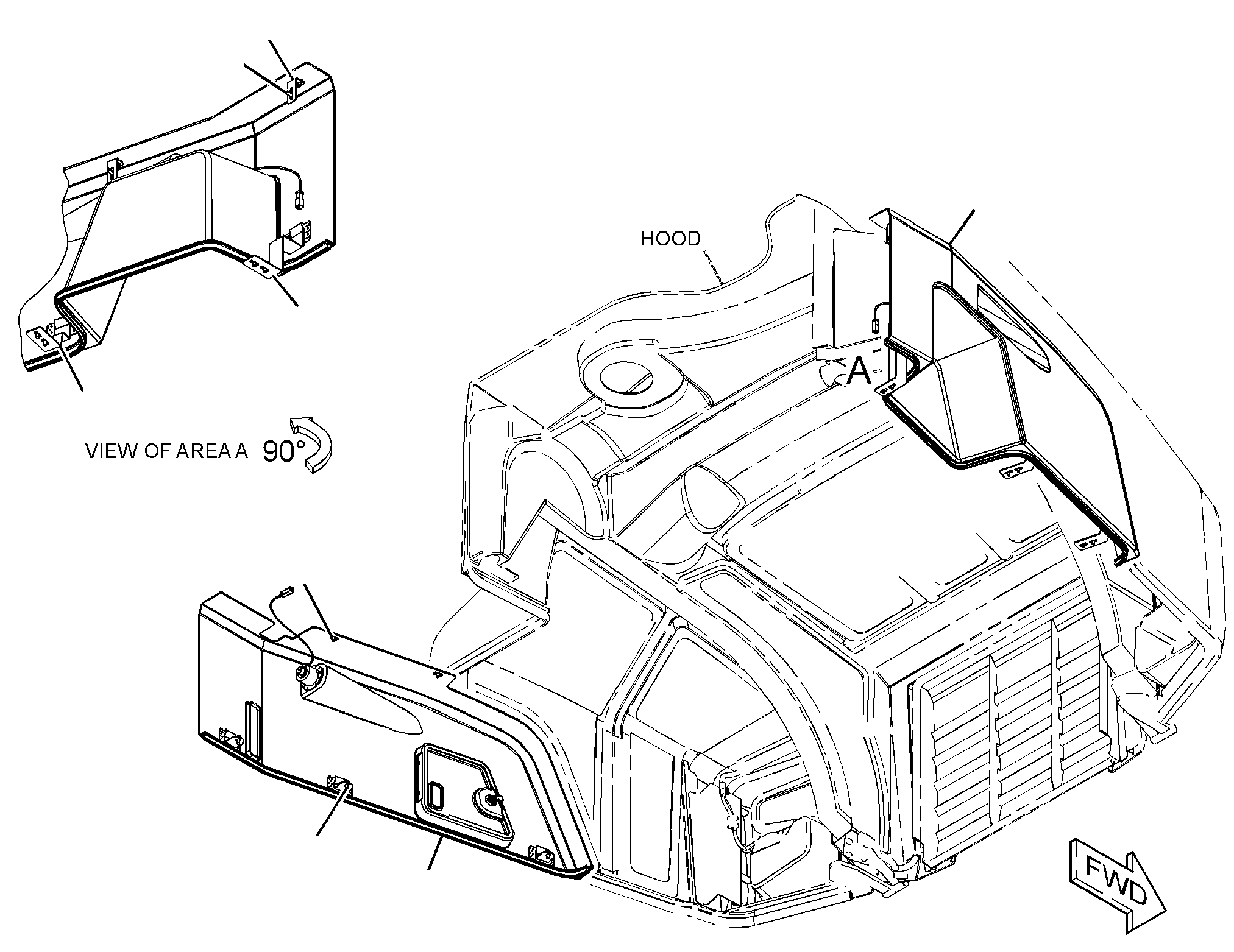

363-8613 FENDER GP -FRONTS/N T4P1-UP
Group No: 363-8613 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3323833 | 1 PANEL GP-FENDER (FRONT, LH) | 1 | |
| 3323843 | 2 PANEL GP-FENDER (FRONT, RH) | 1 | |
| 3597130 | 3 PLATE AS | 2 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 1 | |
| 3600594 | 4 BRACKET | 3 | |
| 3603203 | 5 PLATE | 2 | |
| 3603370 | 6 PLATE | 1 | |
| 5P4116 | 7 WASHER-HARD (8.8X20.5X2-MM THK) | 8 | |
| 7X7729 | 8 WASHER (11X25X3-MM THK) | 3 | |
| 8C8585 | 9 SCREW-BUTTON HEAD (M10X1.5X20-MM) | 4 | |
| 8T4137 | 10 BOLT (M10X1.5X20-MM) | 3 | |
| 8T4200 | 11 BOLT (M8X1.25X16-MM) | 6 | |
| 8T4908 | 12 BOLT (M8X1.25X25-MM) | 2 | |
| 1315879 | 13 WASHER (11X32X3-MM THK) | 4 |
