System And Components

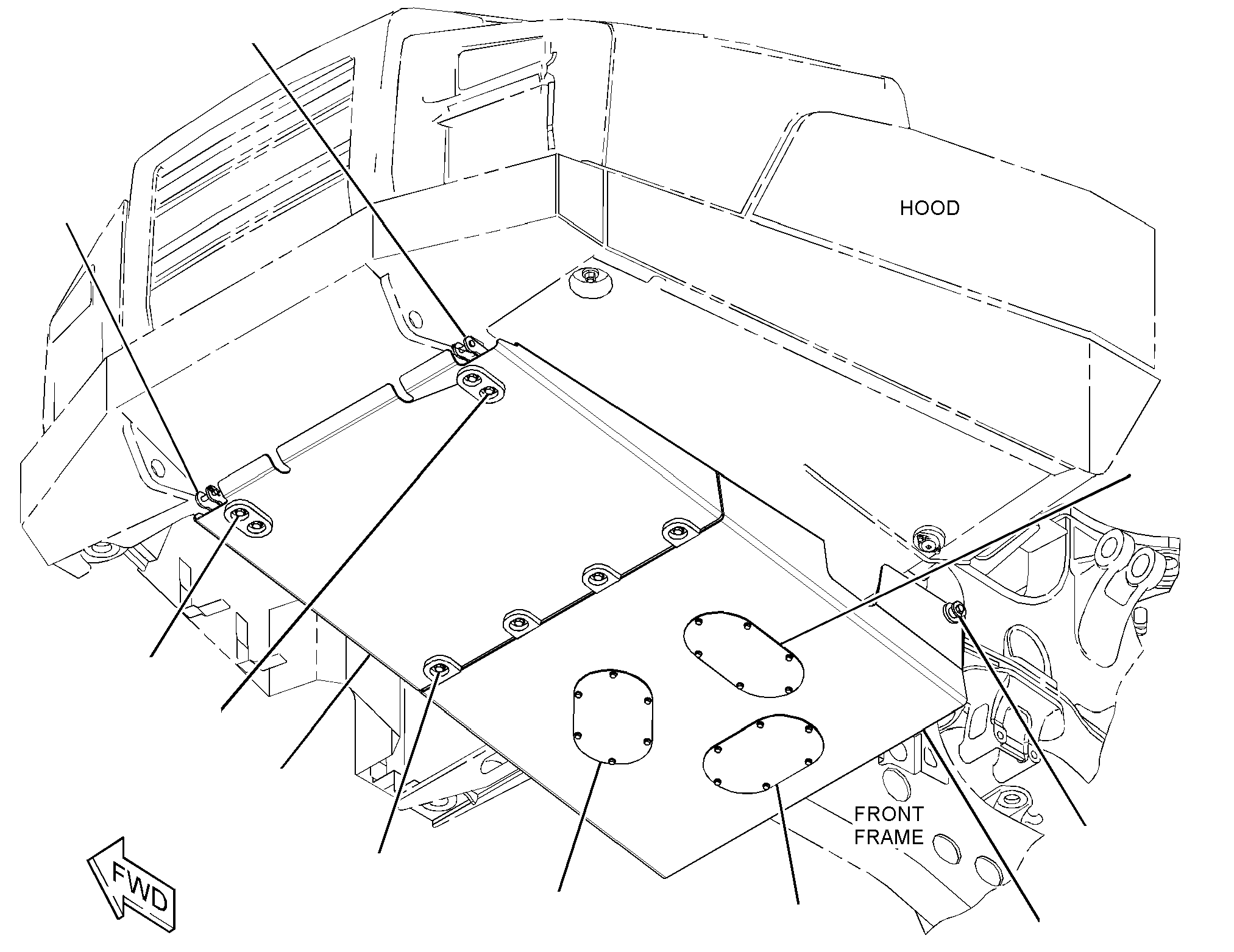

291-8956 GUARD GP-CRANKCASES/N T4P1-UP
Group No: 291-8956 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6S6646 | 1 PIN-COTTER | 2 | |
| 9K3036 | 2 PIN | 2 | |
| 3529125 | 3 PLATE | 3 | |
| 3601618 | 4 BRACKET AS | 1 | |
| 3601620 | 5 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 18 | |
| 3604688 | 6 PLATE AS | 1 | |
| 3604689 | 7 BRACKET AS | 1 | |
| 3E9411 | 8 WASHER-HARD (17.5X38X6-MM THK) | 11 | |
| 7X2553 | 9 BOLT (M16X2X40-MM) | 10 | |
| 7X2554 | 10 BOLT (M16X2X70-MM) | 1 | |
| 8T4121 | 11 WASHER-HARD (11X21X2.5-MM THK) | 18 | |
| 8T4136 | 12 BOLT (M10X1.5X25-MM) | 18 | |
| 3V9244 | 13 WASHER (16.5X50X5-MM THK) | 1 | |
| 7X2555 | 14 BOLT (M16X2X80-MM) | 1 | |
| 3773536 | 15 SPACER (17X35X50-MM THK) | 1 |
