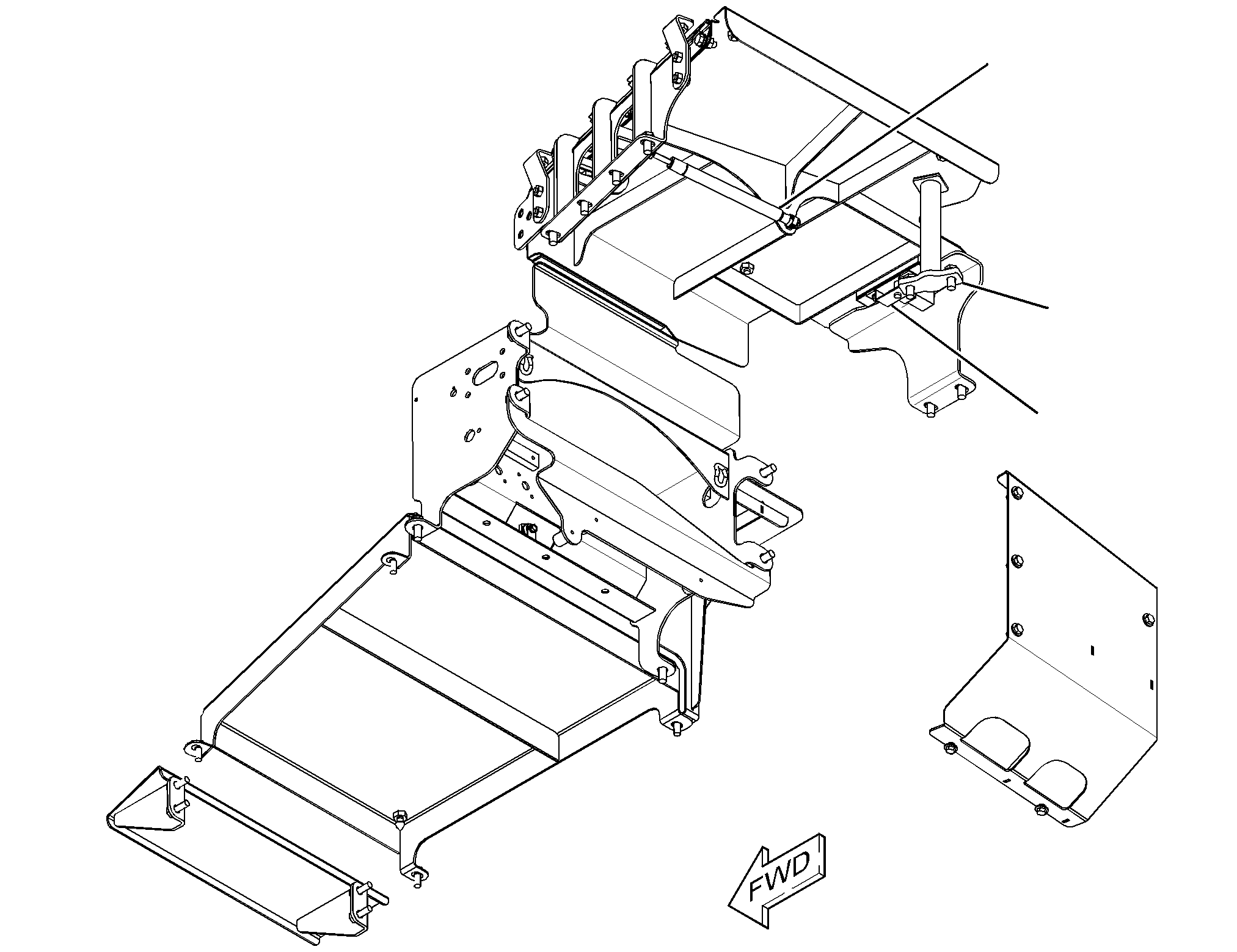

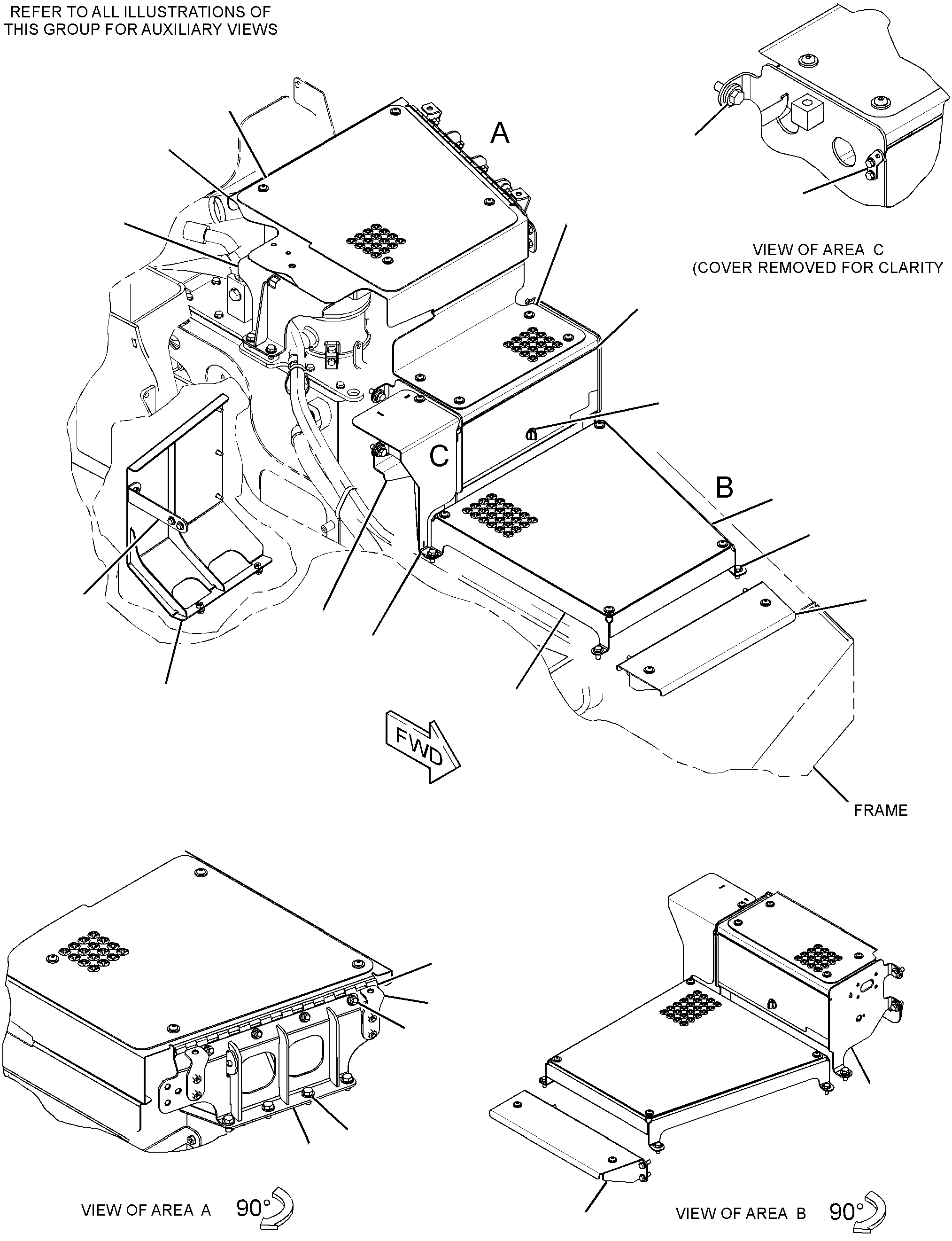

332-6518 GUARD GP-HYDRAULIC TANKS/N T4P1-UP

Group No: 332-6518 · Commonality
Part NumberPart NameQty
5U42291 LATCH1
18556982 HINGE AS1
18761563 LATCH AS1
20113794 SHIM (1-MM THK)4
25356575 SHIM (1-MM THK)3
33264956 PLATE-TREAD1
33264967 PLATE-TREAD1
33264988 PLATE-TREAD1
33265029 PLATFORM AS1
8T3490NUT-WELD (M10X1.5-THD)4
332651410 PANEL GP-SWITCH1
333792911 SUPPORT AS1
333793312 BRACKET AS-SUPPORT2
8T3490NUT-WELD (M10X1.5-THD)1
8T3612NUT-WELD (M8X1.25-THD)2
3337920BRACKET1
333793413 PLATE AS1
334065914 BRACKET AS1
337865815 PLATE-COVER1
339522516 PLATE-END1
415026817 COVER AS1
355848418 STRUT-GAS1
355848619 PLATE AS1
8T3490NUT-WELD (M10X1.5-THD)4
8T3612NUT-WELD (M8X1.25-THD)2
355849220 BRACKET AS1
8T3612NUT-WELD (M8X1.25-THD)3
355849321 COVER AS-GUARD1
355849722 BRACKET AS1
8T3612NUT-WELD (M8X1.25-THD)1
355849923 COVER AS-GUARD1
8T3612NUT-WELD (M8X1.25-THD)2
356328324 BRACKET AS2
8T3490NUT-WELD (M10X1.5-THD)1
160850025 NUT (M8X1.25-THD)2
5C955326 BOLT (M6X1X16-MM)4
5P107627 WASHER-HARD (13.5X30X4-MM THK)6
5P411628 WASHER-HARD (8.8X20.5X2-MM THK)12
7X772929 WASHER (11X25X3-MM THK)19
8C858530 SCREW-BUTTON HEAD (M10X1.5X20-MM)15
8T412131 WASHER-HARD (11X21X2.5-MM THK)22
8T413332 NUT (M10X1.5-THD)9
8T413633 BOLT (M10X1.5X25-MM)13
8T413934 BOLT (M12X1.75X30-MM)4
8T418935 BOLT (M8X1.25X20-MM)12
8T419236 BOLT (M12X1.75X25-MM)6
8T419537 BOLT (M10X1.5X30-MM)4
8T422338 WASHER-HARD (13.5X25.5X3-MM THK)10
8T422439 WASHER-HARD (8.8X16X2-MM THK)2
9X825640 WASHER (6.6X12X2-MM THK)4
8T495641 BOLT (M12X1.75X35-MM)4
