System And Components

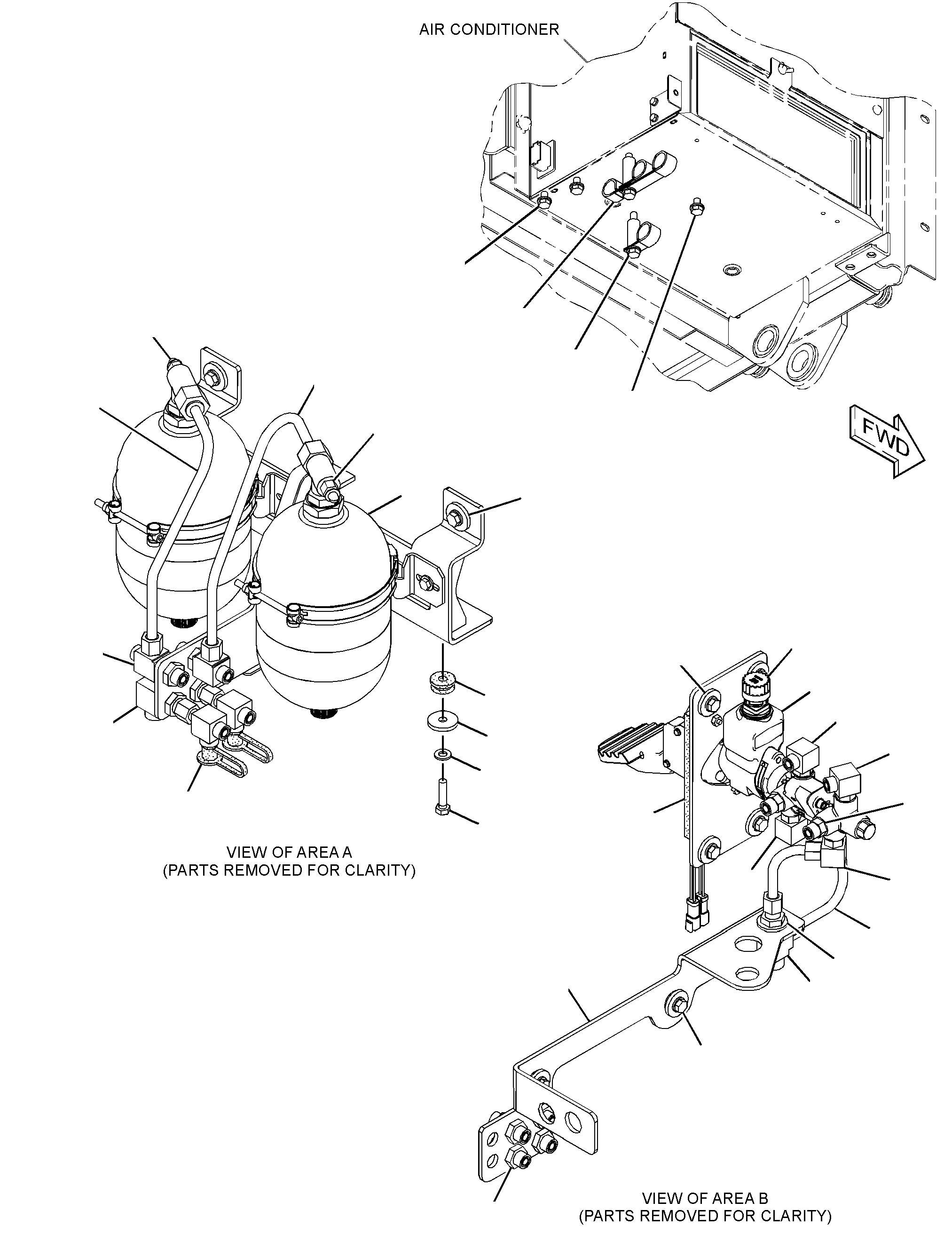

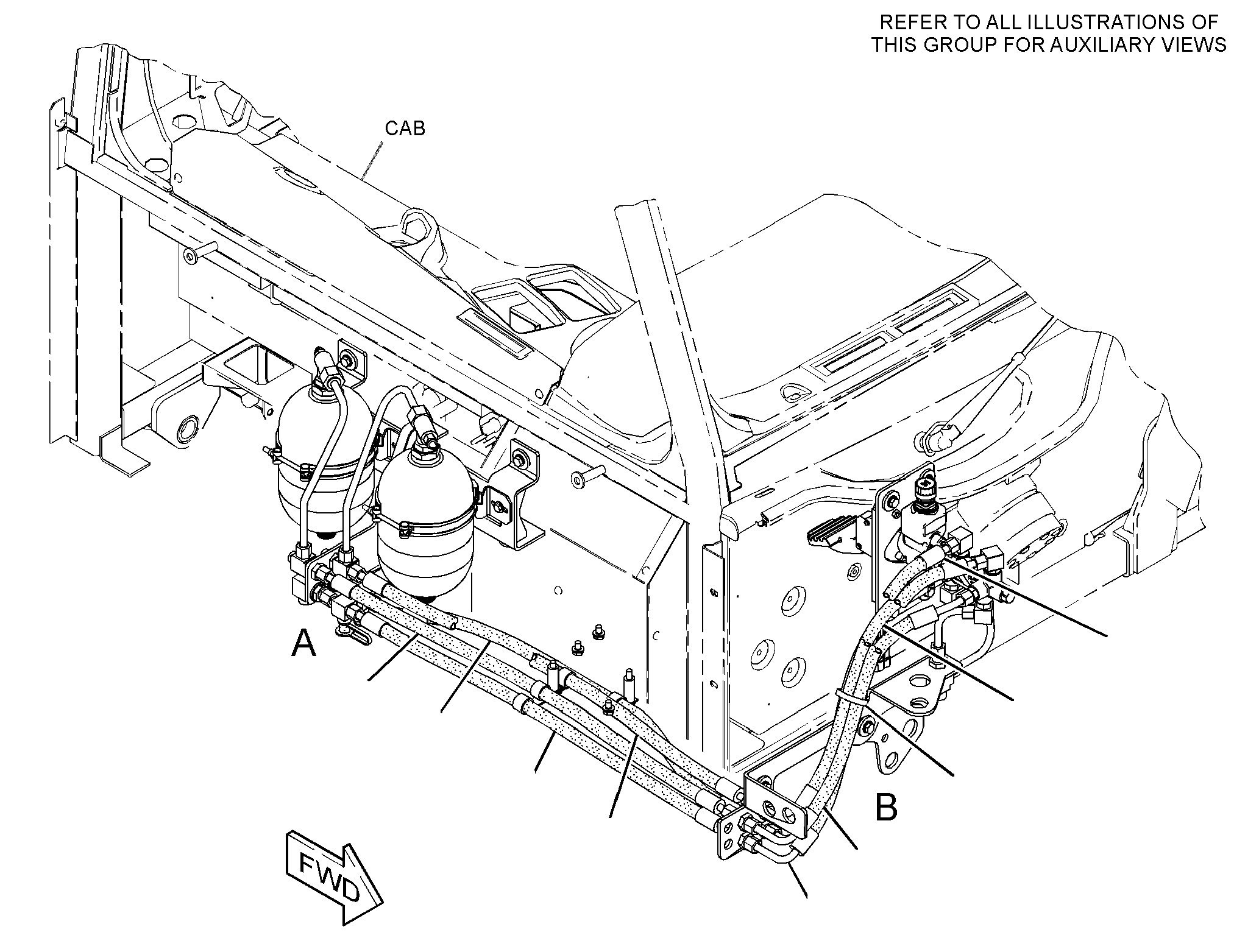

324-7415 CONTROL GP-SERVICE BRAKES/N T4P1-UP
Group No: 324-7415 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6N6984 | 1 MOUNT-RUBBER | 10 | |
| 6U0456 | 2 STRAP | 1 | |
| 6V0852 | 3 CAP-DUST (HYDRAULIC OIL) | 2 | |
| 9F2167 | 4 SCREW-PURGE (3/8-24X1.164-IN) | 2 | |
| 1088393 | 5 CAP | 2 | |
| 1259481 | 6 HOSE AS | 1 | |
| 1413983 | 7 SPACER (11X19X48-MM THK) | 2 | |
| 1645586 | 8 TEE AS | 2 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 7X0871 | TEE | 1 | |
| 1659993 | 9 HOSE AS | 1 | |
| 1808145 | 10 SEAL | 1 | |
| 1809286 | 11 TEE AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 3E2345 | ADAPTER-TEE | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1833873 | 12 BREATHER (BRAKE CONTROL VALVE) | 1 | |
| 2087973 | 13 HOSE AS | 1 | |
| 2087974 | 14 HOSE AS | 1 | |
| 2087975 | 15 HOSE AS | 1 | |
| 2099136 | 16 HOSE AS | 1 | |
| 3405200 | 17 TUBE AS | 1 | |
| 3405201 | 18 TUBE AS | 1 | |
| 3423828 | 19 ACCUMULATOR GP-BRAKE (SERVICE) | 1 | |
| 3435501 | 20 HOSE AS | 1 | |
| 3435502 | 21 HOSE AS | 1 | |
| 3510628 | 22 VALVE GP-BRAKE CONTROL (SERVICE) | 1 | |
| 3540737 | 23 PLATE | 1 | |
| 3588792 | 24 TUBE AS | 1 | |
| 3588793 | 25 TUBE AS | 1 | |
| 1488340 | 26 CONNECTOR AS | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 1488364 | 27 ELBOW AS | 4 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8625 | ELBOW | 1 | |
| 1488427 | 28 TEE AS | 2 | |
| 6V8398 | SEAL-O-RING | 3 | |
| 8T6895 | TEE-UNION | 1 | |
| 1488457 | 29 UNION AS (STRAIGHT) | 4 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V8995 | UNION (STRAIGHT) | 1 | |
| 1645567 | 30 COUPLER AS-QUICK DISCONNECT (MALE) | 2 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1645580 | 31 TEE AS | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V9489 | TEE-BULKHEAD | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1646864 | 32 ELBOW AS | 2 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 8T1810 | ELBOW | 1 | |
| 3295525 | 33 ADAPTER AS | 2 | |
| 6G3432 | ADAPTER | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 6V1228 | 34 CLIP | 1 | |
| 6V9169 | 35 NUT (13/16-16-THD) | 11 | |
| 8M4069 | 36 WASHER (10.3X38.1X5-MM THK) | 10 | |
| 8T4121 | 37 WASHER-HARD (11X21X2.5-MM THK) | 15 | |
| 8T4167 | 38 WASHER-HARD (26X44X4-MM THK) | 1 | |
| 8T4186 | 39 BOLT (M10X1.5X40-MM) | 6 | |
| 8T4191 | 40 BOLT (M10X1.5X16-MM) | 3 | |
| 8T4195 | 41 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4196 | 42 BOLT (M10X1.5X35-MM) | 2 | |
| 8T5005 | 43 BOLT (M10X1.5X70-MM) | 2 | |
| 9X8250 | 44 CLIP (LOOP) | 3 | |
| 8T4123 | 45 WASHER (22X35X3.5-MM THK) | 1 |
