System And Components

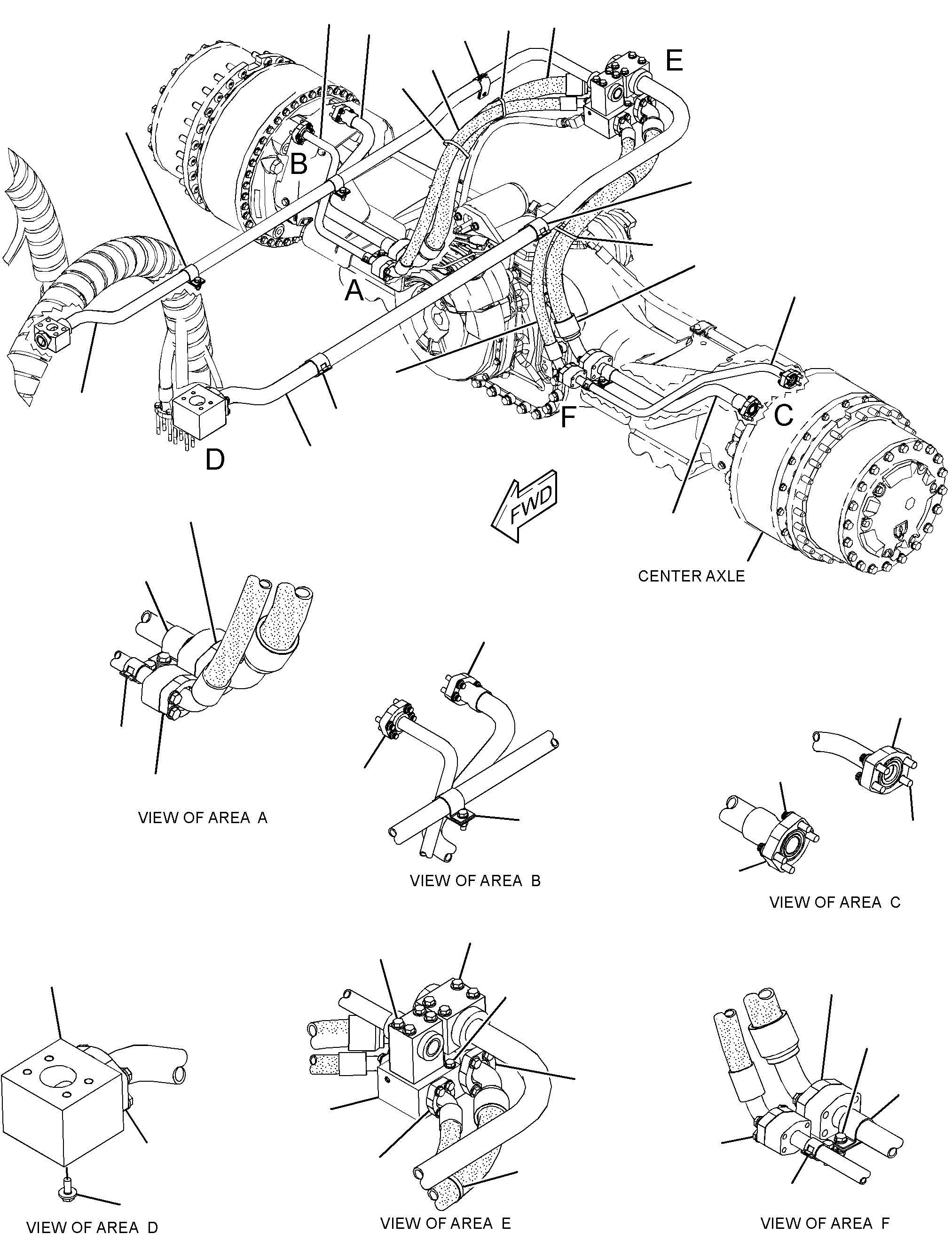

346-9299 LINES GP-BRAKE COOLINGS/N T4P1-UP
Group No: 346-9299 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6U0456 | 1 STRAP | 4 | |
| 1189573 | 2 BOLT-12 POINT HEAD (M10X1.5X35-MM) | 16 | |
| 3493281 | 3 TUBE AS | 1 | |
| 3494661 | 4 MANIFOLD | 1 | |
| 3494662 | 5 MANIFOLD | 1 | |
| 3494663 | 6 TUBE AS | 1 | |
| 3517191 | 7 TUBE AS | 1 | |
| 3517192 | 8 TUBE AS | 1 | |
| 3543983 | 9 TUBE AS | 1 | |
| 3641716 | 10 TUBE AS | 1 | |
| 3648701 | 11 HOSE AS | 1 | |
| 3648702 | 12 HOSE AS | 1 | |
| 4342396 | 13 HOSE AS | 1 | |
| 4342395 | 14 HOSE AS | 1 | |
| 1P3705 | 15 SEAL-RECTANGULAR | 1 | |
| 1P3708 | 16 SEAL-RECTANGULAR | 1 | |
| 1P4579 | 17 FLANGE-HALF | 8 | |
| 1P4582 | 18 FLANGE-HALF | 2 | |
| 4J0520 | 19 SEAL-O-RING | 8 | |
| 4J0524 | 20 SEAL-O-RING | 4 | |
| 4J0527 | 21 SEAL-O-RING | 1 | |
| 5P7468 | 22 CLIP (SLOT) | 2 | |
| 5P7469 | 23 CLIP (TAB) | 2 | |
| 7S8920 | 24 CLIP (SLOT) | 5 | |
| 7S8921 | 25 CLIP (TAB) | 5 | |
| 7X2550 | 26 BOLT (M12X1.75X110-MM) | 4 | |
| 7X7729 | 27 WASHER (11X25X3-MM THK) | 4 | |
| 8C3206 | 28 FLANGE-HALF | 16 | |
| 8T1889 | 29 CLIP (SLOT) | 2 | |
| 8T1890 | 30 CLIP (TAB) | 2 | |
| 8T4121 | 31 WASHER-HARD (11X21X2.5-MM THK) | 34 | |
| 8T4133 | 32 NUT (M10X1.5-THD) | 8 | |
| 8T4136 | 33 BOLT (M10X1.5X25-MM) | 4 | |
| 8T4178 | 34 BOLT (M10X1.5X90-MM) | 2 | |
| 8T4183 | 35 BOLT (M12X1.75X40-MM) | 8 | |
| 8T4184 | 36 BOLT (M12X1.75X45-MM) | 4 | |
| 8T4194 | 37 BOLT (M12X1.75X50-MM) | 8 | |
| 8T4196 | 38 BOLT (M10X1.5X35-MM) | 24 | |
| 8T4223 | 39 WASHER-HARD (13.5X25.5X3-MM THK) | 28 | |
| 8T4896 | 40 WASHER-HARD (10.2X18.5X2.5-MM THK) | 16 | |
| 8T5001 | 41 BOLT (M12X1.75X130-MM) | 4 |
