System And Components

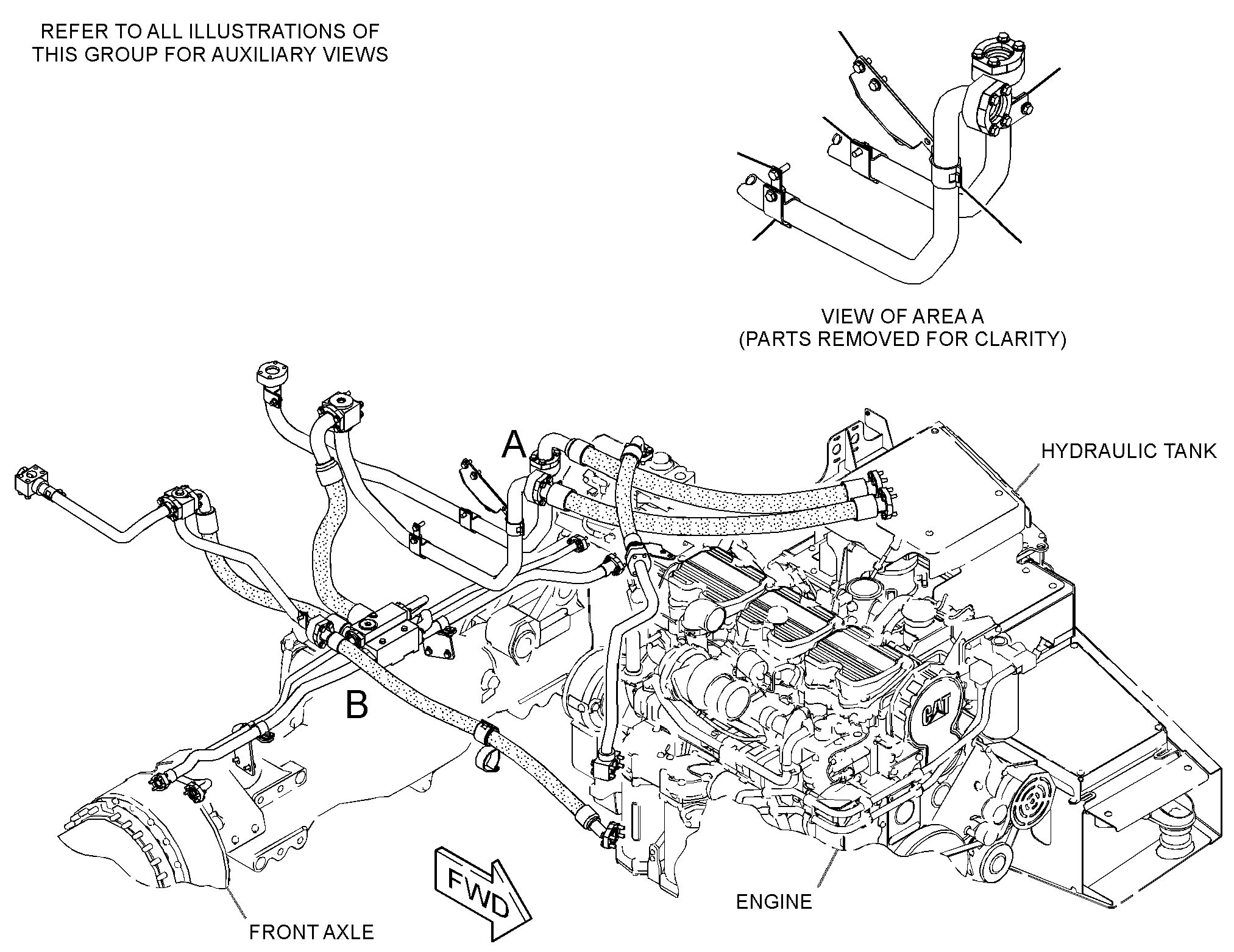

350-3001 LINES GP-BRAKE COOLINGS/N T4P1-UP
Group No: 350-3001 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7U9542 | 1 PLATE-CLAMPING | 1 | |
| 1189573 | 2 BOLT-12 POINT HEAD (M10X1.5X35-MM) | 24 | |
| 1669373 | 3 HOSE AS | 1 | |
| 1928687 | 4 TUBE AS | 1 | |
| 1928688 | 5 TUBE AS | 1 | |
| 1945013 | 6 PLATE AS | 1 | |
| 1948472 | 7 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 1994150 | 8 HOSE AS | 1 | |
| 3447623 | 9 BRACKET AS | 1 | |
| 7T1099 | LINK | 2 | |
| 3492879 | 10 TUBE AS | 1 | |
| 3494660 | 11 MANIFOLD | 1 | |
| 3505649 | 12 HOSE AS | 1 | |
| 3513151 | 13 TUBE AS | 1 | |
| 3513152 | 14 TUBE AS | 1 | |
| 3545629 | 15 TUBE AS | 1 | |
| 3550105 | 16 HOSE AS | 1 | |
| 3553467 | 17 HOSE AS | 1 | |
| 3566014 | 18 TUBE AS | 1 | |
| 3589365 | 19 HOSE AS | 1 | |
| 3596078 | 20 BRACKET | 1 | |
| 3596079 | 21 TUBE AS | 1 | |
| 3673310 | 22 TUBE AS | 1 | |
| 1488411 | 23 PLUG AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 1P3705 | 24 SEAL-RECTANGULAR | 1 | |
| 1P4579 | 25 FLANGE-HALF | 18 | |
| 1P4582 | 26 FLANGE-HALF | 12 | |
| 2082984 | 27 PLUG AS | 1 | |
| 5P7684 | PLUG | 1 | |
| 6K6307 | SEAL-O-RING | 1 | |
| 4J0520 | 28 SEAL-O-RING | 6 | |
| 4J0524 | 29 SEAL-O-RING | 9 | |
| 4J0527 | 30 SEAL-O-RING | 6 | |
| 5P7468 | 31 CLIP (SLOT) | 5 | |
| 5P7469 | 32 CLIP (TAB) | 5 | |
| 5P7470 | 33 CLIP (SLOT) | 1 | |
| 5P7471 | 34 CLIP (TAB) | 1 | |
| 5P7703 | 35 GROMMET (52-MM ID) | 1 | |
| 6V5039 | 36 CLIP (SLOT) | 1 | |
| 6V5040 | 37 CLIP (TAB) | 1 | |
| 7S8920 | 38 CLIP (SLOT) | 4 | |
| 7S8921 | 39 CLIP (TAB) | 4 | |
| 7X2544 | 40 BOLT (M10X1.5X140-MM) | 1 | |
| 8C3206 | 41 FLANGE-HALF | 12 | |
| 8T1889 | 42 CLIP (SLOT) | 2 | |
| 8T1890 | 43 CLIP (TAB) | 2 | |
| 8T4121 | 44 WASHER-HARD (11X21X2.5-MM THK) | 7 | |
| 8T4139 | 45 BOLT (M12X1.75X30-MM) | 8 | |
| 8T4183 | 46 BOLT (M12X1.75X40-MM) | 15 | |
| 8T4184 | 47 BOLT (M12X1.75X45-MM) | 38 | |
| 8T4195 | 48 BOLT (M10X1.5X30-MM) | 4 | |
| 8T4223 | 49 WASHER-HARD (13.5X25.5X3-MM THK) | 93 | |
| 8T4244 | 50 NUT (M12X1.75-THD) | 18 | |
| 8T4896 | 51 WASHER-HARD (10.2X18.5X2.5-MM THK) | 24 | |
| 8T4956 | 52 BOLT (M12X1.75X35-MM) | 2 | |
| 8T5001 | 53 BOLT (M12X1.75X130-MM) | 7 | |
| 8T5092 | 54 BOLT (M12X1.75X150-MM) | 1 | |
| 8T6685 | 55 BOLT (M10X1.5X110-MM) | 2 | |
| 8T6868 | 56 BOLT (M12X1.75X80-MM) | 4 |
