System And Components

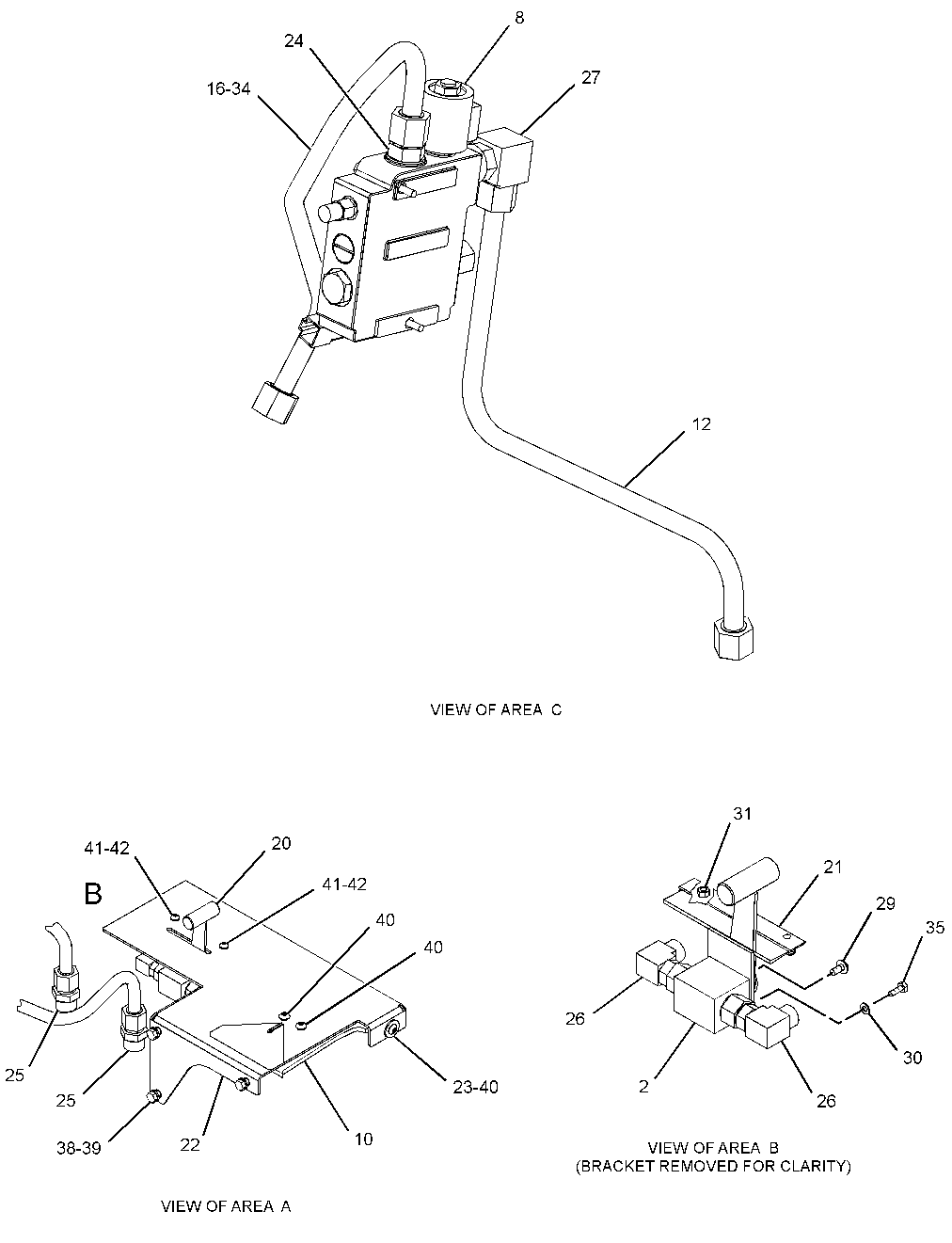

326-5676 LINES GP-LIFT CYLINDER -WITH WORK TOOL POSITIONERS/N A9H1-UP
Group No: 326-5676
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V3582 | 1 CLAMP-HOSE | 2 | |
| 1121817 | 2 VALVE-BALL (LIFT CYLINDER) | 1 | |
| 1428997 | 3 BLOCK | 2 | |
| 1429116 | 4 SWITCH GP-ROCKER (WORK TOOL POSITIONER) | 1 | |
| 1871273 | 5 TUBE AS | 2 | |
| 1871274 | 6 TUBE AS | 1 | |
| 1871275 | 7 TUBE AS | 1 | |
| 2185729 | 8 MANIFOLD & MTG GP-CONTROL (WORK TOOL POSITIONER) | 1 | |
| 2185764 | 9 PLATE | 1 | |
| 2186438 | 10 SEAL | 1 | |
| 2859286 | 11 BLOCK | 1 | |
| 2893750 | 12 TUBE AS | 1 | |
| 2893751 | 13 TUBE AS | 1 | |
| 2893752 | 14 TUBE AS | 1 | |
| 2893753 | 15 TUBE AS | 1 | |
| 2893756 | 16 TUBE AS | 1 | |
| 3265581 | 17 HOSE AS | 1 | |
| 3265589 | 18 TUBE AS | 1 | |
| 3265612 | 19 HOSE AS | 1 | |
| 3265614 | 20 HANDLE AS | 1 | |
| 3265634 | 21 BRUSH AS | 1 | |
| 3265640 | 22 BRACKET AS | 1 | |
| 1599539 | NUT-WELD (M6X1-THD) | 3 | |
| 1599540 | NUT-WELD (M8X1.25-THD) | 3 | |
| 7X0579 | 23 WASHER-HARD (8.8X25.5X2-MM THK) | 1 | |
| 1488315 | 24 CONNECTOR AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8642 | CONNECTOR | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488341 | 25 CONNECTOR AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8713 | CONNECTOR | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488378 | 26 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488390 | 27 ELBOW AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8626 | ELBOW | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 2185739 | 28 HOSE AS | 4 | |
| 2719408 | 29 SCREW-TRUSS HEAD (M5X0.8X10-MM) | 1 | |
| 4B4863 | 30 WASHER (4.7X11X1.2-MM THK) | 4 | |
| 3T0851 | 31 LOCKNUT (M5X0.8-THD) | 2 | |
| 6V8397 | 32 SEAL-O-RING | 1 | |
| 6V8398 | 33 SEAL-O-RING | 12 | |
| 7J9108 | 34 SEAL-O-RING | 3 | |
| 8T7852 | 35 BOLT (M4X0.7X10-MM) | 4 | |
| 8T4121 | 36 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4136 | 37 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4224 | 38 WASHER-HARD (8.8X16X2-MM THK) | 3 | |
| 8T4908 | 39 BOLT (M8X1.25X25-MM) | 3 | |
| 9X2043 | 40 SCREW-TRUSS HEAD (M6X1X14-MM) | 3 | |
| 1989706 | 41 SCREW-TRUSS HEAD (M5X0.8X16-MM) | 2 | |
| 8T0328 | 42 WASHER-HARD (5.5X10X1-MM THK) | 4 | |
| 1129861 | KIT-SEAL | 1 |
