System And Components

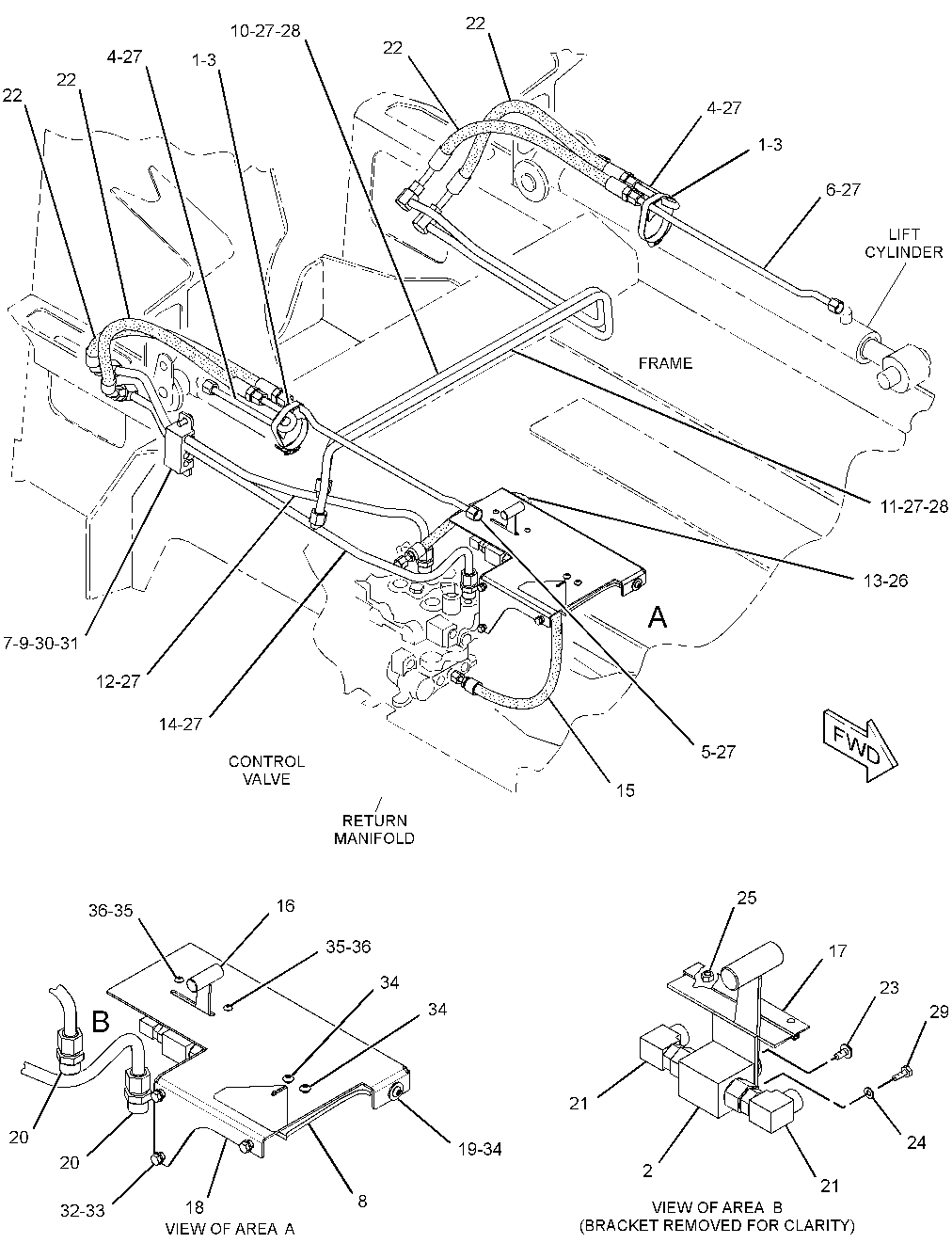

332-6713 LINES GP-LIFT CYLINDER -WITHOUT WORK TOOL POSITIONERS/N A9H1-UP
Group No: 332-6713
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V3582 | 1 CLAMP-HOSE | 2 | |
| 1121817 | 2 VALVE-BALL (LIFT CYLINDER) | 1 | |
| 1428997 | 3 BLOCK | 2 | |
| 1871273 | 4 TUBE AS | 2 | |
| 1871274 | 5 TUBE AS | 1 | |
| 1871275 | 6 TUBE AS | 1 | |
| 2185764 | 7 PLATE | 1 | |
| 2186438 | 8 SEAL | 1 | |
| 2859286 | 9 BLOCK | 1 | |
| 2893752 | 10 TUBE AS | 1 | |
| 2893753 | 11 TUBE AS | 1 | |
| 2893754 | 12 TUBE AS | 1 | |
| 3265581 | 13 HOSE AS | 1 | |
| 3265589 | 14 TUBE AS | 1 | |
| 3265612 | 15 HOSE AS | 1 | |
| 3265614 | 16 HANDLE AS | 1 | |
| 3265634 | 17 BRUSH AS | 1 | |
| 3265640 | 18 BRACKET AS | 1 | |
| 1599539 | NUT-WELD (M6X1-THD) | 3 | |
| 1599540 | NUT-WELD (M8X1.25-THD) | 3 | |
| 7X0579 | 19 WASHER-HARD (8.8X25.5X2-MM THK) | 1 | |
| 1488341 | 20 CONNECTOR AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8713 | CONNECTOR | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488378 | 21 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 2185739 | 22 HOSE AS | 4 | |
| 2719408 | 23 SCREW-TRUSS HEAD (M5X0.8X10-MM) | 1 | |
| 4B4863 | 24 WASHER (4.7X11X1.2-MM THK) | 4 | |
| 3T0851 | 25 LOCKNUT (M5X0.8-THD) | 2 | |
| 6V8397 | 26 SEAL-O-RING | 1 | |
| 6V8398 | 27 SEAL-O-RING | 12 | |
| 7J9108 | 28 SEAL-O-RING | 2 | |
| 1166952 | 29 BOLT (M4X0.7X10-MM) | 4 | |
| 8T4121 | 30 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4136 | 31 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4224 | 32 WASHER-HARD (8.8X16X2-MM THK) | 3 | |
| 8T4908 | 33 BOLT (M8X1.25X25-MM) | 3 | |
| 9X2043 | 34 SCREW-TRUSS HEAD (M6X1X14-MM) | 3 | |
| 1989706 | 35 SCREW-TRUSS HEAD (M5X0.8X16-MM) | 2 | |
| 8T0328 | 36 WASHER-HARD (5.5X10X1-MM THK) | 4 | |
| 1129861 | KIT-SEAL | 1 |
