System And Components

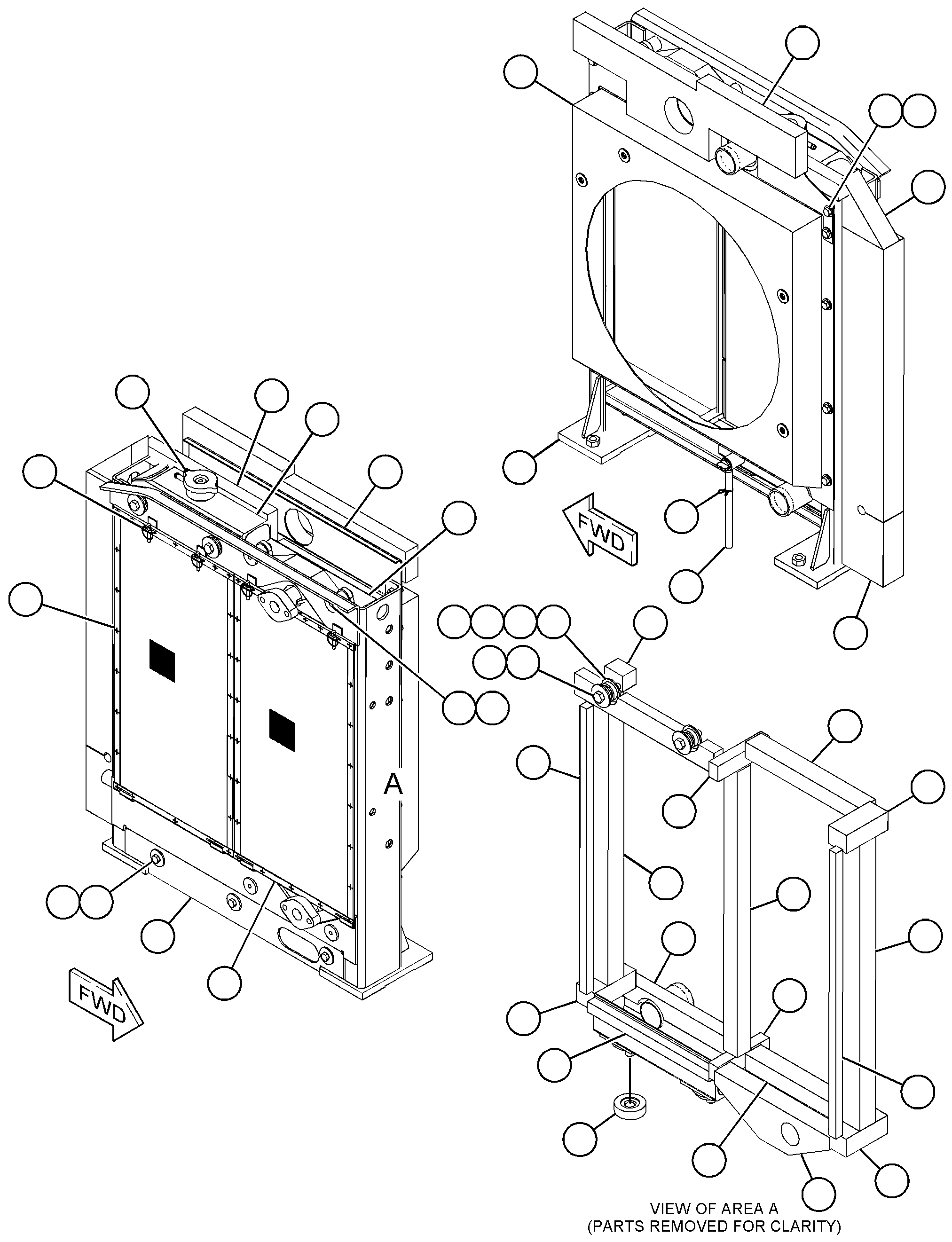

481-3471 RADIATOR & HYD OIL COOLER GPS/N E2W1500-UP
Group No: 481-3471
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5D8159 | 1 PIN AS | 4 | |
| 0964035 | 2 CLIP | 1 | |
| 2679048 | 3 CUSHION | 2 | |
| 3133766 | 4 SLEEVE | 2 | |
| 3133769 | 5 CUSHION-RUBBER | 2 | |
| 3146506 | 6 CUSHION-RUBBER | 2 | |
| 3602732 | 7 CAP-RADIATOR | 1 | |
| 3656888 | 8 SEAL-AIR | 2 | |
| 4331630 | 9 CORE AS-RADIATOR | 1 | |
| 3324192 | SEAL-O-RING | 1 | |
| 3550468 | PLUG-DRAIN | 1 | |
| 4331631 | 10 CORE AS-OIL COOLER (HYDRAULIC) | 1 | |
| 4331632 | 11 FRAME AS | 1 | |
| 4331633 | 12 SHROUD AS | 1 | |
| 4331635 | 13 SCREEN AS (RADIATOR) | 1 | |
| 4331636 | 14 SCREEN AS (HYDRAULIC OIL COOLER) | 1 | |
| 4331637 | 15 SEAL-AIR | 2 | |
| 4331638 | 16 SEAL-AIR | 2 | |
| 4331639 | 17 SEAL-AIR | 1 | |
| 4331640 | 18 SEAL-AIR | 3 | |
| 4331661 | 19 SEAL-AIR | 1 | |
| 4331662 | 20 SEAL-AIR | 1 | |
| 4331663 | 21 SEAL-AIR | 1 | |
| 4331664 | 22 SEAL-AIR | 2 | |
| 4331665 | 23 SEAL-AIR | 1 | |
| 4331666 | 24 SEAL-AIR | 1 | |
| 4335157 | 25 BAFFLE | 1 | |
| 4335161 | 26 SEAL-AIR | 1 | |
| 4530611 | 27 SEAL-AIR | 1 | |
| 4683841 | 28 BAFFLE | 1 | |
| 4683842 | 29 SEAL-AIR | 1 | |
| 1343196 | 30 WASHER (10.2X39.6X2.3-MM THK) | 4 | |
| 5P4116 | 31 WASHER-HARD (8.8X20.5X2-MM THK) | 13 | |
| 7X0578 | 32 WASHER-HARD (10.2X32X2.5-MM THK) | 3 | |
| 7X2537 | 33 BOLT (M8X1.25X35-MM) | 4 | |
| 8T4186 | 34 BOLT (M10X1.5X40-MM) | 2 | |
| 8T4189 | 35 BOLT (M8X1.25X20-MM) | 12 | |
| 7Y1976 | 36 HOSE-WATER (16-CM) | ||
| 8T4908 | 37 BOLT (M8X1.25X25-MM) | 1 | |
| 7X0613 | 38 WASHER-HARD (8.8X25.5X5-MM THK) | 1 |
