System And Components

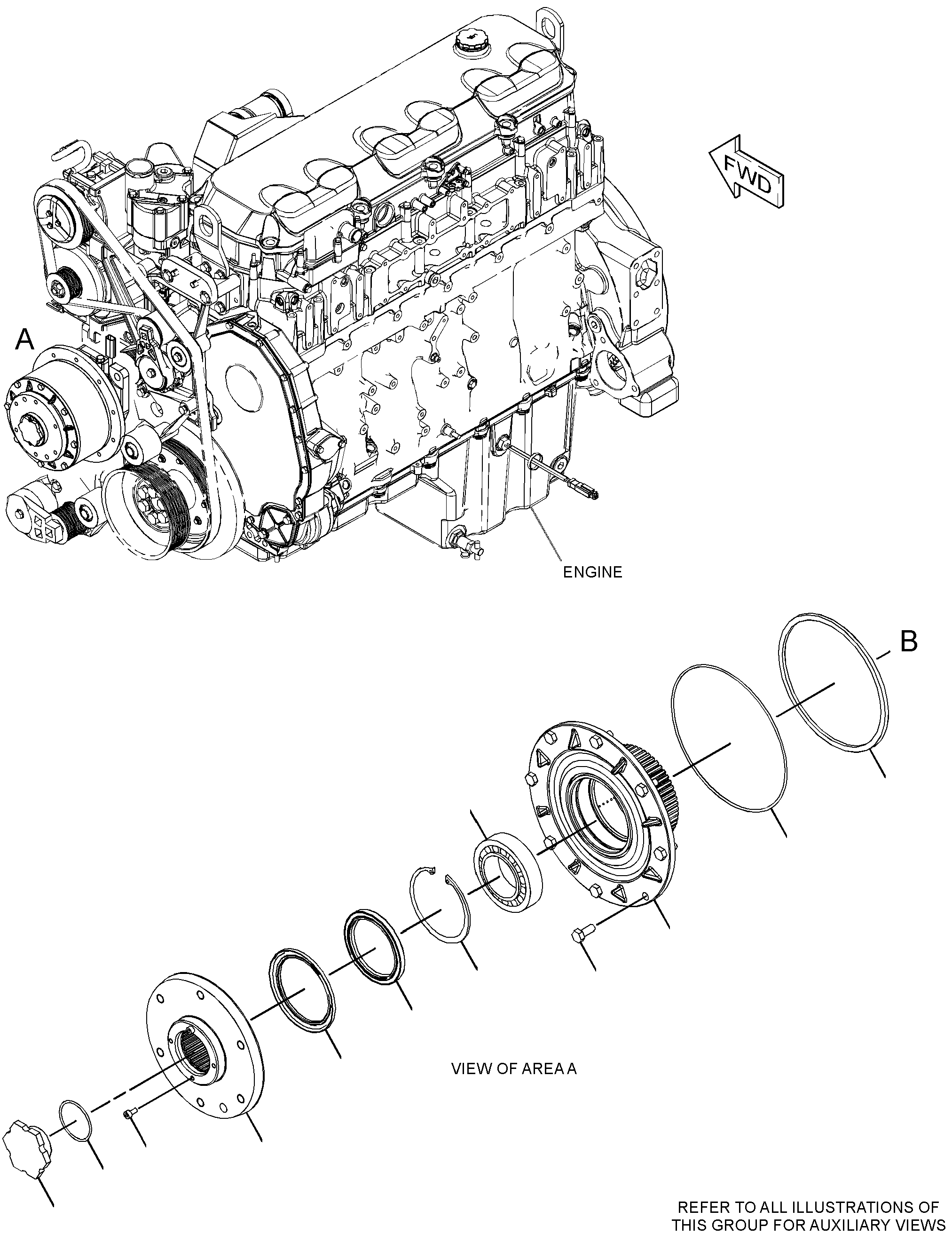

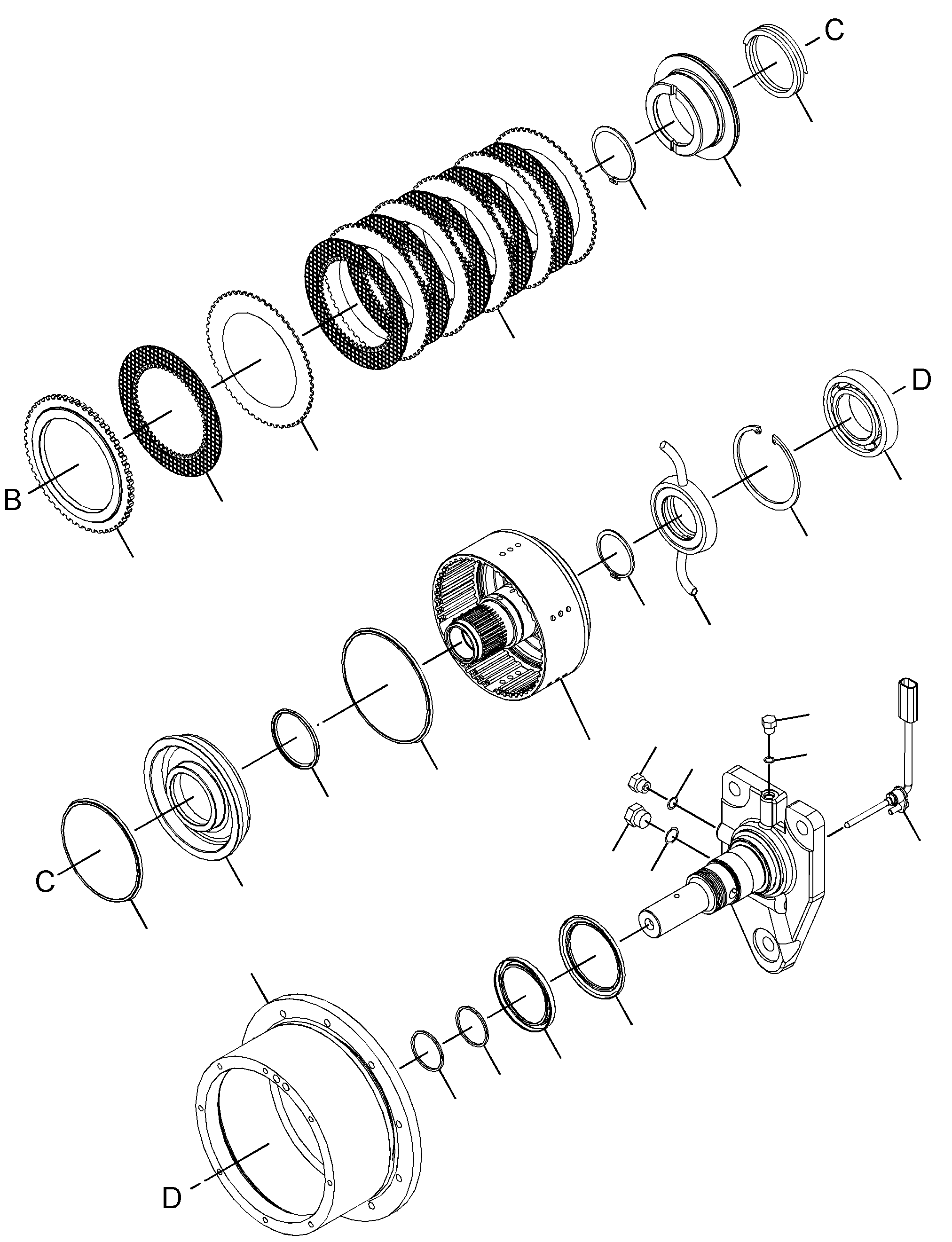

350-5637 DRIVE GP-FANS/N YEG1-UP; A9J1-UP
Group No: 350-5637 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2513602 | 1 COVER | 1 | |
| 2513611 | 2 PISTON | 1 | |
| 2513612 | 3 PISTON | 1 | |
| 2513613 | 4 RETAINER | 1 | |
| 2513614 | 5 TUBE AS | 1 | |
| 2513617 | 6 RETAINER | 1 | |
| 2513618 | 7 DISC-FRICTION | 6 | |
| 2513620 | 8 SLEEVE AS (MAGNET) | 1 | |
| 2513623 | 9 SEAL | 2 | |
| 2513624 | 10 SEAL | 1 | |
| 2513625 | 11 SPRING-WAVE | 1 | |
| 2513630 | 12 PLATE | 1 | |
| 3394364 | 13 HOUSING | 1 | |
| 3605603 | 15 SEAL-LIP TYPE | 2 | |
| 3670693 | 16 FLANGE AS | 1 | |
| 3670695 | 17 SHAFT AS | 1 | |
| 0329882 | 18 SEAL-O-RING | 1 | |
| 0957949 | 19 RING-RETAINING | 1 | |
| 0990822 | 20 BOLT-SOCKET HEAD (M5X0.8X10-MM) | 2 | |
| 1K6984 | 21 RING-RETAINING | 1 | |
| 2D5658 | 22 BALL BEARING | 1 | |
| 2K2939 | 23 SEAL-O-RING | 1 | |
| 3640608 | 24 SENSOR GP-SPEED (FAN) | 1 | |
| 3J1907 | 25 SEAL-O-RING | 1 | |
| 3J7354 | 26 SEAL-O-RING | 1 | |
| 3K0360 | 27 SEAL-O-RING | 1 | |
| 6V5203 | 28 RING-RETAINING | 1 | |
| 6V5217 | 29 BOLT (M8X1.25X20-MM) | 8 | |
| 6Y0040 | 30 RING | 1 | |
| 6Y8043 | 31 PLATE | 6 | |
| 7F2742 | 32 BALL BEARING | 1 | |
| 8T0707 | 33 RING-RETAINING (INTERNAL) | 1 | |
| 8T1742 | 34 RING-RETAINING (INTERNAL) | 1 | |
| 9S4182 | 35 PLUG (7/16-20-THD) | 1 | |
| 9S4185 | 36 PLUG (3/4-16-THD) | 1 | |
| 9S4191 | 37 PLUG (9/16-18-THD) | 1 | |
| 9U8886 | 38 RING-SEAL | 2 | |
| 9W9436 | 39 RING-SEAL | 1 |
