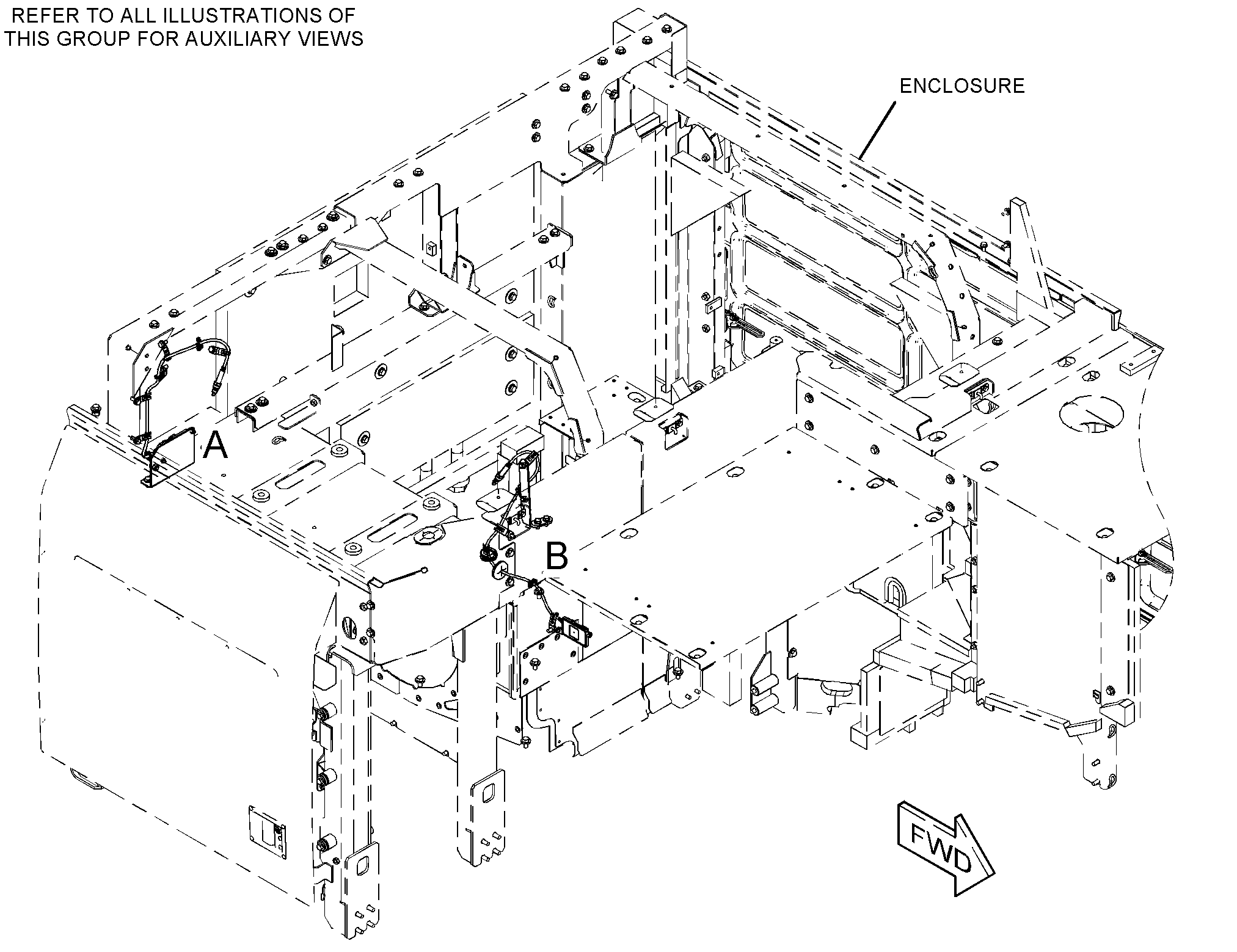

385-1300 SENSOR & MTG GP-SOOTS/N NDC1-UP; YEG1-UP; A9J1-UP

Group No: 385-1300 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE2
7K11812 STRAP-CABLE1
09629163 GROMMET1
32645164 TIE-CABLE12
44151275 SENSOR AS-NITROGEN OXIDE (ENGINE OUTPUT)1
44151286 SENSOR AS-NITROGEN OXIDE (EXHAUST PIPE OUT)1
39340087 PLATE AS1
8T3490NUT-WELD (M10X1.5-THD)2
39662118 GROMMET1
41807289 PLATE AS1
6V9632NUT-WELD (M6X1-THD)2
8T3490NUT-WELD (M10X1.5-THD)1
101362510 CLIP (LADDER)4
285639311 CLIP (LADDER)7
5C955312 BOLT (M6X1X16-MM)2
8T412113 WASHER-HARD (11X21X2.5-MM THK)15
8T413614 BOLT (M10X1.5X25-MM)9
8T413715 BOLT (M10X1.5X20-MM)6
8T413816 BOLT (M6X1X20-MM)2
9X825617 WASHER (6.6X12X2-MM THK)4
