System And Components
Assembly
100%

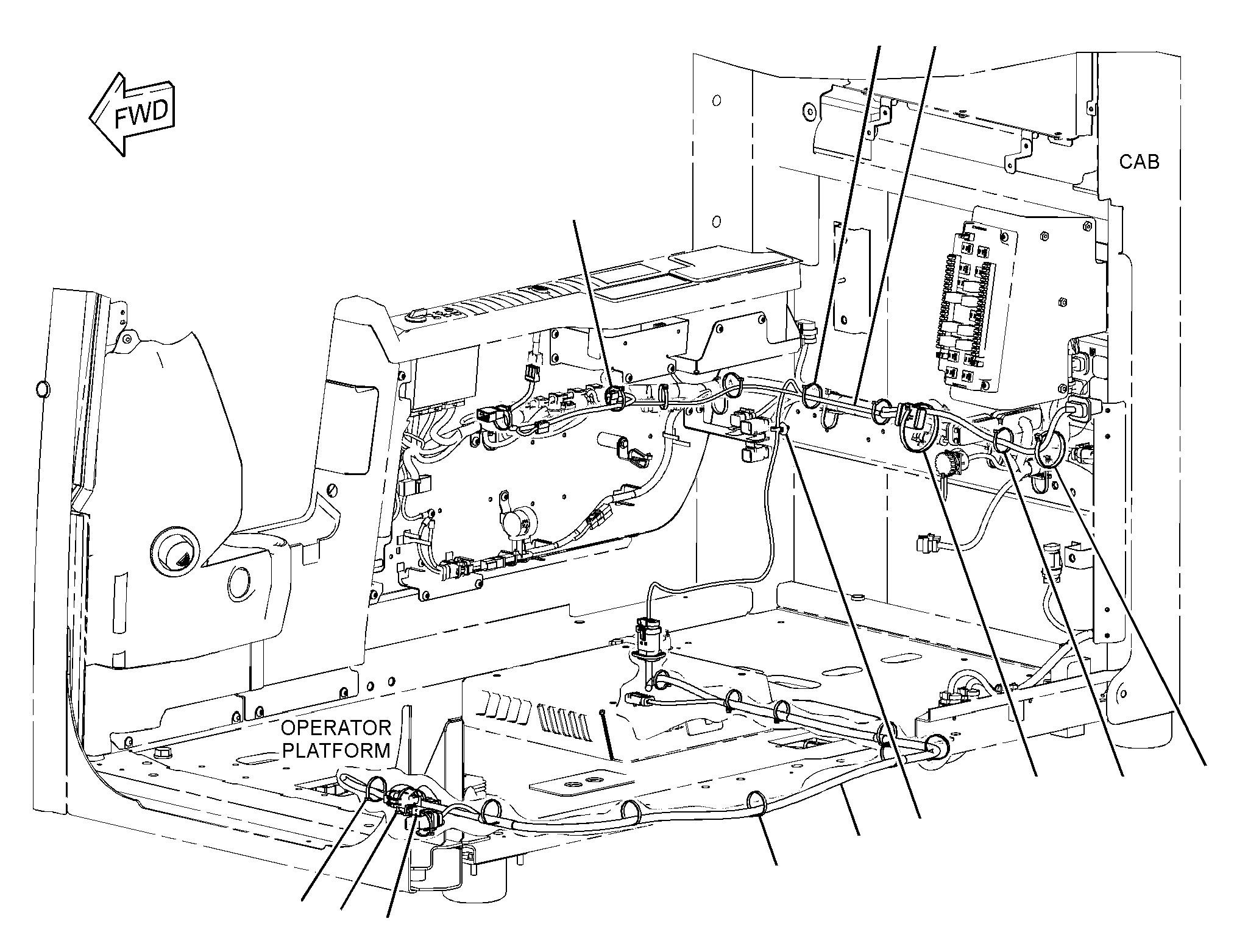

336-6360 WIRING GP-CABS/N NDC1-UP; YEG1-UP; A9J1-UP

Group No: 336-6360 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE20
7K11812 STRAP-CABLE2
11601183 CLIP1
16367954 STRAP-CABLE1
36062925 HARNESS AS-CAB1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)10
3S2093STRAP-CABLE13
7Y3950TERMINAL-BLADE (14-GA TO 20-GA)2
7Y3951TERMINAL-BLADE (14-GA)2
7Y3952PLUG-CONNECTOR (2-PIN)1
7Y3953CONNECTOR-RECEPTACLE1
8T8737PLUG-SEAL14
1027965TERMINAL (14-GA TO 20-GA)5
1211173TERMINAL (MALE)5
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)3
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)3
9X3401PIN-CONNECTOR (16-GA TO 18-GA)9
1261767PIN-CONNECTOR (14-GA TO 16-GA)9
1636803PLUG-CONNECTOR (5-PIN)1
2304009PLUG AS-CONNECTOR (12-PIN)1
4550709SEAL-CONNECTOR1
2434510RECEPTACLE AS-CONNECTOR (12-PIN)1
3245684RECEPTACLE AS-CONNECTOR (12-PIN)1
36062936 HARNESS AS-PLATFORM1
1028802KIT-RECEPTACLE (2-PIN)1
3S2093STRAP-CABLE3
8T8737PLUG-SEAL18
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)6
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)6
9X3401PIN-CONNECTOR (16-GA TO 18-GA)7
1261767PIN-CONNECTOR (14-GA TO 16-GA)7
1552270KIT-CONNECTING PLUG (2-PIN)1
2397352PLUG AS-CONNECTOR (6-PIN)2
4550707SEAL-CONNECTOR1
2434506RECEPTACLE AS-CONNECTOR (3-PIN)1
3280076RECEPTACLE AS-CONNECTOR (12-PIN)1
3422974CAP-CONNECTOR (6-PIN)2
