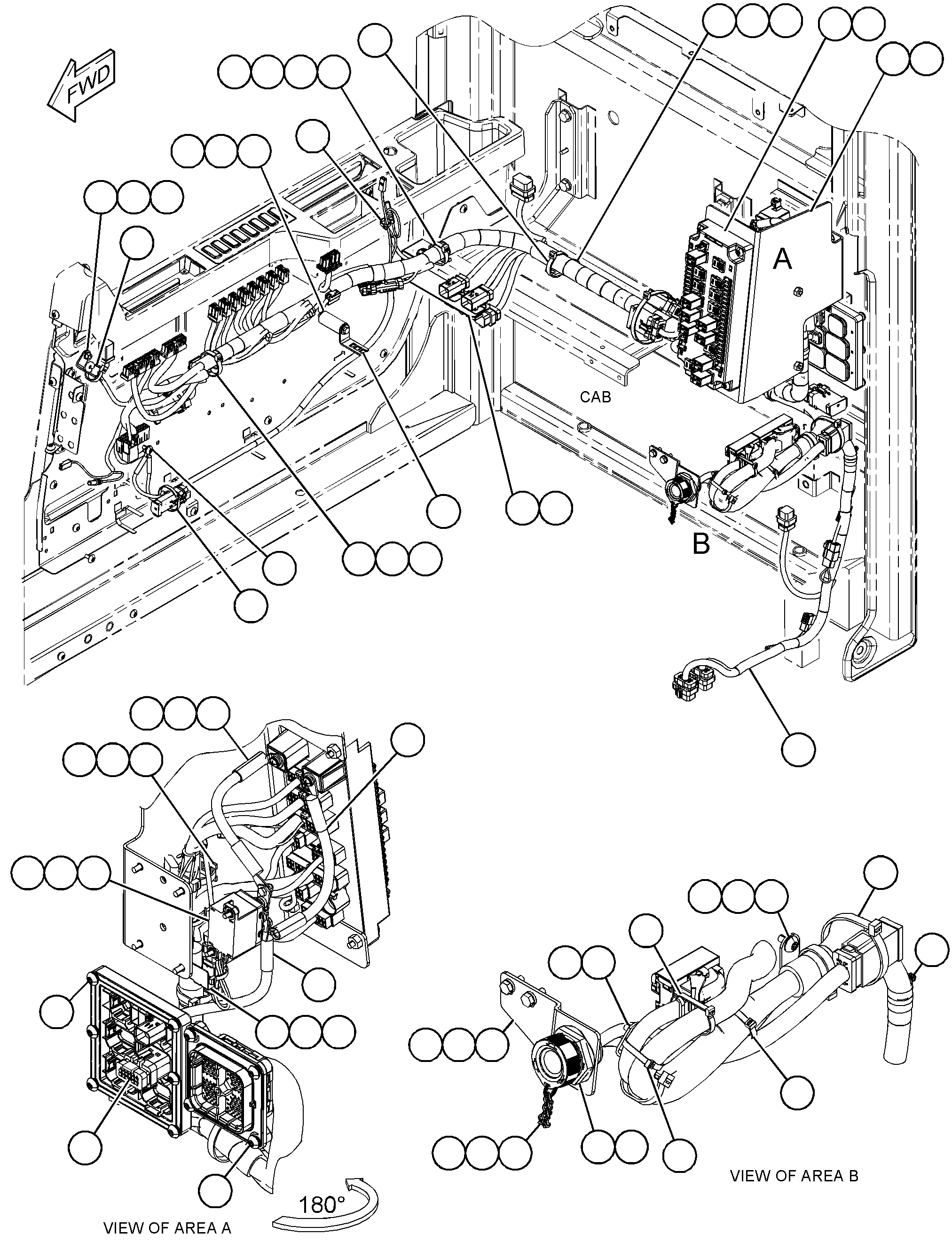

479-7794 WIRING GP-CAB -REAR, RHS/N NDC10001-UP; YEG10001-UP; A9J10001-UP

Group No: 479-7794 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE7
7K11812 STRAP-CABLE13
11601183 CLIP1
16735934 STRAP1
27026795 LOCKWASHER1
32587006 PLUG AS-CONNECTOR (12-PIN)1
8T8737PLUG-SEAL12
2304009PLUG AS-CONNECTOR (12-PIN)1
4550709SEAL-CONNECTOR1
32800607 BRACKET AS1
32801868 BRACKET AS-BASE1
35084629 CABLE AS (FUSE, RELAY PANEL)1
6V2369CABLE (4-GA, BLACK)(0.3-M)
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)2
3245685RECEPTACLE AS-CONNECTOR (1-PIN)1
3280111PIN-CONNECTOR1
459602510 BRACKET1
461678411 SWITCH AS-MAGNETIC (MAIN RELAY)1
479782412 HARNESS AS-CAB1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)36
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)24
3S2093STRAP-CABLE105
5P6001TUBE-HEAT SHRINK (4.75-MM DIA)(0.1-M)
7Y3950TERMINAL-BLADE (14-GA TO 20-GA)5
7Y3951TERMINAL-BLADE (14-GA)5
7Y3952PLUG-CONNECTOR (2-PIN)1
7Y3953CONNECTOR-RECEPTACLE2
7Y3954CONNECTOR-PLUG (3-PIN)1
7Y3955CONNECTOR-RECEPTACLE1
7Y3967TERMINAL AS8
7Y3963TERMINAL-BULLET (FEMALE)1
7Y3965TUBE1
8T8737PLUG-SEAL61
1027964PLUG-CONNECTOR (16-PIN)2
1027965TERMINAL (14-GA TO 20-GA)115
9W0852PIN-CONNECTOR (14-GA TO 16-GA)21
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)23
1114815PLUG-CONNECTOR (7-PIN)1
1114816PLUG-CONNECTOR (13-PIN)1
1160086PLUG-CONNECTOR (9-PIN)1
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(65-CM)
1211173TERMINAL (MALE)3
1254766PLUG-CONNECTOR (17-PIN)1
1254784PLUG-CONNECTOR (12-PIN)1
1254785TERMINAL (FEMALE)40
1254838WEDGE-PLUG LOCK (7-PIN)1
1254839WEDGE-PLUG LOCK (9-PIN)1
1254840WEDGE-PLUG LOCK (13-PIN)1
1254841WEDGE-PLUG LOCK (21-PIN)2
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(200-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(60-CM)
1257876TUBE-HEAT SHRINK (17.78-MM DIA)(10-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)82
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)82
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)2
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)3
1385184PLUG-CONNECTOR (20-PIN)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)75
1261767PIN-CONNECTOR (14-GA TO 16-GA)75
1532602RECEPTACLE-CONNECTOR (1-PIN)2
1532631TERMINAL (14-GA TO 20-GA)2
1552256KIT-CONNECTING PLUG (12-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)1
1552274KIT-CONNECTING PLUG (6-PIN)1
1636803PLUG-CONNECTOR (5-PIN)10
1636804PLUG-CONNECTOR (8-PIN)1
1673487WEDGE-PLUG LOCK (5-PIN)10
1673542RECEPTACLE-CONNECTOR (5-PIN)1
1907614KIT-RECEPTACLE (12-PIN)1
2025397PLUG4
2184935SUPPRESSOR-ARC1
2418834PLUG AS-CONNECTOR (12-PIN)1
2813395PLUG AS-CONNECTOR (12-PIN)3
2813396PLUG AS-CONNECTOR (12-PIN)1
2304009PLUG AS-CONNECTOR (12-PIN)2
4550709SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)1
4550704SEAL-CONNECTOR1
2305008PLUG AS-CONNECTOR (4-PIN)1
4550706SEAL-CONNECTOR1
2813132PLUG AS-CONNECTOR (6-PIN)1
2305010PLUG AS-CONNECTOR (6-PIN)1
4550707SEAL-CONNECTOR1
2813388PLUG AS-CONNECTOR (6-PIN)1
2312295PLUG AS-CONNECTOR (8-PIN)2
4550708SEAL-CONNECTOR1
2382363TERMINAL (FEMALE)5
2434505RECEPTACLE AS-CONNECTOR (2-PIN)3
2434509RECEPTACLE AS-CONNECTOR (8-PIN)1
2813136RECEPTACLE AS-CONNECTOR (6-PIN)1
3245678RESISTOR AS (120-OHM)3
2647029SEAL-CONNECTOR1
3245680RECEPTACLE AS-CONNECTOR (120-PIN)1
3245681SEAL1
3245682PANEL AS1
3245683SEAL1
3245684RECEPTACLE AS-CONNECTOR (12-PIN)1
3279954CAP (12-PIN CONNECTOR)3
3279955CAP (1-PIN CONNECTOR)1
3422974CAP-CONNECTOR (6-PIN)1
3422975CAP-CONNECTOR (8-PIN)1
3422976CAP-CONNECTOR (12-PIN)4
3422978CAP-CONNECTOR (4-PIN)1
4244322COVER-CONNECTOR1
4312103SOCKET-CONNECTOR (14-GA TO 18-GA)9
4427945PLUG AS-CONNECTOR (81-PIN)1
4427946PLUG AS-CONNECTOR (40-PIN)1
4518019RECEPTACLE AS-CONNECTOR (14-PIN)1
494749513 PANEL GP-FUSE (RELAY)1
494750014 CABLE AS (MAIN RELAY)1
494750115 CABLE AS (MAIN RELAY)1
6V2369CABLE (4-GA, BLACK)(0.3-M)
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)2
087379616 SPACER (17.61X21.34X48-MM THK)1
095072317 SCREW-SPECIAL (M3X0.5X10-MM)1
096596218 WASHER-HARD (3.4X7X0.8-MM THK)1
114665819 WASHER (6.5X17X1-MM THK)1
156617520 CLIP (LADDER)7
163679521 STRAP-CABLE1
203900722 NUT (1-1/2-18-THD)1
4P758123 CLIP (LADDER)1
5C287424 NUT (M5X0.8-THD)2
5C289025 NUT (M6X1-THD)1
5C955326 BOLT (M6X1X16-MM)2
5P411527 WASHER-HARD (7.2X19X2-MM THK)4
6V967428 SCREW-MACHINE (M5X0.8X14-MM)2
7X253529 BOLT (M6X1X60-MM)1
8T032830 WASHER-HARD (5.5X10X1-MM THK)4
9X204231 SCREW-TRUSS HEAD (M6X1X12-MM)22
9X204332 SCREW-TRUSS HEAD (M6X1X14-MM)2
9X204433 SCREW-TRUSS HEAD (M6X1X16-MM)1
9X204634 SCREW-TRUSS HEAD (M6X1X35-MM)4
9X825635 WASHER (6.6X12X2-MM THK)3
352396636 CLIP (LADDER)2
