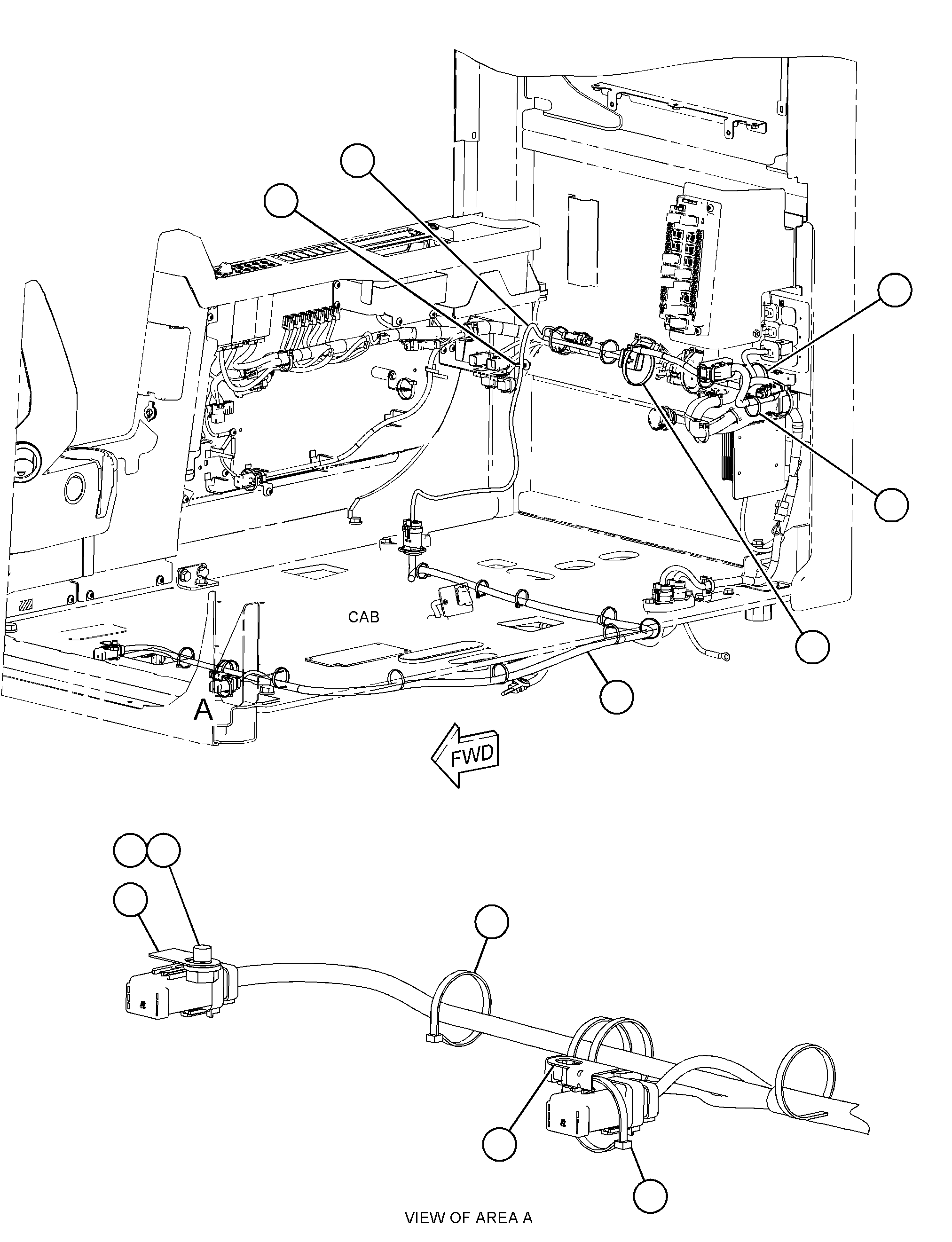

480-4375 WIRING GP-CABS/N NDC1-UP; YEG1-UP; A9J1-UP

Group No: 480-4375 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE17
7K11812 STRAP-CABLE2
11601183 CLIP2
48043884 HARNESS AS-CAB1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)1
3S2093STRAP-CABLE16
8T8737PLUG-SEAL8
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(30-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)6
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)6
9X3401PIN-CONNECTOR (16-GA TO 18-GA)25
1261767PIN-CONNECTOR (14-GA TO 16-GA)25
2434505RECEPTACLE AS-CONNECTOR (2-PIN)2
2813395PLUG AS-CONNECTOR (12-PIN)1
4550709SEAL-CONNECTOR1
3245678RESISTOR AS (120-OHM)2
2647029SEAL-CONNECTOR1
3245684RECEPTACLE AS-CONNECTOR (12-PIN)1
4312103SOCKET-CONNECTOR (14-GA TO 18-GA)5
4427945PLUG AS-CONNECTOR (81-PIN)1
48043895 HARNESS AS-PLATFORM1
1028802KIT-RECEPTACLE (2-PIN)1
3S2093STRAP-CABLE2
8T8737PLUG-SEAL14
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)6
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)6
9X3401PIN-CONNECTOR (16-GA TO 18-GA)8
1261767PIN-CONNECTOR (14-GA TO 16-GA)8
1552270KIT-CONNECTING PLUG (2-PIN)1
2397352PLUG AS-CONNECTOR (6-PIN)2
4550707SEAL-CONNECTOR1
3280076RECEPTACLE AS-CONNECTOR (12-PIN)1
3422974CAP-CONNECTOR (6-PIN)2
16367956 STRAP-CABLE1
7X26217 BOLT (M10X1.5X12-MM)1
8T41218 WASHER-HARD (11X21X2.5-MM THK)1
