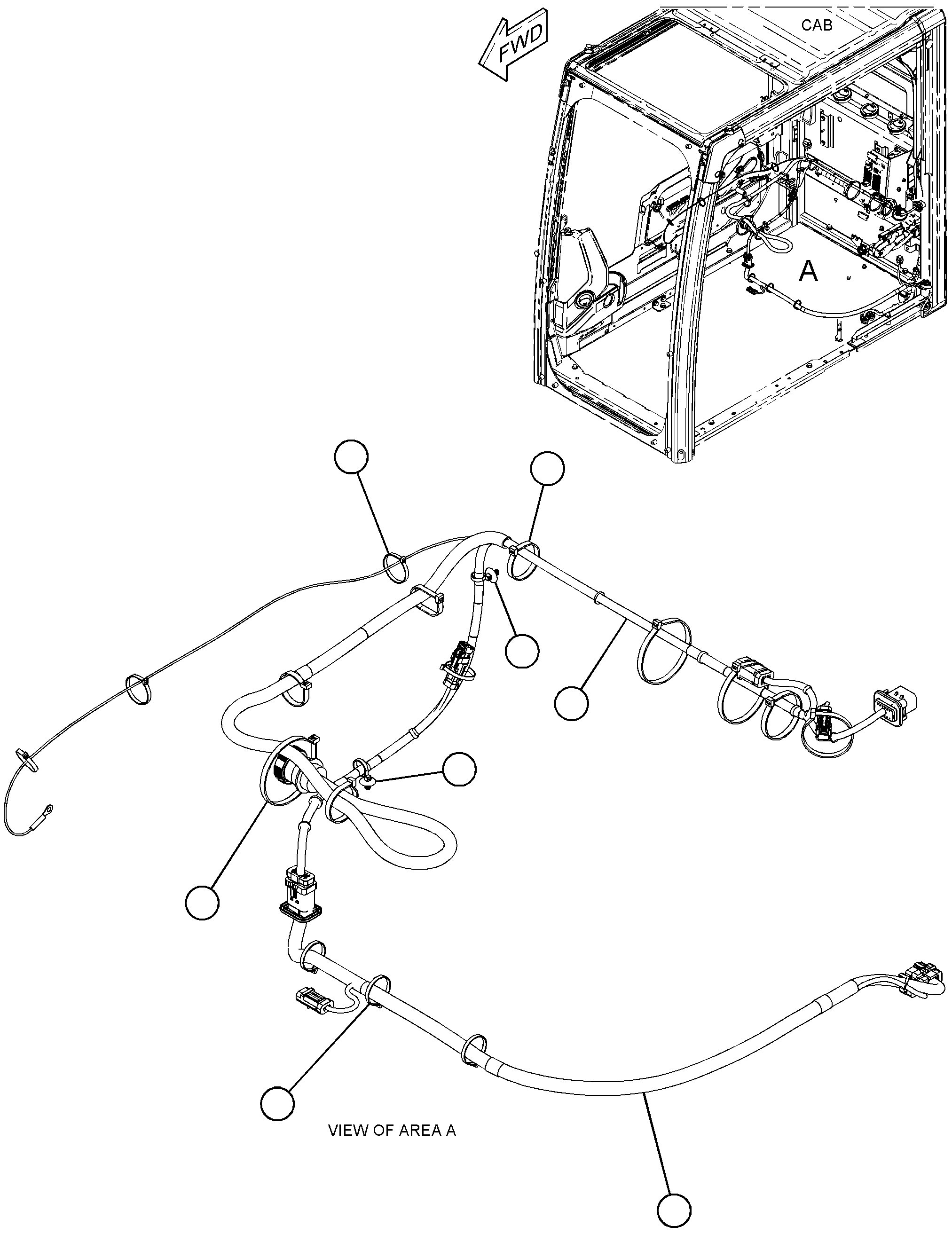

480-4384 WIRING GP-CABS/N NDC10001-UP; YEG10001-UP; A9J10001-UP

Group No: 480-4384 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE7
7K11812 STRAP-CABLE9
48062283 HARNESS AS-CAB1
3S2093STRAP-CABLE11
8T8737PLUG-SEAL19
9W0852PIN-CONNECTOR (14-GA TO 16-GA)2
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(30-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(15-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)30
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)30
2L8077TERMINAL-RING (14-GA TO 16-GA, 1/4-IN SCREW)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)16
1261767PIN-CONNECTOR (14-GA TO 16-GA)16
2304009PLUG AS-CONNECTOR (12-PIN)1
4550709SEAL-CONNECTOR1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)2
2434509RECEPTACLE AS-CONNECTOR (8-PIN)1
3245678RESISTOR AS (120-OHM)2
2647029SEAL-CONNECTOR1
3245684RECEPTACLE AS-CONNECTOR (12-PIN)1
4167158COVER-CONNECTOR1
48062294 HARNESS AS-PLATFORM1
3S2093STRAP-CABLE3
8T8737PLUG-SEAL1
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)14
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)14
2L8077TERMINAL-RING (14-GA TO 16-GA, 1/4-IN SCREW)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)14
1261767PIN-CONNECTOR (14-GA TO 16-GA)14
2304009PLUG AS-CONNECTOR (12-PIN)1
4550709SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)1
4550704SEAL-CONNECTOR1
2434506RECEPTACLE AS-CONNECTOR (3-PIN)1
3280076RECEPTACLE AS-CONNECTOR (12-PIN)1
16367955 STRAP-CABLE2
