System And Components

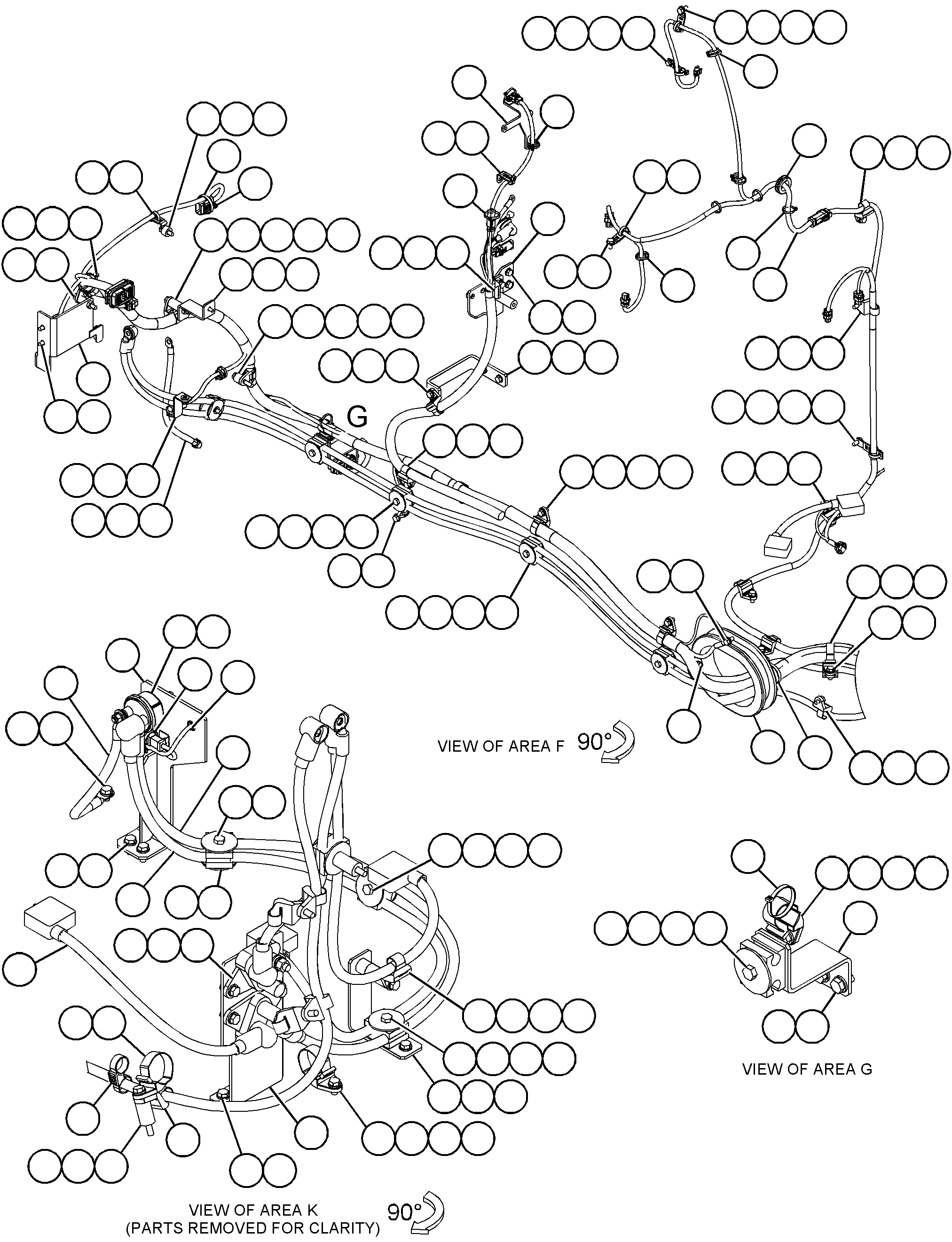

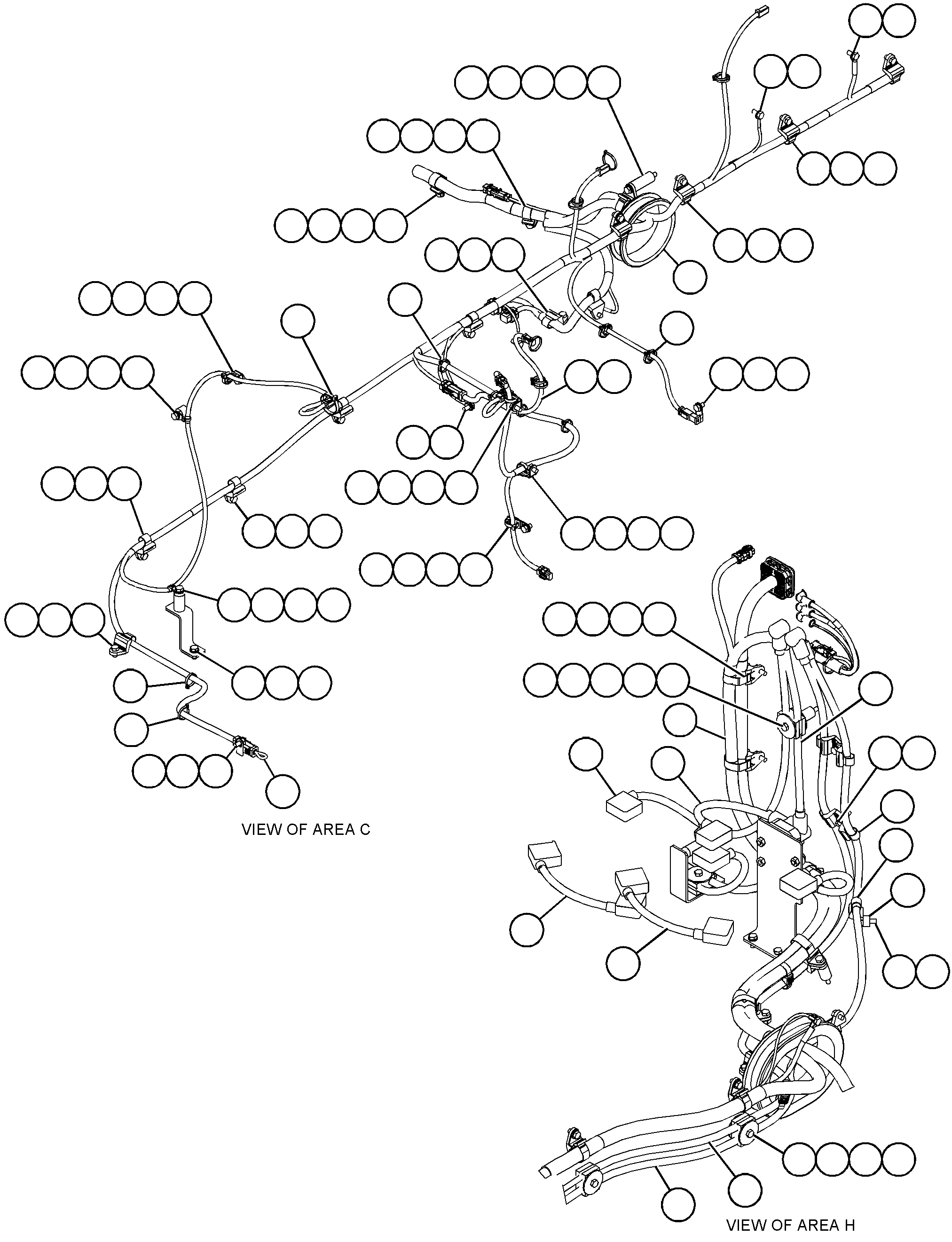

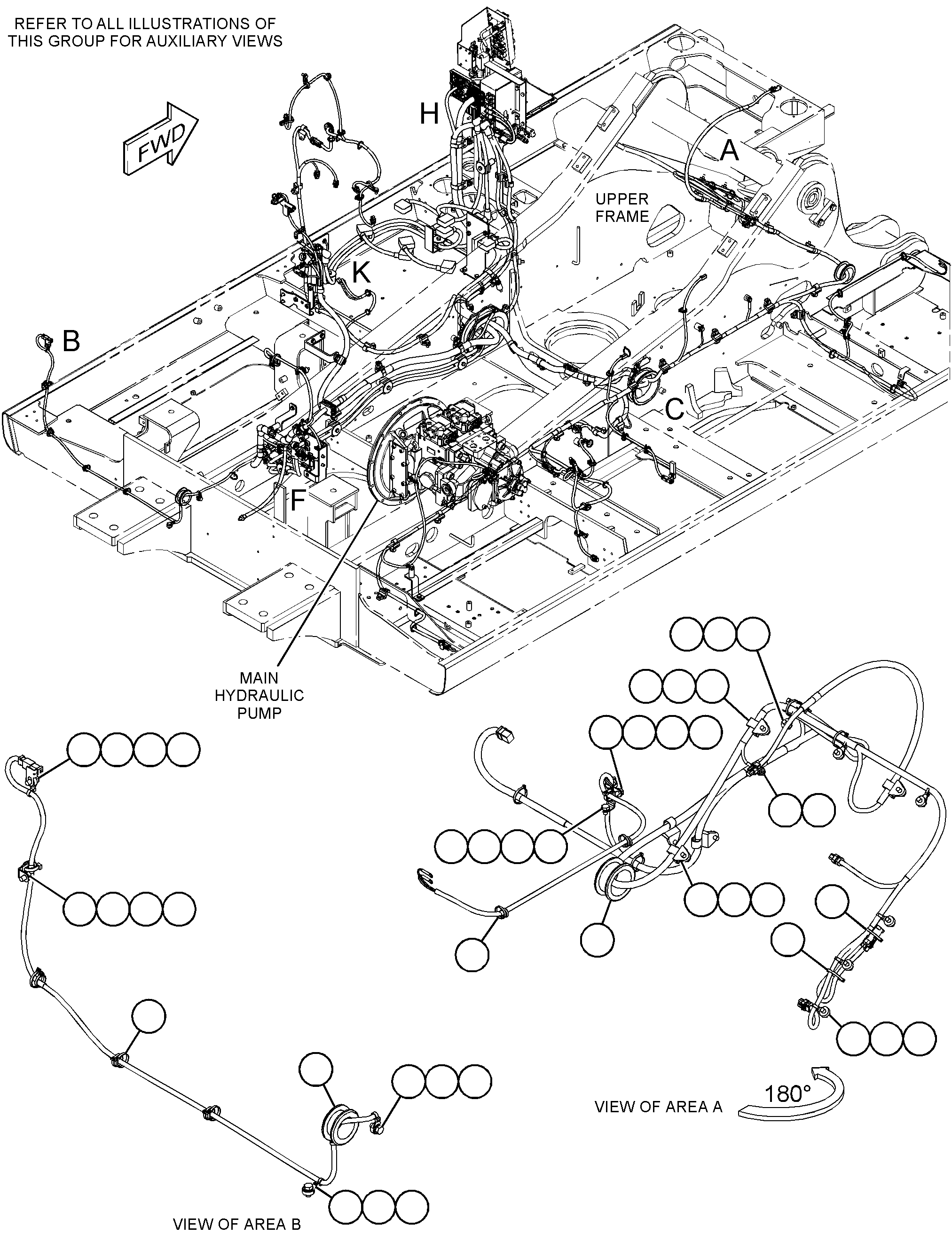

377-8248 WIRING GP-CHASSISS/N YEG1-UP; A9J1-UP
Group No: 377-8248 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3E8320 | 1 PLATE-INSTRUCTION (BATTERY) | 1 | |
| 4I7889 | 2 SPACER (11X25X45-MM THK) | 4 | |
| 7N0719 | 3 SWITCH GP-DISCONNECT (BATTERY)(PURGE PUMP) | 1 | |
| 1087118 | 4 GROMMET | 1 | |
| 1114836 | 5 CLIP | 12 | |
| 1114837 | 6 CLIP | 34 | |
| 1114839 | 7 STRAP | 16 | |
| 1160118 | 8 CLIP | 3 | |
| 1288886 | 9 STRAP AS-GROUND | 1 | |
| 1321806 | 10 STRAP AS-GROUND | 1 | |
| 1484958 | 11 GROMMET | 1 | |
| 2237064 | 12 SPACER (13.5X25X16-MM THK) | 1 | |
| 2866192 | 13 SPACER (11X40X25-MM THK) | 1 | |
| 3190956 | 14 HARNESS AS-SOLENOID (AIR CONDITIONER COMPRESSOR) | 1 | |
| 3280132 | 15 CABLE AS | 2 | |
| 9G0002 | COVER AS-TERMINAL (RED) | 1 | |
| 9G0005 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 8C5918 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 8T9756 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1598049 | CABLE (00-GA, RED)(31-CM) | ||
| 3365900 | 16 BRACKET-ENGINE | 1 | |
| 3423318 | 17 HARNESS AS-SENSOR (AIR INLET) | 1 | |
| 3508057 | 18 BRACKET AS | 2 | |
| 3508382 | 19 CABLE AS-BATTERY | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 9G0004 | COVER AS-TERMINAL (RED)(BATTERY POSITIVE) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 8C5917 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1598049 | CABLE (00-GA, RED)(44-CM) | ||
| 3010091 | COVER-TERMINAL (RED)(JUNCTION BLOCK) | 1 | |
| 3508383 | 20 CABLE AS | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 9G0005 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 8C5918 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1598050 | CABLE (00-GA, BLACK)(141-CM) | ||
| 3508384 | 21 CABLE AS-BATTERY | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 9G0005 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 8C5918 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1598050 | CABLE (00-GA, BLACK)(52-CM) | ||
| 3508385 | 22 CABLE AS-BATTERY | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 6V2722 | TUBE-HEAT SHRINK (25.4-MM DIA)(0.1-M) | ||
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 1598050 | CABLE (00-GA, BLACK)(143-CM) | ||
| 3508388 | 23 SPACER (11X25X65-MM THK) | 1 | |
| 3508407 | 24 BRACKET AS-ENGINE | 1 | |
| 3640249 | 25 BRACKET AS | 1 | |
| 3640252 | 26 BRACKET AS-COMPRESSOR | 1 | |
| 3690063 | 27 BRACKET AS | 1 | |
| 3778127 | 28 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 9G0002 | COVER AS-TERMINAL (RED)(POSITIVE, LH) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 8T9756 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1598049 | CABLE (00-GA, RED)(99-CM) | ||
| 3010091 | COVER-TERMINAL (RED)(CIRCUIT BREAKER BOX) | 1 | |
| 3778128 | 29 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 2 | |
| 6V2722 | TUBE-HEAT SHRINK (25.4-MM DIA)(10-CM) | ||
| 1598049 | CABLE (00-GA, RED)(53-CM) | ||
| 3010091 | COVER-TERMINAL (RED) | 1 | |
| 3886753 | 30 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 2 | |
| 8N0869 | COVER-TERMINAL (RED)(STARTING MOTOR) | 1 | |
| 1598049 | CABLE (00-GA, RED)(379-CM) | ||
| 3010091 | COVER-TERMINAL (RED)(CIRCUIT BREAKER BOX) | 1 | |
| 3886754 | 31 BRACKET AS | 1 | |
| 3978239 | 32 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 2 | |
| 6V2722 | TUBE-HEAT SHRINK (25.4-MM DIA)(10-CM) | ||
| 1598049 | CABLE (00-GA, RED)(369-CM) | ||
| 3978240 | 33 BRACKET AS | 1 | |
| 4193911 | 34 LAMP GP-INDICATOR (12/24-VOLT, AMBER) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 4327415 | 35 BRACKET AS | 1 | |
| 4478308 | 36 HARNESS AS-CHASSIS | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 3 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 53 | |
| 3S2093 | STRAP-CABLE | 19 | |
| 3T4688 | TERMINAL-RING (4-GA, 7/16-IN SCREW) | 1 | |
| 7T0094 | SOCKET-CONNECTOR (12-GA TO 14-GA) | 4 | |
| 9X0196 | TERMINAL AS (16-GA) | 2 | |
| 8T8737 | PLUG-SEAL | 131 | |
| 8T8799 | BOOT (RED) | 3 | |
| 8T8827 | BOOT (RED) | 1 | |
| 1108769 | WIRE AS (16-GA, BLACK) | 1 | |
| 1032529 | HOSE (80-CM) | ||
| 9W0844 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 32 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(33-CM) | ||
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(70-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(20-CM) | ||
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 103 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 103 | |
| 9G4336 | TERMINAL-RING (4-GA, 3/8-IN SCREW) | 1 | |
| 2L8052 | TERMINAL-RING (6-GA, 3/8-IN SCREW) | 1 | |
| 2L8060 | TERMINAL-RING (8-GA, 3/8-IN SCREW) | 1 | |
| 2L8067 | TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW) | 1 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 4 | |
| 2L8075 | TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW) | 2 | |
| 2L8079 | TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW) | 5 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 4 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 8 | |
| 1607689 | PLUG AS-CONNECTOR (70-PIN) | 1 | |
| 1599322 | SEAL-O-RING | 1 | |
| 1779656 | KIT-CONNECTING PLUG (4-PIN) | 1 | |
| 2304009 | PLUG AS-CONNECTOR (12-PIN) | 2 | |
| 4550709 | SEAL-CONNECTOR | 1 | |
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 8 | |
| 4550704 | SEAL-CONNECTOR | 1 | |
| 2304013 | PLUG AS-CONNECTOR (3-PIN) | 3 | |
| 4550705 | SEAL-CONNECTOR | 1 | |
| 2305008 | PLUG AS-CONNECTOR (4-PIN) | 1 | |
| 4550706 | SEAL-CONNECTOR | 1 | |
| 2305010 | PLUG AS-CONNECTOR (6-PIN) | 3 | |
| 4550707 | SEAL-CONNECTOR | 1 | |
| 2312295 | PLUG AS-CONNECTOR (8-PIN) | 1 | |
| 4550708 | SEAL-CONNECTOR | 1 | |
| 2418834 | PLUG AS-CONNECTOR (12-PIN) | 1 | |
| 4550709 | SEAL-CONNECTOR | 1 | |
| 2434505 | RECEPTACLE AS-CONNECTOR (2-PIN) | 1 | |
| 2434510 | RECEPTACLE AS-CONNECTOR (12-PIN) | 1 | |
| 2645732 | PLUG AS-CONNECTOR (120-PIN) | 1 | |
| 2887324 | SEAL-CONNECTOR | 1 | |
| 2818801 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 4550704 | SEAL-CONNECTOR | 1 | |
| 2818803 | PLUG AS-CONNECTOR (3-PIN) | 1 | |
| 4550705 | SEAL-CONNECTOR | 1 | |
| 2818804 | PLUG AS-CONNECTOR (3-PIN) | 1 | |
| 4550705 | SEAL-CONNECTOR | 1 | |
| 3245824 | PLUG AS-CONNECTOR (1-PIN) | 1 | |
| 3245825 | SOCKET-CONNECTOR (4-GA) | 1 | |
| 3422972 | CAP-CONNECTOR (2-PIN) | 2 | |
| 3422973 | CAP-CONNECTOR (3-PIN) | 2 | |
| 4353145 | TERMINAL AS-RING | 3 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(3-CM) | ||
| 4478309 | 37 HARNESS AS-HYDRAULIC TANK | 1 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 4 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 4 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 4550704 | SEAL-CONNECTOR | 1 | |
| 2434507 | RECEPTACLE AS-CONNECTOR (4-PIN) | 1 | |
| 4478310 | 38 BRACKET AS | 1 | |
| 0919035 | 39 SPACER (11X25X20-MM THK) | 2 | |
| 1114838 | 40 CLIP | 16 | |
| 1245814 | 41 BLOCK GP-JUNCTION (BATTERY) | 2 | |
| 1288678 | 42 SPACER (10.5X25X15-MM THK) | 1 | |
| 1325789 | 43 CLIP (LADDER) | 7 | |
| 1485018 | 44 GROMMET | 1 | |
| 1772215 | 45 STRAP-DUAL CLAMP | 2 | |
| 2061346 | 46 STRAP-CABLE | 1 | |
| 2678828 | 47 GROMMET | 1 | |
| 2G8767 | 48 WASHER (10.5X60X3-MM THK) | 16 | |
| 3523970 | 49 CLIP (LADDER) | 1 | |
| 3S2093 | 50 STRAP-CABLE | 65 | |
| 4I5106 | 51 GROMMET | 1 | |
| 4P7581 | 52 CLIP (LADDER) | 5 | |
| 5P4116 | 53 WASHER-HARD (8.8X20.5X2-MM THK) | 2 | |
| 6G2256 | 54 CLAMP | 9 | |
| 6G2263 | 55 SPACER (10.5X19X28.5-MM THK) | 10 | |
| 7K1181 | 56 STRAP-CABLE | 17 | |
| 8T4121 | 57 WASHER-HARD (11X21X2.5-MM THK) | 102 | |
| 8T4133 | 58 NUT (M10X1.5-THD) | 1 | |
| 8T4136 | 59 BOLT (M10X1.5X25-MM) | 22 | |
| 8T4137 | 60 BOLT (M10X1.5X20-MM) | 58 | |
| 8T4172 | 61 BOLT (M10X1.5X80-MM) | 2 | |
| 8T4178 | 62 BOLT (M10X1.5X90-MM) | 1 | |
| 8T4182 | 63 BOLT (M10X1.5X45-MM) | 1 | |
| 8T4185 | 64 BOLT (M10X1.5X50-MM) | 8 | |
| 8T4186 | 65 BOLT (M10X1.5X40-MM) | 1 | |
| 8T4189 | 66 BOLT (M8X1.25X20-MM) | 1 | |
| 8T4191 | 67 BOLT (M10X1.5X16-MM) | 7 | |
| 8T4195 | 68 BOLT (M10X1.5X30-MM) | 1 | |
| 8T4196 | 69 BOLT (M10X1.5X35-MM) | 3 | |
| 8T4198 | 70 BOLT (M10X1.5X100-MM) | 1 | |
| 8T4199 | 71 BOLT (M8X1.25X12-MM) | 1 | |
| 8T5005 | 72 BOLT (M10X1.5X70-MM) | 3 | |
| 8T6466 | 73 BOLT (M10X1.5X60-MM) | 1 |
