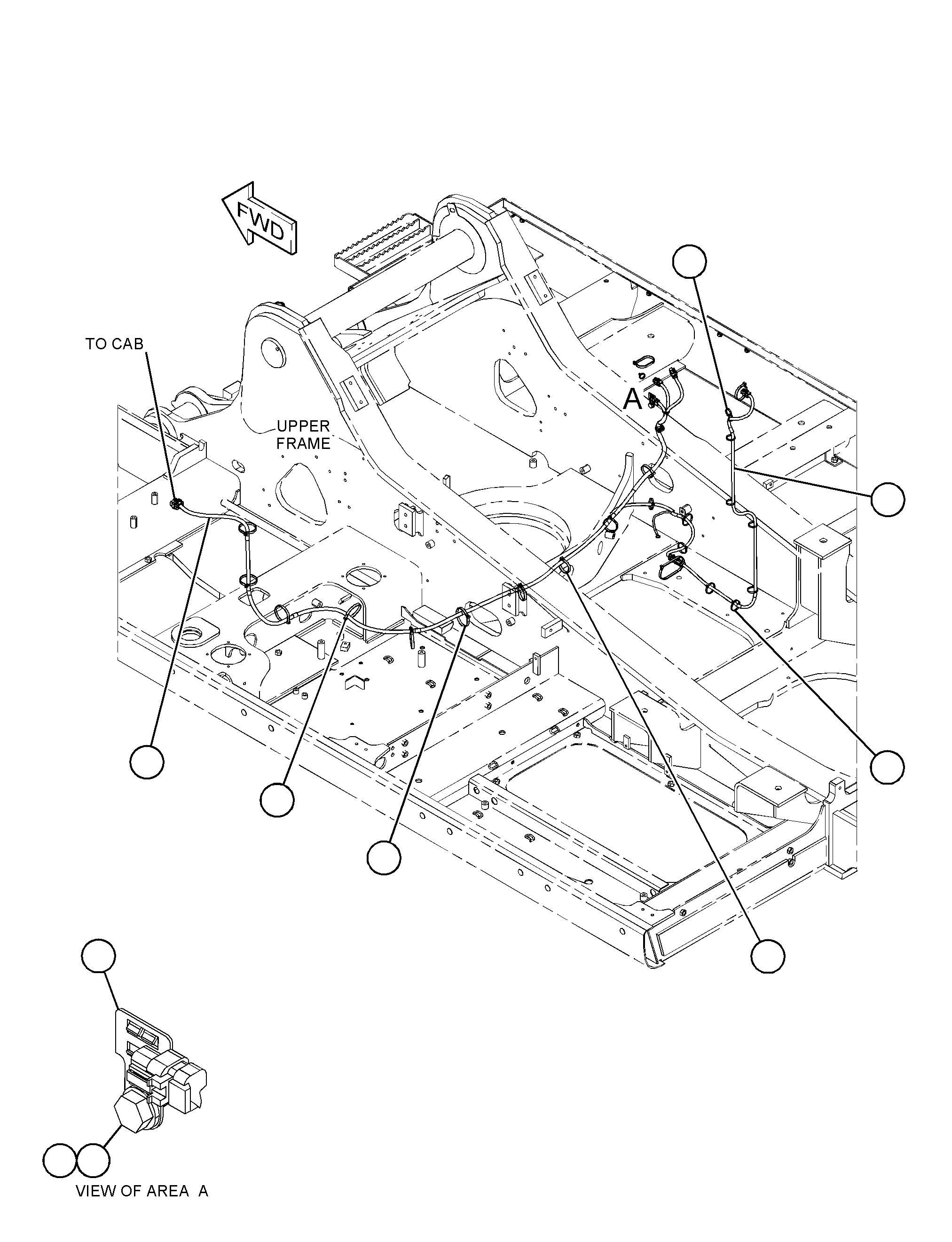

457-2504 WIRING GP-CHASSIS -QUICK COUPLER, HIGH PRESSURES/N YEG1-UP; A9J1-UP
Group No: 457-2504 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 14 | |
| 7K1181 | 2 STRAP-CABLE | 13 | |
| 2667379 | 3 STRAP-CABLE | 1 | |
| 4572505 | 4 HARNESS AS-CHASSIS (COUPLER) | 1 | |
| 2304009 | PLUG AS-CONNECTOR (12-PIN) | 1 | |
| 4550709 | SEAL-CONNECTOR | 1 | |
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 3 | |
| 4550704 | SEAL-CONNECTOR | 1 | |
| 2304013 | PLUG AS-CONNECTOR (3-PIN) | 1 | |
| 4550705 | SEAL-CONNECTOR | 1 | |
| 8T8737 | PLUG-SEAL | 7 | |
| 1261766 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 8 | |
| 3S2093 | STRAP-CABLE | 1 | |
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(25-CM) | ||
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 6 | |
| 2L8079 | TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW) | 1 | |
| 4572506 | 5 HARNESS AS-CONTROL (BUCKET) | 1 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 2 | |
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 4550704 | SEAL-CONNECTOR | 1 | |
| 2434505 | RECEPTACLE AS-CONNECTOR (2-PIN) | 1 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 2 | |
| 3474734 | 6 CLIP | 1 | |
| 8T4121 | 7 WASHER-HARD (11X21X2.5-MM THK) | 1 | |
| 8T4191 | 8 BOLT (M10X1.5X16-MM) | 1 |
