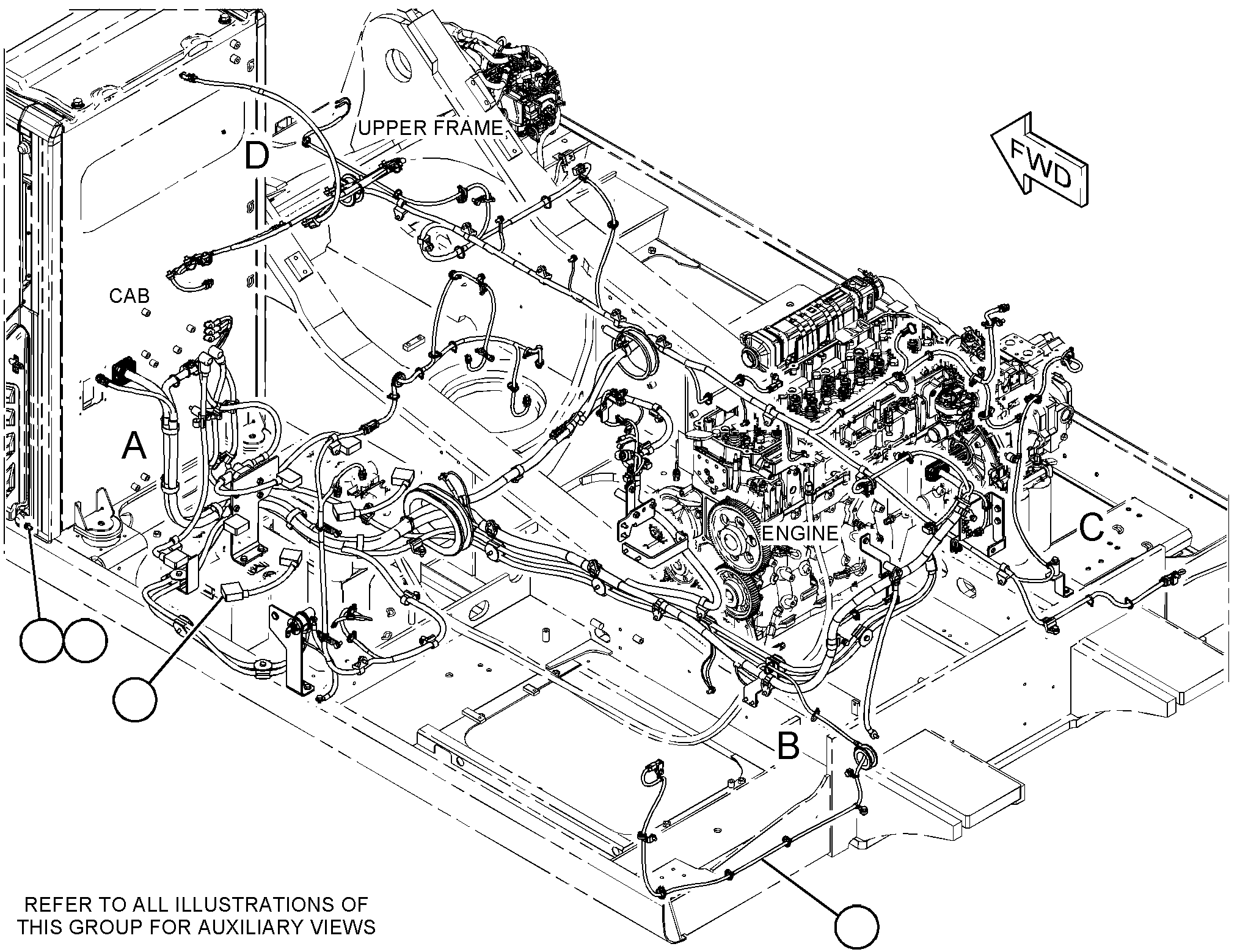

475-1163 WIRING GP-CHASSISS/N NDC1-UP; YEG1-UP; A9J1-10000

Group No: 475-1163 · Commonality

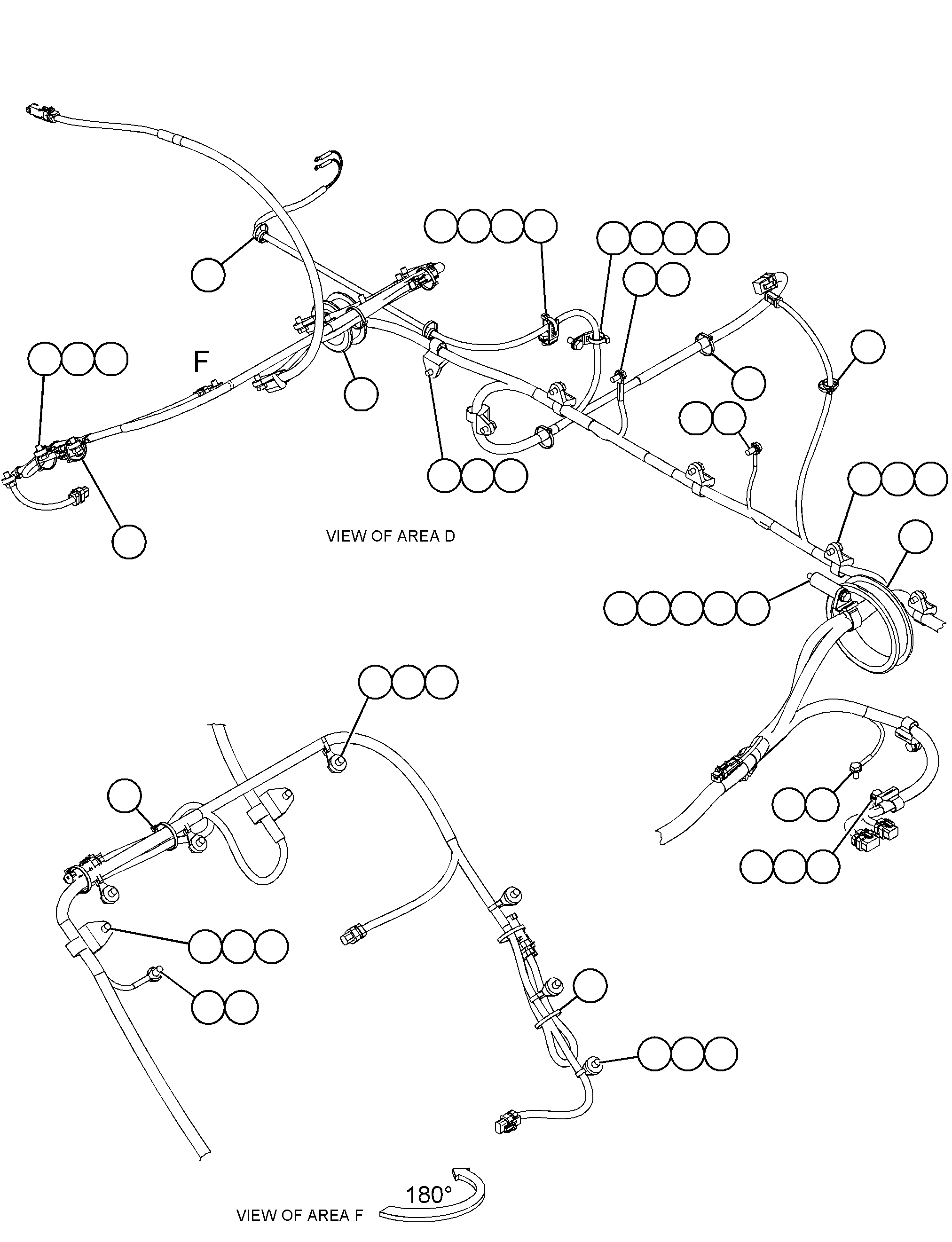

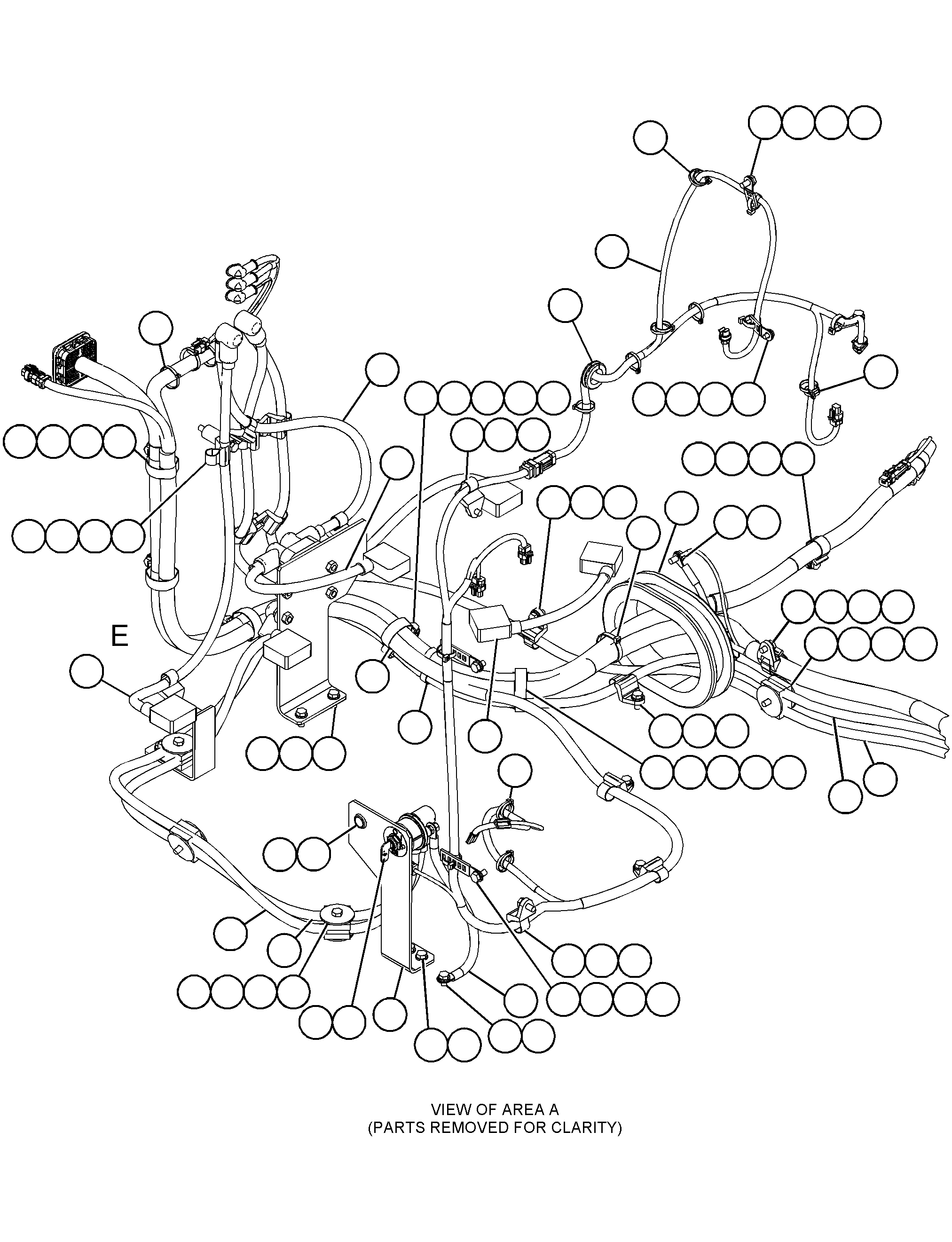

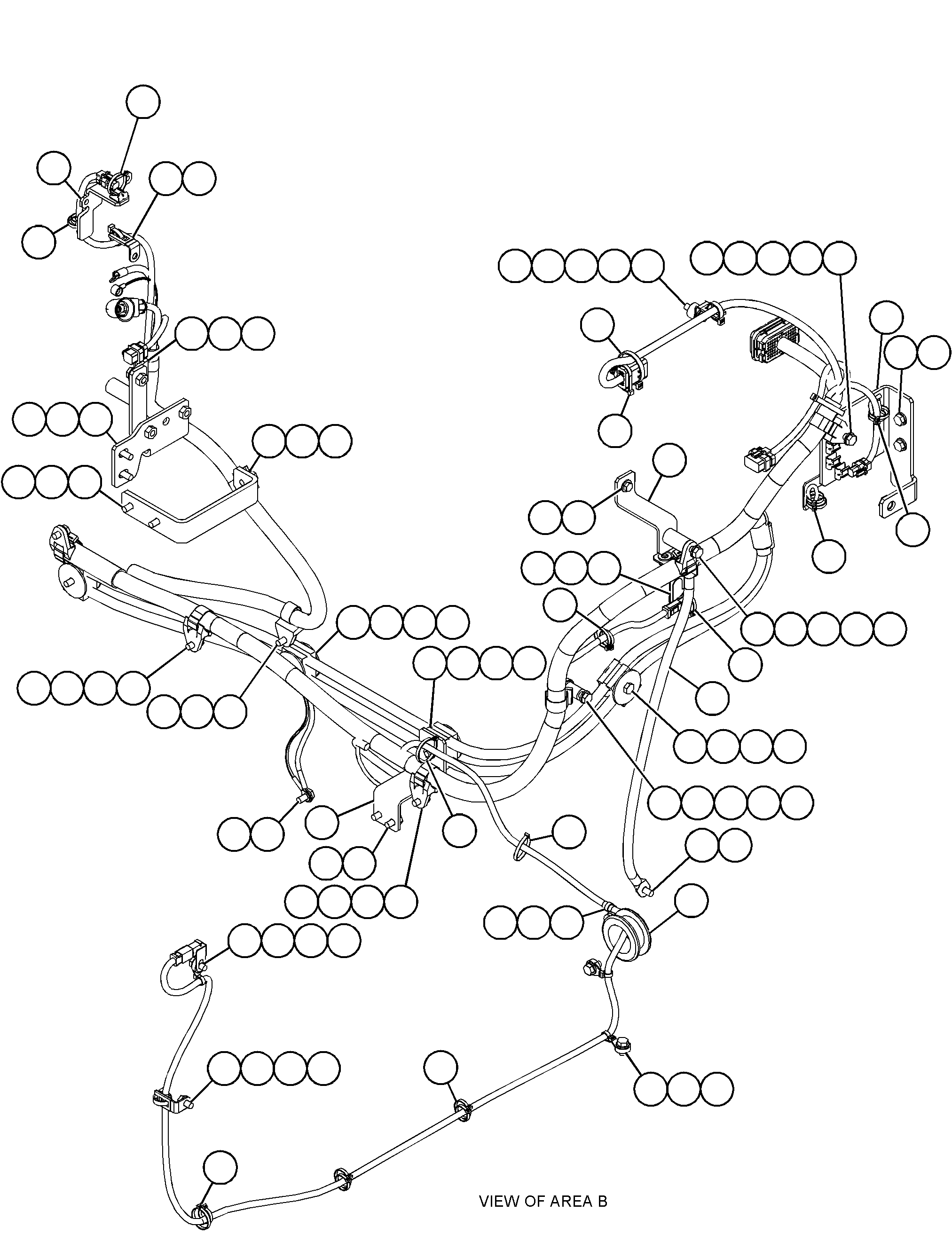

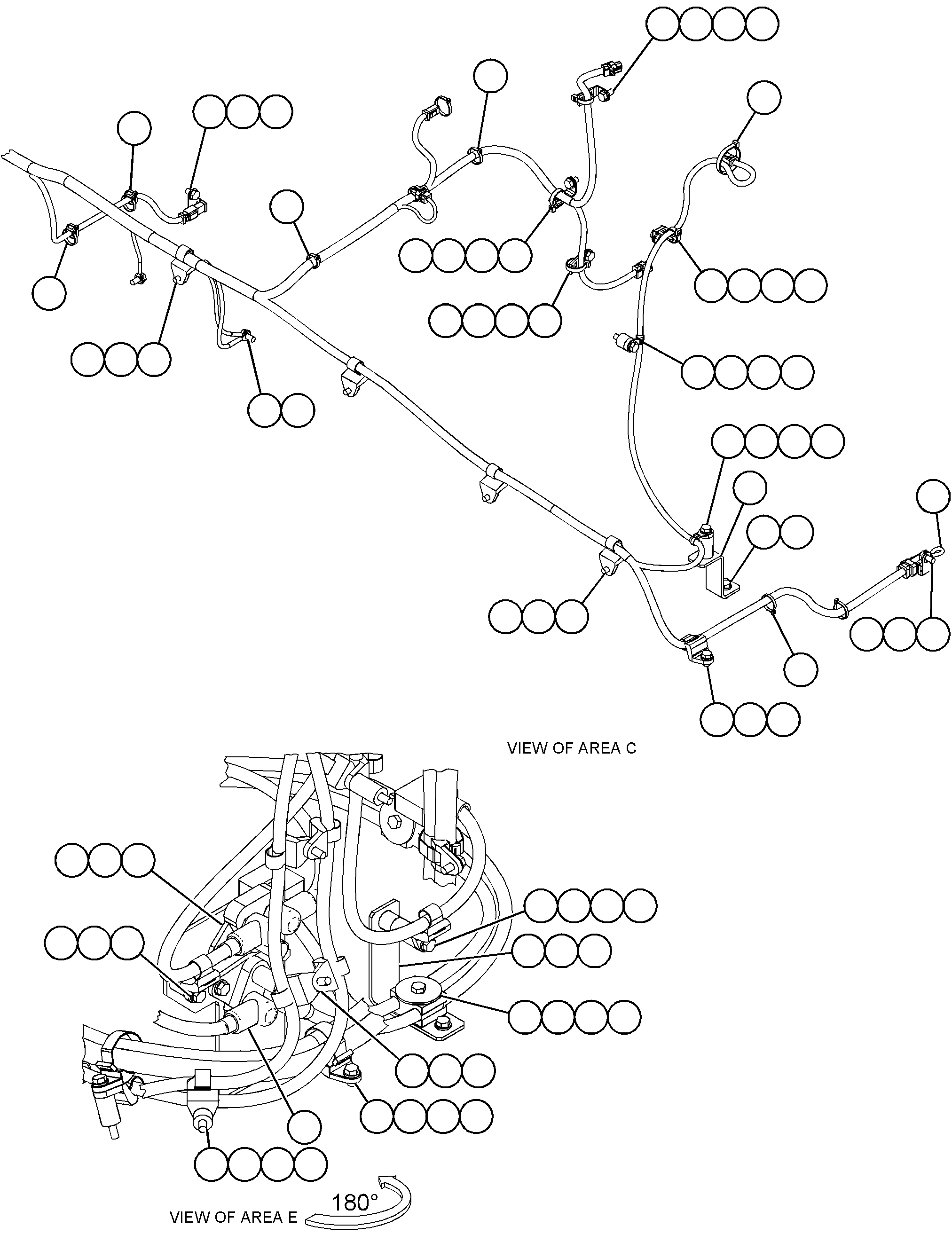

Part NumberPart NameQty
3E83201 PLATE-INSTRUCTION (BATTERY)1
3S20932 STRAP-CABLE57
4I78893 SPACER (11X25X45-MM THK)4
6G22564 CLAMP8
7K11815 STRAP-CABLE18
7N07196 SWITCH GP-DISCONNECT (BATTERY)(PURGE PUMP)1
10871187 GROMMET1
11148368 CLIP12
11148379 CLIP36
111483910 STRAP16
116011811 CLIP3
128888612 STRAP AS-GROUND1
132180613 STRAP AS-GROUND1
148495814 GROMMET1
223706415 SPACER (13.5X25X16-MM THK)1
286619216 SPACER (11X40X25-MM THK)1
319095617 HARNESS AS-SOLENOID (AIR CONDITIONER COMPRESSOR)1
328013218 CABLE AS2
8C5918TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
8T9756TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)
1M6120NUT (5/16-18-THD)1
9G0002COVER AS-TERMINAL (RED)1
9G0005COVER AS-TERMINAL (BLACK)1
8L8413STRAP-CABLE (WHITE)1
1598049CABLE (00-GA, RED)(31-CM)1
336590019 BRACKET-ENGINE1
342331820 HARNESS AS-SENSOR (AIR INLET)1
350805721 BRACKET AS2
350838222 CABLE AS-BATTERY1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
9G0004COVER AS-TERMINAL (RED)1
8L8413STRAP-CABLE (WHITE)1
8C5917TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1598049CABLE (00-GA, RED)(44-CM)
3010091COVER-TERMINAL (RED)1
350838323 CABLE AS1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
9G0005COVER AS-TERMINAL (BLACK)1
8L8413STRAP-CABLE (WHITE)1
9G8909COVER-TERMINAL (BLACK)1
8C5918TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1598050CABLE (00-GA, BLACK)(141-CM)
350838424 CABLE AS-BATTERY1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
9G0005COVER AS-TERMINAL (BLACK)1
8L8413STRAP-CABLE (WHITE)1
9G8909COVER-TERMINAL (BLACK)1
8C5918TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1598050CABLE (00-GA, BLACK)(52-CM)
350838525 CABLE AS-BATTERY1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
6V2722TUBE-HEAT SHRINK (25.4-MM DIA)(10-M)
9G8909COVER-TERMINAL (BLACK)1
1598050CABLE (00-GA, BLACK)(143-CM)
350838826 SPACER (11X25X65-MM THK)1
350840727 BRACKET AS-ENGINE1
364024928 BRACKET AS1
364025229 BRACKET AS-COMPRESSOR1
369006330 BRACKET AS1
377812731 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
9G0002COVER AS-TERMINAL (RED)1
8L8413STRAP-CABLE (WHITE)1
8T9756TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1598049CABLE (00-GA, RED)(99-CM)
3010091COVER-TERMINAL (RED)1
388675332 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
8N0869COVER-TERMINAL (RED)1
1598049CABLE (00-GA, RED)(379-CM)
3010091COVER-TERMINAL (RED)1
397823933 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
6V2722TUBE-HEAT SHRINK (25.4-MM DIA)(10-M)
1598049CABLE (00-GA, RED)(369-CM)
397824034 BRACKET AS1
419391135 LAMP GP-INDICATOR (12/24-VOLT, AMBER)(DISCONNECT SWITCH)1
432741536 BRACKET AS1
447831037 BRACKET AS1
456946338 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
6V2722TUBE-HEAT SHRINK (25.4-MM DIA)(10-M)
1598049CABLE (00-GA, RED)(83-CM)
3010091COVER-TERMINAL (RED)1
456946439 BRACKET AS1
475116440 HARNESS AS-CHASSIS1
1028802KIT-RECEPTACLE (2-PIN)2
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)51
3S2093STRAP-CABLE18
3T4688TERMINAL-RING (4-GA, 7/16-IN SCREW)1
7T0094SOCKET-CONNECTOR (12-GA TO 14-GA)4
9X0196TERMINAL AS (16-GA)2
8T8737PLUG-SEAL132
8T8799BOOT (RED)3
8T8827BOOT (RED)1
1108769WIRE AS (16-GA, BLACK)1
1032529HOSE (80-CM)
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)32
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(33-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(70-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(25-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)101
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)101
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)1
2L8052TERMINAL-RING (6-GA, 3/8-IN SCREW)1
2L8060TERMINAL-RING (8-GA, 3/8-IN SCREW)1
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)1
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)5
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)2
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)4
9X3401PIN-CONNECTOR (16-GA TO 18-GA)4
1261767PIN-CONNECTOR (14-GA TO 16-GA)4
1779656KIT-CONNECTING PLUG (4-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)7
1607689PLUG AS-CONNECTOR (70-PIN)1
1599322SEAL-O-RING1
2304009PLUG AS-CONNECTOR (12-PIN)2
4550709SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)9
4550704SEAL-CONNECTOR1
2304013PLUG AS-CONNECTOR (3-PIN)2
4550705SEAL-CONNECTOR1
2305010PLUG AS-CONNECTOR (6-PIN)3
4550707SEAL-CONNECTOR1
2312295PLUG AS-CONNECTOR (8-PIN)1
4550708SEAL-CONNECTOR1
2397352PLUG AS-CONNECTOR (6-PIN)1
4550707SEAL-CONNECTOR1
2418834PLUG AS-CONNECTOR (12-PIN)1
4550709SEAL-CONNECTOR1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)1
2434510RECEPTACLE AS-CONNECTOR (12-PIN)1
2645732PLUG AS-CONNECTOR (120-PIN)1
2887324SEAL-CONNECTOR1
2818801PLUG AS-CONNECTOR (2-PIN)1
4550704SEAL-CONNECTOR1
2818803PLUG AS-CONNECTOR (3-PIN)1
4550705SEAL-CONNECTOR1
2818804PLUG AS-CONNECTOR (3-PIN)1
4550705SEAL-CONNECTOR1
3245824PLUG AS-CONNECTOR (1-PIN)1
3245825SOCKET-CONNECTOR (4-GA)1
3422972CAP-CONNECTOR (2-PIN)2
3422973CAP-CONNECTOR (3-PIN)1
4353145TERMINAL AS-RING3
1257876TUBE-HEAT SHRINK (17.78-MM DIA)(3-CM)
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)3
091903541 SPACER (11X25X20-MM THK)1
111483842 CLIP16
124581443 BLOCK GP-JUNCTION (BATTERY)2
128867844 SPACER (10.5X25X15-MM THK)1
132578945 CLIP (LADDER)7
148501846 GROMMET1
204167347 STRAP-CABLE2
206134648 STRAP-CABLE1
267882849 GROMMET1
2G876750 WASHER (10.5X60X3-MM THK)14
352397051 CLIP (LADDER)2
4I510652 GROMMET1
4P758153 CLIP (LADDER)5
5P411654 WASHER-HARD (8.8X20.5X2-MM THK)2
6G226355 SPACER (10.5X19X28.5-MM THK)10
8T412156 WASHER-HARD (11X21X2.5-MM THK)104
8T413357 NUT (M10X1.5-THD)1
8T413658 BOLT (M10X1.5X25-MM)21
8T413759 BOLT (M10X1.5X20-MM)59
8T417260 BOLT (M10X1.5X80-MM)3
8T417861 BOLT (M10X1.5X90-MM)1
8T418262 BOLT (M10X1.5X45-MM)1
8T418563 BOLT (M10X1.5X50-MM)8
8T418664 BOLT (M10X1.5X40-MM)1
8T418965 BOLT (M8X1.25X20-MM)1
8T419166 BOLT (M10X1.5X16-MM)8
8T419567 BOLT (M10X1.5X30-MM)1
8T419668 BOLT (M10X1.5X35-MM)3
8T419969 BOLT (M8X1.25X12-MM)1
8T500570 BOLT (M10X1.5X70-MM)4
