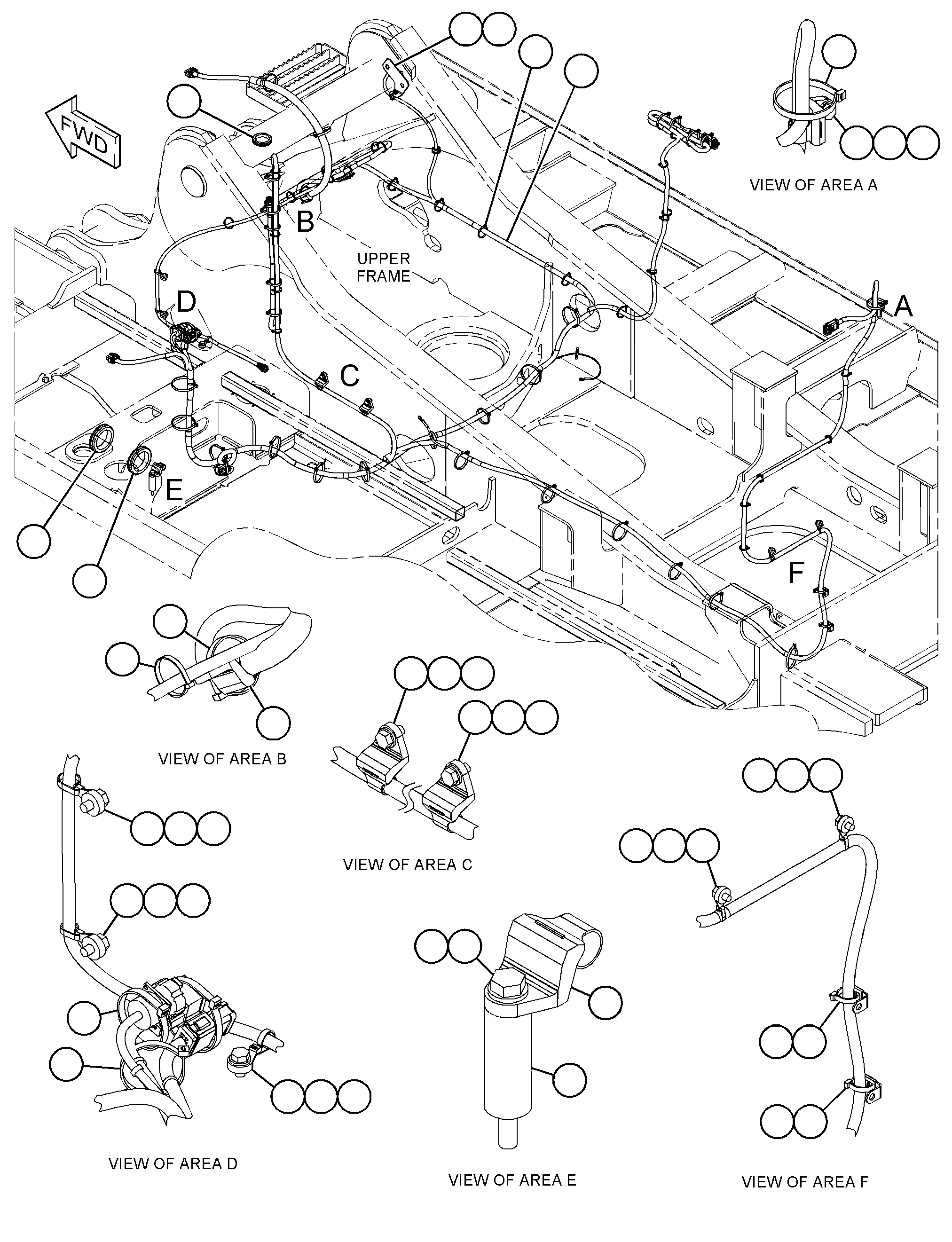

499-2163 WIRING GP-CHASSIS -GRADE CONTROLS/N YEG10001-UP; A9J10001-UP
Group No: 499-2163 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 30 | |
| 7K1181 | 2 STRAP-CABLE | 35 | |
| 1114836 | 3 CLIP | 5 | |
| 1114837 | 4 CLIP | 5 | |
| 3508388 | 5 SPACER (11X25X65-MM THK) | 1 | |
| 4451395 | 6 BRACKET AS | 1 | |
| 5039065 | 7 HARNESS AS-CHASSIS | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 1 | |
| 3S2093 | STRAP-CABLE | 5 | |
| 8C6354 | CAP-RECEPTACLE (ET CONNECTOR) | 1 | |
| 8T8737 | PLUG-SEAL | 91 | |
| 9W1951 | RECEPTACLE AS-CONNECTOR (9-PIN) | 1 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM) | ||
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(140-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) | ||
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 40 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 40 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 2L8079 | TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW) | 1 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 42 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 42 | |
| 1552256 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 2370166 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1907614 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 3704059 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 2304009 | PLUG AS-CONNECTOR (12-PIN) | 5 | |
| 4550709 | SEAL-CONNECTOR | 1 | |
| 2434505 | RECEPTACLE AS-CONNECTOR (2-PIN) | 3 | |
| 2434510 | RECEPTACLE AS-CONNECTOR (12-PIN) | 4 | |
| 2532695 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 2628088 | HOSE (80-CM) | ||
| 3245678 | RESISTOR AS (120-OHM) | 2 | |
| 2647029 | SEAL-CONNECTOR | 1 | |
| 1325789 | 8 CLIP (LADDER) | 2 | |
| 2S1647 | 9 GROMMET | 1 | |
| 3371205 | 10 GROMMET | 1 | |
| 4I3953 | 11 GROMMET | 1 | |
| 8T4121 | 12 WASHER-HARD (11X21X2.5-MM THK) | 9 | |
| 8T4137 | 13 BOLT (M10X1.5X20-MM) | 8 | |
| 8T4198 | 14 BOLT (M10X1.5X100-MM) | 1 |
