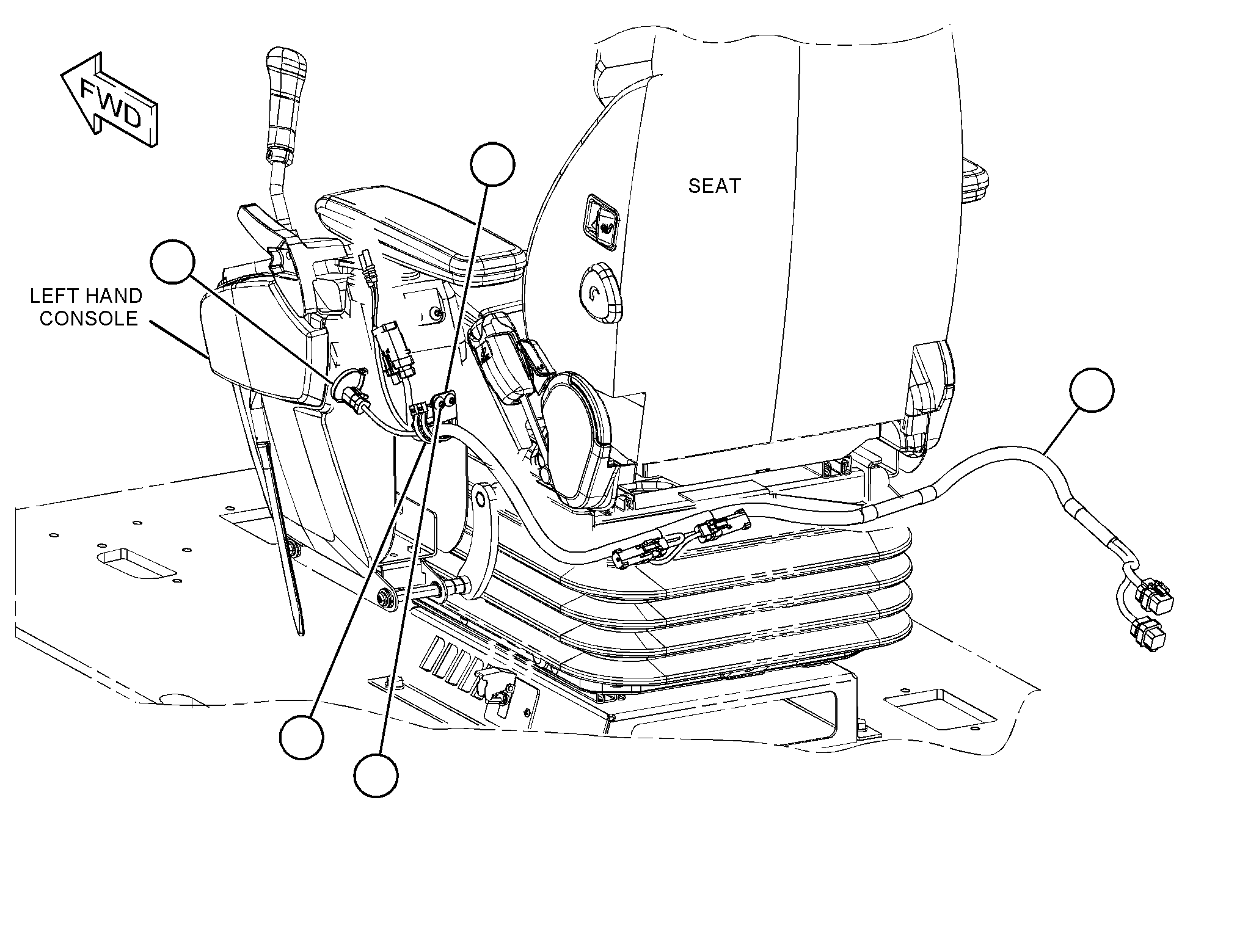

479-7816 WIRING GP-CONSOLE -LHS/N NDC10001-UP; YEG10001-UP; A9J10001-UP

Group No: 479-7816 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE1
7K11812 STRAP-CABLE2
32457323 BRACKET1
47978214 HARNESS AS-CONSOLE (LH)1
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)10
3S2093STRAP-CABLE6
7Y3967TERMINAL AS2
7Y3963TERMINAL-BULLET (FEMALE)1
7Y3965TUBE1
8T8737PLUG-SEAL1
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)4
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)12
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)12
1552260KIT-CONNECTING PLUG (3-PIN)1
2388245PLUG AS-CONNECTOR (2-PIN)1
2304011PLUG AS-CONNECTOR (2-PIN)1
4550704SEAL-CONNECTOR1
2305010PLUG AS-CONNECTOR (6-PIN)1
4550707SEAL-CONNECTOR1
2397352PLUG AS-CONNECTOR (6-PIN)1
2312295PLUG AS-CONNECTOR (8-PIN)1
4550708SEAL-CONNECTOR1
3422972CAP-CONNECTOR (2-PIN)2
3422974CAP-CONNECTOR (6-PIN)1
9X20425 SCREW-TRUSS HEAD (M6X1X12-MM)2
