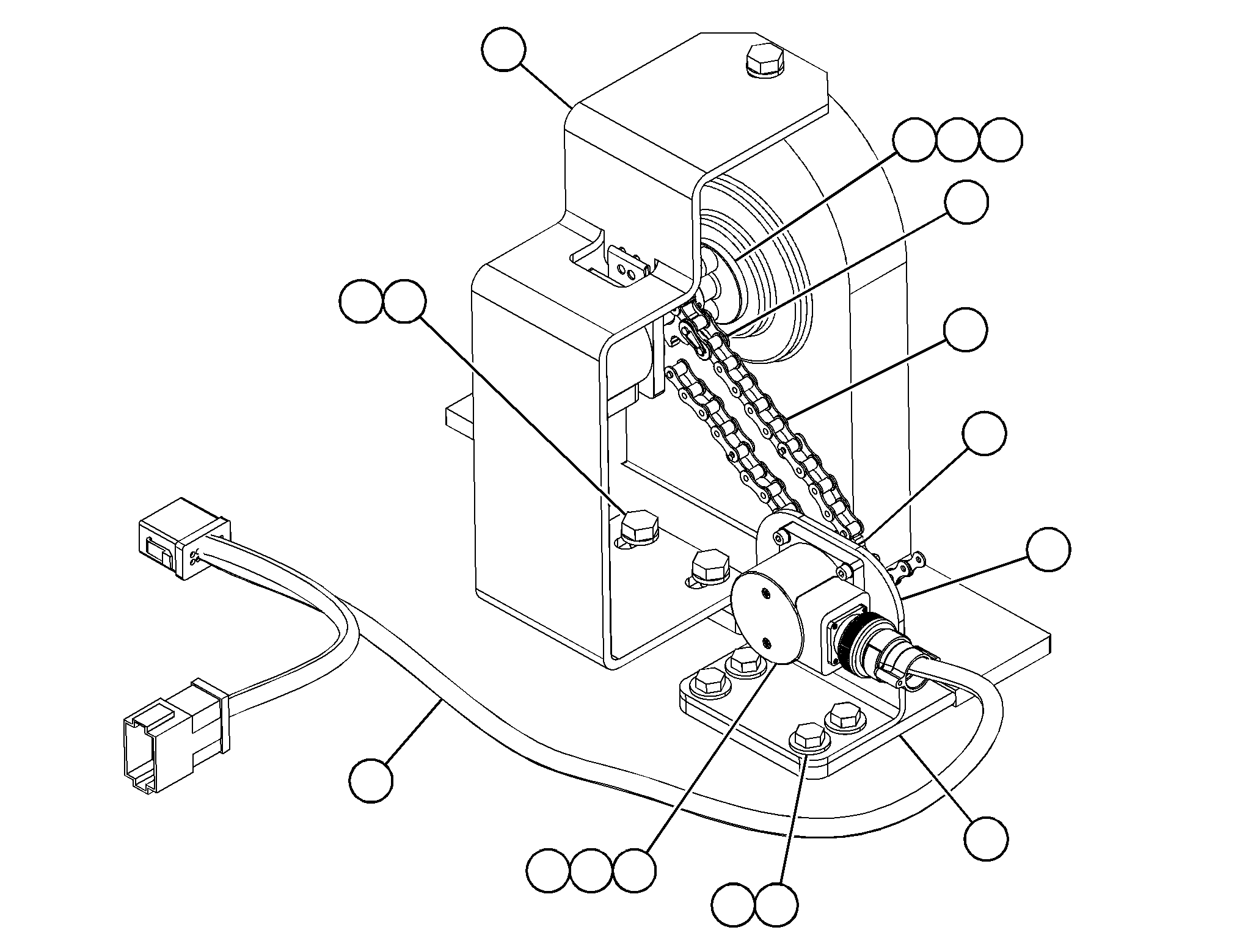

485-2739 MOUNTING GP-SENSOR -DRILL HEAD ENCODERPART OF 485-2738, 485-2761 MONITOR AR-DRILL
Group No: 485-2739
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3520481 | 1 ENCODER | 1 | |
| 3520500 | 2 LINK-CHAIN | 1 | |
| 4157007 | 3 HARNESS AS-WIRING (BREAKOUT, ENCODER) | 1 | |
| 4852744 | 4 PLATE AS | 1 | |
| 4852745 | 5 BRACKET | 1 | |
| 4852746 | 6 SPROCKET AS (SHAFT) | 1 | |
| 4852747 | 7 SHAFT | 1 | |
| 4852748 | 8 SPROCKET AS (DISK) | 1 | |
| 4852749 | 9 SUPPORT | 1 | |
| 1219940 | 10 WASHER (4X8X0.5-MM THK) | 4 | |
| 3520498 | 11 CHAIN | 1 | |
| 5A3604 | 12 BOLT-SOCKET HEAD (M8X1.25X25-MM) | 2 | |
| 5P4116 | 13 WASHER-HARD (8.8X20.5X2-MM THK) | 4 | |
| 6V5217 | 14 BOLT (M8X1.25X20-MM) | 4 | |
| 6V6317 | 15 BOLT (M10X1.5X20-MM) | 3 | |
| 8T3998 | 16 BOLT (M4X0.7X12-MM) | 4 | |
| 8T4896 | 17 WASHER-HARD (10.2X18.5X2.5-MM THK) | 3 |
