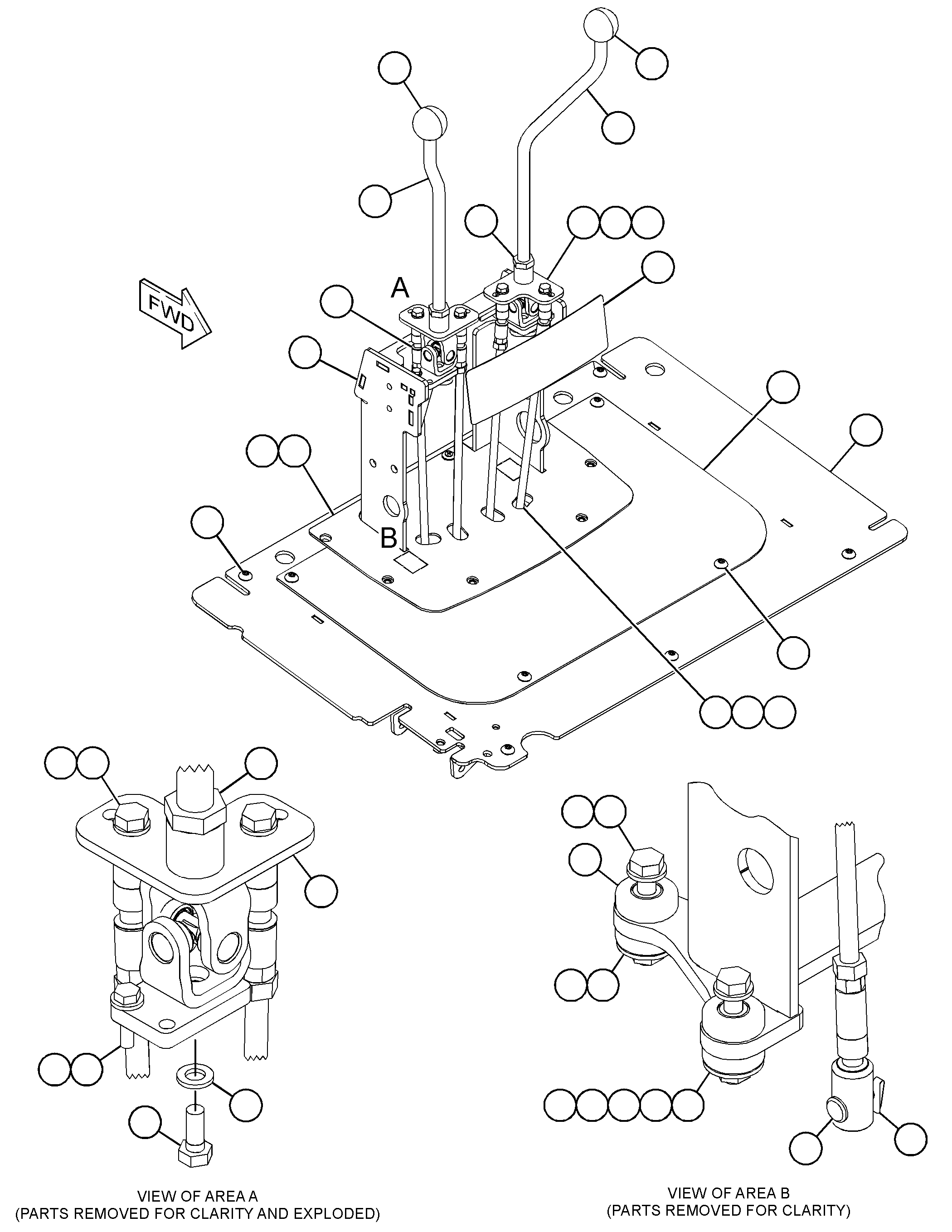

398-3601 CONTROL GP-HYDRAULIC HANDS/N HWA1-UP

Group No: 398-3601
Part NumberPart NameQty
16413991 KNOB2
38564952 BRACKET AS1
1599539NUT-WELD (M6X1-THD)2
38565053 BRACKET AS2
39836004 LEVER2
39954015 PLATE AS1
1599540NUT-WELD (M8X1.25-THD)10
39954026 PLATE AS1
41793567 TIE ROD GP4
8T4133NUT (M10X1.5-THD)2
3039307ROD1
5371973BALL JOINT1
4357651BALL JOINT1
42590778 SEAL1
43099289 FILM-INSTRUCTION (BACKHOE)1
437358010 MOUNT4
439349511 PIN4
454009712 CLIP2
127217013 SCREW-TRUSS HEAD (M8X1.25X20-MM)9
189535814 BOLT (M10X1.5X60-MM)4
3E800015 NUT-JAM (M16X1.5-THD)2
6V735716 BOLT (M6X1X25-MM)2
8T412117 WASHER-HARD (11X21X2.5-MM THK)4
8T413318 NUT (M10X1.5-THD)4
8T418919 BOLT (M8X1.25X20-MM)6
8T420520 WASHER-HARD (7.2X14.5X2-MM THK)2
8T422221 WASHER-PLATED (11X32X2.5-MM THK)4
8T422422 WASHER-HARD (8.8X16X2-MM THK)6
9R280723 CLIP (RETAINER)4
