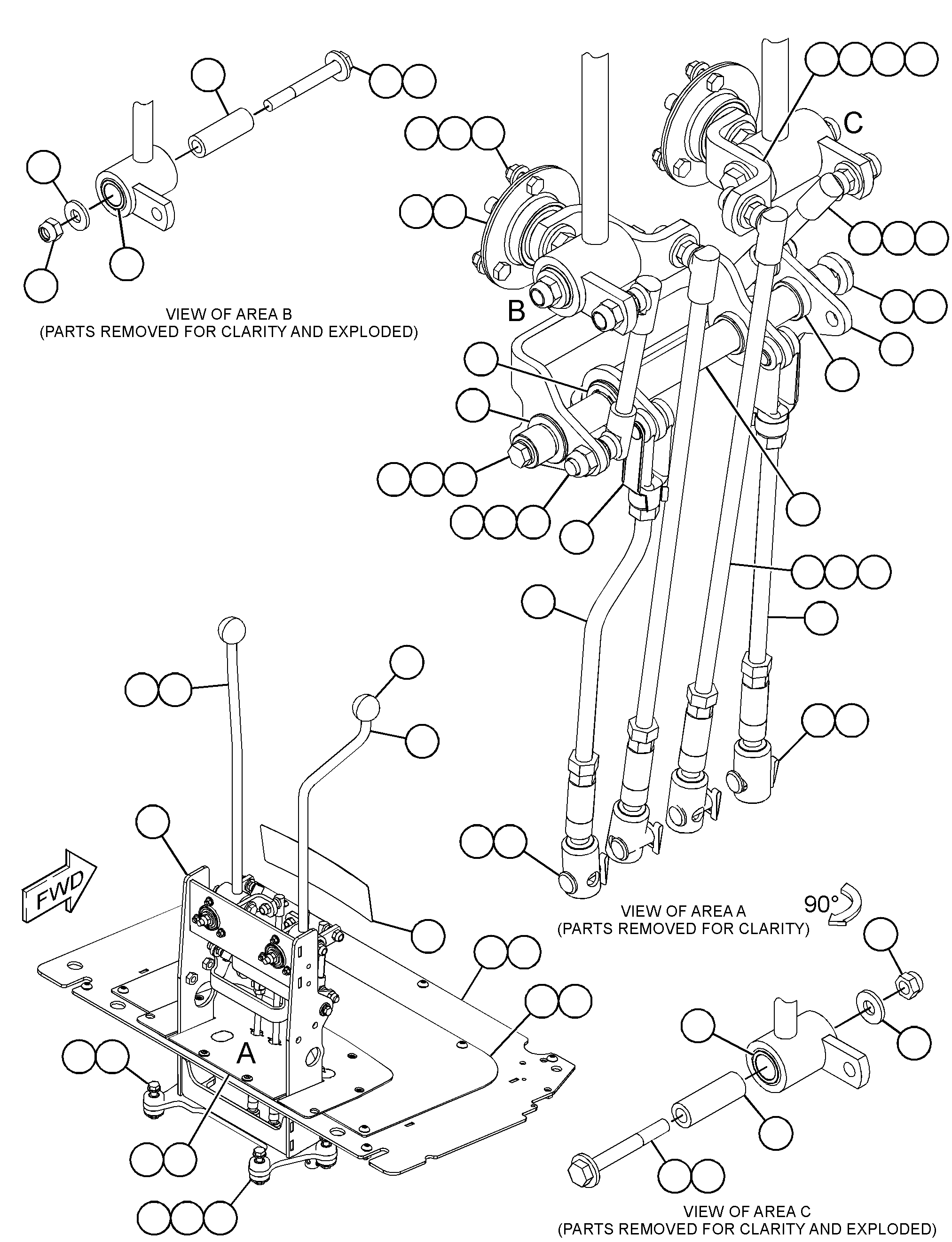

389-1296 CONTROL GP-HYDRAULIC HAND -EXCAVATORS/N HWN1-UP

Group No: 389-1296
Part NumberPart NameQty
8T53811 PIN AS-SPRING2
16413992 KNOB2
16414353 PLATE2
17063124 BEARING4
39075155 TOWER AS1
1599541NUT-WELD (M10X1.5-THD)2
39112936 SHAFT1
39154227 LEVER AS (LH)1
16414367A BEARING1
39154238 LEVER AS (RH)1
16414368A BEARING1
39880749 ROD AS1
399540110 PLATE AS1
1599539NUT-WELD (M6X1-THD)3
1599540NUT-WELD (M8X1.25-THD)9
399540211 PLATE AS1
1599539NUT-WELD (M6X1-THD)4
418851512 ROD AS1
8T4133NUT (M10X1.5-THD)2
8T5063ROD END1
4357651BALL JOINT1
4468059ROD1
418851713 ROD AS2
8T4133NUT (M10X1.5-THD)1
3912709ROD AS1
4357651BALL JOINT1
426031314 SEAL1
430992715 FILM-IDENTIFICATION (EXCAVATOR CONTROL)1
437358016 MOUNT4
439349217 ROD AS1
8T4133NUT (M10X1.5-THD)2
8T5063ROD END1
4357651BALL JOINT1
4393493ROD1
439349518 PIN4
439349619 BRACKET AS2
385651119A BUSHING2
439493220 ROD AS1
440361421 BOSS1
454009722 CLIP2
127217023 SCREW-TRUSS HEAD (M8X1.25X20-MM)9
164140224 SLEEVE2
164140425 SPACER (10.67X16.95X23-MM THK)2
5C289026 NUT (M6X1-THD)6
6V396427 WASHER-HARD (8.8X25.5X5-MM THK)1
6V982428 RING-RETAINING3
7X253729 BOLT (M8X1.25X35-MM)1
7X772930 WASHER (11X25X3-MM THK)10
8T038931 LOCKNUT (M10X1.5-THD)10
8T412132 WASHER-HARD (11X21X2.5-MM THK)10
8T413833 BOLT (M6X1X20-MM)6
8T417234 BOLT (M10X1.5X80-MM)2
8T420535 WASHER-HARD (7.2X14.5X2-MM THK)6
8T422236 WASHER-PLATED (11X32X2.5-MM THK)4
8T422437 WASHER-HARD (8.8X16X2-MM THK)1
8T490838 BOLT (M8X1.25X25-MM)1
189535839 BOLT (M10X1.5X60-MM)4
8T646640 BOLT (M10X1.5X60-MM)2
9R280741 CLIP (RETAINER)4
8T413342 NUT (M10X1.5-THD)4
