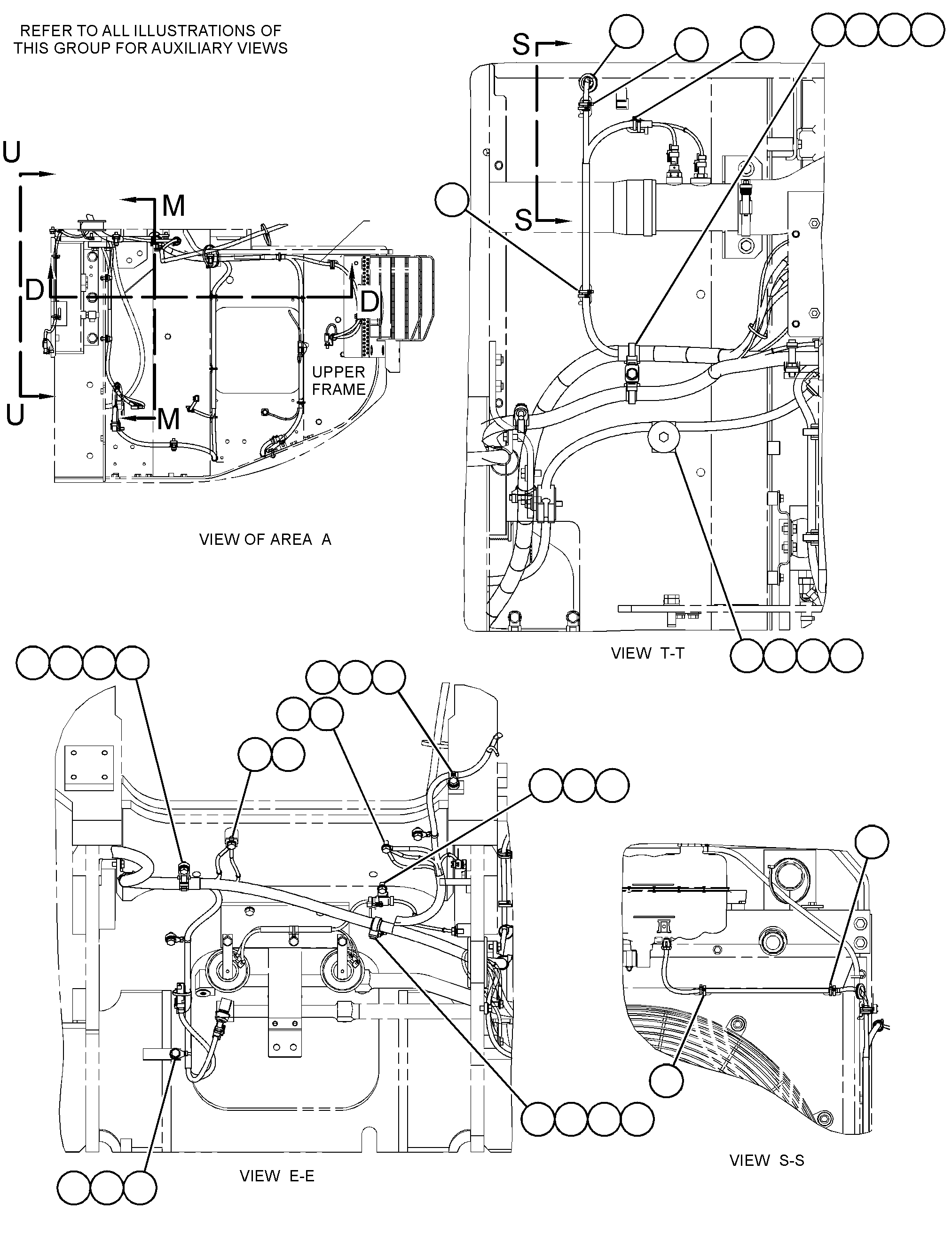

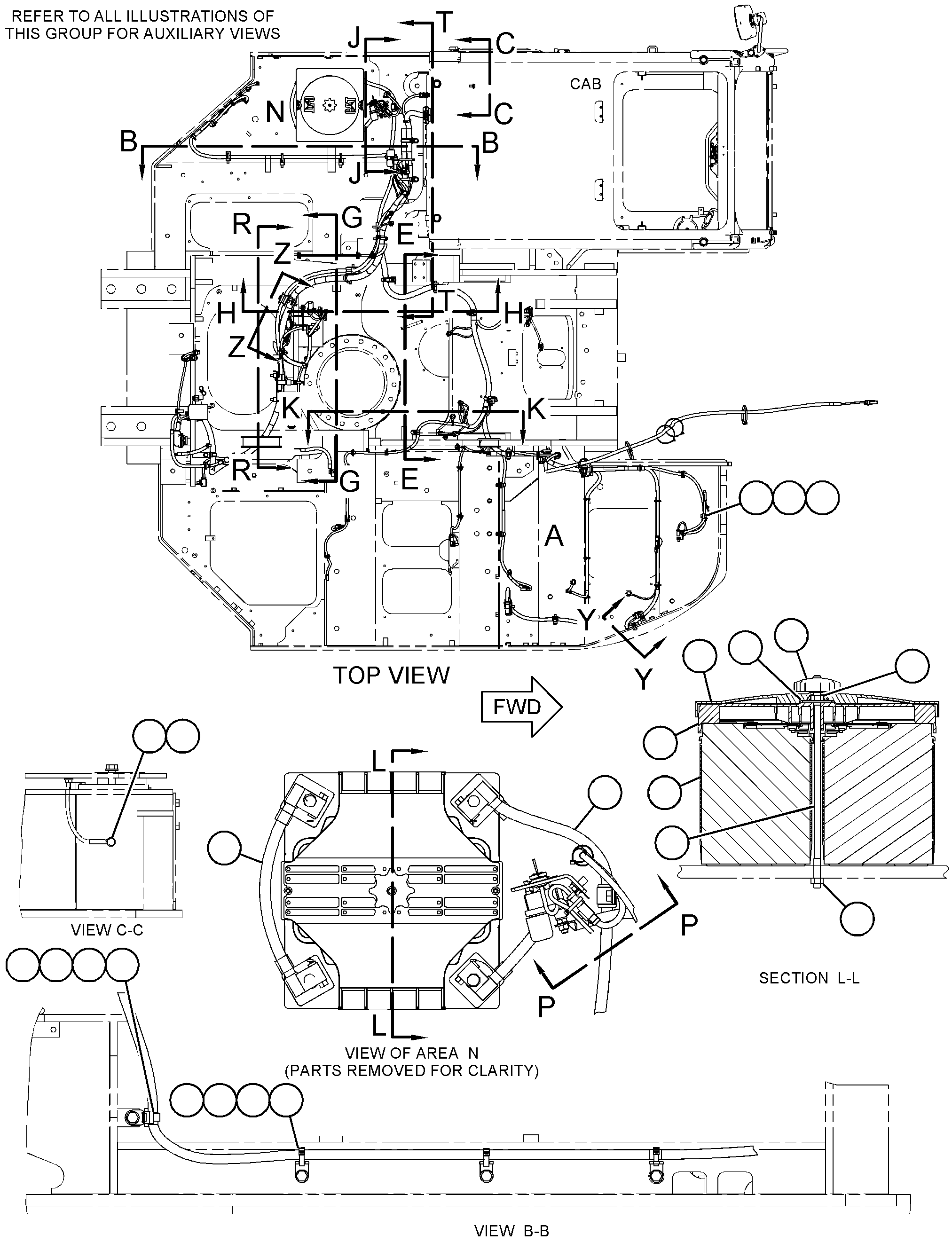

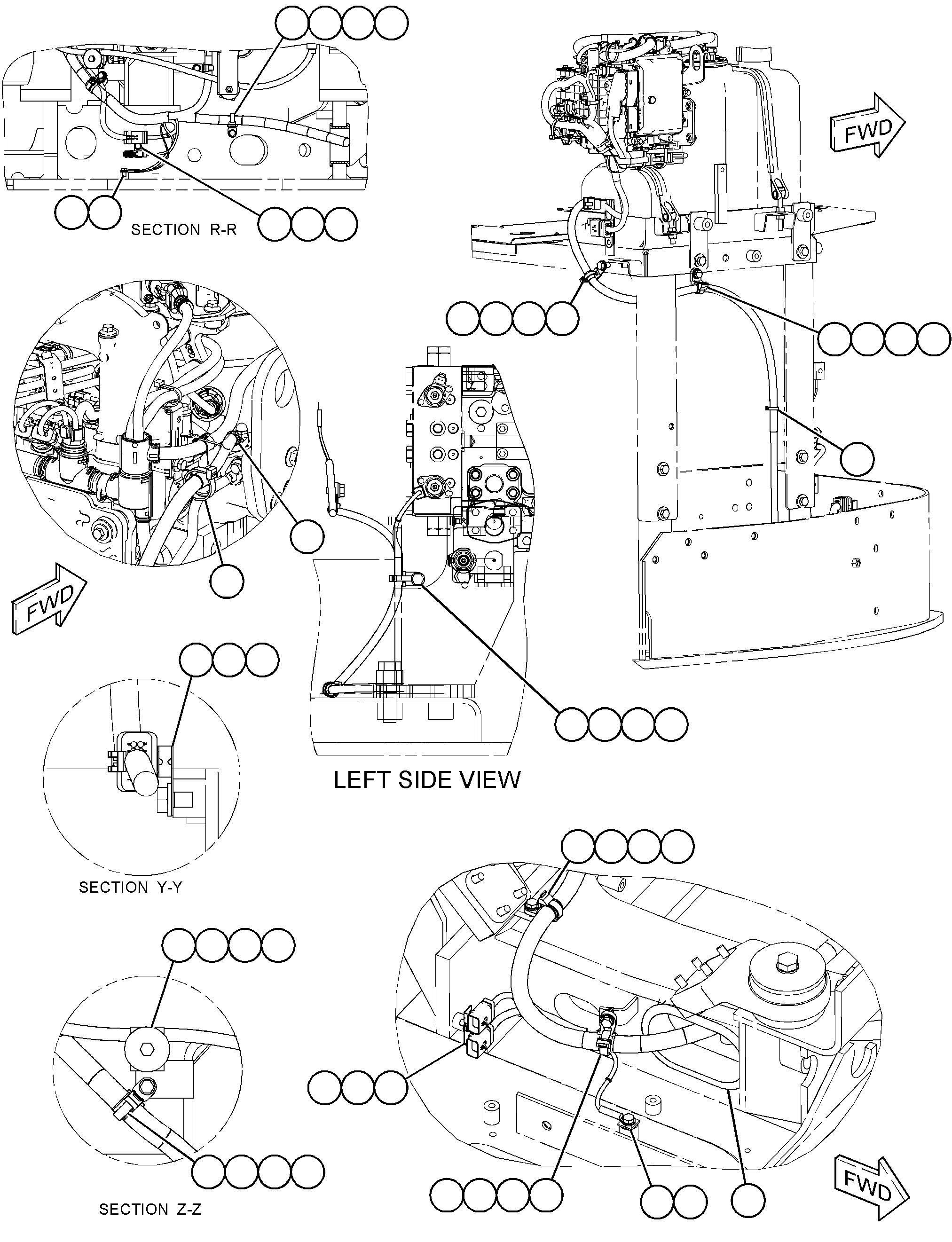

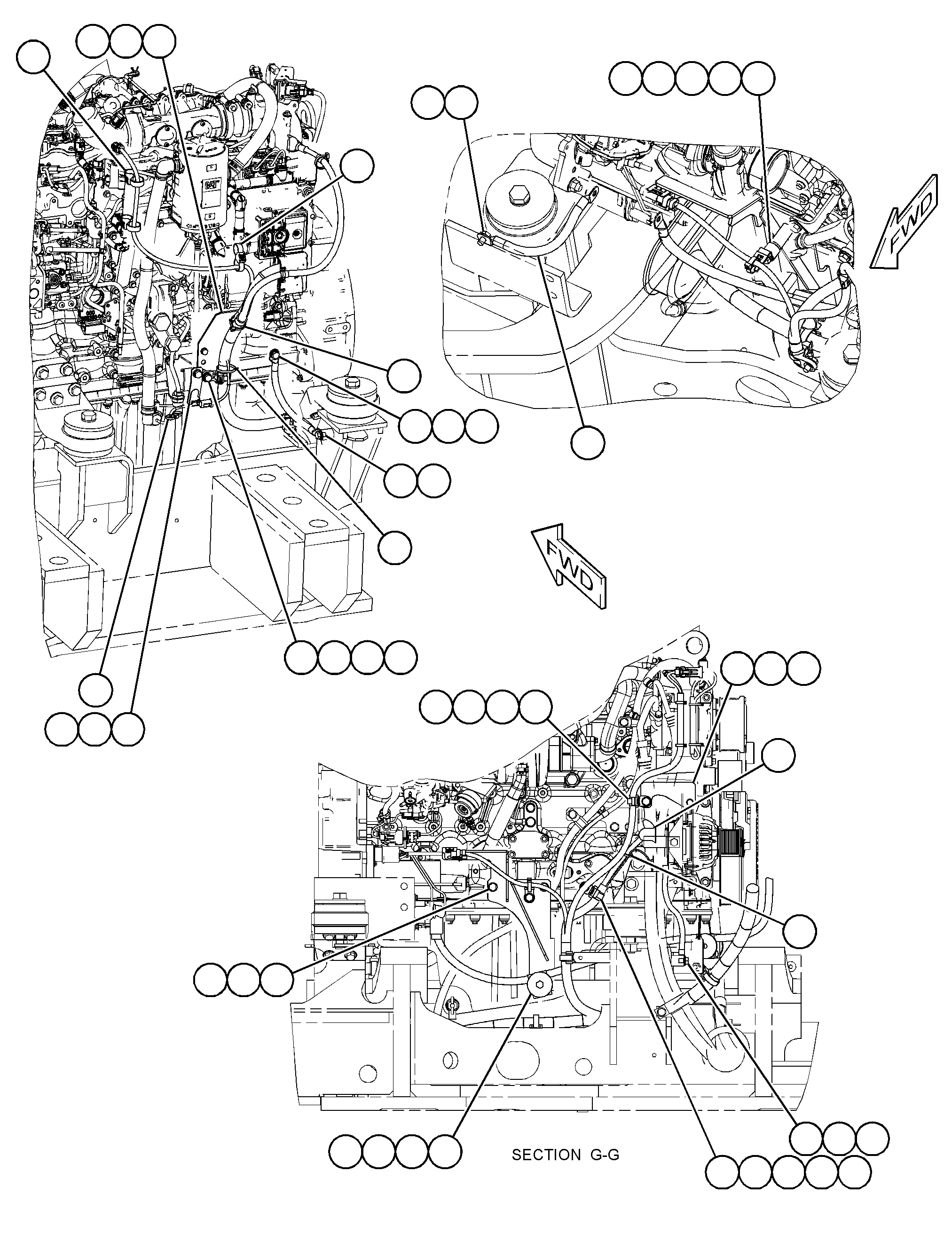

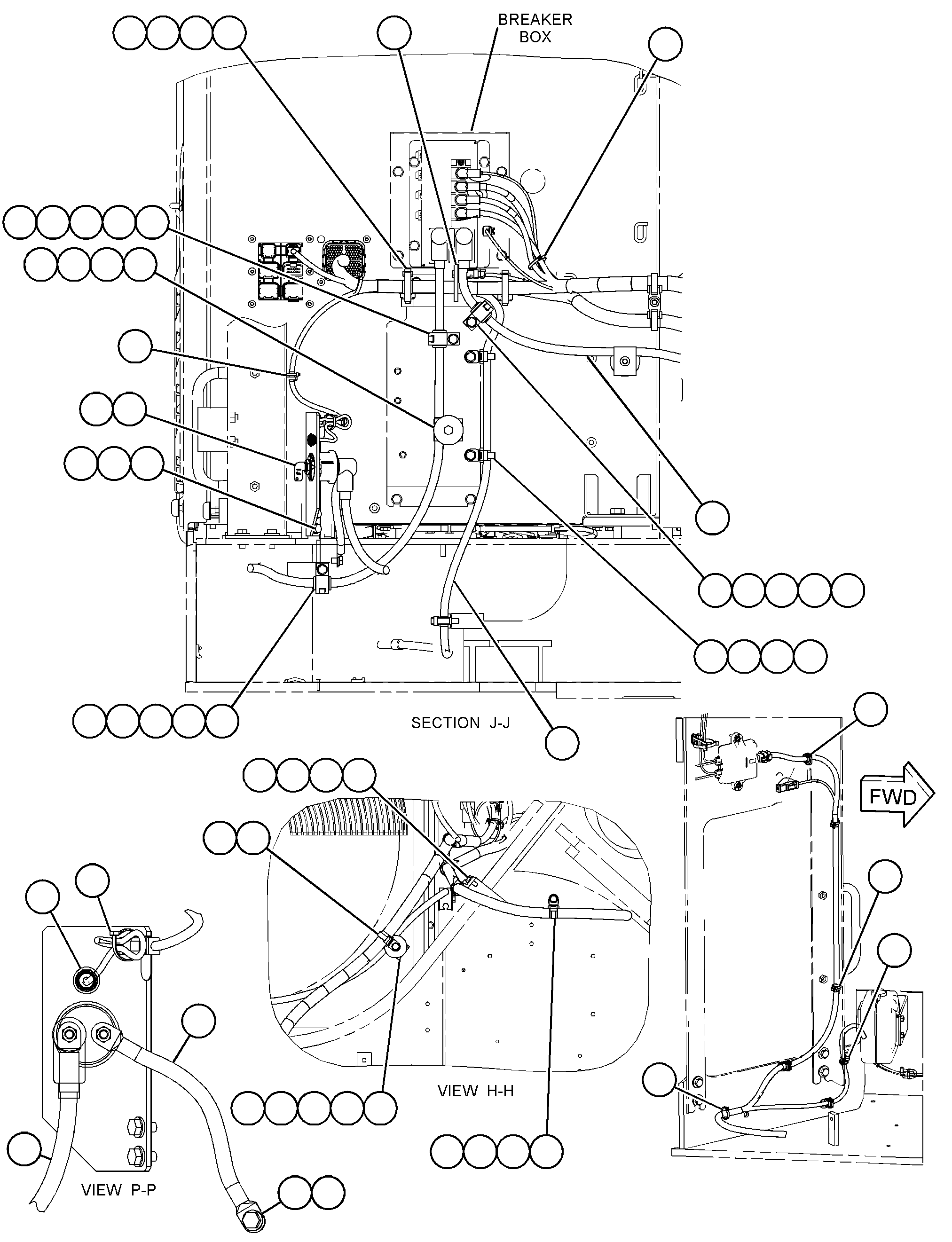

399-7507 BATTERY & WIRING GPS/N KNE1-UP

Group No: 399-7507 · Commonality
Part NumberPart NameQty
3E83201 PLATE-INSTRUCTION (BATTERY)1
3S20932 STRAP-CABLE71
5I82703 COVER-BATTERY1
6G22564 CLAMP5
7K11815 STRAP-CABLE15
7N07196 SWITCH GP-DISCONNECT (BATTERY)(BATTERY)1
11148367 CLIP6
11601188 CLIP8
12959479 GROMMET1
132180510 STRAP AS-GROUND1
191034811 GROMMET1
238250112 KNOB1
263957413 BATTERY AS (12-VOLT, MAINTENANCE FREE)2
1231373CAP AS-FILLER (7/8-9-THD)6
267805514 ROD1
328013215 CABLE AS (JUMPER)1
9G0002COVER AS-TERMINAL (RED)1
8L8413STRAP-CABLE (WHITE)1
9G0005COVER AS-TERMINAL (BLACK)1
8L8413STRAP-CABLE (WHITE)1
8C5918TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
8T9756TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1598049CABLE (00-GA, RED)(31-CM)
328018116 STRAP AS-GROUND2
396798917 BRACKET AS-ALTERNATOR1
415368718 STRAP AS-GROUND1
0301712TERMINAL-RING (2-GA, 1/4-IN SCREW)1
3116184TERMINAL-RING (2-GA, 3/8-IN SCREW)1
416937119 CABLE AS (BREAKER)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
9G0002COVER AS-TERMINAL (RED)(BATTERY)1
8L8413STRAP-CABLE (WHITE)1
8T9756TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1598049CABLE (00-GA, RED)(110-CM)
3010091COVER-TERMINAL (RED)(CIRCUIT BREAKER BOX)1
416937320 CABLE AS (DISCONNECT)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
6V2722TUBE-HEAT SHRINK (25.4-MM DIA)(1-CM)
9G0005COVER AS-TERMINAL (BLACK)(BATTERY NEGATIVE)1
8L8413STRAP-CABLE (WHITE)1
9G8909COVER-TERMINAL (BLACK)(DISCONNECT SWITCH)1
8C5918TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1598050CABLE (00-GA, BLACK)(29-CM)
417128321 BRACKET AS1
417128522 BRACKET AS1
419391123 LAMP GP-INDICATOR (12/24-VOLT, AMBER)1
425785124 BRACKET AS1
434809225 CABLE AS (STARTER)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)2
8N0869COVER-TERMINAL (RED)(STARTING MOTOR)1
1598049CABLE (00-GA, RED)(204-CM)
3010091COVER-TERMINAL (RED)(CIRCUIT BREAKER BOX)1
450933626 BRACKET AS1
459877327 HARNESS AS-CHASSIS1
1028802KIT-RECEPTACLE (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)4
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)51
6T5598TERMINAL-RING (1-GA TO 2-GA, 5/16-IN SCREW)1
9X0196TERMINAL AS (16-GA)1
8C3056CABLE (2-GA, RED)(248-CM)
8T8737PLUG-SEAL90
8T8799BOOT (RED)4
8T8827BOOT (RED)1
1006674SEAL-CONNECTOR2
1032529HOSE (252-CM)
9W0852PIN-CONNECTOR (14-GA TO 16-GA)4
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)11
1151184TERMINAL-RING (2-GA, 1/4-IN SCREW)1
1166158PLUG AS-CONNECTOR (2-PIN)1
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM)
1245640TERMINAL-SOCKET2
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(105-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(30-CM)
1257876TUBE-HEAT SHRINK (17.78-MM DIA)(8-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)57
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)57
2L8052TERMINAL-RING (6-GA, 3/8-IN SCREW)2
2L8060TERMINAL-RING (8-GA, 3/8-IN SCREW)2
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)1
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)6
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)2
2L8076TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW)1
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)3
9X3401PIN-CONNECTOR (16-GA TO 18-GA)27
1261767PIN-CONNECTOR (14-GA TO 16-GA)27
1552270KIT-CONNECTING PLUG (2-PIN)11
1690705PLUG-SEAL41
1779656KIT-CONNECTING PLUG (4-PIN)1
2304009PLUG AS-CONNECTOR (12-PIN)1
4550709SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)9
4550704SEAL-CONNECTOR1
2304013PLUG AS-CONNECTOR (3-PIN)3
4550705SEAL-CONNECTOR1
2397352PLUG AS-CONNECTOR (6-PIN)1
4550707SEAL-CONNECTOR1
3245678RESISTOR AS (120-OHM)1
2647029SEAL-CONNECTOR1
3245824PLUG AS-CONNECTOR (1-PIN)1
3245825SOCKET-CONNECTOR (4-GA)1
3280072BOOT1
3422972CAP-CONNECTOR (2-PIN)1
3422973CAP-CONNECTOR (3-PIN)1
3422974CAP-CONNECTOR (6-PIN)1
3949569SOCKET-CONNECTOR (16-GA TO 18-GA)39
3748331PLUG AS-CONNECTOR (86-PIN)1
4355221KIT-BOLT (CONNECTOR)1
4355222SEAL1
091903528 SPACER (11X25X20-MM THK)1
099641829 NUT (M6X1-THD)1
132578930 CLIP (LADDER)5
184916031 GROMMET1
204228132 STRAP-CABLE27
204167333 STRAP-CABLE3
204800034 MOUNTING-CABLE TIE27
2G876735 WASHER (10.5X60X3-MM THK)9
306852636 GROMMET3
4K886437 CLIP (LOOP)1
4P758138 CLIP (LADDER)1
5C726139 NUT (M8X1.25-THD)1
6G226340 SPACER (10.5X19X28.5-MM THK)6
6W600541 HOLD-DOWN-BATTERY1
7I267342 STRAP-CABLE2
7X262143 BOLT (M10X1.5X12-MM)1
8T188944 CLIP (SLOT)3
8T189045 CLIP (TAB)3
8T412146 WASHER-HARD (11X21X2.5-MM THK)66
8T413347 NUT (M10X1.5-THD)2
8T413648 BOLT (M10X1.5X25-MM)11
8T413749 BOLT (M10X1.5X20-MM)30
8T418550 BOLT (M10X1.5X50-MM)5
8T418651 BOLT (M10X1.5X40-MM)3
8T418952 BOLT (M8X1.25X20-MM)2
8T419153 BOLT (M10X1.5X16-MM)15
8T419554 BOLT (M10X1.5X30-MM)4
8T422455 WASHER-HARD (8.8X16X2-MM THK)2
8T422656 WASHER-PLATED (10.5X45X3-MM THK)1
8T646657 BOLT (M10X1.5X60-MM)1
