System And Components

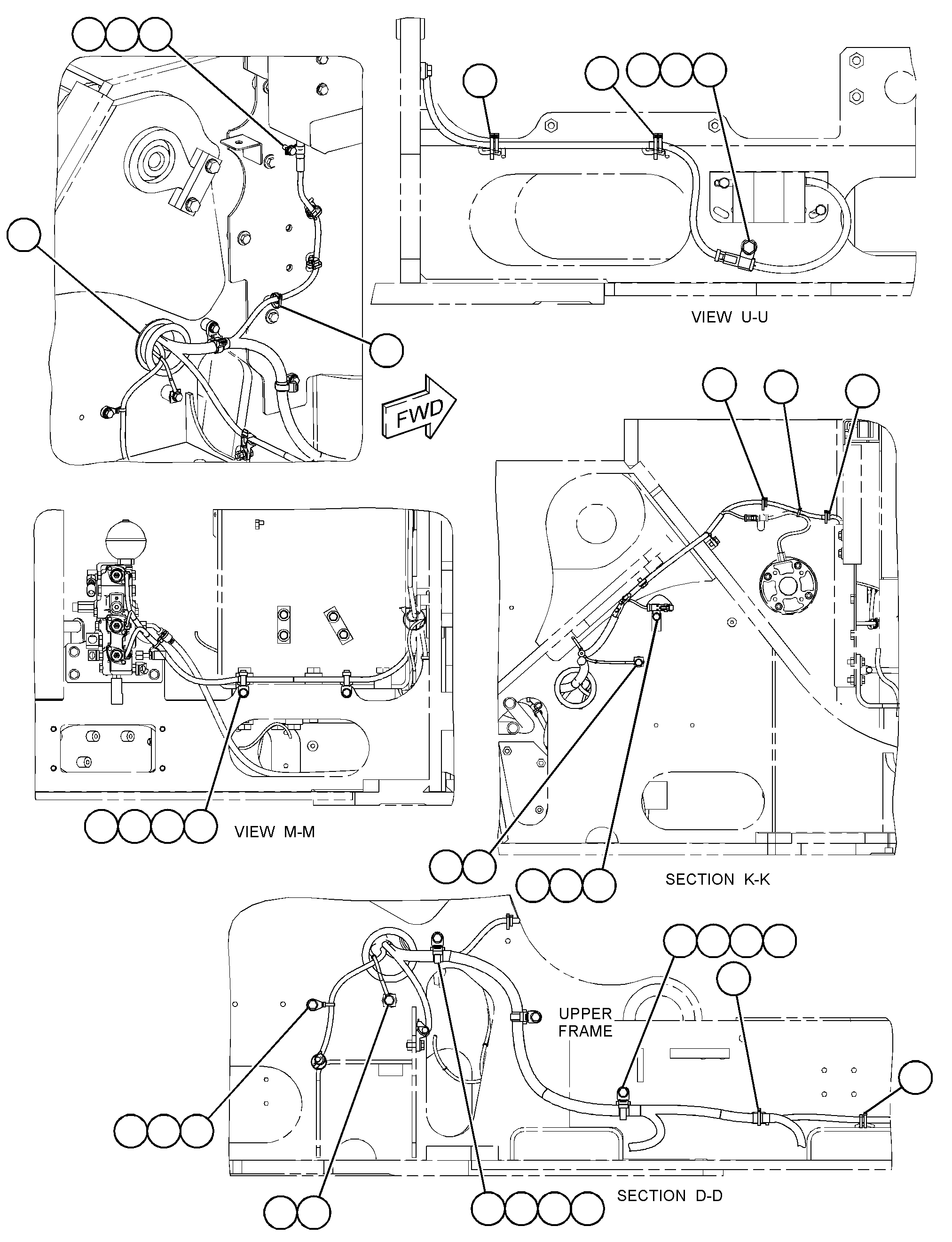

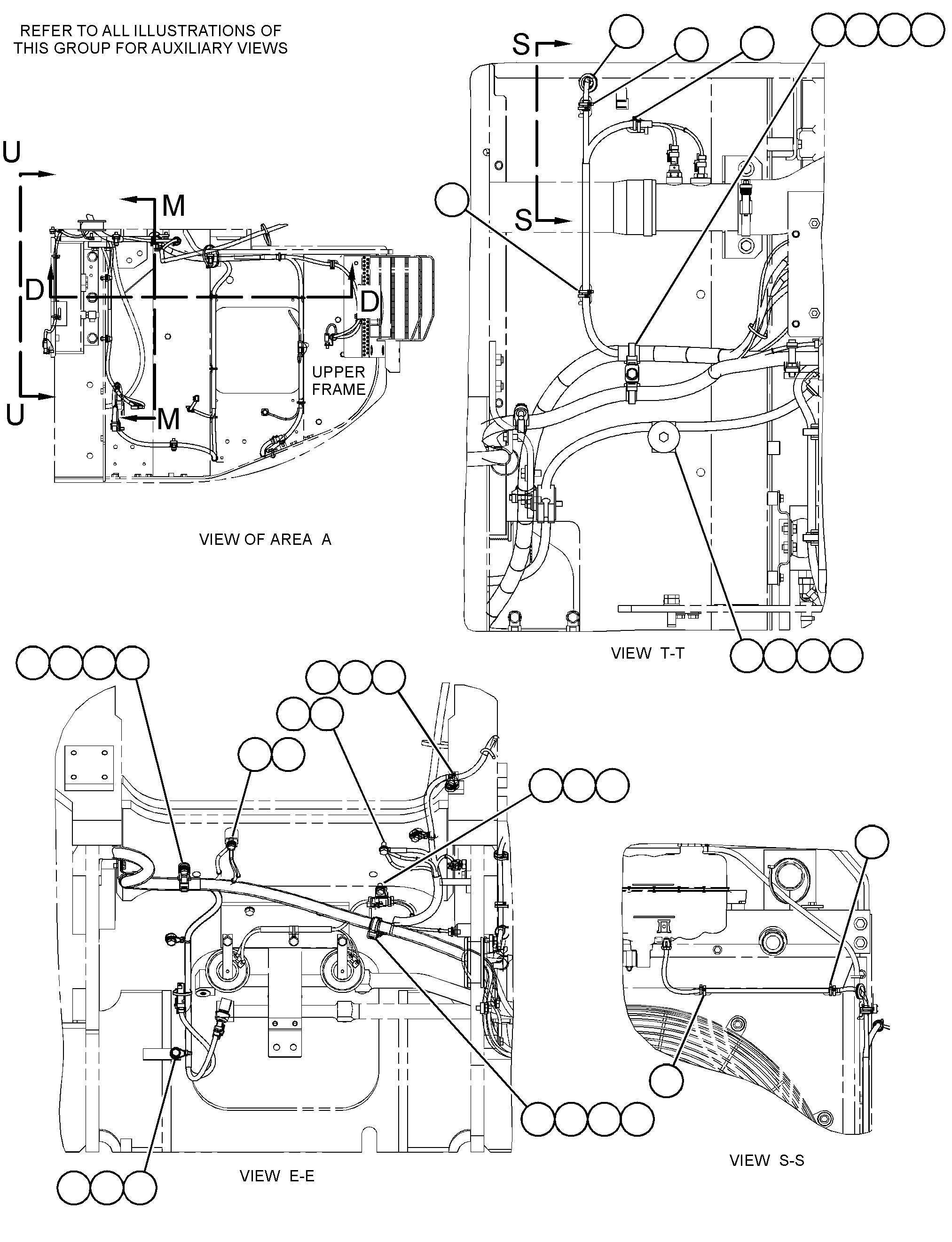

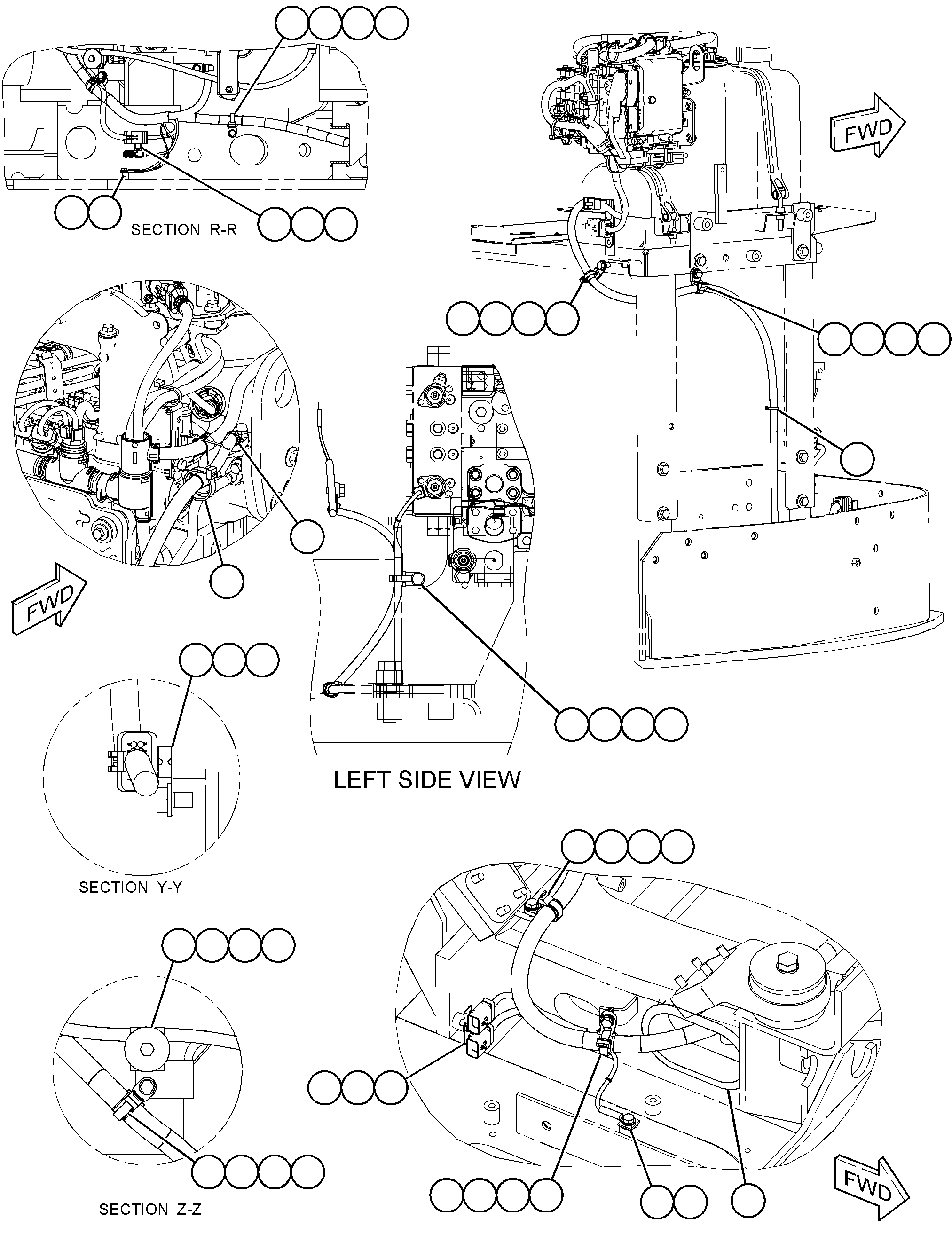

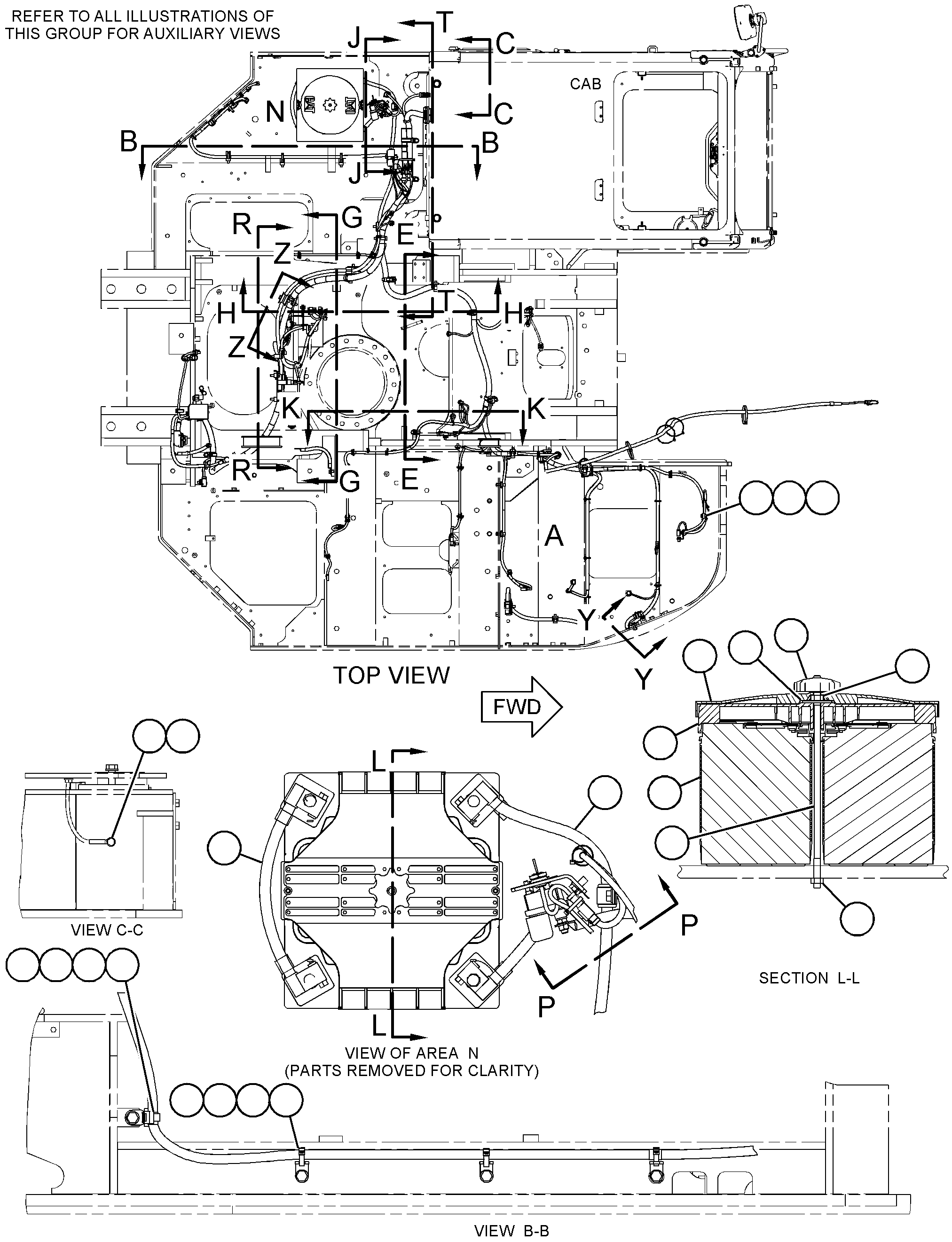

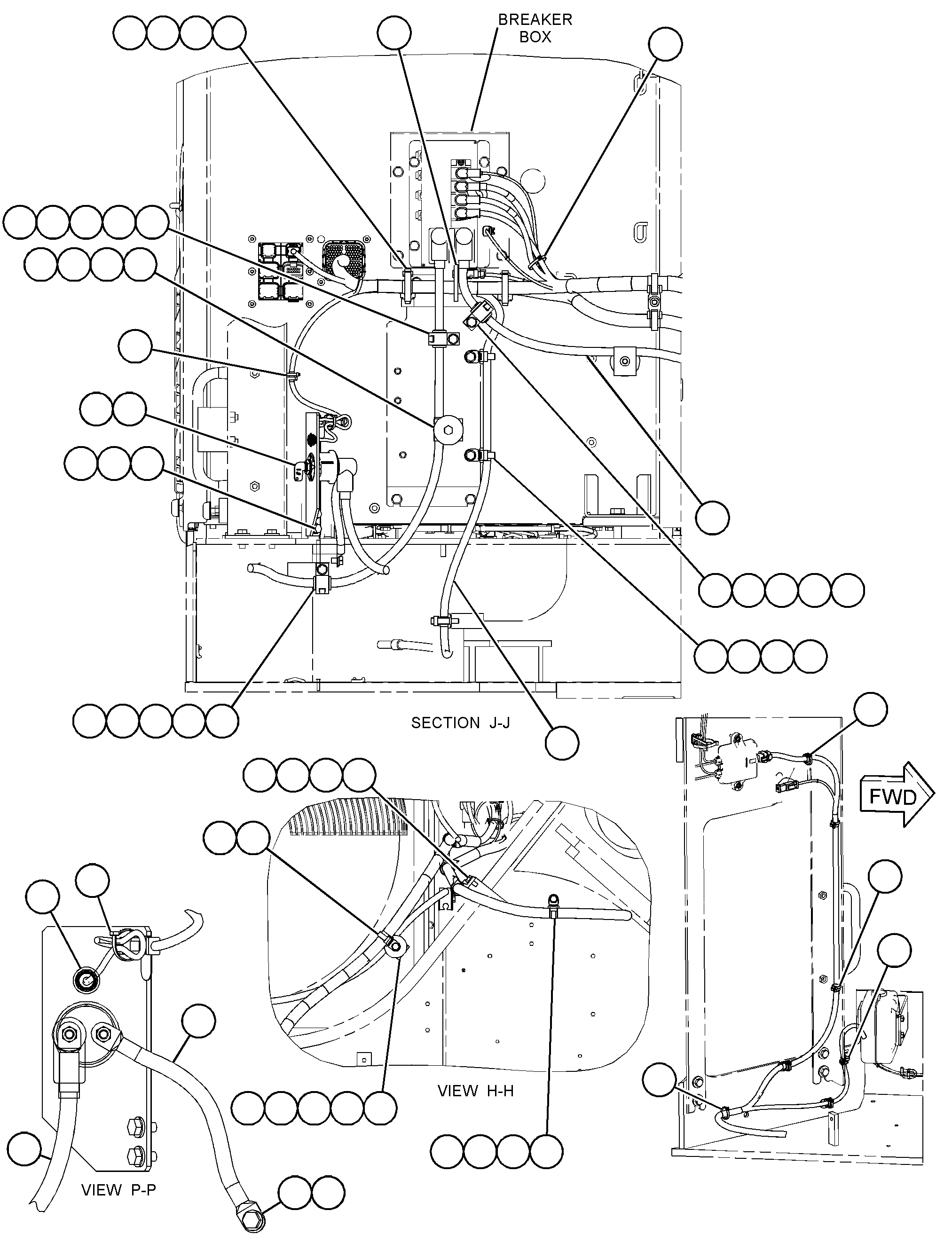

502-5970 BATTERY & WIRING GPS/N KNE10001-UP
Group No: 502-5970 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3E8320 | 1 PLATE-INSTRUCTION (BATTERY) | 1 | |
| 3S2093 | 2 STRAP-CABLE | 71 | |
| 5I8270 | 3 COVER-BATTERY | 1 | |
| 6G2256 | 4 CLAMP | 5 | |
| 6W6005 | 5 HOLD-DOWN-BATTERY | 1 | |
| 7K1181 | 6 STRAP-CABLE | 15 | |
| 7N0719 | 7 SWITCH GP-DISCONNECT (BATTERY) | 1 | |
| 1114836 | 8 CLIP | 6 | |
| 1160118 | 9 CLIP | 8 | |
| 1295947 | 10 GROMMET | 1 | |
| 1321805 | 11 STRAP AS-GROUND | 1 | |
| 1910348 | 12 GROMMET | 1 | |
| 2382501 | 13 KNOB | 1 | |
| 2639574 | 14 BATTERY AS (12-VOLT, MAINTENANCE FREE) | 2 | |
| 2678055 | 15 ROD | 1 | |
| 3280132 | 16 CABLE AS | 1 | |
| 9G0002 | COVER AS-TERMINAL (RED) | 1 | |
| 9G0005 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 8C5918 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 8T9756 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1598049 | CABLE (00-GA, RED)(31-CM) | ||
| 3280181 | 17 STRAP AS-GROUND | 2 | |
| 3967989 | 18 BRACKET AS-ALTERNATOR | 1 | |
| 4153687 | 19 STRAP AS-GROUND | 1 | |
| 4169371 | 20 CABLE AS (BREAKER) | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 9G0002 | COVER AS-TERMINAL (RED) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 8T9756 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1598049 | CABLE (00-GA, RED)(110-CM) | ||
| 3010091 | COVER-TERMINAL (RED) | 1 | |
| 4169373 | 21 CABLE AS (DISCONNECT) | 1 | |
| 8C5918 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 6V2722 | TUBE-HEAT SHRINK (25.4-MM DIA)(0.1-M) | ||
| 9G0005 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 1598050 | CABLE (00-GA, BLACK)(31-CM) | ||
| 4171283 | 22 BRACKET AS | 1 | |
| 4171285 | 23 BRACKET AS | 1 | |
| 4193911 | 24 LAMP GP-INDICATOR (12/24-VOLT, AMBER) | 1 | |
| 4257851 | 25 BRACKET AS | 1 | |
| 4348092 | 26 CABLE AS (STARTER) | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 2 | |
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 1598049 | CABLE (00-GA, RED)(204-CM) | ||
| 3010091 | COVER-TERMINAL (RED) | 1 | |
| 4509336 | 27 BRACKET AS | 1 | |
| 5030905 | 28 HARNESS AS-CHASSIS | 1 | |
| 0919035 | 29 SPACER (11X25X20-MM THK) | 1 | |
| 0996418 | 30 NUT (M6X1-THD) | 1 | |
| 1325789 | 31 CLIP (LADDER) | 5 | |
| 1849160 | 32 GROMMET | 1 | |
| 1772215 | 33 STRAP-DUAL CLAMP | 3 | |
| 2042281 | 34 STRAP-CABLE | 27 | |
| 2048000 | 35 MOUNTING-CABLE TIE | 27 | |
| 2G8767 | 36 WASHER (10.5X60X3-MM THK) | 9 | |
| 3068526 | 37 GROMMET | 3 | |
| 4K8864 | 38 CLIP (LOOP) | 1 | |
| 4P7581 | 39 CLIP (LADDER) | 1 | |
| 5C7261 | 40 NUT (M8X1.25-THD) | 1 | |
| 6G2263 | 41 SPACER (10.5X19X28.5-MM THK) | 6 | |
| 7I2673 | 42 STRAP-CABLE | 2 | |
| 7X2621 | 43 BOLT (M10X1.5X12-MM) | 1 | |
| 8T1889 | 44 CLIP (SLOT) | 3 | |
| 8T1890 | 45 CLIP (TAB) | 3 | |
| 8T4121 | 46 WASHER-HARD (11X21X2.5-MM THK) | 66 | |
| 8T4133 | 47 NUT (M10X1.5-THD) | 2 | |
| 8T4136 | 48 BOLT (M10X1.5X25-MM) | 11 | |
| 8T4137 | 49 BOLT (M10X1.5X20-MM) | 30 | |
| 8T4185 | 50 BOLT (M10X1.5X50-MM) | 5 | |
| 8T4186 | 51 BOLT (M10X1.5X40-MM) | 3 | |
| 8T4189 | 52 BOLT (M8X1.25X20-MM) | 2 | |
| 8T4191 | 53 BOLT (M10X1.5X16-MM) | 15 | |
| 8T4195 | 54 BOLT (M10X1.5X30-MM) | 4 | |
| 8T4224 | 55 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T4226 | 56 WASHER-PLATED (10.5X45X3-MM THK) | 1 | |
| 8T6466 | 57 BOLT (M10X1.5X60-MM) | 1 |
