System And Components

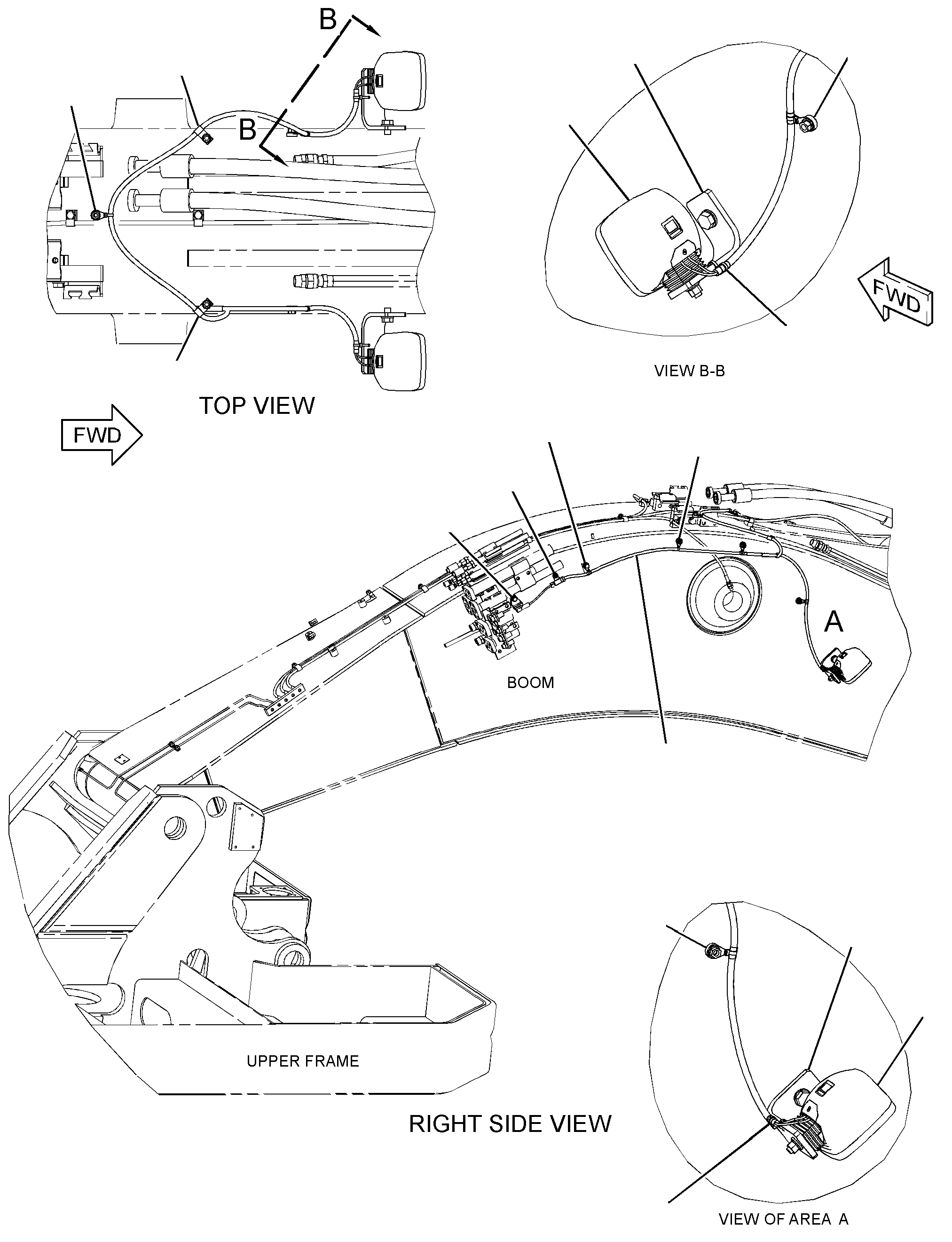

267-7800 LIGHTING GP-FLOOD -BOOMS/N KNE1-UP
Group No: 267-7800 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7I2673 | 1 STRAP-CABLE | 2 | |
| 1114836 | 2 CLIP | 6 | |
| 1114837 | 3 CLIP | 1 | |
| 1160118 | 4 CLIP | 1 | |
| 1532521 | 5 LAMP GP-FLOOD (24-VOLT) | 2 | |
| 2677919 | 6 HARNESS AS-LIGHTING | 1 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 2 | |
| 2L8075 | TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW) | 4 | |
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) | ||
| 2434505 | RECEPTACLE AS-CONNECTOR (2-PIN) | 1 | |
| 1343284 | 7 BRACKET | 2 | |
| 6V3265 | 8 CLIP | 2 | |
| 8T4121 | 9 WASHER-HARD (11X21X2.5-MM THK) | 10 | |
| 8T4133 | 10 NUT (M10X1.5-THD) | 8 | |
| 8T4191 | 11 BOLT (M10X1.5X16-MM) | 2 | |
| 4532834 | 12 BOLT (M16X2X30-MM) | 2 | |
| 4512175 | 13 WASHER-HARD (17.5X30X3.5-MM THK) | 2 |
