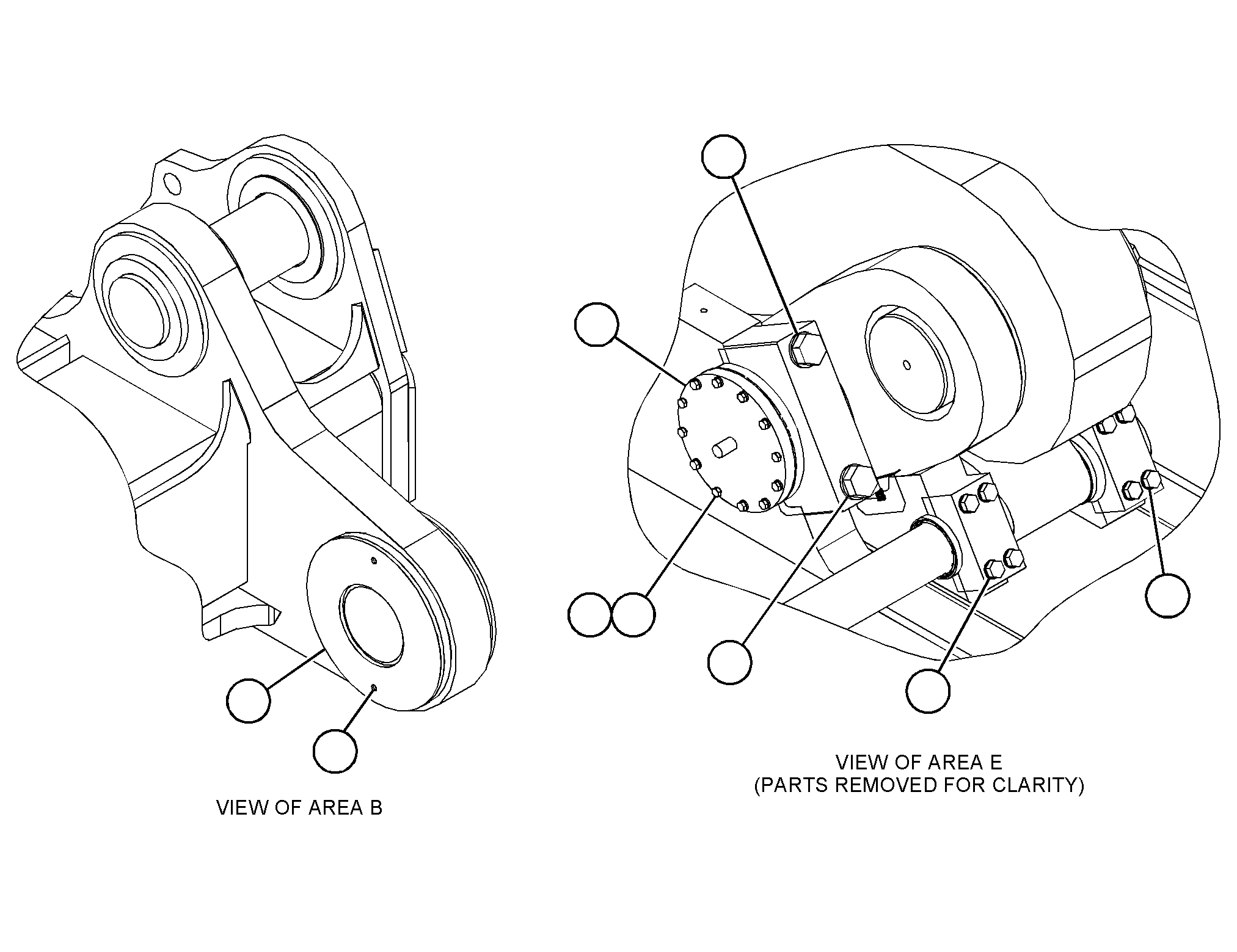

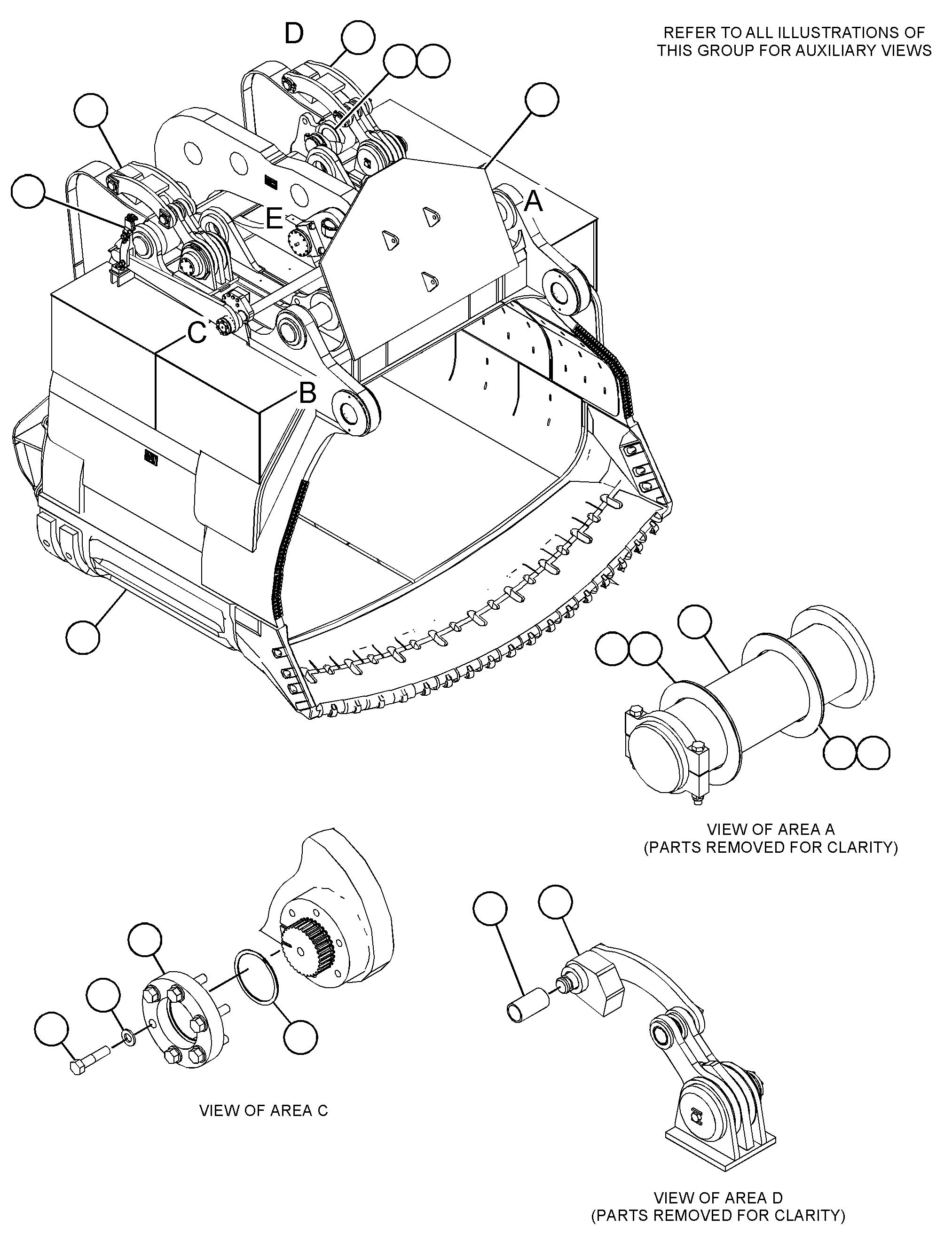

462-1434 BUCKET GP-DIPPER5255-MM (207-IN) WIDE X 45.1-CU M (59-CU YD) CAPACITY

Group No: 462-1434
Part NumberPart NameQty
45170701 SNUBBER GP (GRAPPLE)1
45170712 SNUBBER GP (GRAPPLE)1
45471773 DOWEL8
45471784 WASHER (212.9X304.8X6-MM THK)8
45471795 WASHER (212.9X304.8X3-MM THK)8
45472236 WASHER (238.3X495.3X12-MM THK)4
46214487 RING-RETAINING2
46215048 BUCKET GP-DIPPER1
46215059 RETAINER1
462151310 LINK GP1
462152311 GUARD GP-BUCKET1
466797312 PIN GP2
6V7688LOCKNUT (M20X2.5-THD)2
7X2568BOLT (M20X2.5X180-MM)2
4524962CLAMP2
4547182PIN AS1
480390713 COVER AS2
4621511GASKET1
3B450714 LOCKWASHER24
8C636215 BOLT (5/8-11X2.75-IN)6
8T412216 WASHER-HARD (17X32X3.5-MM THK)6
8T418217 BOLT (M10X1.5X45-MM)24
8T412318 WASHER (22X35X3.5-MM THK)8
9X825919 WASHER (39X66X6-MM THK)4
493520320 LUG AS2
451709820A BUSHING1
4621503PLATE AS1
