System And Components

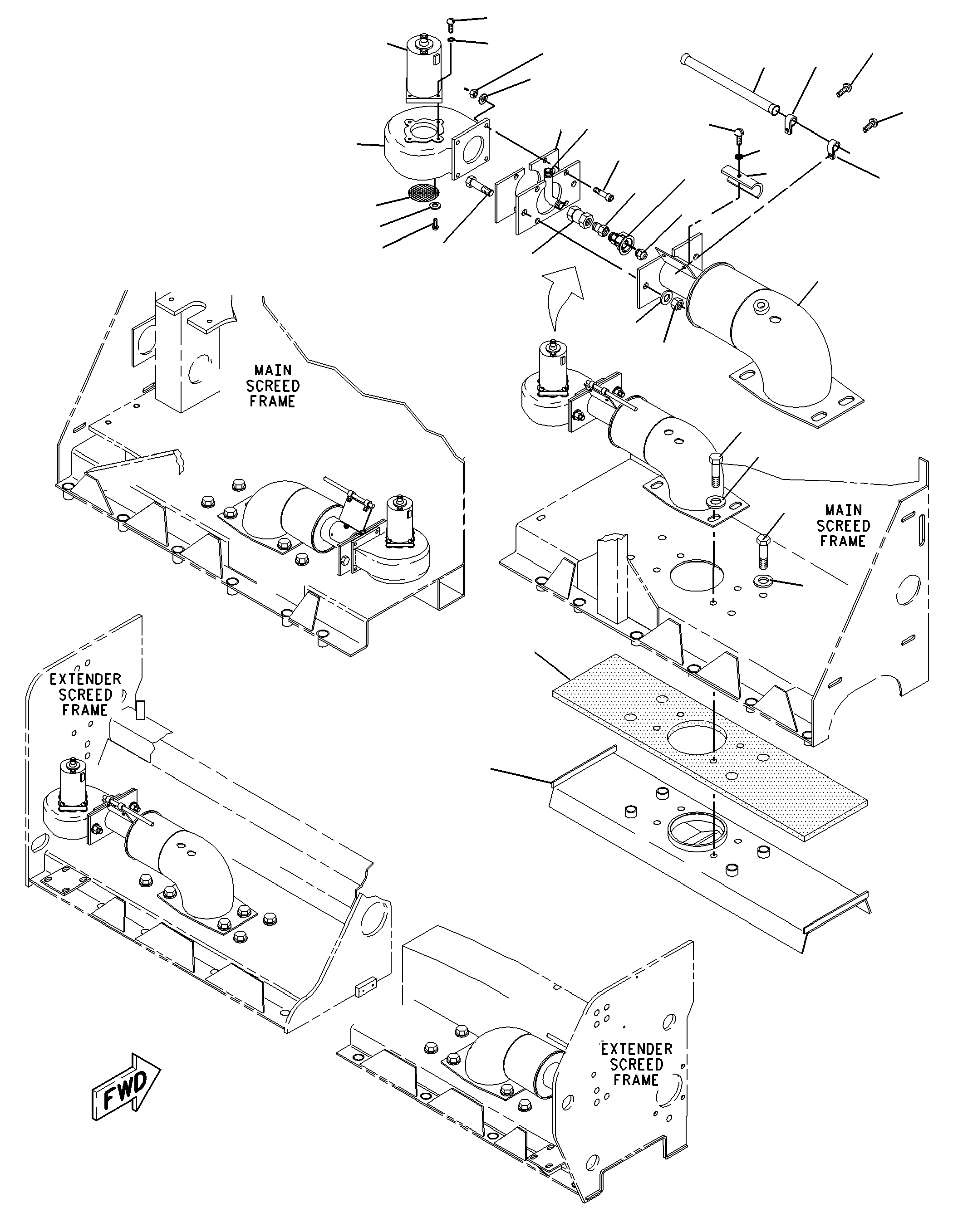

8I-0154 BURNER GPPART OF 8I-0557 SCREED AR
Group No: 8I-0154
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8I0156 | 1 CHAMBER AS-LOWER BURNER | 4 | |
| 8T4835 | 2 BOLT (1/2-13X2-IN) | 16 | |
| 8T4223 | 3 WASHER-HARD (13.5X25.5X3-MM THK) | 24 | |
| 1419269 | 4 CHAMBER AS-UPPER | 4 | |
| 1419272 | 5 PLATE-COVER | 4 | |
| 8T8917 | 6 BOLT (1/2-13X1.25-IN) | 16 | |
| 8J1256 | 7 CLIP (LOOP) | 8 | |
| 8I0997 | 8 CONNECTOR AS | 4 | |
| 8I0998 | 9 BRACKET-MOUNTING | 4 | |
| 5P2566 | 10 BOLT (1/2-13X1.5-IN) | 8 | |
| 6V8188 | 11 NUT (1/2-13-THD) | 8 | |
| 8M6802 | 12 SCREW-HEX SOCKET (1/4-20X1-IN) | 16 | |
| 8T4205 | 13 WASHER-HARD (7.2X14.5X2-MM THK) | 16 | |
| 6V8185 | 14 NUT (1/4-20-THD) | 16 | |
| 1037347 | 15 MOTOR AS | 4 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 3E3365 | WEDGE-RECEPTACLE LOCK (2-PIN) | 1 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 2 | |
| 9X1813 | SLEEVE | ||
| 1022697 | 16 WHEEL-BLOWER | 4 | |
| 1022698 | 17 HOUSING-BLOWER | 4 | |
| 0454065 | 18 SCREW-MACHINE (10-32X0.75-IN) | 16 | |
| 9F8125 | 19 LOCKWASHER | 24 | |
| 1022736 | 20 SCREEN-INLET | 4 | |
| 0309612 | 21 SCREW-FORMING (10-24X0.5-IN) | 24 | |
| 4B4274 | 22 WASHER (5.5X13X1.2-MM THK) | 8 | |
| 1022706 | 23 RING-FLAME | 4 | |
| 1022688 | 24 NOZZLE | 4 | |
| 1022725 | 25 ADAPTER | 4 | |
| 1118140 | 26 VALVE-CHECK | 4 | |
| 8I0164 | 27 INSULATION | 4 | |
| 5P1076 | 28 WASHER-HARD (13.5X30X4-MM THK) | 16 | |
| 1041797 | 29 TUBE | 4 |
